CTP Systèmes AMSKY Aurora U8128
machines d'impression / prépresse: flasheuses et CTP / CTP Systèmes
CTP AMSKY AURORA U8128 -Year 2016 -Complete with plate autoloading system -Technical details : -Exposing Method:External Drum -Imaging System 128-channel -Discrete 400-410nm laser -Output Speed 45 plates/hour ; 1,030mm×800mm 2,400dpi, 745mm×605mm 1,200dpi -Plate Size Max.1,130×920mm, Min. ...
Fabricant: AMSKY
Modèle:Aurora U8128
Type de machine: CTP Systèmes
Numéro de l'article: 170208634
Quantité: 1
Date: 19.09.2026
Année de fabrication: 2016
Emplacement:
Italie
13900 Biella
Prix: 11,000 EUR
Votre proposition de prix:
Machine en stock:Oui

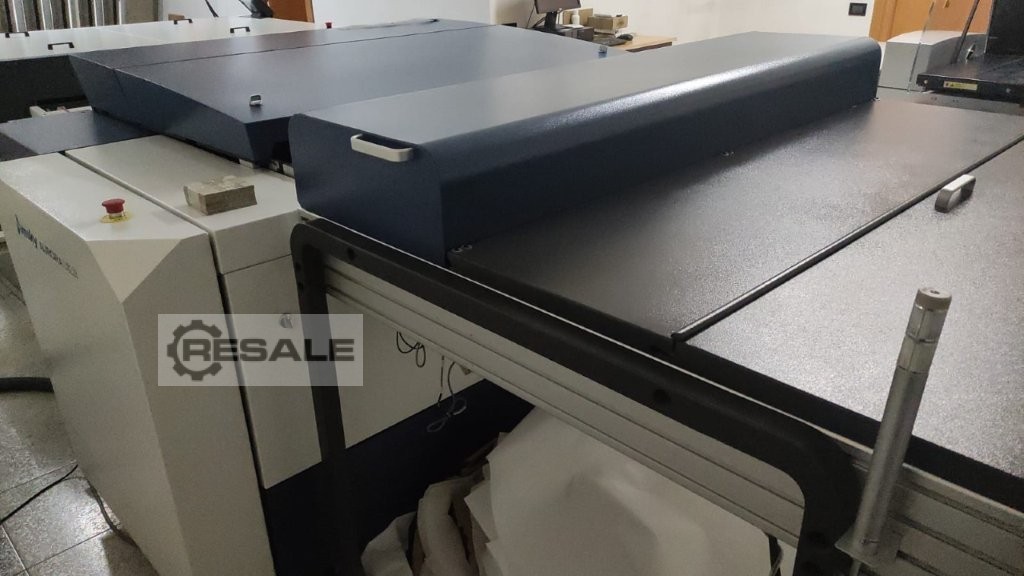

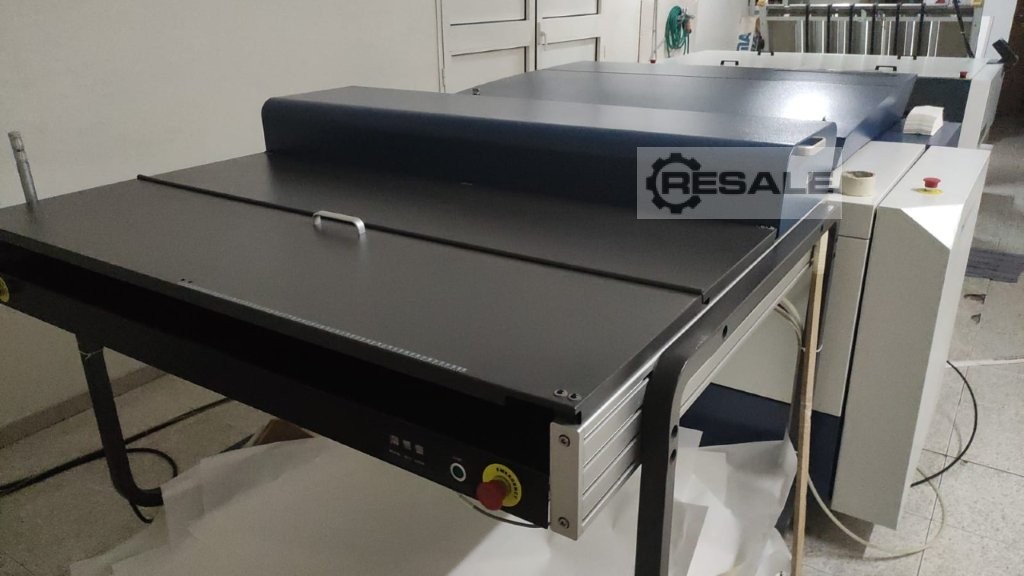

CTP AMSKY AURORA U8128
-Year 2016
-Complete with plate autoloading system
-Technical details :
-Exposing Method:External Drum
-Imaging System 128-channel
-Discrete 400-410nm laser
-Output Speed 45 plates/hour ; 1,030mm×800mm 2,400dpi, 745mm×605mm 1,200dpi
-Plate Size Max.1,130×920mm, Min. 510×400mm
-Exposing Size Max. 1,130×904mm
-Plate Type UV plate, high-sensitive PS plate
-Plate Thickness 0.15mm-0.3mm
-Resolutions 2,400dpi ; 1,200dpi
-Repeatablity ±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C )
-Interface USB2.0 / USB3.0
-Plate Loading autoload system
-RIP with computer and monitor, Plate stacker
-Net Weight 1,200KG
-Device Sizes: 2,010×1,410×1,200 mm (W×D×H) without Autoload system
-Power supply: Single phase:200V-240V; Power:4,8 KW
-Year 2016
-Complete with plate autoloading system
-Technical details :
-Exposing Method:External Drum
-Imaging System 128-channel
-Discrete 400-410nm laser
-Output Speed 45 plates/hour ; 1,030mm×800mm 2,400dpi, 745mm×605mm 1,200dpi
-Plate Size Max.1,130×920mm, Min. 510×400mm
-Exposing Size Max. 1,130×904mm
-Plate Type UV plate, high-sensitive PS plate
-Plate Thickness 0.15mm-0.3mm
-Resolutions 2,400dpi ; 1,200dpi
-Repeatablity ±5μm(Continuous exposure over four times on the same plate with a temperature of 23°C )
-Interface USB2.0 / USB3.0
-Plate Loading autoload system
-RIP with computer and monitor, Plate stacker
-Net Weight 1,200KG
-Device Sizes: 2,010×1,410×1,200 mm (W×D×H) without Autoload system
-Power supply: Single phase:200V-240V; Power:4,8 KW
