Machine à traiter le fil KOMAX Alpha 433 L

KOMAX Alpha 433 L wire processing machine was built in 2007 in Switzerland by KOMAX AG. The machine is used for the automatic processing of wires used in electrical installations and industrial applications. The process includes wire positioning, cutting, stripping and crimping. All operations are performed within a single cycle, without the need to manually move the wire between successive workstations.

The KOMAX Alpha 433 L is designed to process wires with cross-sections ranging from 0,20 to 6 mm2 and a maximum length of 65000 mm. The machine is equipped with four mci 721 crimping modules with integrated crimping force sensors and programmable crimp height adjustment. Once processing is complete, the finished wires are marked directly on the insulation. The markings can include an identification number, a symbol or other information that facilitates the identification of the wire during assembly and further production processes. The combination of all these features guarantees the efficient preparation of cables according to specified standards, whilst maintaining a high degree of repeatability. The KOMAX Alpha automatic wire processing machine weighs approximately 1250 kg.

Technical specifications of the KOMAX Alpha 433 L wire processing machine
- maximum wire length: 65000 mm
- minimum wire length: 60 mm
- wire size: 0,2-6 mm2 (AWG 24 – AWG 10)
- wire length accuracy: ± 1 mm or <0,2%, depending on wire length
- stripping length: 0,1-15 mm
- stripping length with partial pull-off (wire start): 45 mm ± 1 mm
- stripping length with partial pull-off (wire end): 38 mm ± 1 mm
- insulation: PVC, teflon, kynar, silicone, milene, nylon, neoprene, fibreglass
- cable feeding system with a brushless AC servomotor and integrated anti-slip system
- maximum wire feeding speed: 10 m/s
- pneumatic connection: 5-6 bar

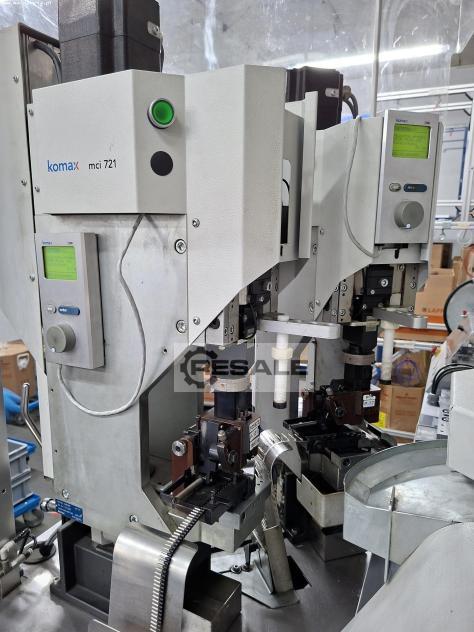

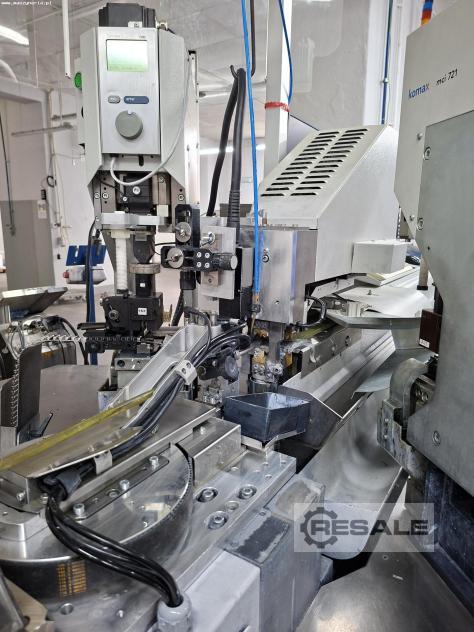

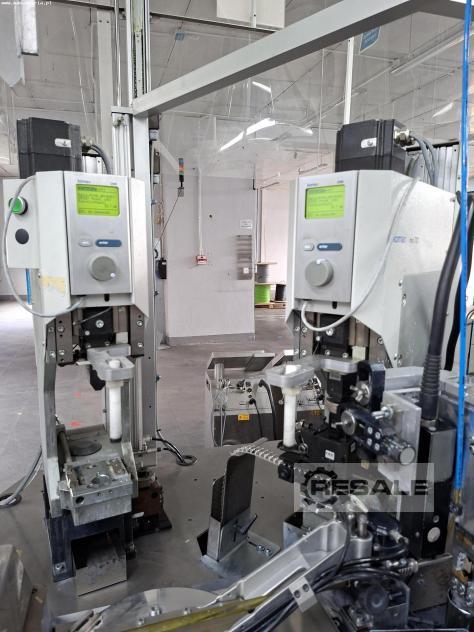

- KOMAX mci 721 crimping module (4 pcs.)

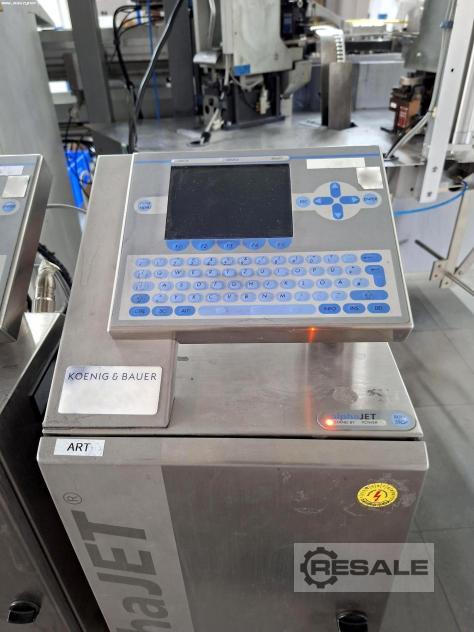

- printer (2 pcs.)
- air consumption: 9 m3/h
- noise level: <75 dBA
- power supply: 3x 208-480 V; 50/60 Hz
- weight of the Alpha 433 L machine: approx. 1250 kg
