MB Fentech Zwischenschliff Ponceuses à bande

Number of sanding units: 8 St.
sanding width: 25-240 mm
Sanding height max.: 15-140 mm
B ROBA Fentech, Fully automatic sanding machine

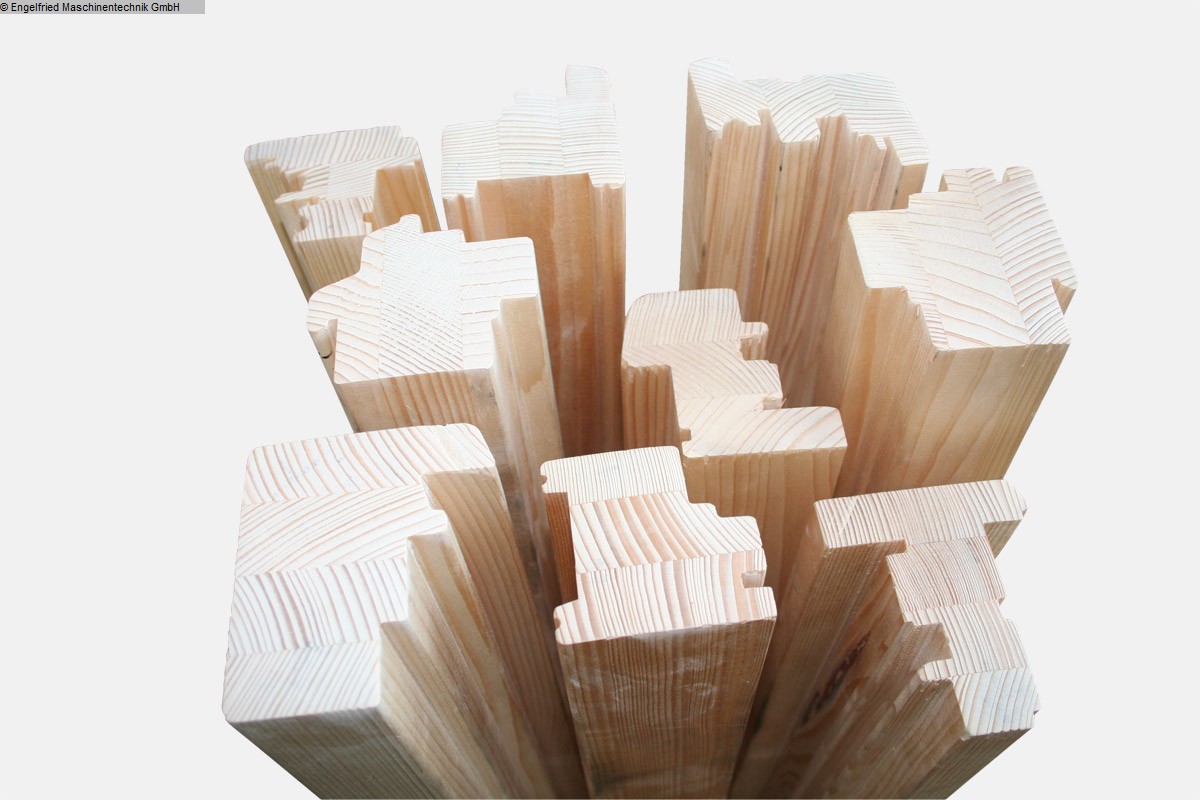

Designed for sanding individual wooden components in window manufacturing, it is suitable for the following applications:
- Fine sanding of wood
- Sanding after impregnation
- Intermediate lacquer sanding
Advantages of the ROBA Fentech system:
- Automatic workpiece detection via scanner at the machine infeed
- Motorized positioning of sanding units
- Oscillating side units optimize abrasive utilization
- 400 mm diameter sanding tools optimize sanding quality
- Angled profiles are sanded at their optimal angle
- Can be used as a straight-through machine or in reversing mode for one-person operation
- Vacuum transport system for processing short parts
- Enclosed design for enhanced workplace safety and a dust-free environment
- Compact, space-saving design
- Freely selectable abrasive configuration from the MB Flex system. Brief overview of technical details (detailed description available upon request!):
Workpiece length: max. unlimited, min. approx. 250 mm
Workpiece width: 25–240 mm
Workpiece height: 15–140 mm
- Automatic, scanner-based workpiece detection at the machine infeed
- 2.0 m infeed table
- Driven vacuum transport system

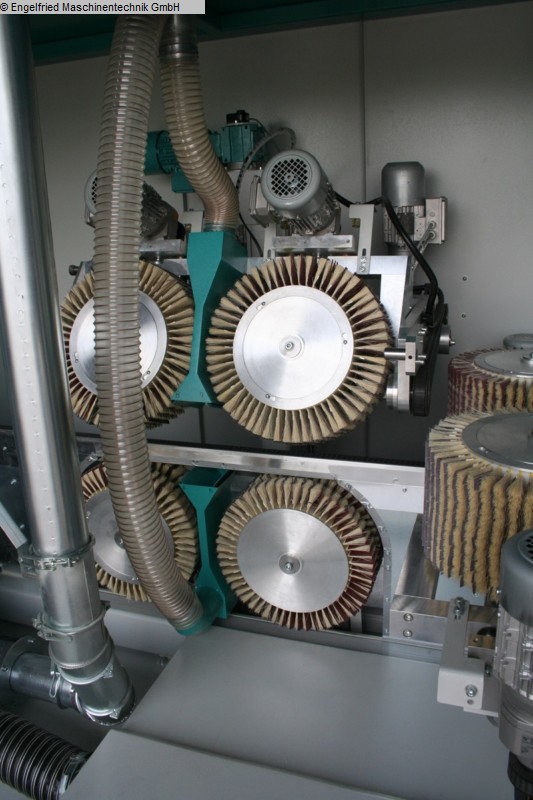

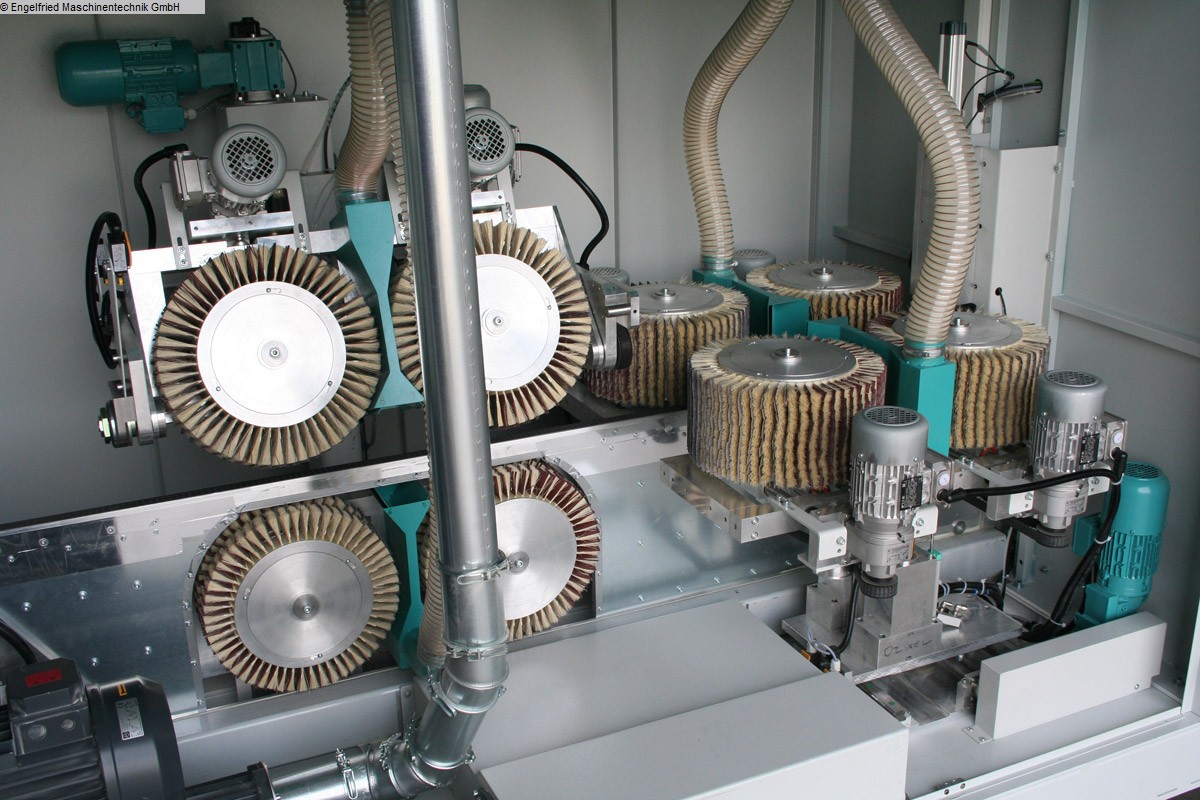

- 1x twin-spindle unit for right-side processing
- 1x twin-spindle unit for left-side processing
- 1x twin-spindle unit for processing from below
- 1x swiveling twin-spindle unit for processing from above
- 2.0 m outfeed table
- Initial set of abrasives
- Roba Fentech HMI (9 display, 400x400 housing, Siemens HMI)
- Siemens control system
- Electrical components: Klöckner Möller
- Geared motor: Getriebebau Nord
- Frequency converter: Schneider Electric
- CE mark
----------------------------------
Ex-works price upon request!
Plus freight and commissioning
NEW FEATURE:
Fentech Standard optionally upgradeable to orbital sanding:
The orbital sanders are installed in an extended housing section positioned ahead of the standard machine configuration.
This allows us to combine the effective, scratch-free sanding action of the orbital sanders
with the finish provided by the brushes. This ensures that the visible surfaces of the window profiles
have a perfectly flat finish, completely free of raised wood fibers thanks to the subsequent brush sanding process.
(Technical specifications provided by the manufacturer – subject to change!)
