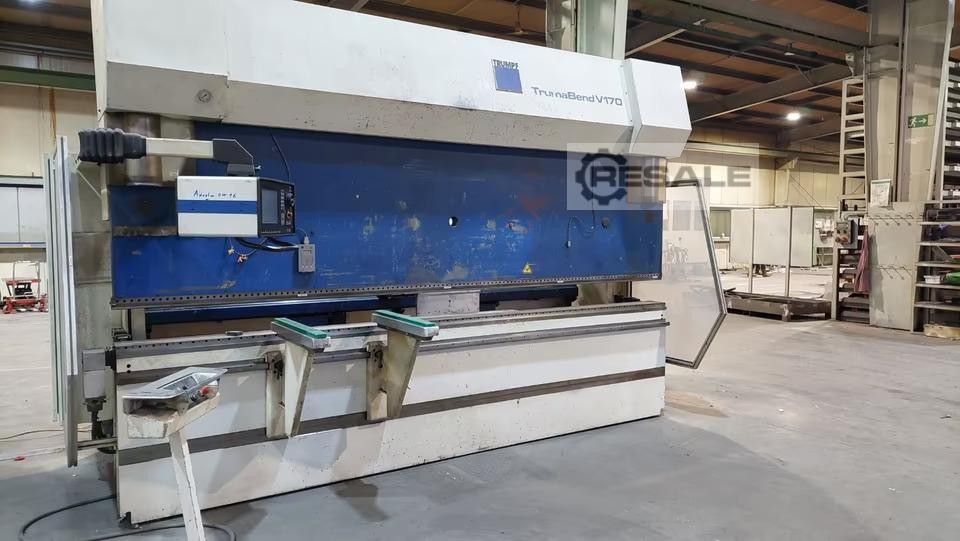

Presses plieuses à CN TRUMPF TrumaBend V170
machines de travail des métaux / presses / Presses plieuses à CN
Technical data: - Max. working length 4060 mm - Column passage 3680 mm - Max. pressing force 1700 kN - Max. distance table / plunger 385 mm - Stand projection 410 mm - Plunger stroke 215 mm - Lifting speeds - Downward speed idle max. 200 mm/sec - Upward speed 135 mm/sec - Downward pressing speed 1 ...
Fabricant: TRUMPF
Modèle:TrumaBend V170
Type de machine: Presses plieuses à CN
Numéro de l'article: 170211413
Quantité: 1
Date: 20.09.2026
Année de fabrication: 1997
Emplacement:
Allemagne
65510 Idstein-Wörsdorf
Prix: 7,500 EUR
Votre proposition de prix:
Machine en stock:Oui
Technical data:
- Max. working length 4060 mm
- Column passage 3680 mm
- Max. pressing force 1700 kN
- Max. distance table / plunger 385 mm
- Stand projection 410 mm
- Plunger stroke 215 mm
- Lifting speeds
- Downward speed idle max. 200 mm/sec
- Upward speed 135 mm/sec
- Downward pressing speed 1 to 11 mm/sec
- Total drive power 30 kW
- Space requirement approx. W 5600 x H 3000 x D 2400 mm
- Weight approx. 18000 kg

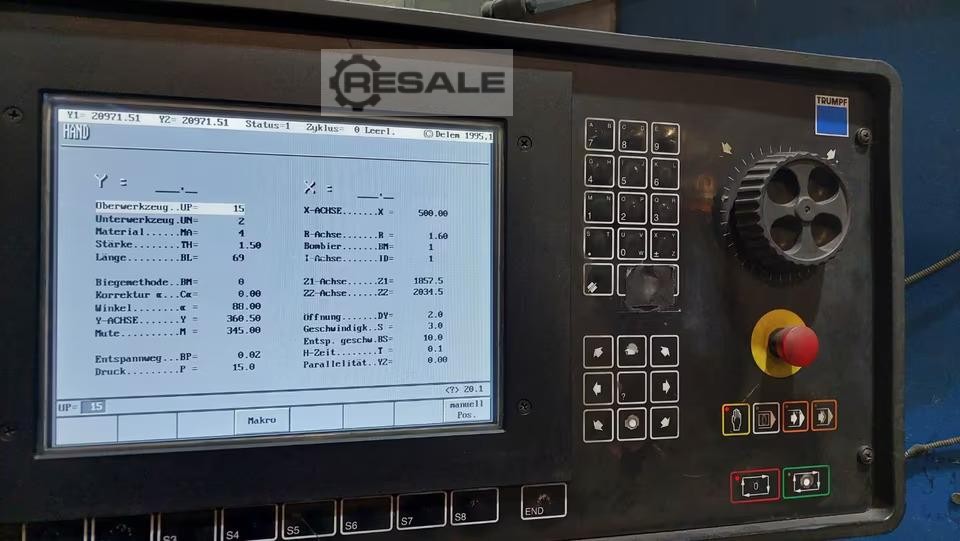

- with: - with 6 axis CNC control DELEM
- Two-hand control panel with foot switch
- crowning device
- Controlled backgauge with height adjustment 5 - 860 mm
- Hydr. Upper + Lower - Tool Clamping
- Die table displacement pneumatically supported
- Max. working length 4060 mm
- Column passage 3680 mm
- Max. pressing force 1700 kN
- Max. distance table / plunger 385 mm
- Stand projection 410 mm
- Plunger stroke 215 mm
- Lifting speeds
- Downward speed idle max. 200 mm/sec
- Upward speed 135 mm/sec
- Downward pressing speed 1 to 11 mm/sec
- Total drive power 30 kW
- Space requirement approx. W 5600 x H 3000 x D 2400 mm
- Weight approx. 18000 kg
- with: - with 6 axis CNC control DELEM
- Two-hand control panel with foot switch
- crowning device
- Controlled backgauge with height adjustment 5 - 860 mm
- Hydr. Upper + Lower - Tool Clamping
- Die table displacement pneumatically supported
