112 BERNARDO machine à vendre

La meuleuse universelle BERNARDO URS 1000 N a été construite en 2021 en Autriche par PWA Handelsgesellschaft m.b.H. C’est une machine extrêmement polyvalente pour le meulage de précision des surfaces cylindriques et internes, d’une longueur maximale de 1000 mm. Les meilleurs résultats d’usinage même lors des défis les plus intenses sont garantis par la tête de travail précisément alignée avec une broche de meule stable. La broche de meule est équipée de roulements coulissants réglables en trois segments. Elle est réglée hydrauliquement ou manuellement selon les besoins de l’opérateur. Le mouvement des axes X et Y s’effectue à son tour sur des guides de précision rainurés à la main, garantissant une grande précision et des mouvements fluides. Le BERNARDO URS 1000 N se distingue également par sa construction robuste, fortement nervurée, avec de grands  ...

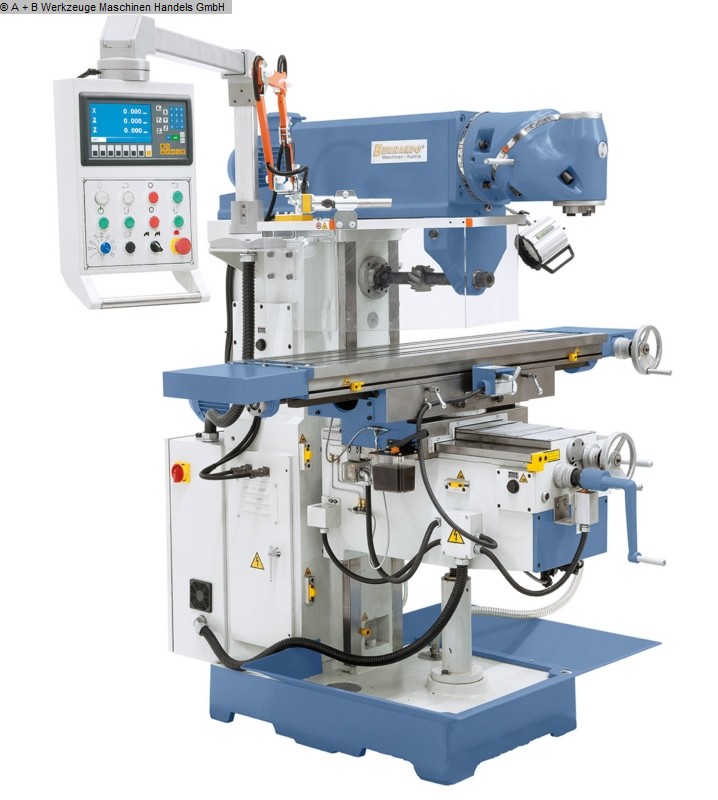

La fraiseuse universelle BERNARDO Variomill FU 2000E Servo a été construite en 2020 en Autriche par PWA Handelsgesellschaft m.b.H. La machine, qui se distingue par sa conception stable en fonte grise et l’utilisation de technologies modernes, est le choix idéal pour l’usinage de pièces lourdes et surdimensionnées. Tous les axes linéaires sont entraînés par des servomoteurs haute performance, qui garantissent des accélérations et des vitesses d’avance appropriées dans chaque direction. De plus, l’axe X a été recouvert d’un revêtement spécial en turcite B pour réduire l’effet de glissement. Tout cela, combiné à un équipement complet, maximise la précision et la répétabilité des pièces produites, même lors des défis les plus intenses. La fraiseuse verticale Variomill FU 2000E Servo pèse 4500 kg. Caractéristiques techniques de la fraiseuse BERNARDO  ...

CAPASITÉ 60 T

pressure: 40.0 t chamfer lenght: 1600 mm distance between columns: 1200 mm column arm: 200 mm ram stroke speed: 60.0 mm/sec return speed: 80. mm/sec work speed: 60.0 mm/sec work stroke: 100 mm table height: 760 mm table width: 150 mm oil volume: 130 ltr. voltage: 400 Volt Control: ESA E21 total power requirement: 4.0 kW weight: 3030 kg range L-W-H: 2050 x 1800 x 2030 mm Demonstration/demo machine () From our showroom (like new) With very few operating hours Furnishing: - compact hydraulic press brake - BERNARDO NC control model E21 - swiveling control panel - electrical adjustment of the backgauge - Back stop on recirculating ball spindles - electrical adjustment of the immersion depth - Laser protection device in front - Upper deer foot tool - divided - Tool holder with quick change system - Universal die block - side + rear protective device - 2x front support arms - movable double  ...

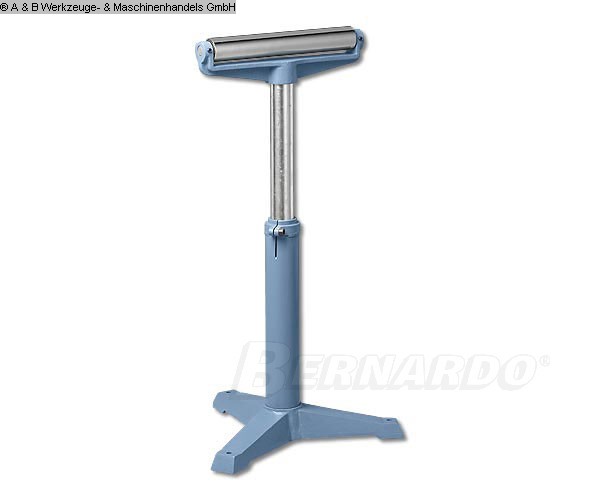

roll diameter: 51 mm Wheel width: 350 mm weight: 20 kg height adjustment: 575 - 975 mm Load capacity per arm: max. 700 kg Furnishing: - Safe workpiece support - by massive and heavy-duty galvanized steel rollers - Roller support steplessly height adjustable and clampable - Problem-free and efficient material transport for the supply and removal of workpieces techn. Details: - Load capacity, max. 700 kg - Standpipe diameter 74/52 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

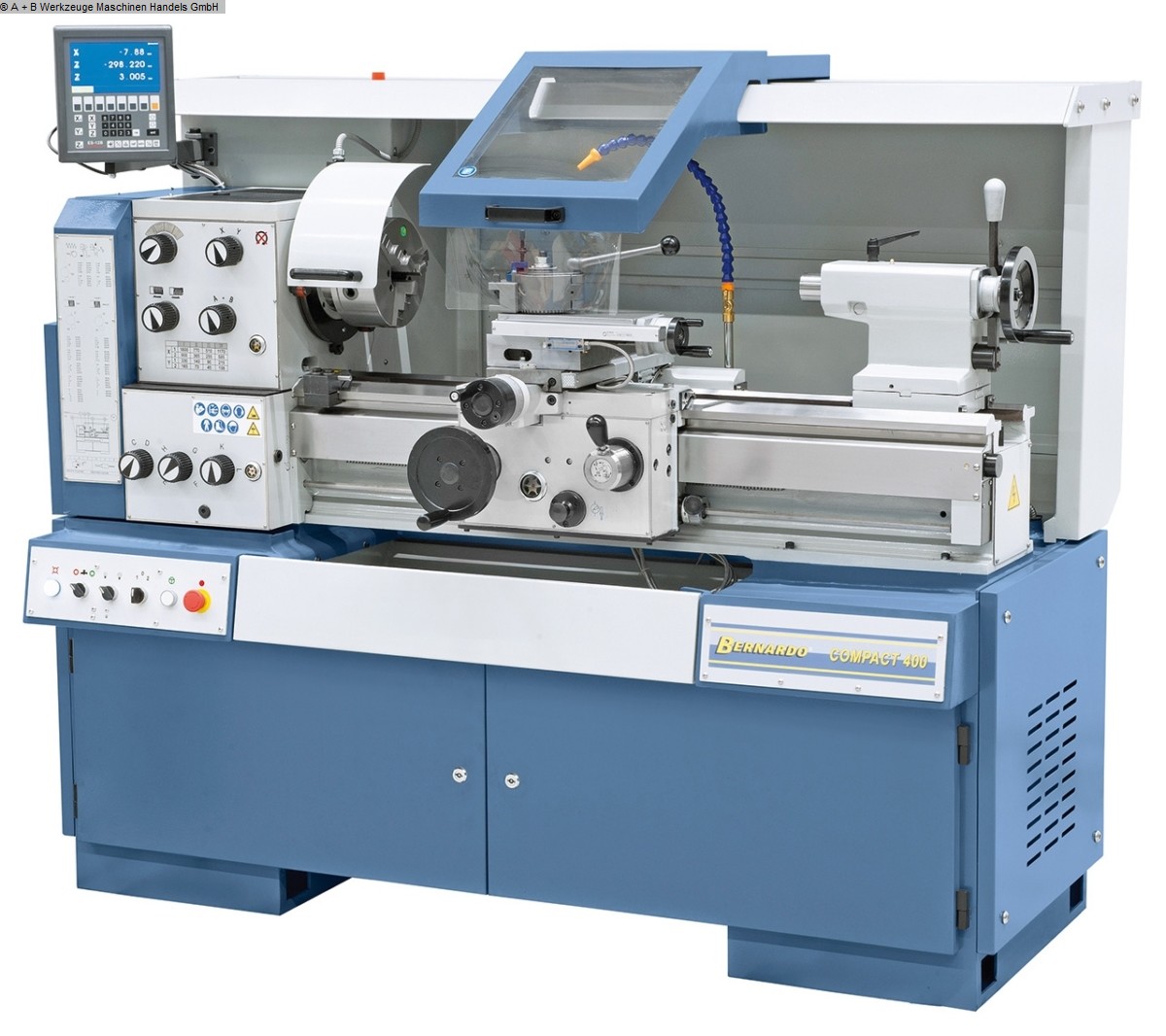

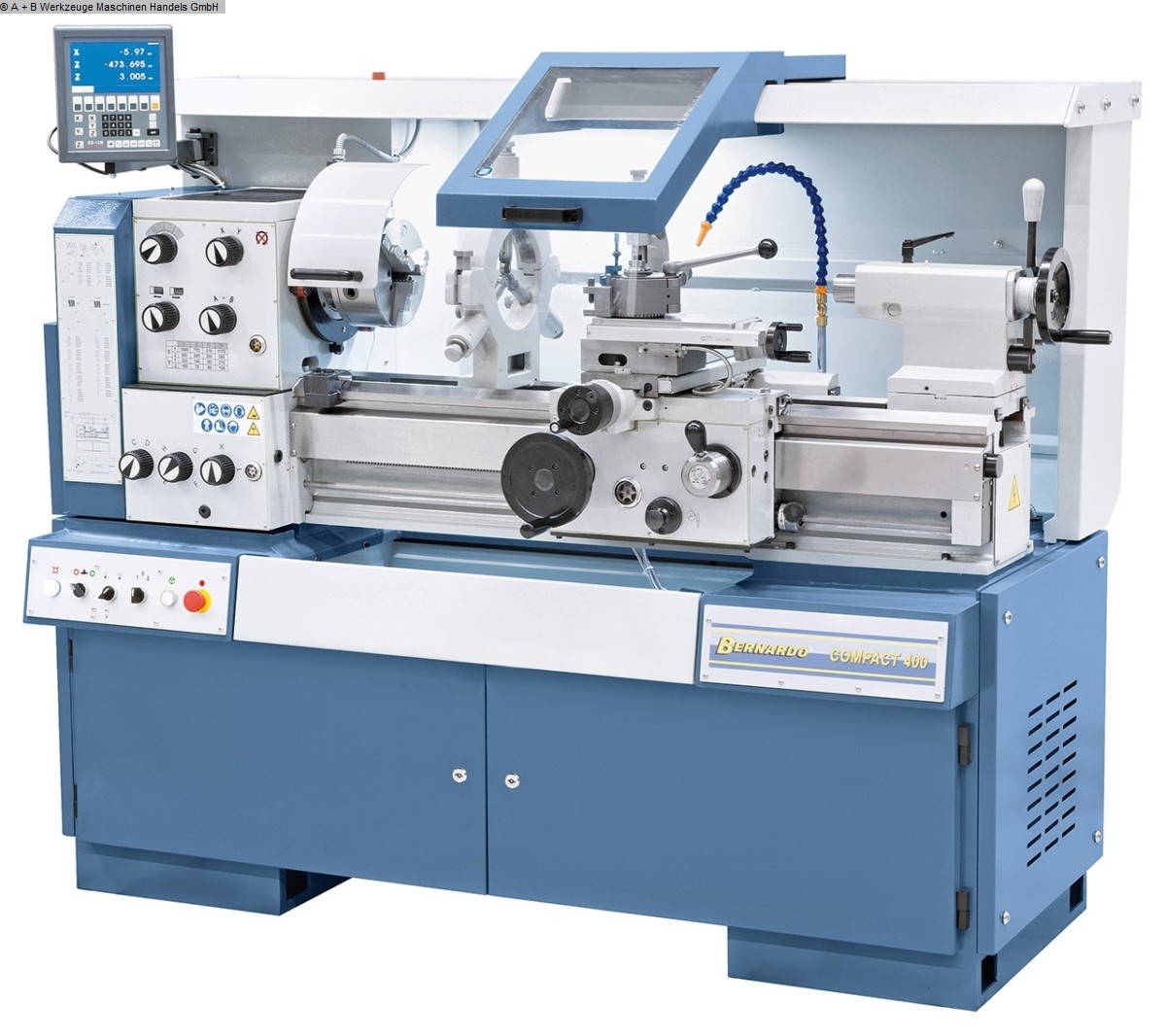

turning length: 850 mm turning diameter: 400 mm swing diameter over bed slide: 245 mm spindle bore: 52.0 mm turning speeds: 45 - 1800 U/min bed width: 260 mm spindle taper: DIN 55029 D 1-5 taper in tailstock: 3 MK quill travel: 120 mm total power requirement: 3.0 / 4.5 kW weight of the machine ca.: 1255 kg range L-W-H: 1900 x 1000 x 1610 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-200 mm / D5 - Clamping disk 320 mm - Fixed steady rest - passage diameter max. 130 mm - Follow-on steady rest - passage diameter max. 100 mm - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Micrometer longitudinal stop - Slip clutch - Motor with magnetic brake in accordance with CE standard - Initial filling with Shell Tellus 46 - Extendable chip tray - LED machine light - Change gears - Reduction sleeve - 2 cente ...

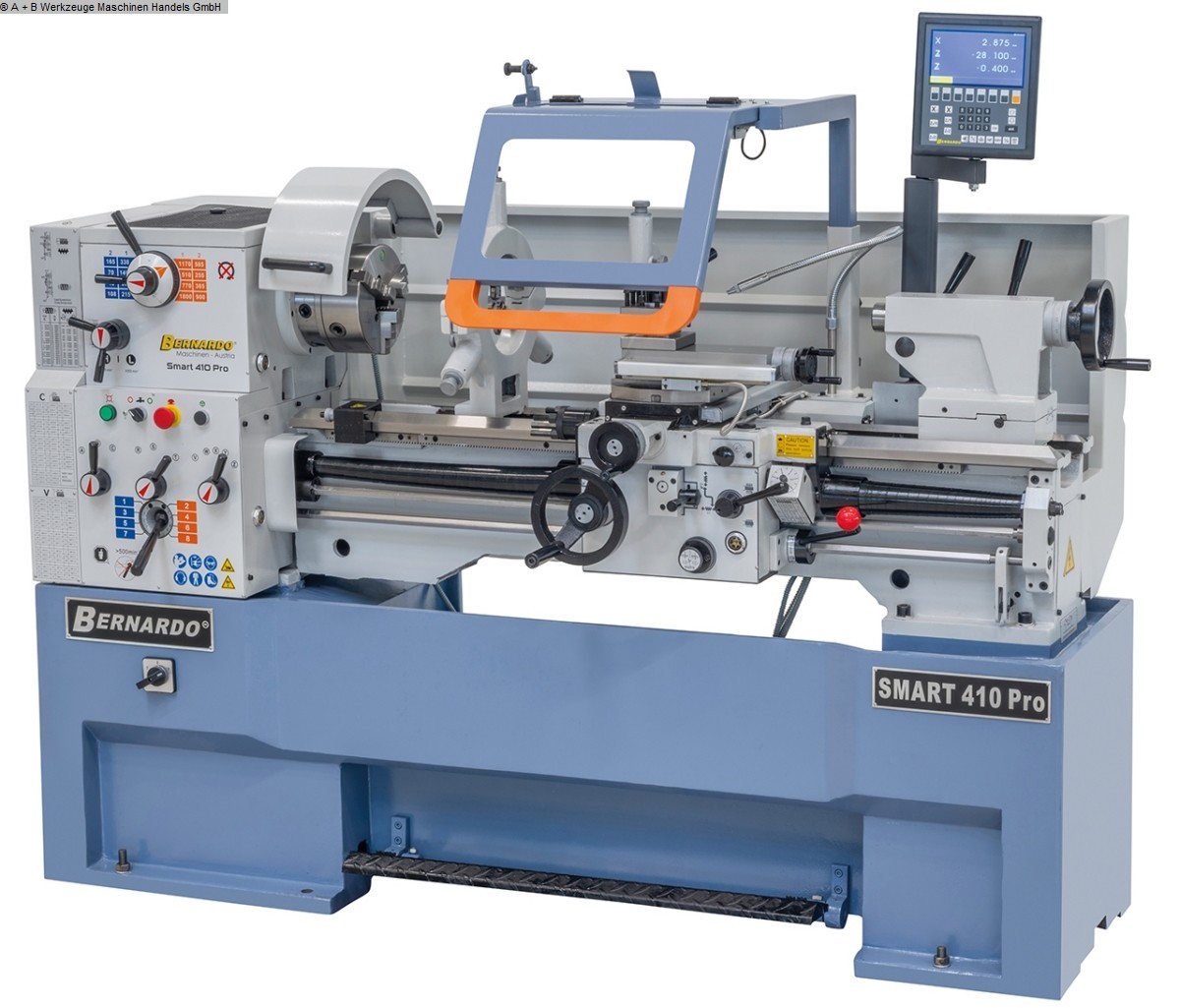

turning length: 1500 mm turning diameter: 420 mm swing diameter over bed slide: 255 mm turning dia. in gap: 580 mm spindle bore: 52.0 mm turning speeds: 45 - 1800 U/min bed width: 250 mm spindle taper: DIN 55029 D 1-6 taper in tailstock: 4 MK quill travel: 140 mm total power requirement: 3.0 / 4.5 kW weight of the machine ca.: 1400 kg range L-W-H: 2570 x 900 x 1600 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck DK11-200 mm / D6 - Clamping disk 350 mm - Fixed steady rest - passage diameter max. 135 mm - Follow-on steady rest - passage diameter max. 65 mm - Coolant system - Quadruple tool holder - Protective device for quadruple tool holder - Micrometer longitudinal stop - Slip clutch - Turret stop with fine adjustment - Thread gauge - Motor with magnetic brake according to CE standard - Foot pedal with brake function according to CE - Initial filling with Sh ...

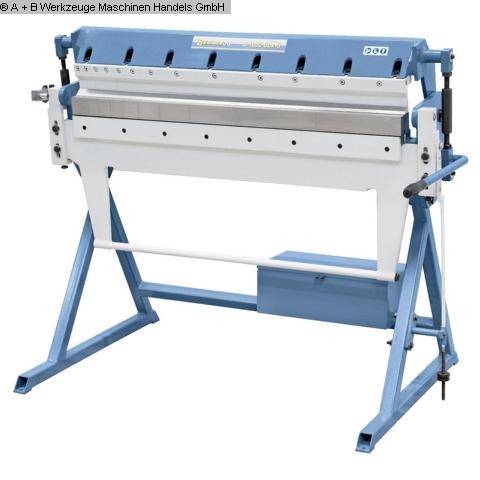

sheet width: 1020 mm plate thickness: 2,5 mm daylight opening: 48 mm bending angle max.: 0 - 135 ° total power requirement: von Hand kW weight of the machine ca.: 285 kg dimensions of the machine ca.: 1,35 x 0,82 x 1,14 m Furnishing: - Universally applicable bending machine for plumbing and repair shops - Robust construction in a modern design - Easy adjustment of the upper beam using a foot pedal - Hands are free for the workpiece - Manual bending machine for standard bending tasks - Segmented upper beam for a large number of bending options - Optimal price-performance ratio - Quick and easy bending process using a bow handle - Non-slip rubber coating on the foot pedal for safe working - Easy adjustment of the lower beam to the respective sheet thickness - High upper beam for producing high-edged profiles scope of delivery - Segmented upper cheek - manual backgauge - bending segments 2 ...

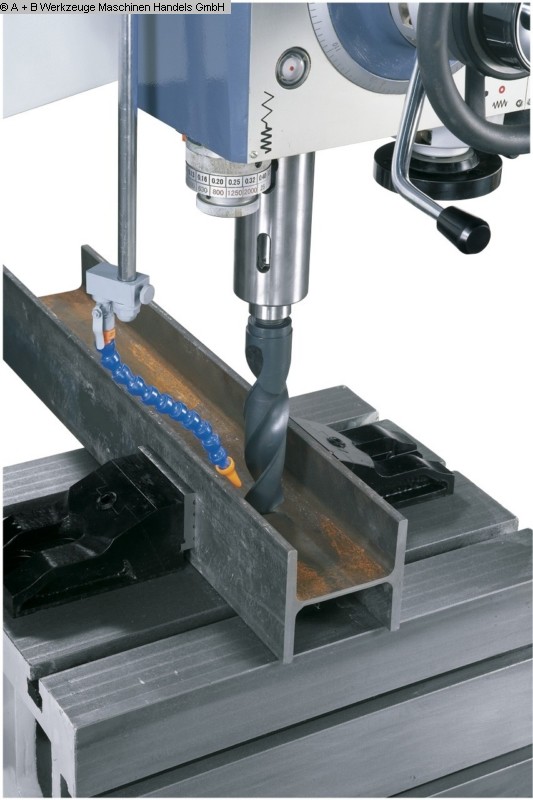

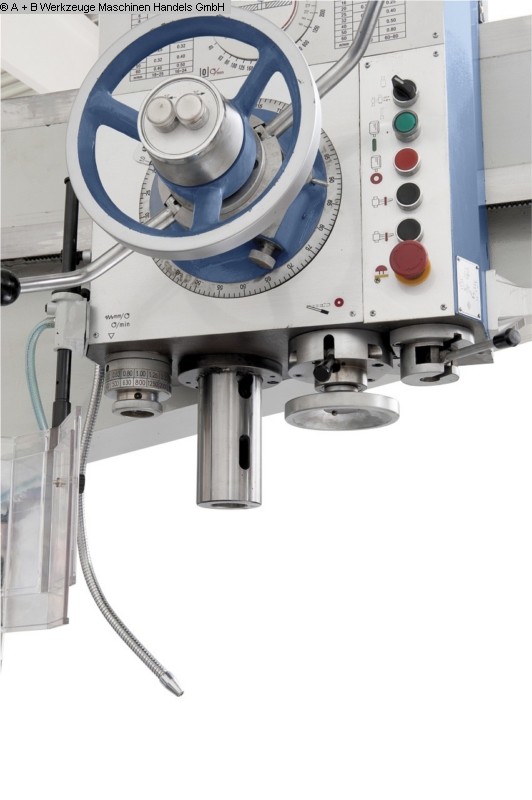

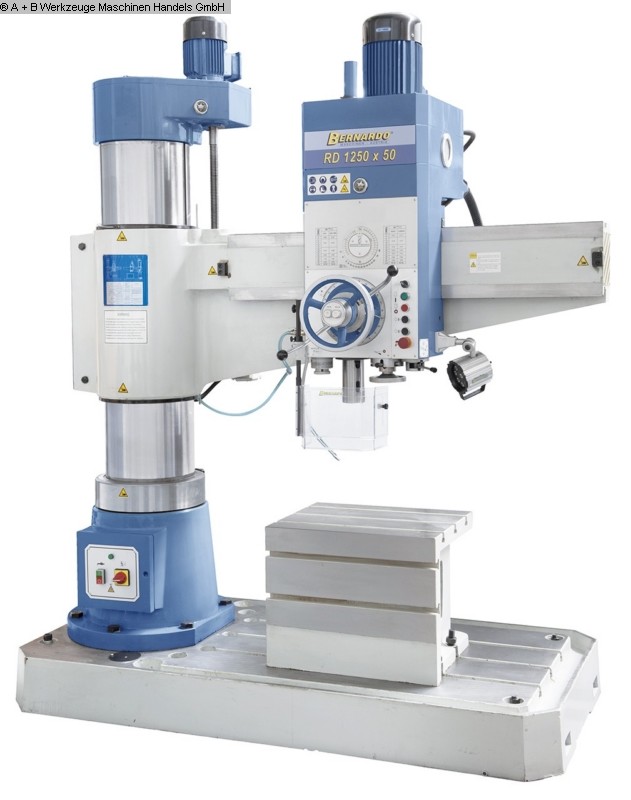

bore capacity in steel (diameter): 50,0 mm arm length: 320 - 1.220 mm workpiece height max.: 330 - 1.170 mm turning speeds: 25 - 2000 U/min spindle taper MT: 5 MK base plate: 1300 x 980 mm threading: 42 M quill stroke: 335 mm total power requirement: 4,0 kW weight of the machine ca.: 3000 kg. range L-W-H: 2035 x 1000 x 2830 mm Furnishing: - Large-sized base plate, ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good gliding ability of the drill head on the boom - sanded surface Scope of delivery: - Cube table - Drill chuck arbor MK 5 / B 16 - Reducing sleeves MK 5/4, MK  ...

bore capacity in steel (diameter): 50.0 mm throat: 360 mm bore stroke: 225 mm morse taper: 4 MK table:: 570 x 480 mm threading: M 42 Stahl turning speeds: 50-316 / 316-2200 U/min feed: 0.08 - 0.50 mm/U column diameter: 180 mm distance spindle /table: max. 580 mm distance spindle/base plate: max. 1185 mm total power requirement: 3.0 kW weight: 630 kg range L-W-H: 1020 x 750 x 2340 mm Scope of delivery - Keyed drill chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 4 / B 16 - Reducing sleeve MK 4 / 3, MK 4 / 2, MK 3 / 1 - Motorized table stroke - Coolant device - Touchscreen - Automatic tool ejector - Electromagnetic spindle feed - Thread cutting device - Initial filling with Shell Tellus 46 - LED machine light - Digital speed display - Digital drilling depth display - Height-adjustable protective cover The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

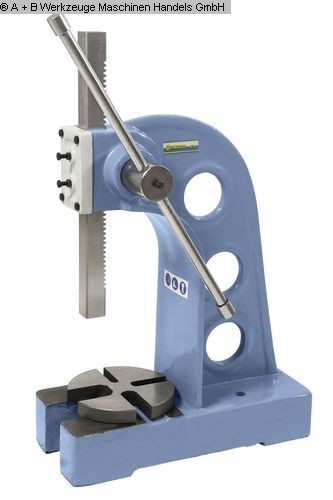

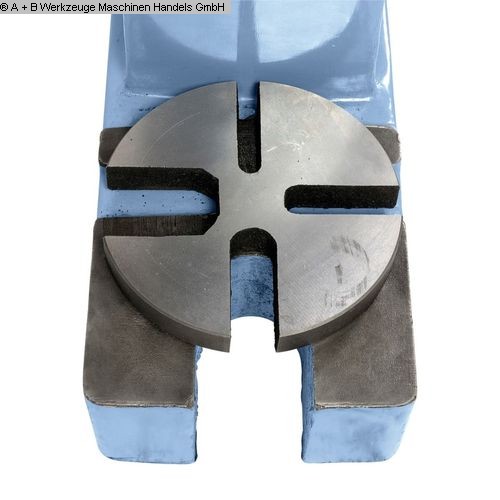

pressure: 5,0 t throat: 215 mm workpiece height max.: 445 mm Mandrel diameter: 50 x 50 x 645 mm table plate: Ø 275 mm total power requirement: manuell kW weight of the machine ca.: 160 kg. dimensions of the machine ca.: 370 x 550 x 810 mm Description : - for pressing in and out of bearings, bushings, ... - the basic body of the model DP 5 made of high-quality gray cast iron - Includes mounting holes, ideal for mounting on a workbench - suitable for bushing, straightening, bending, broaching, ... - variably adjustable lever bar, depending on the required effort - ideal for repair shops and the general workshop area The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): mm throat: mm bore stroke: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

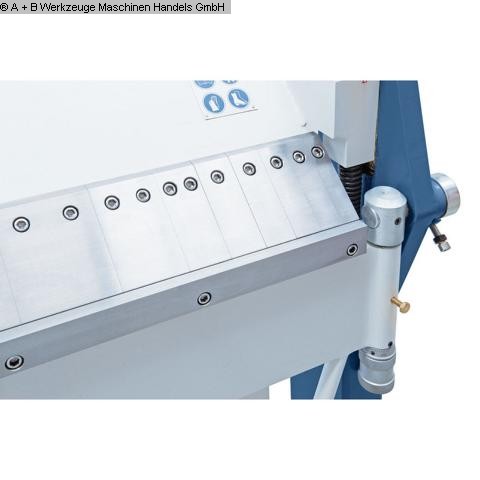

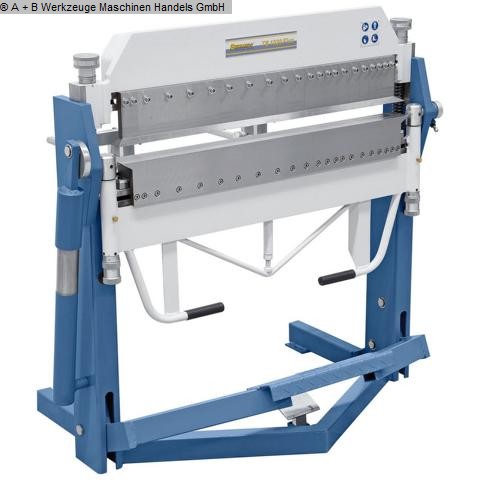

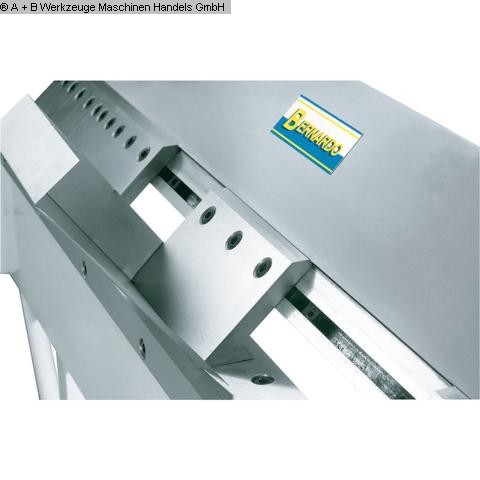

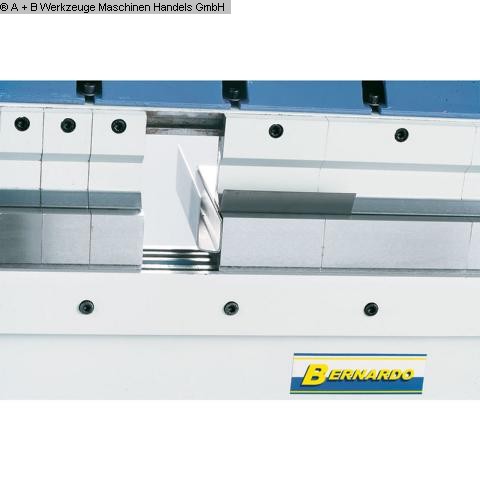

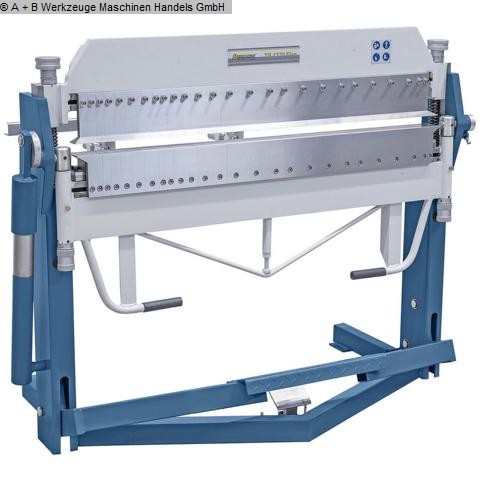

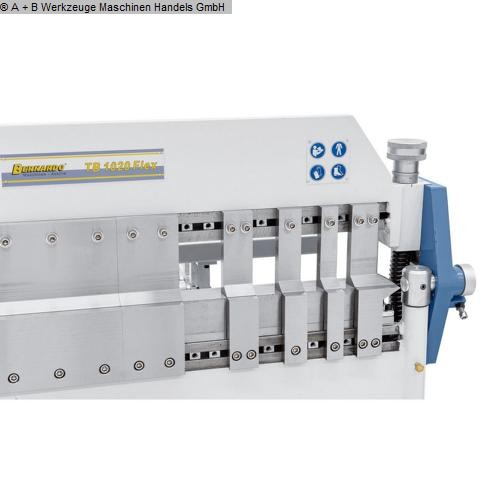

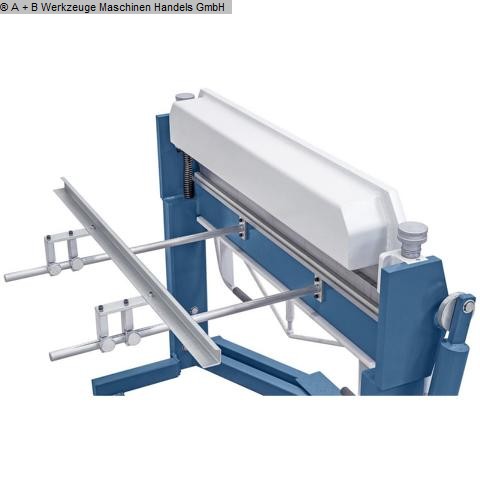

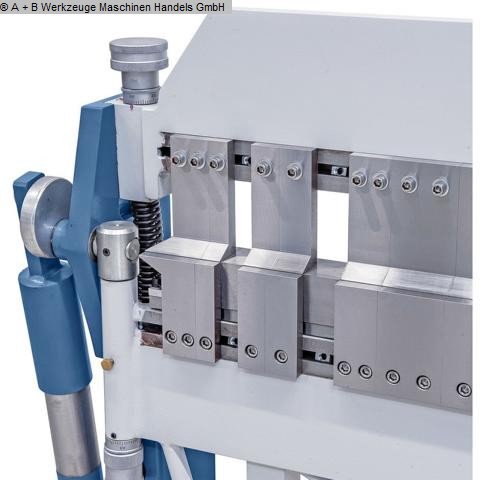

sheet width: 1270 mm plate thickness: 2.0 mm daylight opening: 48.0 mm daylight opening: 150 mm ohne Segmente bending angle max.: 0 - 135 ° work height max.: 900 mm weight of the machine ca.: 465 kg dimensions of the machine ca.: 1620 x 1070 x 1280 mm Furnishing: - Swivel bending machines with segm. Upper, lower and bending beam - Universally usable bending machine for sheet metal works and repair shops - Robust construction in a modern design - Easy adjustment of the upper beam using a foot pedal - Hands are free for the workpiece - Manual bending machine for standard bending tasks - Segmented upper beam for a large number of bending possibilities - Optimum price-performance ratio - Quick and easy bending process using the bow handle - Non-slip rubber covering on the foot pedal for safe working - Easy adjustment of the lower beam to the respective sheet thickness - High upper beam for  ...

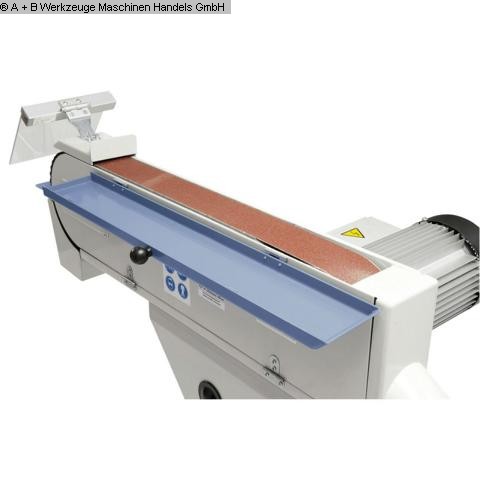

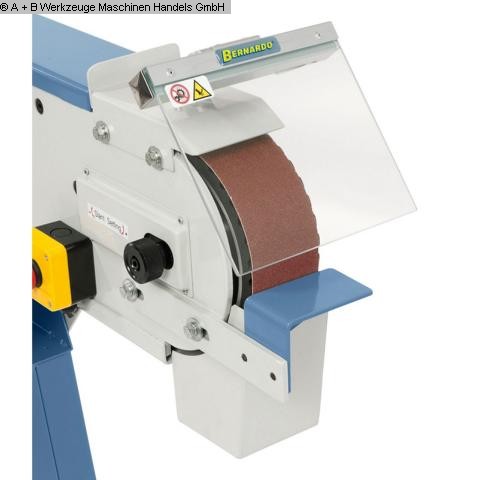

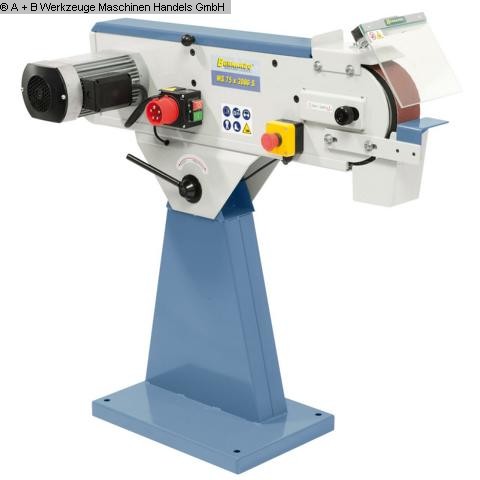

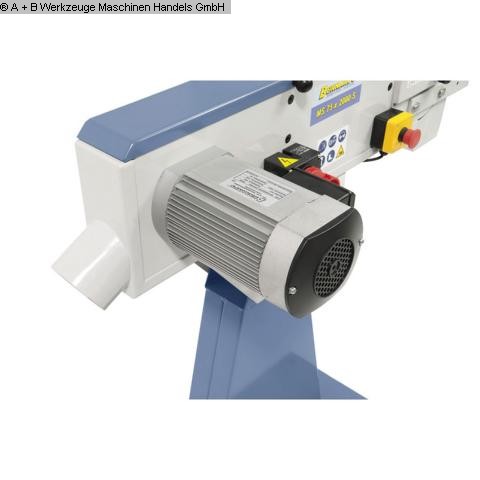

width of the strips: 75.0 mm band length: 2000 mm band speed: 29.0 m/sek grinding width: 460 x 75 Plantisch mm Dust suction hood: 100 mm total power requirement: 3.0 kW 100% ED weight of the machine ca.: 66.0 kg range L-W-H: 1080 x 440 x 1000 mm Description : - Good sanding performance due to high belt speed - Quick adjustment for horizontal and inclined position - Continuous flat grinding surface for optimal grinding of long workpieces - Constant belt tension through spring-loaded tensioning device - Universally applicable for grinding edges, surfaces and for cylindrical grinding - Including quick-release system for quick strap changes - Simple adjustment of the parallel belt run by means of an adjusting screw - Graphite coating on the flat grinding surface increases the sliding properties of the sanding belt Scope of delivery : - Sanding belt K 80 - Hinged protective screen - Sanding ...

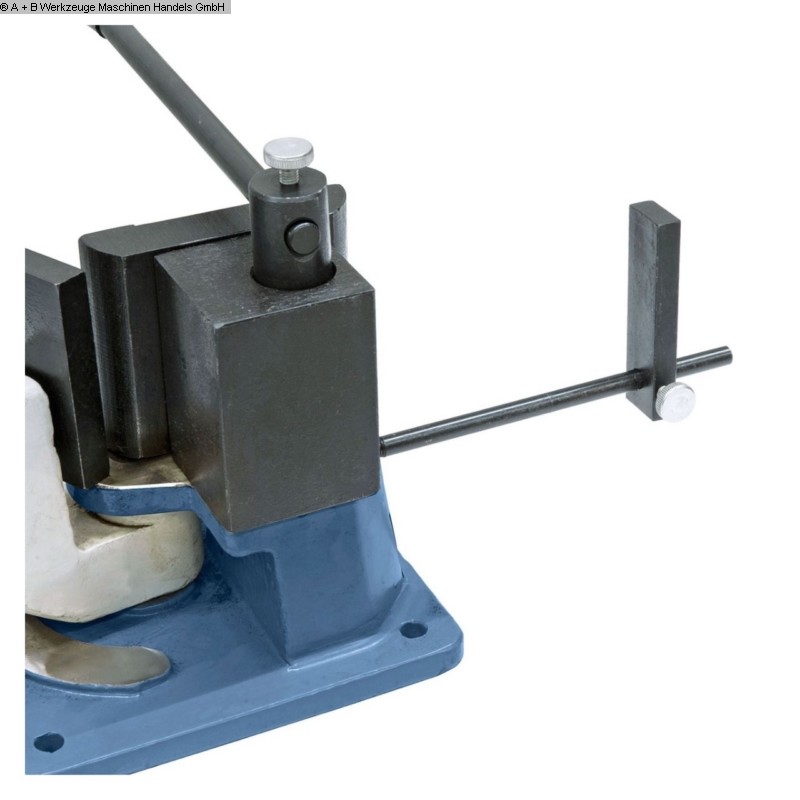

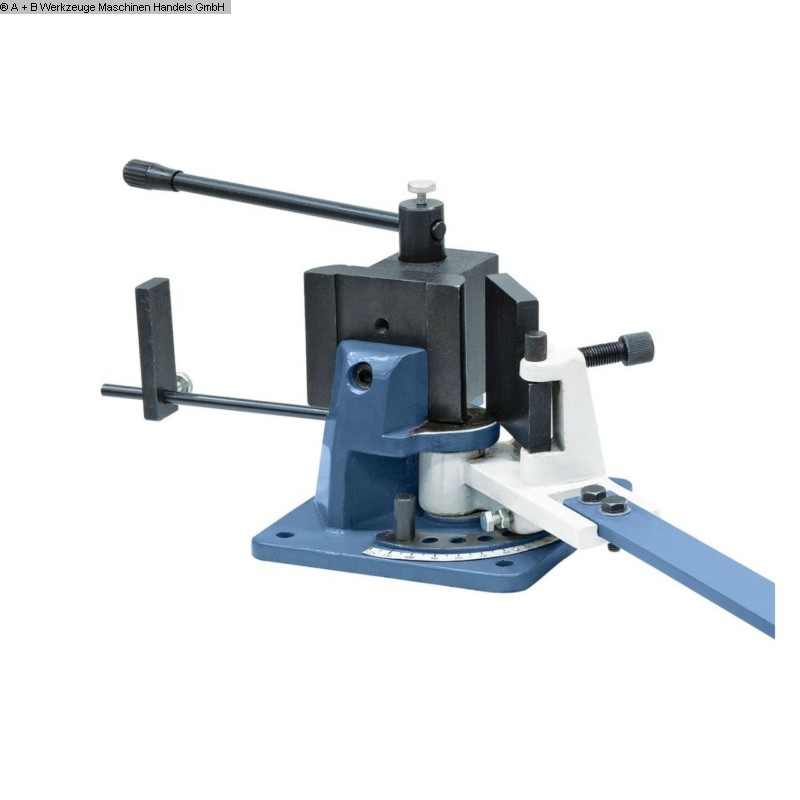

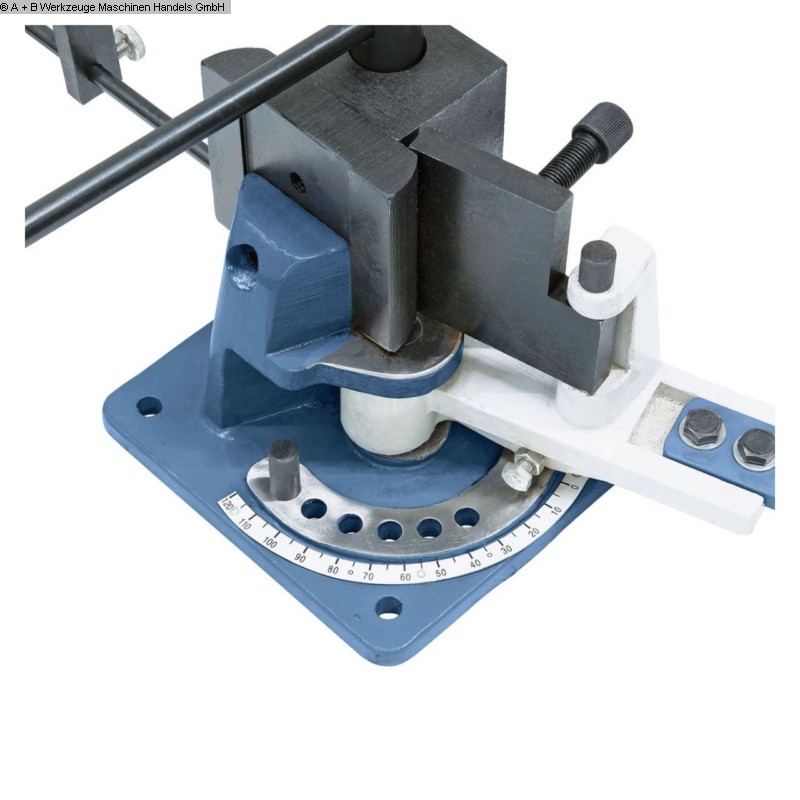

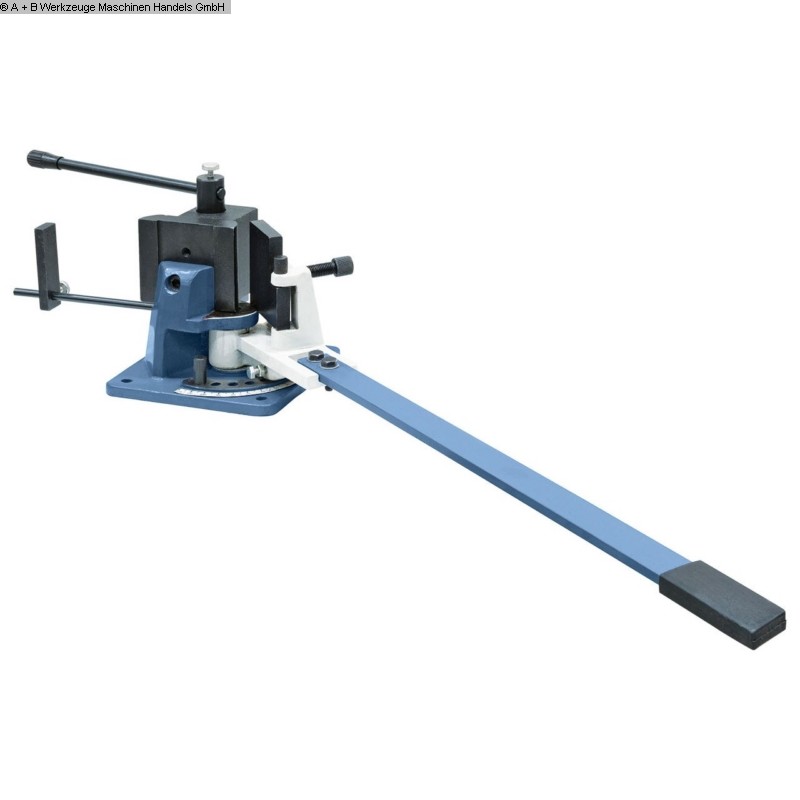

square edge steel: 16 x 16 mm flat steel: 100 x 5 mm L-beam: 60 x 8 mm round bar steel: 18.0 mm weight of the machine ca.: 33.0 kg Properties : - For precise cold and hot bending of flat, round and square steels - Sturdy design for bolting to the workbench - Infinitely adjustable bending stop with locking pin - With eccentric quick clamping for efficient working - Readable bending angle up to 120 - High repeat accuracy thanks to bending angle stop - Ideal for repair workshops and locksmiths - - - - - - - - - - Cold bending capacity Flat steel 100 x 5 mm 65 x 10 mm Round steel 18.0 mm Square steel 16 x 16 mm Angle steel 60 x 8 mm Bending capacity hot Flat steel 100 x 15 mm 75 x 20 mm Round steel 27.0 mm Square steel 25 x 25 mm Angle steel 100 x 12 mm - - - - - - - - - - Scope of delivery: - Bending plate sharp / round - Radius bending plate R 20 / R 25 - Offset block - Bending plate for ...

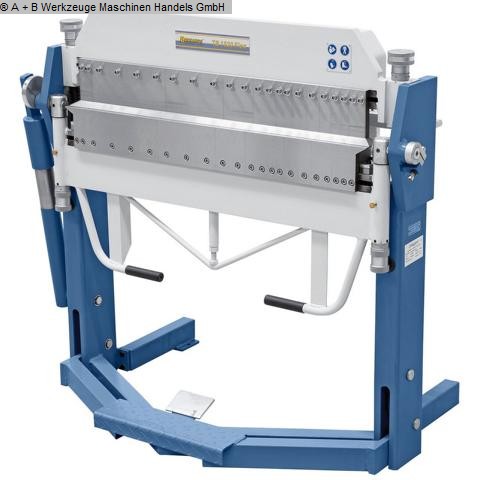

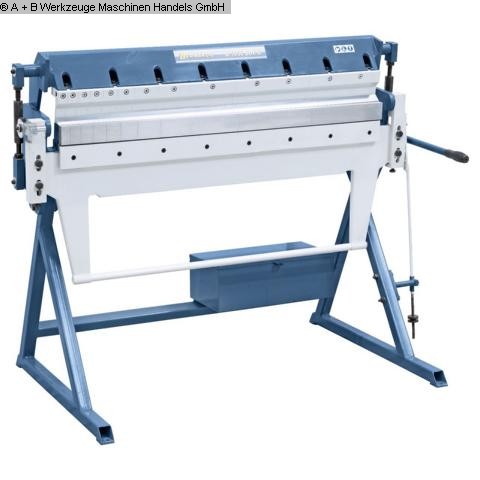

sheet width: 1050 mm plate thickness: 1.0 mm daylight opening: 95.0 mm angle adjustable from - to: 0 - 150 Grad total power requirement: manuell weight of the machine ca.: 180 kg range L-W-H: 1320 x 790 x 1050 mm characteristics - Universally applicable bending machines for plumbing and repair shops - Simple pivoting movement of the bending beam using a bow handle - Easy adjustment of the upper beam for efficient work - High upper beam for producing high-edged profiles - The piano inserts in the upper, lower and bending beam result in a large number of bending options - Cassettes and special profiles with opposite bends are with these Models easily feasible Scope of delivery : - Segmented upper, lower and bending beam - bending segments 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | 150 | 2 x 250 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

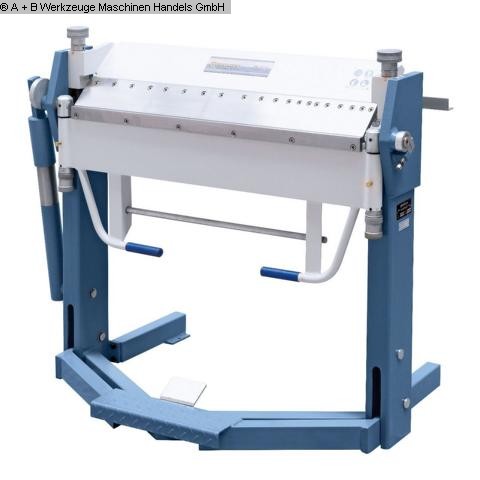

sheet width: 1020 mm plate thickness: 2.5 mm daylight opening: 48.0 mm daylight opening: 150 mm ohne Segmente bending angle max.: 0 - 135 ° work height max.: 900 mm weight of the machine ca.: 340 kg dimensions of the machine ca.: 1350 x 820 x 1300 mm Furnishing: - Swivel bending machines with segm. Upper, lower and bending beam - Universally usable bending machine for sheet metal works and repair shops - Robust construction in a modern design - Easy adjustment of the upper beam using a foot pedal - Hands are free for the workpiece - Manual bending machine for standard bending tasks - Segmented upper beam for a large number of bending possibilities - Optimum price-performance ratio - Quick and easy bending process using the bow handle - Non-slip rubber covering on the foot pedal for safe working - Easy adjustment of the lower beam to the respective sheet thickness - High upper beam for t ...

sheet width: 2065 mm plate thickness: 1.20 mm daylight opening: 30.0 mm bending angle max.: 0 - 135 ° total power requirement: manuell weight of the machine ca.: 500 kg dimensions of the machine ca.: 2400 x 1115 x 1500 mm - Universally applicable bending machine for plumbing and repair shops - Robust construction in a modern design - easy adjustment of the upper beam by means of a foot pedal, Hands are free for the workpiece - manual bending machine for standard bending tasks - segmented upper beam for a large number of bending options - An auxiliary cylinder supports the bending process when folding - faster and easier bending process using a bow handle - easy adjustment of the lower beam to the respective sheet thickness - high upper beam for the production of high-edged profiles Furnishing : - Segmented upper cheek - back gauge - bending segments 38 | 38 | 38 | 50 | 50 | 50 | 50 | 7 ...

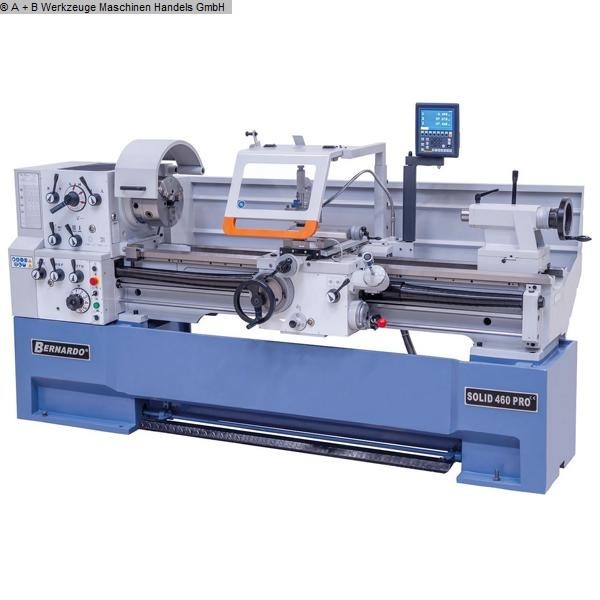

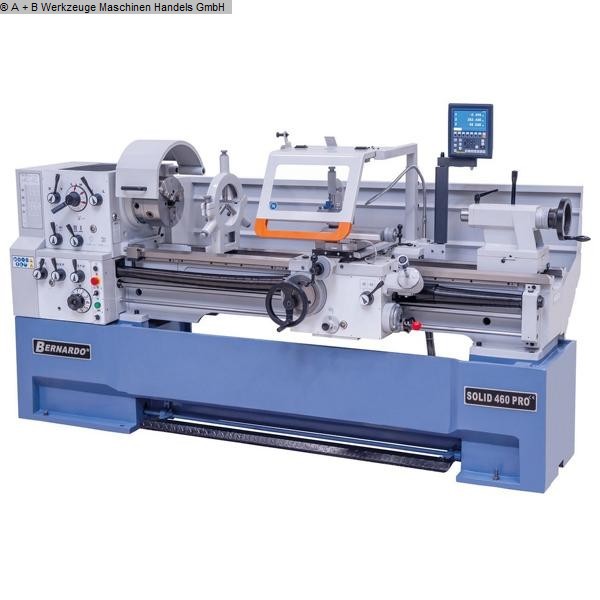

turning length: 1000 mm turning diameter: 460 mm swing diameter over bed slide: 270 mm turning dia. in gap: 690 mm spindle bore: 80.0 mm turning speeds: 25 - 1700 U/min bed width: 300 mm spindle taper: DIN 55029 D 1-8 taper in tailstock: 4 MK quill travel: 130 mm total power requirement: 5.5 kW weight of the machine ca.: 1675 kg. range L-W-H: 2300 x 1080 x 1600 mm Scope of delivery: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-250 mm / D8 - Clamping disk 450 mm - Coolant system - Initial filling with Shell Tellus 46 - Fixed steady rest - passage diameter max. 150 mm - Follow-on steady rest - passage diameter max. 110 mm - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Motor with magnetic brake according to CE standard - Foot pedal with brake function according to CE - Slip clutch - Rapid traverse lengthwise and facewise - ...

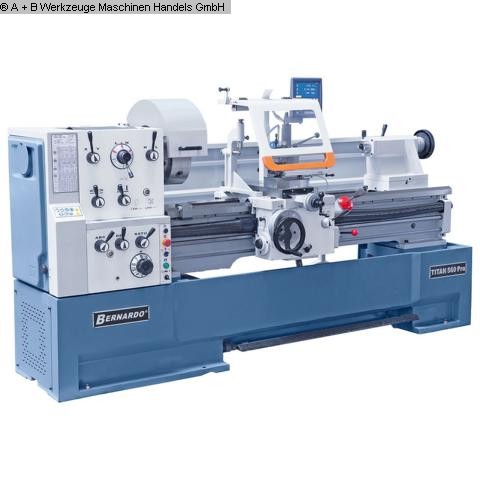

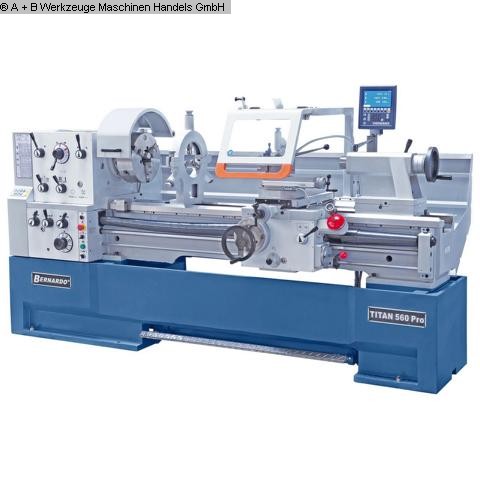

turning length: 2000 mm turning diameter: 560 mm turning diameter over slide: 350 mm turning speeds: 25.0 - 1500 U/min swing diameter over bed slide: 350 mm turning dia. in gap: 785 mm quill travel: 180 mm quill:: 5 MK spindle bore: 105 mm spindle taper: DIN 55029 D 1-8 engine output: 7.5 kW weight of the machine ca.: 2720 kg range L-W-H: 3340 x 1150 x 1610 mm Equipment: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disc 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Initial filling with Shell Tellus 46 - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Slip clutch - LED machine light - ...

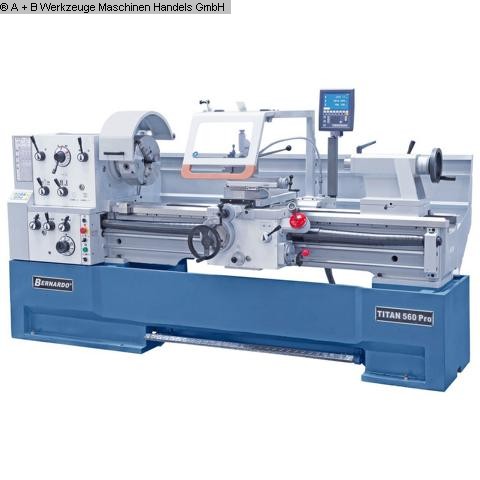

turning length: 1500 mm turning diameter: 560 mm turning diameter over slide: 350 mm turning speeds: 25 - 1600 U/min swing diameter over bed slide: 350 mm turning dia. in gap: 785 mm quill travel: 180 mm spindle bore: 105,0 mm engine output: 7,5 kW spindle taper: DIN 55029 D 1-8 quill:: 5 MK weight of the machine ca.: 2.370 kg. range L-W-H: 2.840 x 1.150 x 1.460 mm Scope of delivery: - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 450 mm - Fixed steady rest - passage diameter max. 180 mm - Follow-on steady rest - passage diameter max. 120 mm - 2 centering points - Initial filling with Shell Tellus 46 - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Coolant system - Quick-change tool holder with 4 inserts - Protective device for quick-change tool holder - Slip clutch - LED ma ...

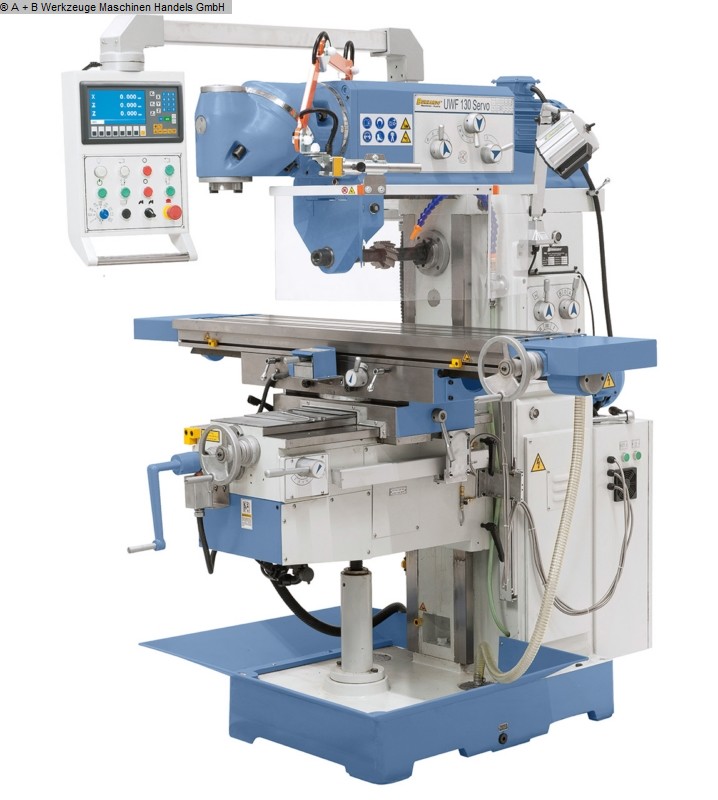

x-travel: 1000 mm y-travel: 360 mm z-travel: 400 mm spindle taper ISO: 40 ISO table:: 1370 x 320 mm feed:: H 80 - 830 / V 23-625 mm/min. turning speeds: H 35 - 1500 / V 45 - 1660 U/min distance spindle /table: H 30 - 430 / V 210-610 mm rapid traverse: Z Achse 750 mm/min throat: 305 - 805 mm T-slots: 3 x 14.0 mm table - swivable +/-: -45 / +45 ° workpiece weight: max. 300 kg coolant pump: 25.0 L/min. total power requirement: 7.6 kW weight of the machine ca.: 1540 kg range L-W-H: 1840 x 1830 x 2050 mm - Large rectangular guide in y and z axes - ensure increased stability - 8x automatic feeds and rapid traverse in all axes - driven by servo motor - Universal milling head system Huron, adjustable to all angular positions - Swiveling control panel with ergonomically placed switches - Heavy machine stand made of gray cast iron for vibration-free work - Very smooth running thanks to ground gea ...

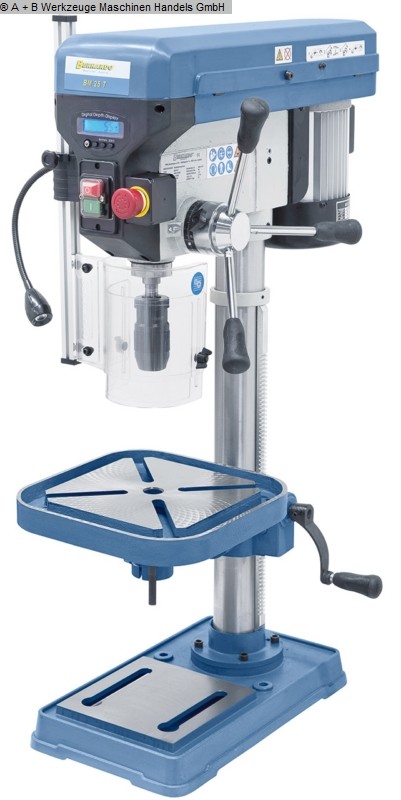

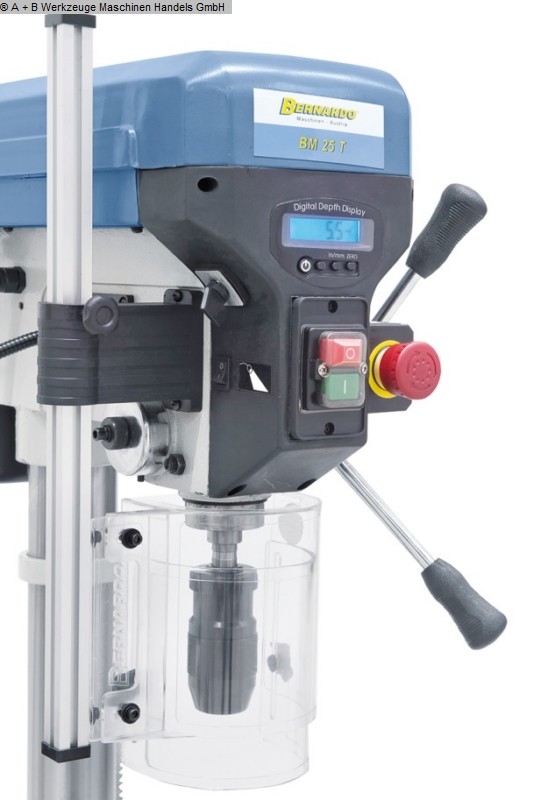

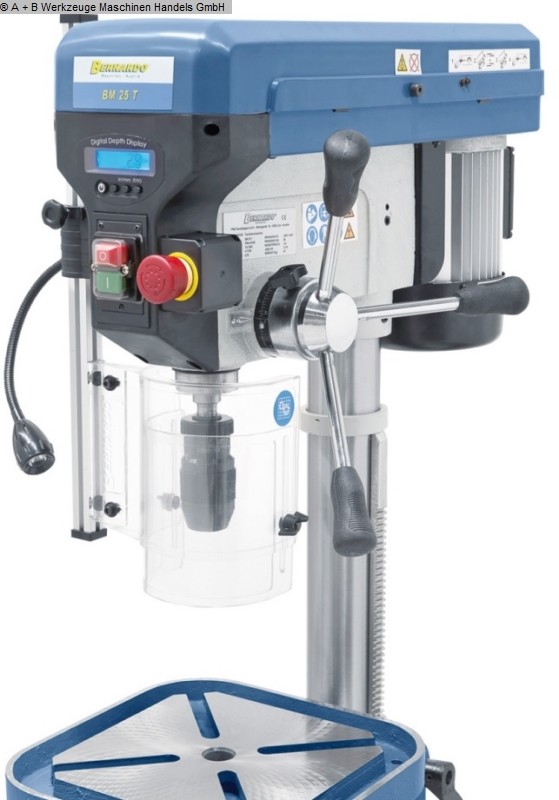

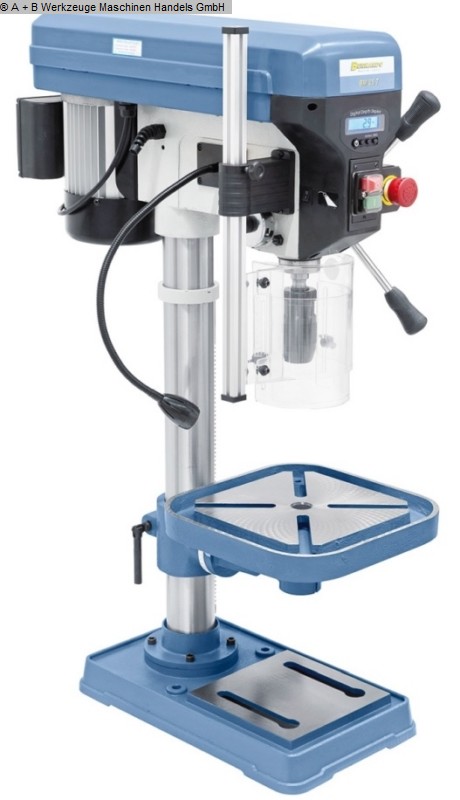

bore capacity in steel (diameter): 25.0 mm throat: 180 mm bore stroke: 80.0 mm morse taper: 2 MK turning speeds: 180 - 2270 U/min table-size: 305 x 305 mm swivelling +/-: 45 Grad T-slots: 16.0 mm column diameter: 72.0 mm voltage: 400 V total power requirement: 1.10 kW weight: 57.0 kg range L-W-H: 400 x 630 x 990 mm scope of delivery - Keyless chuck 1 - 16 mm / B 18 - Drill chuck arbor MK 2 / B 18 - Digital quill stroke display - machine light - Right-left rotation - protective cover - Height-adjustable protective cover - T-nuts - operating tool The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32.0 mm threading: max. M 24 throat: 265 mm bore stroke: 150 mm turning speeds: 320 - 1820 U/min morse taper: 3 MK table-size: 332 x 332 mm T-slots: 14.0 mm column diameter: 100 mm : 400 x 380 mm distance spindle/base plate: max. 735 mm voltage: 400 V total power requirement: 2.2 kW weight: 246 kg range L-W-H: 520 x 920 x 1380 mm Description: - robust table drilling machine with thread cutting device - very smooth running thanks to pulleys made of gray cast iron - drive: V-BELT - quality ball bearings ensure a high concentricity of the spindle - large drilling table with diagonally running T-slots - drilling table height adjustment via rack - thread cutting device - powerful and high-torque aluminum motor in accordance with IP 54 - standard with T-slots in the ground base plate - ergonomic handles for comfortable working - foldable drilling spindle guar ...

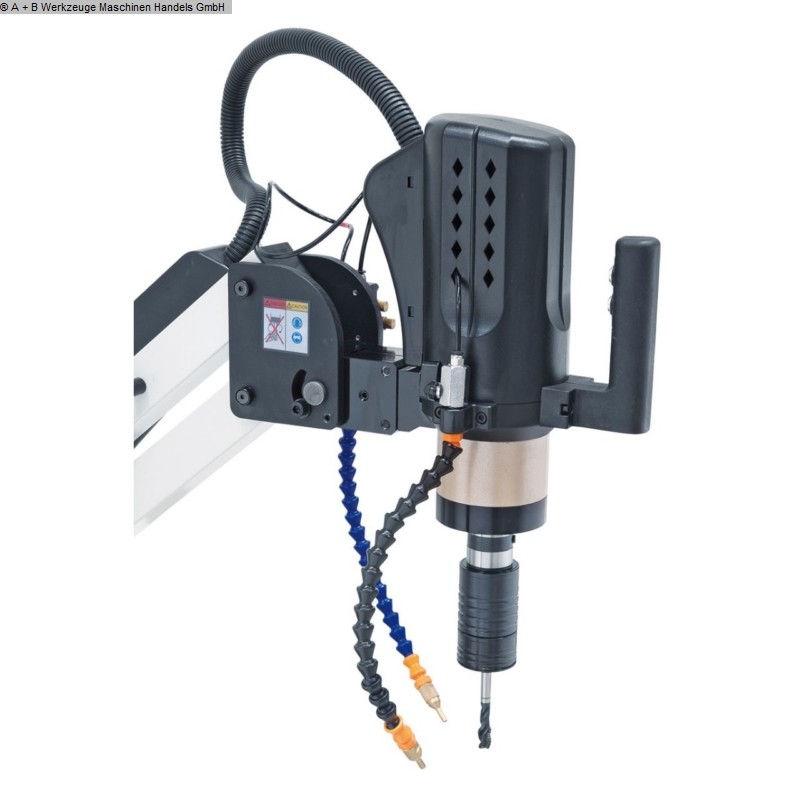

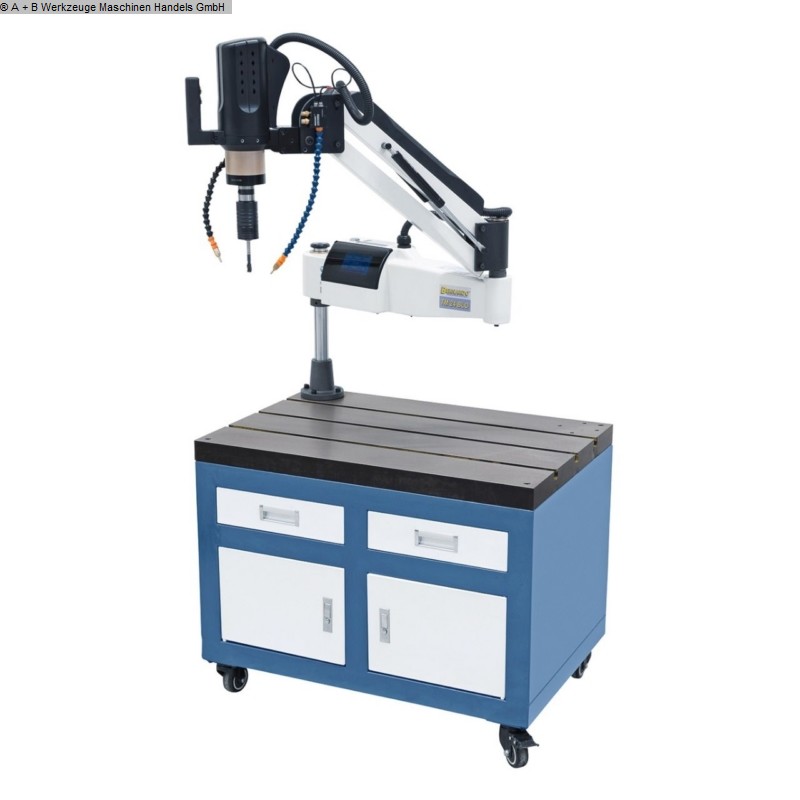

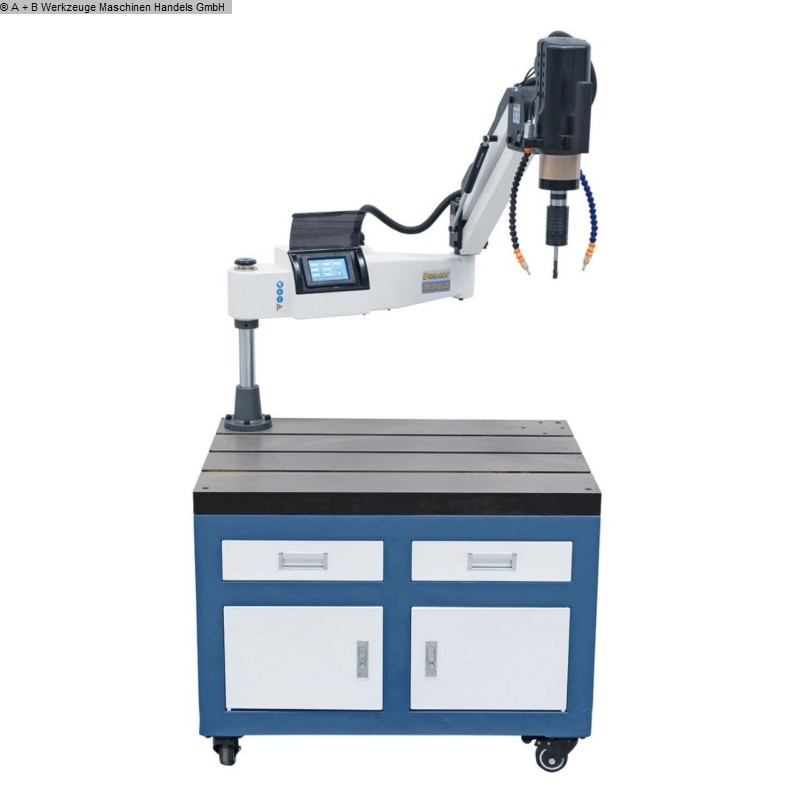

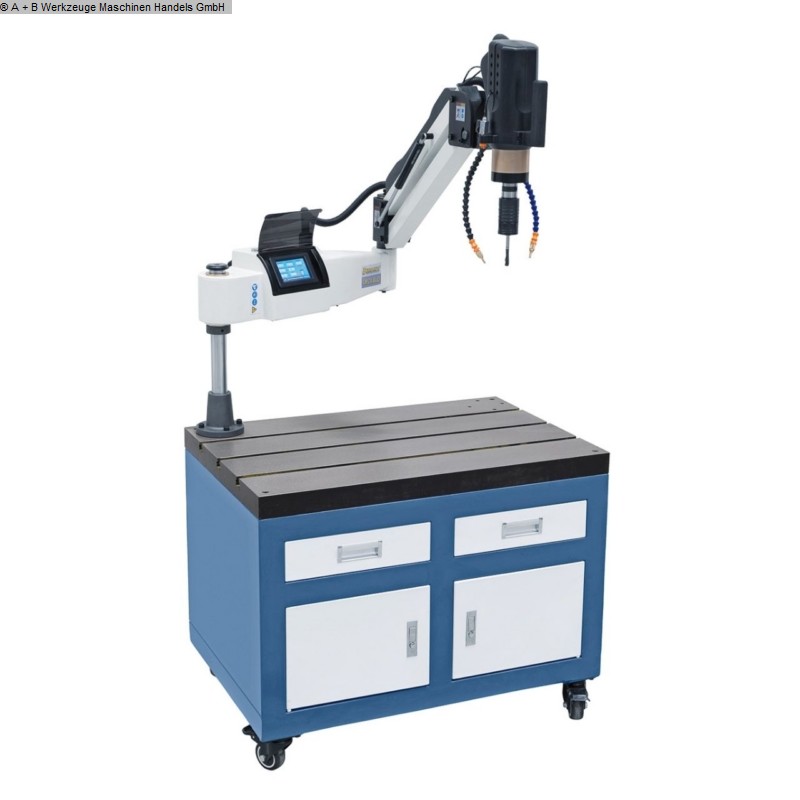

thread dia.: M5 - M24 turning speeds: 70 - 200 U/min working area: max. 1200 R angle adjustable from - to: 0 - 90 Grad voltage: 230 V engine output: 1200 W weight: 65,0 kg - with micro spray system for constant cooling & minimal Cooling lubricant consumption - Includes blow-out device to remove chips, ensuring optimal visibility on the borehole - Includes quick-change chuck for using taps for Through and blind holes - Swivel motor unit for thread cutting at any desired angle between 0° and 90° - Higher accuracy compared to manual thread cutting, thread is guaranteed right angle (90°) - high productivity, significant time savings compared to manual Threading - Quick-change chuck with integrated slip clutch prevents breaking of the tap - Includes large radius swivel arm for easy positioning tap on the workpiece - For thread cutting in steel, stainless steel, aluminum and non-ferrous met ...

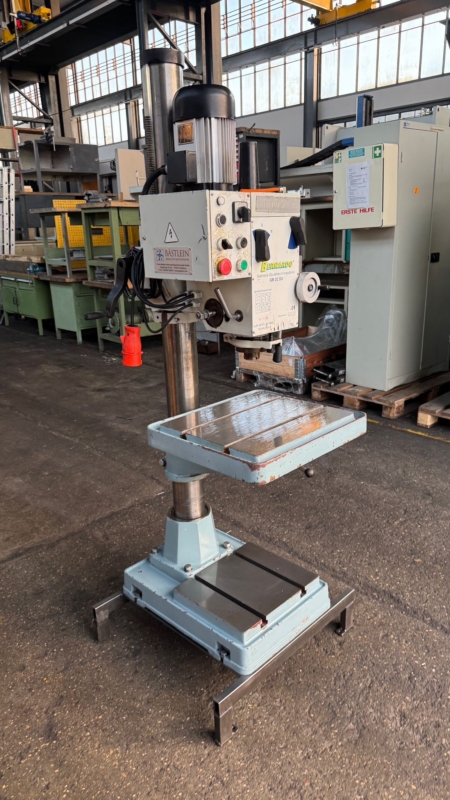

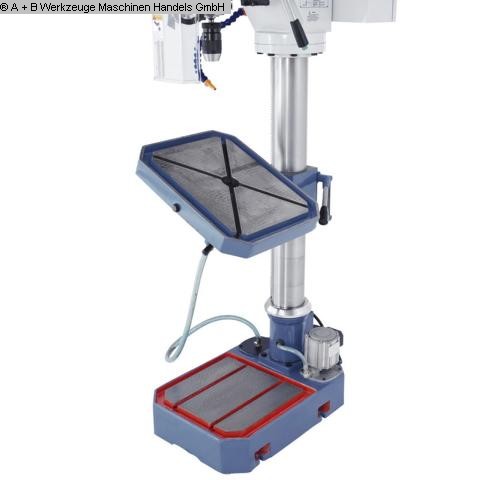

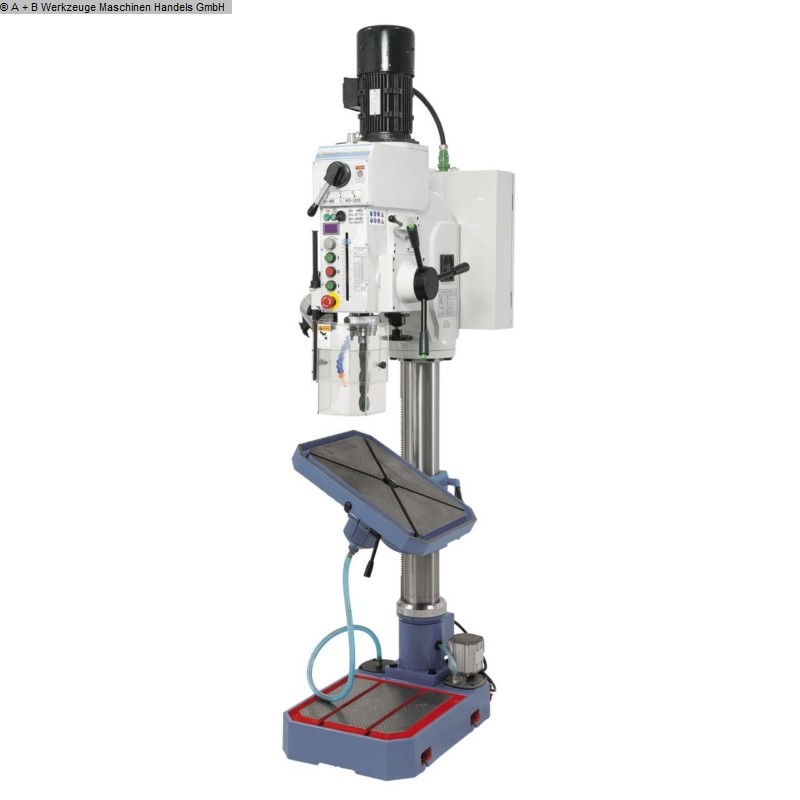

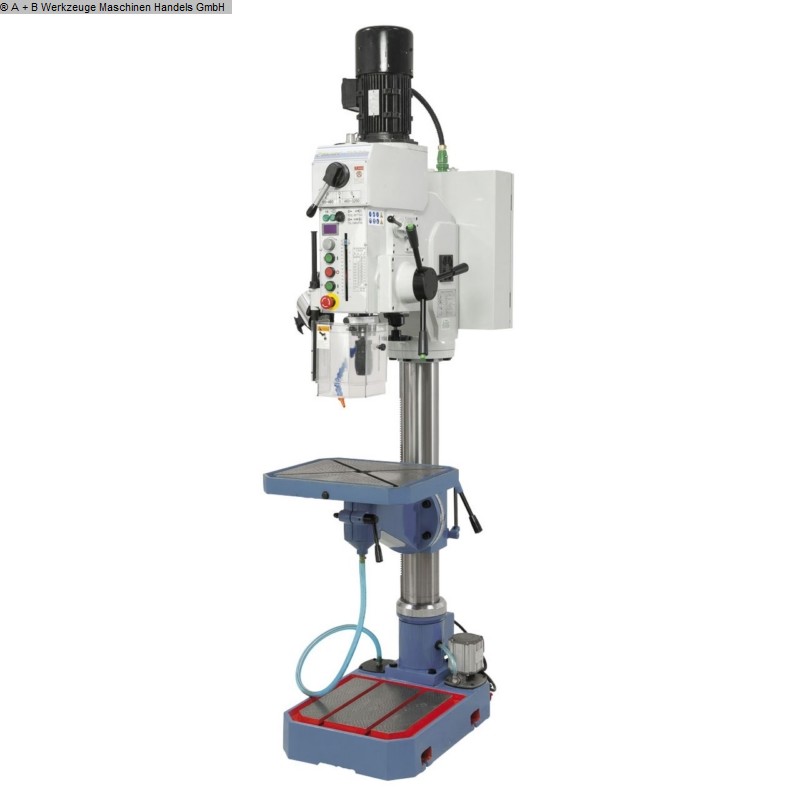

bore capacity in steel (diameter): 35,0 mm bore capacity in cast iron: 40,0 mm threading: M 24 in Stahl throat: 320 mm morse taper: 4 MK bore stroke: 160 mm turning speeds: 65 - 3250 U/min table:: 500 x 420 mm throat: 320 mm weight: 375 kg range L-W-H: 600 x 870 x 2.170 mm 2019 showroom model () Approx. 1 hour of operation Special price on request Furnishing: - Infinitely variable speed, ideal for - Set the desired cutting speed. - Automatic tool ejector and thread cutting device as standard - Electromechanical drilling feed, adjustable from 0.1 - 0.3 mm / rev - Solid gray cast iron table with rotating and swiveling support surface - T-slots in the machine base enable high workpieces to be clamped - Guaranteed concentricity 0.02 mm, measured in the quill - Hardened and ground gears ensure smooth running - Adjustable drilling depth stop with an easily readable scale Scope of delivery:  ...

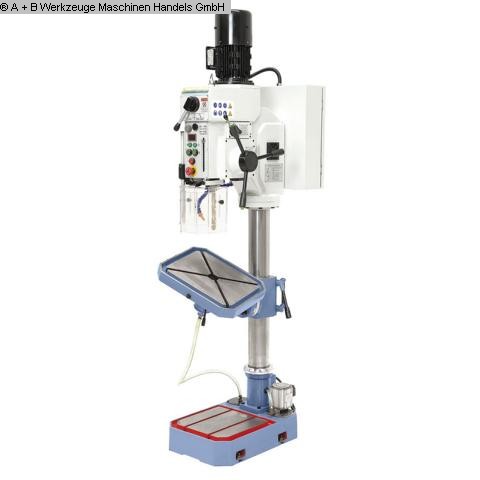

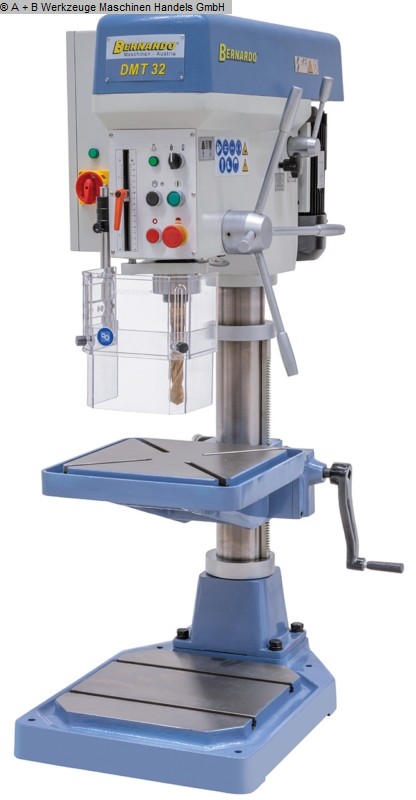

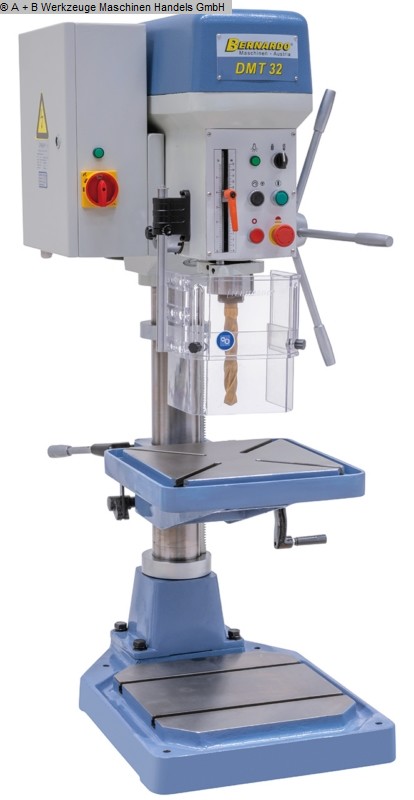

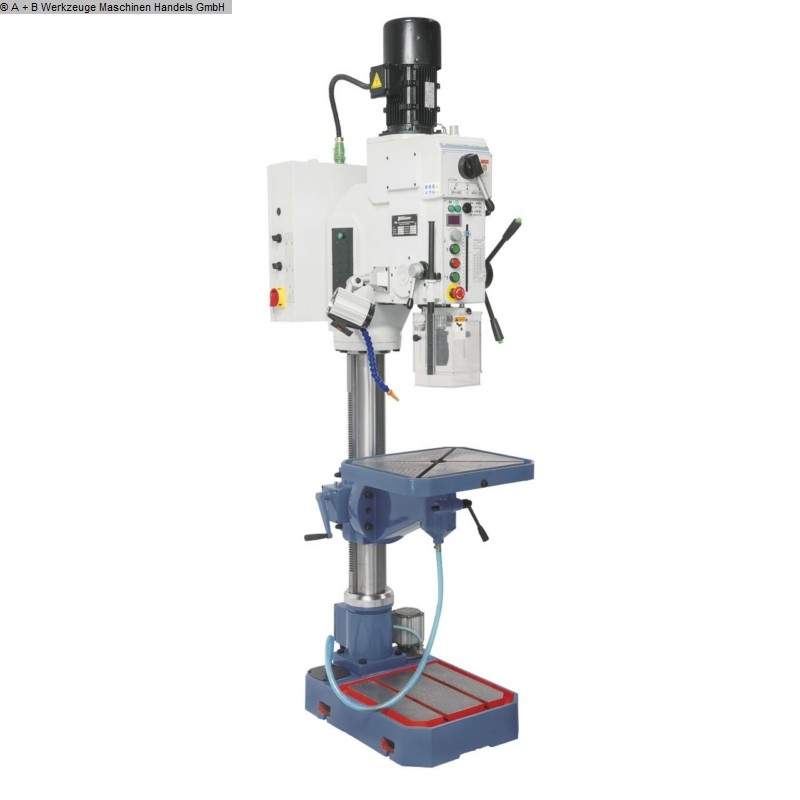

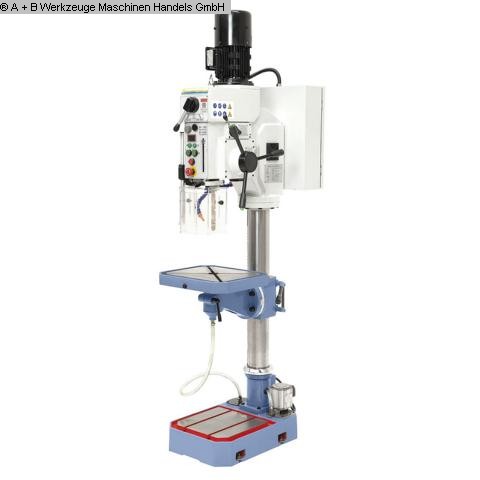

bore capacity in steel (diameter): 32,0 mm threading: 22 M bore stroke: 125 mm throat: 280 mm morse taper: 3 MK table:: 450 x 380 mm / 14er Nut turning speeds: 70 - 3.500 U/min feed: 0,1 / 0,2 / 0,3 mm/U column diameter: 110 mm weight: 320 kg range L-W-H: 500x800x2.100 mm total power requirement: 1,1 / 2,2 kW characteristics Infinitely variable speed, ideal for setting the desired one Cutting speed. Automatic tool ejector and Thread cutting device as standard. Electromechanical drilling feed, adjustable from 0.1 - 0.3 mm / rev Solid gray cast iron table with rotating and swiveling support surface T-slots in the machine base enable high workpieces to be clamped. Guaranteed concentricity = 0.02 mm, measured in the quill Hardened and ground gears ensure smooth running Adjustable drilling depth stop with an easily readable scale Scope of delivery: - Drill chuck arbor MK 3 / B 16 - Reducing s ...

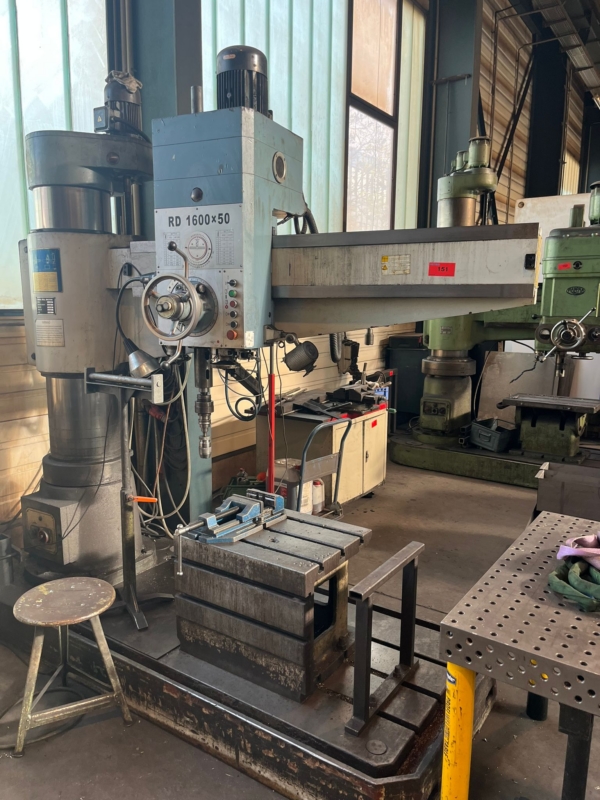

arm length: 350-1590 mm bore capacity in steel (diameter): 50 mm spindle taper: MK5 threading: M42 quill stroke: 320 mm total power requirement: 4 kW workpiece height max.: 645-1240 mm range L-W-H: 2450x980x2840 mm turning speeds: 25-2000 U/min Total weight, approx.: 3500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

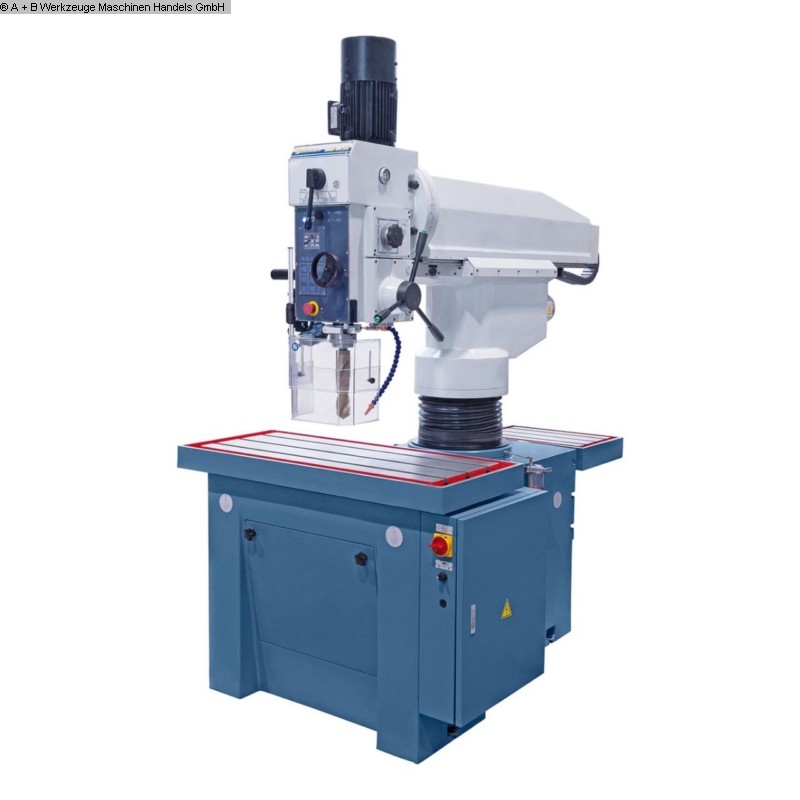

bore capacity in steel (diameter): 40.0 mm threading: 30 M workpiece height max.: 380 - 785 mm arm length: 985 mm spindle taper: 4 MK boring head swiweling right/left: -80 / +80 Grad turning speeds: 50 - 2000 U/min table surface area: 1210 x 520 mm column diameter: 220 mm column diameter: 220 mm table surface area: 1210 x 510 mm quill stroke: 200 mm feed range - spindle: 0.08 - 0.50 mm/U total power requirement: 2.2 kW weight of the machine ca.: 2800 kg dimensions of the machine ca.: 2450 x 1200 x 2720 mm characteristics - A variety of clamping and machining options thanks to the construction-related construction - Electromotive height adjustment of the drill head without adjusting the Drilling position, ideal for deep hole drilling - Drill head can be swiveled 180 °, boom can be moved back and forth and horizontally pivotable - Thread cutting device and 6 automatic drilling feeds in ...

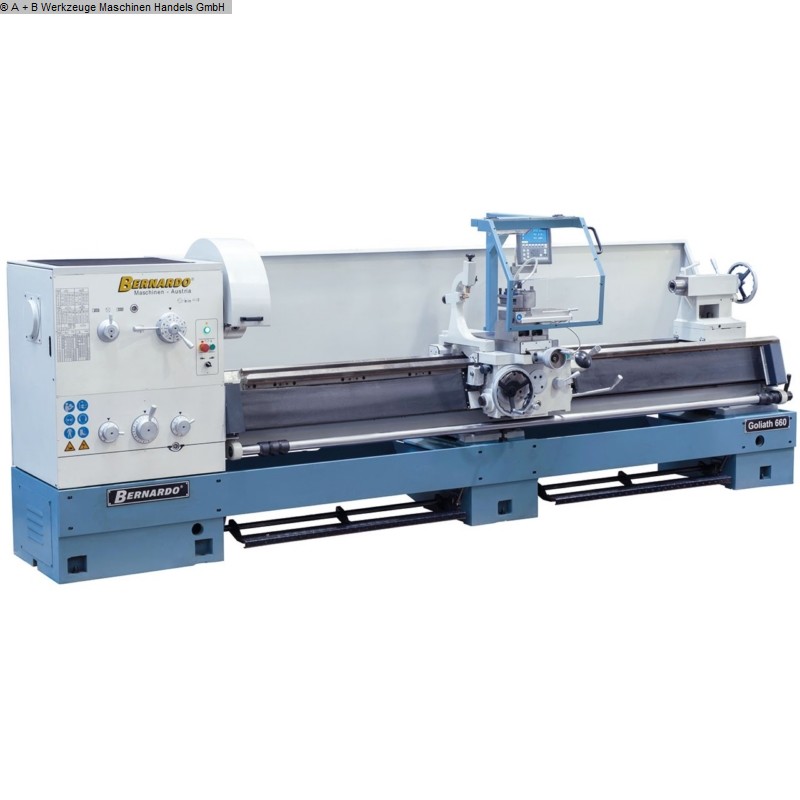

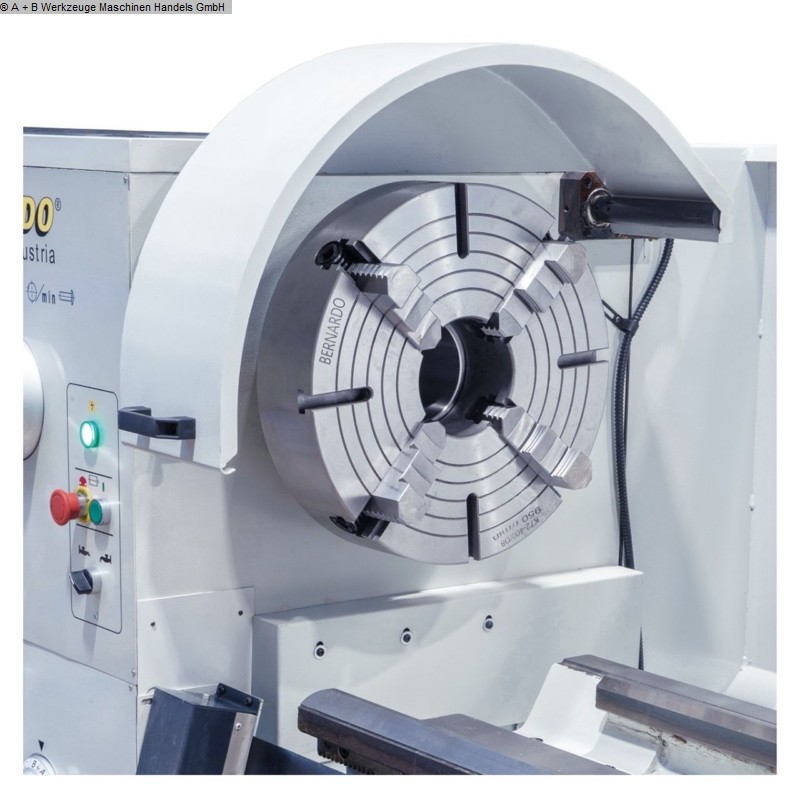

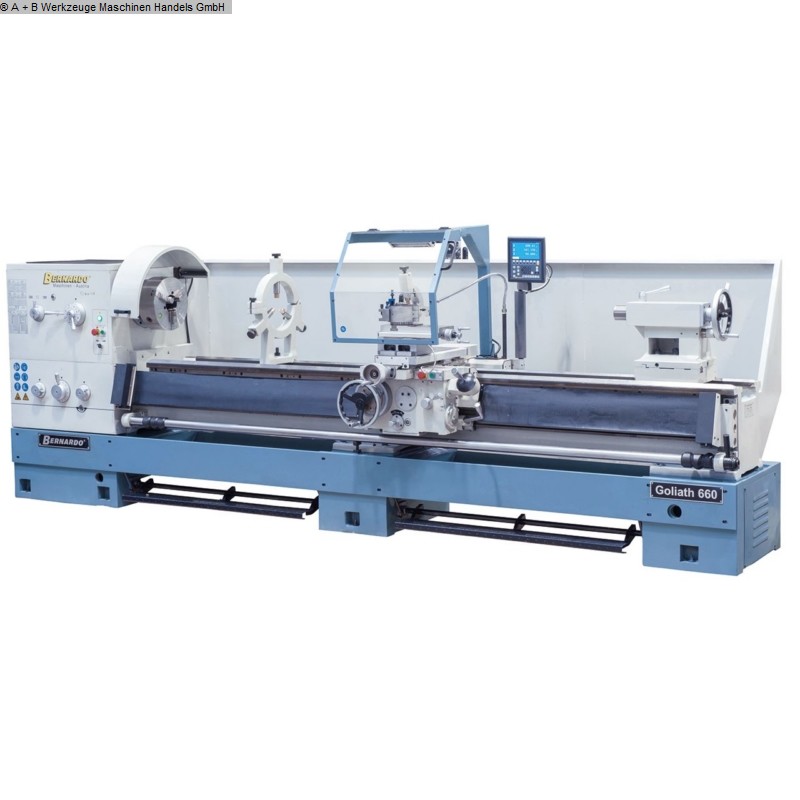

turning length: 3000 mm turning diameter: 660 mm turning dia. in gap: 870 mm turning diameter over slide: 420 mm turning speeds: 36 - 1600 U/min quill:: 5 MK quill travel: 150 mm spindle bore: 105,0 mm engine output: 7,5 kW spindle taper: DIN 55029 D 1-8 weight of the machine ca.: 3990 kg. dimensions: 4500 x 1280 x 1650 mm Scope of delivery - Slip clutch - Rapid traverse longitudinal and planar - LED machine light - 3-axis digital display ES-12 V with LCD display - 3-jaw chuck PS3-315 mm / D8 - Clamping disk 630 mm - Fixed steady rest - passage diameter max. 250 mm - Follow-on steady rest - passage diameter max. 110 mm - 1 centering point / 1 follow-on punch point - Motor with magnetic brake in accordance with CE standard - Foot pedal with brake function in accordance with CE - Initial filling with Shell Tellus 46 - Coolant system - Quick-change tool holder with 4 inserts - Protective de ...
