4 CHURCHILL machine à vendre

grinding diameter: 1520 mm grinding length: 6000 mm grinding wheel size: 660 mm steady: 800 mm steady: 800 mm total power requirement: 15/25 HP weight of the machine ca.: . t dimensions of the machine ca.: . m 2 Steadies Coolant System The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

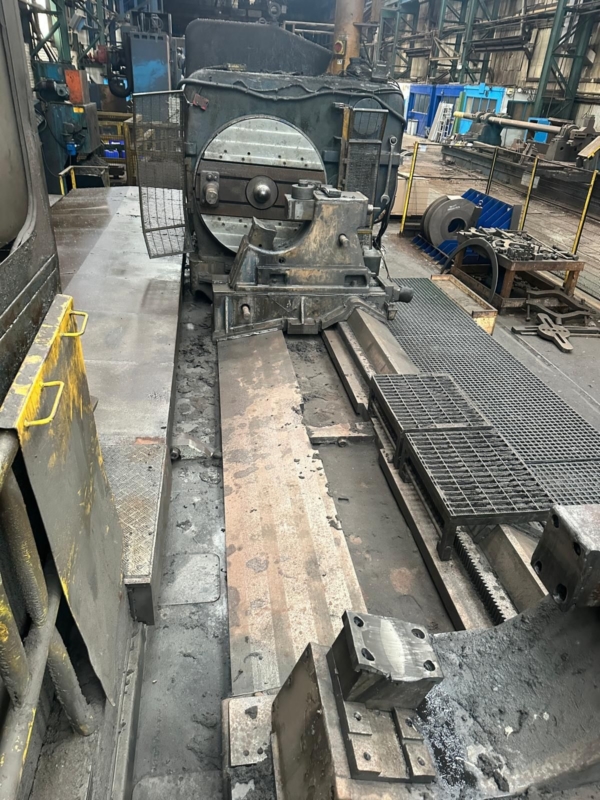

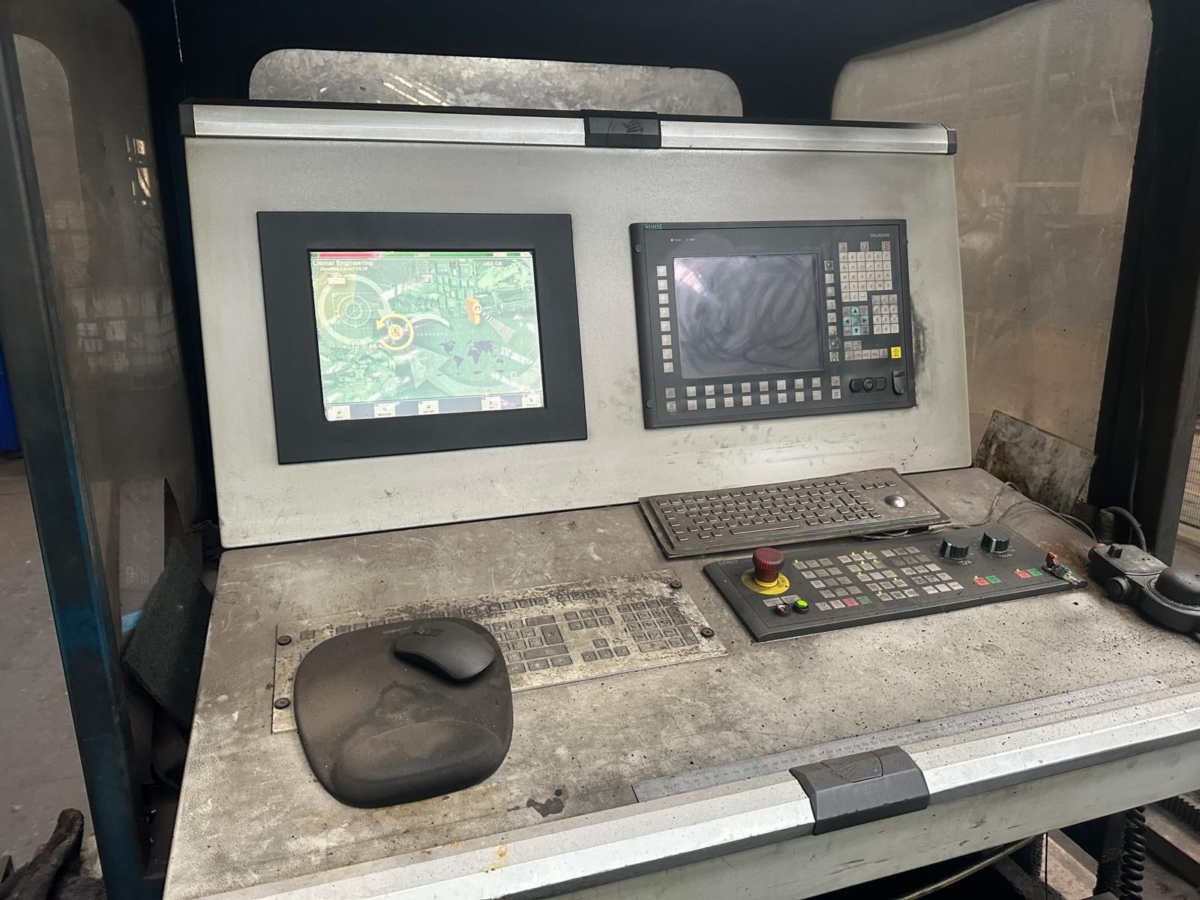

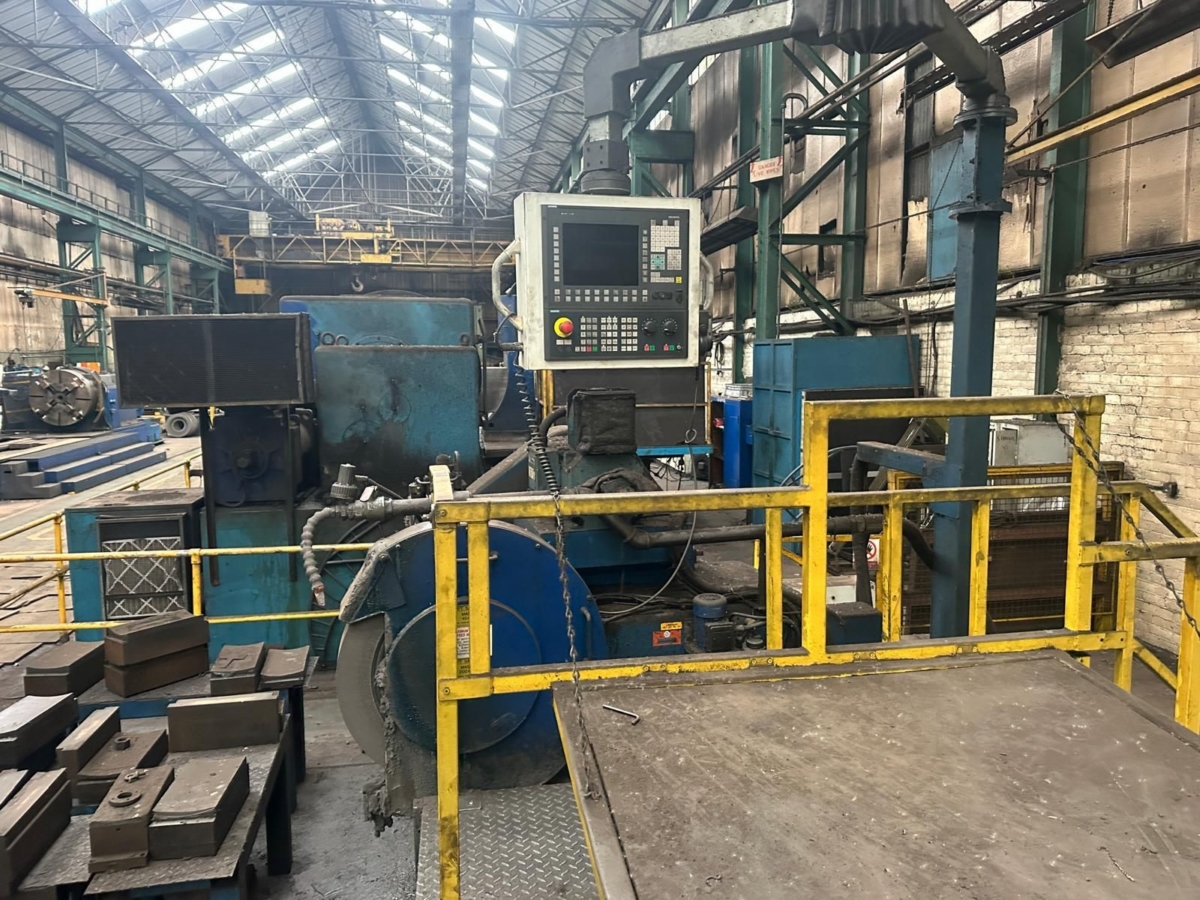

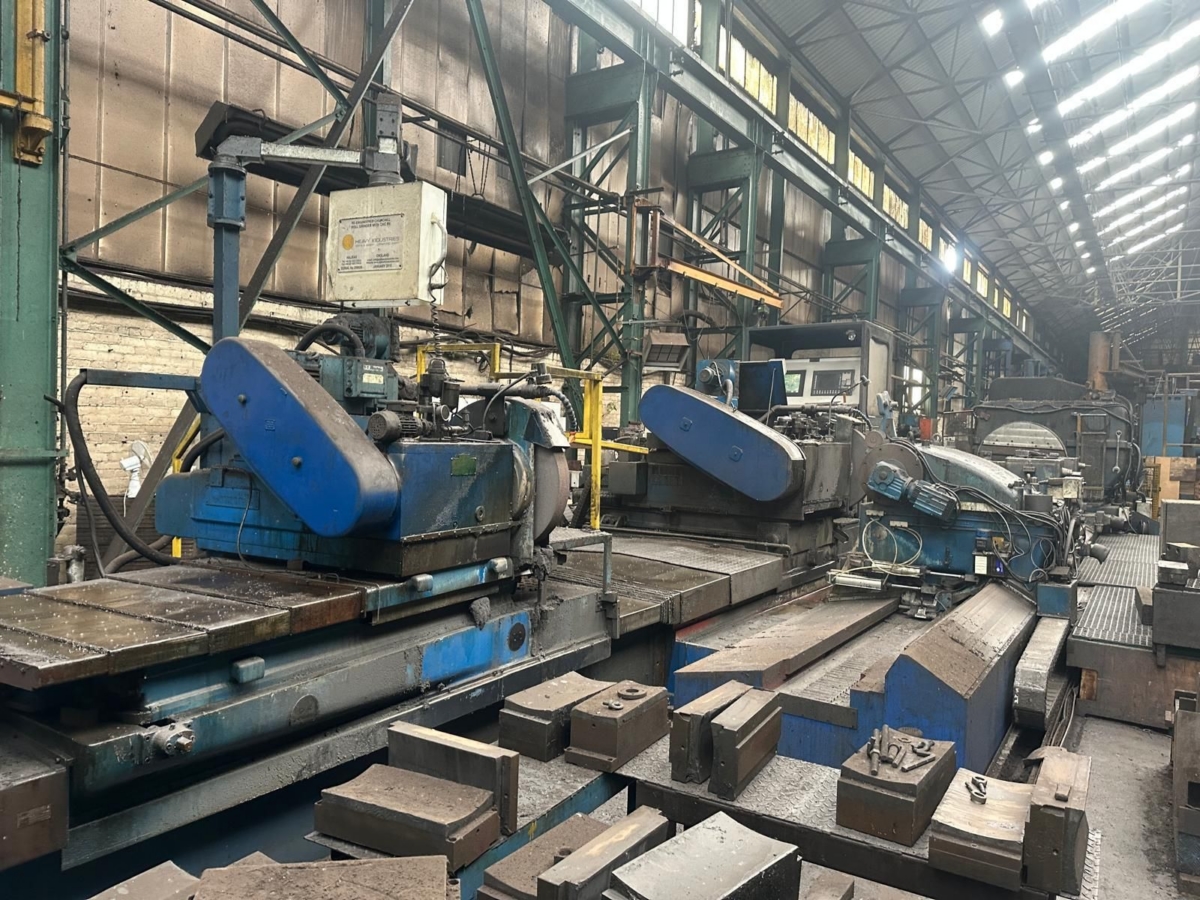

grinding diameter: 1670 mm grinding length: 8990 mm swing diameter: 1670 mm grinding diameter - min.: mm workpiece weight: 65 t grinding spindle speed: U/min roll drive: U/min feed speeds: m/min grinding wheel motor: kW control: Siemens 840D total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m overhauled in 2012 - CNC Control Siemens 840D - Lismar Measuring System - 5 open steadies - tailstock - chuck dia 1200mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: 762 mm grinding length: 5500 mm centre height: mm workpiece weight: 10000 kg grinding wheel size: 762 x 76 x 304,8 mm grinding wheel turining speeds: 1 -750 U/min turning speed range - workpiece: 14,5 - 86 U/min main drive motor: 14,8 kW workpiece drive: 5,5 - 7,35 kW grinding head infeeding speed: 0,00635 - 0,0508 mm/min table speeds: 101 - 2021 mm/min total power requirement: ca 25 kW weight of the machine ca.: 27 t dimensions of the machine ca.: 13,5 x 3,35 m Machine complete with: - 9 x steadies. - Coolant/Filtration Tank. Machine has had over 80.000€ of engineering maintenance work/overhauling in 2023 including replacement of air bearing liners. 7 x steadies fully overhauled. Overhaul of top table & centre heights of workhead & tailstock. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine à tailler les engrenages CHURCHILL PH3615 Diamètre maximal de la pièce 914 mm Diamètre/pas max.- 8 Module, 3 D.P. Entraxe horizontal :-63,5- 559 mm Course horizontale maximale 469 mm Hauteur entre le centre de la table de cuisson et la table de travail : 127- 508 mm Course maximale de l’avance verticale 381 mm Hauteur maximale de la table de travail au centre de la poupée mobile768 mm Diamètre de la table 762 mm Trou de table (diamètre x profondeur) 89 x 381 mm Diamètre de la table de cuisson x longueur 178 x 203 mm Course maximale de la glissière de la table de cuisson 127 mm Diamètre de l’arbre de la fraise-mère 32 mm Vitesses de la broche de la table de cuisson, réglables en continu de 50 à 200 tr/min Avances verticales 0,38 – 5 mm Moteur d’entraînement principal 10 CV Surface au sol 3960 x 2130 x 2300 mm Poids 11 500 kg Jeu étendu de c ...
