13 EXNER machine à vendre

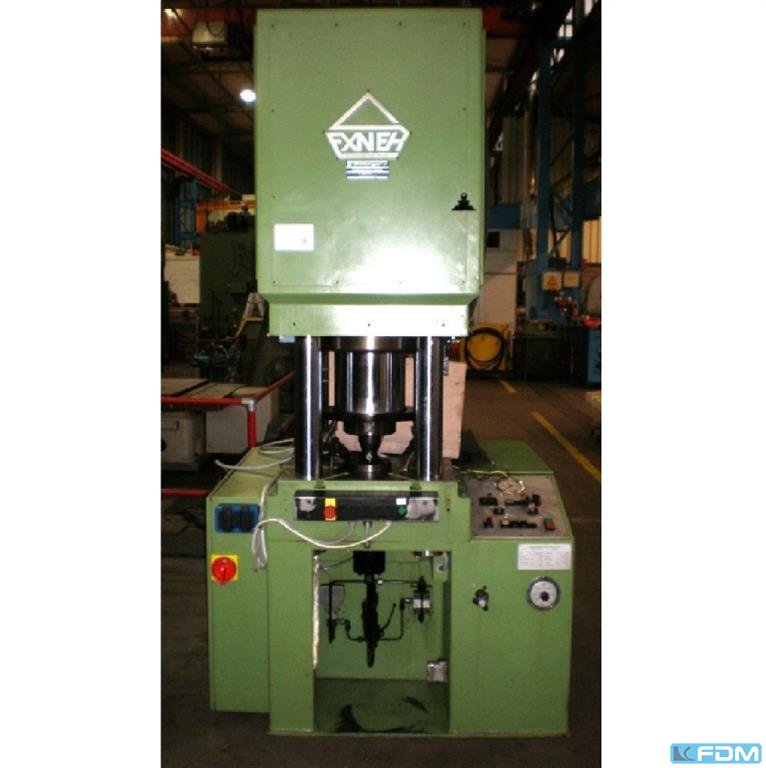

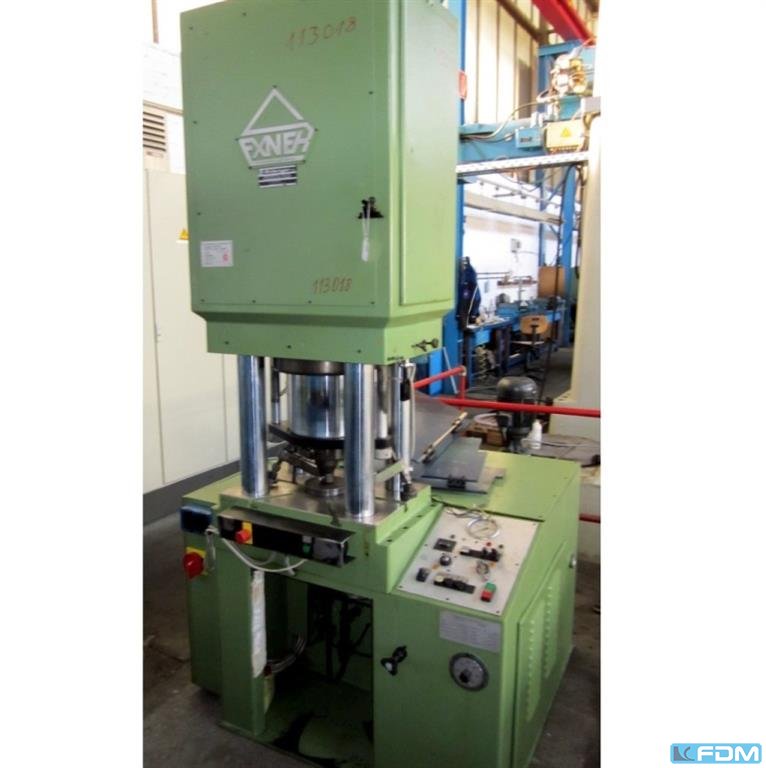

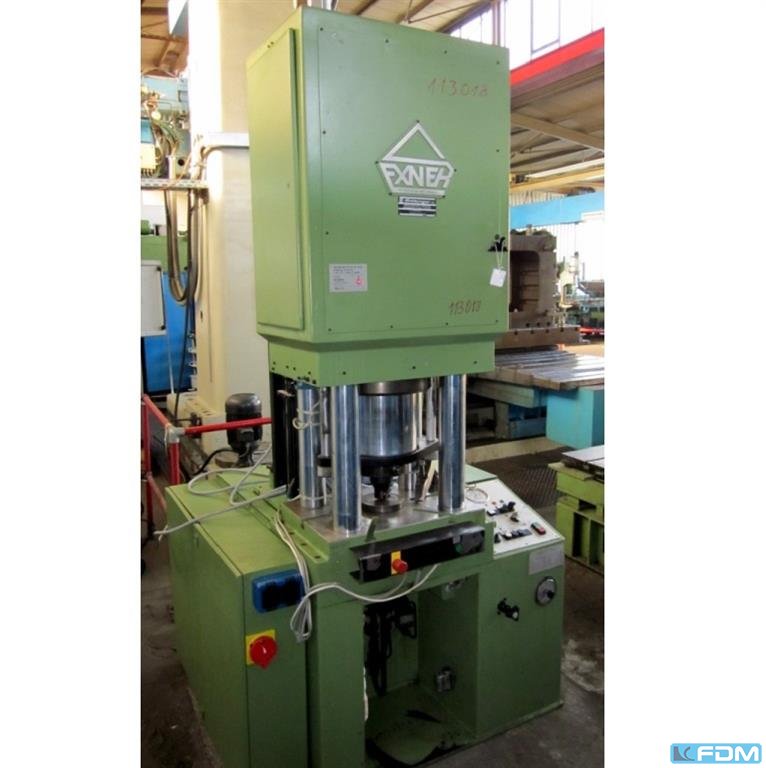

pressure:40 t distance between columns:495 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:490 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:155 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:115 l power requirement:7,5 kW weight:2,2 t dimensions (WxDxH):1,35 x 1,1 x 2,2 m depth stop:mechanisch foundation pit:nicht erforderlich

pressure:40 t distance between columns:500 mm stroke:150 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:480 x 400 mm hole in the table:50 mm table height over floor:950 mm side window:150 mm ram surface:150 mm speed down:480 mm/s speed up:480 mm/s working speed:20 mm/s oil volume:160 l power requirement:7,5 kW weight:2,6 t dimensions (WxDxH):1,1 x 1,4 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 light guard:Sick depth stop:mechanical foundation pit:not necessary

pressure:150 t distance between columns:300 mm stroke:180 mm distance table/ram, max. stroke up, adjustment up:300 mm table surface area:570x180 / 300x410 mm table height over floor:875 mm side window:180 mm ram surface:180 mm speed down:250 mm/s speed up:160 mm/s working speed:6 - 12 mm/s oil volume:250 l power requirement:11,0 kW weight:2,4 t dimensions (WxDxH):1,3 x 1,3 x 2,4 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 § 20 foundation pit:nicht erforderlich

pressure: 40 t distance between columns: 495 mm stroke: 150 mm distance table/ram, max. stroke up, adjustment up: 300 mm table surface area: 490 x 400 mm hole in the table: 50 mm table height over floor: 950 mm column travel -side: 155 mm ram surface: 150 mm feed down: 480 mm/sec feed up: 480 mm/sec working feed: 20 mm/sec oil volume: 115 l power capacity: 7,5 kW weight: 2,2 t dimensions of the machine ca.: 1,35 x 1,00 x 2,21 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 100 t weight of the machine ca.: 4 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pression : 40 Tstroke : 150 mm Numéro de série : 100091 : 2 : Druck & Hub Verstellbar Pression : 25 Tweight : JE 1,5 Tsafety Light Frame : ja bei beiden Les données de cette publicité ont été créées avec ModulMWS - la solution logicielle de LogoTech oHG.

Manufacturer: EXNER Model: PG 80 Year of Manufacture: 2014 The EXNER PG 80 is a four-column hydraulic tool testing press for testing stamping, forming, embossing, and drawing tools. It is designed for high precision and durability, with modern proportional hydraulic control and digital force display for tool setup and testing. Technical Data Press Ram - Number of press cylinders: 2 pcs - Nominal force (adjustable): 2 × 400 kN - Return force: 2 × 150 kN - Stroke: 350 mm - Ram width: 2100 mm - Ram depth: 840 mm - Guide length: 750 mm - Ram speed under load (100%): approx. 0–10 mm/s - Ram return speed: approx. 0–20 mm/s - T-slots (DIN 650): 18 mm - T-slot pitch: 150 mm Installation Space - Installation height (top to bottom): 550 mm - Table width: 2100 mm - Table depth: 840 mm - Table T-slots (DIN 650): 18 mm - T-slot pitch: 90 mm - Table passage (W×D): 1300 × 120 mm (to be  ...

Hydraulic press manufactured in 1995. This EXNER EX SBR 200 features a pressing force of 2000 kN and a drive power of 78 kW. With an oil capacity of 1400 liters and a weight of 52000 kg, this machine is designed for robust performance. If you are looking to get high-quality pressing capabilities, consider the EXNER EX SBR 200 hydraulic press we have for sale. Contact us for further details.

Hydraulic press with a pressing force of 5,000 kN or 500 t. Manufacturer: Maschinenfabrik EXNER GmbH & Co. KG Type: EXSBRD 500ET Machine No.: 10461 Year of manufacture: 2001 Max. stroke length: 1,300 mm Max. opening: 1,800 mm Min. opening: 500 mm Table size: 2,550 × 2,000 mm Frame passage: 2,570 mm Tool dimensions: 2,200 × 1,800 mm Max. tool weight: 25,000 kg Working speed: 26 / 50 mm/s Rapid traverse speed: 400 mm/s Overrun distance: 97 mm Overrun time: 158 ms Safety distance: 252 mm Drive power: 159 kW Oil capacity: approx. 2,800 liters

CONTROLS   PLC SIEMENS S7 300 PRESS DESIGN   drive system: hydraulic   frame design: H-frame, monoblock   openings in uprights: no   number of suspensions: 2   slide ejectors / cushion: yes   table cushion: yes   opening in table: no   quick die change system: yes   moving bolster design: front PRESS FORCES   total force (nominal): 400 to PRESS TABLE   table surface (left-right): 2480 mm   table surface (front-back): 1600 mm   thickness of bolster plate: 200 mm   height above floor level: 800 mm   number of T-slots: 10   distance between T-slots: 200 mm SLIDE   slide force: 400 to   table surface (left-right): 2350 mm   table surface (front-back): 1600 mm   stroke: 630 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 270 mm/s   working velocity min.: 32.75 mm/s   working velocity max.: 100 mm/s   return velocity max.: 270 mm/s    ...

Une presse à estampage à quatre colonnes, Exner, avec une électronique renouvelée en 2011, est disponible. Force de pression : 340 t, cylindre de pression : 1, diamètre du cylindre de pression : 380 mm, course de pression : 180 mm, réglage de la course : 100 mm, hauteur d’installation : 400 mm, diamètre du rame : 260 mm, dimensions de la table X/Y : 910 mm/610 mm, dimensions de la machine X/Y/Z : environ 1300 mm/1600 mm/2950 mm, poids : environ 6500 kg. Une inspection sur site est possible.

pressure: 200 t passage width: NA mm stroke: 180 mm table length: 690 mm table width: 530 mm distance between columns: 420 mm total power requirement: 18 kW weight of the machine ca.: t dimensions of the machine ca.: m Hydr. 4-Pillar Press for Embossing/Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pression: 20 t Gorge: 185 mm Course: 100 mm Surface de la table: 380 x 350 mm Jour : 250 mm Hauteur de la table au-dessus du sol: 840 mm Puissance totale requise: 4 kW Poids de la machine env.: 1,3 t
