AMUT E100 Coextrusion Line + Inline ILLIG RDM 75K Thermoformer AMUT & ILLIG AMUT E100 Coextruder/ Inlin...

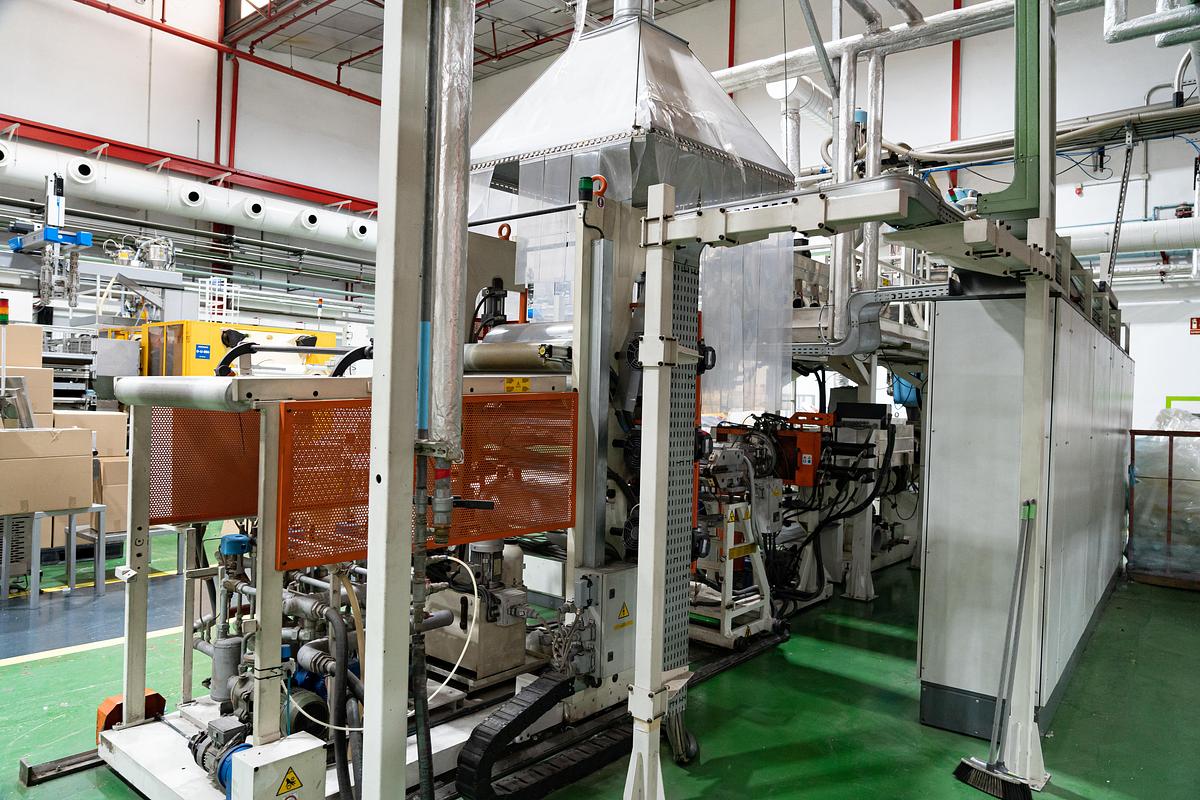

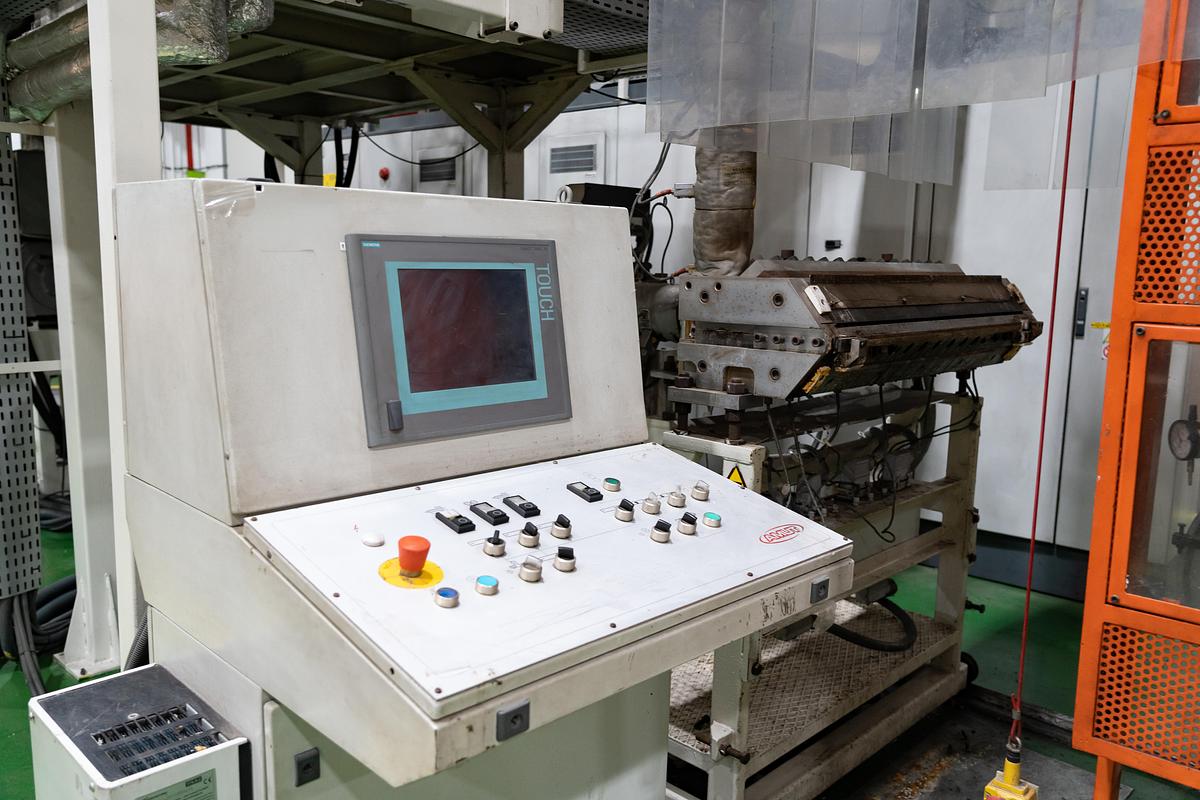

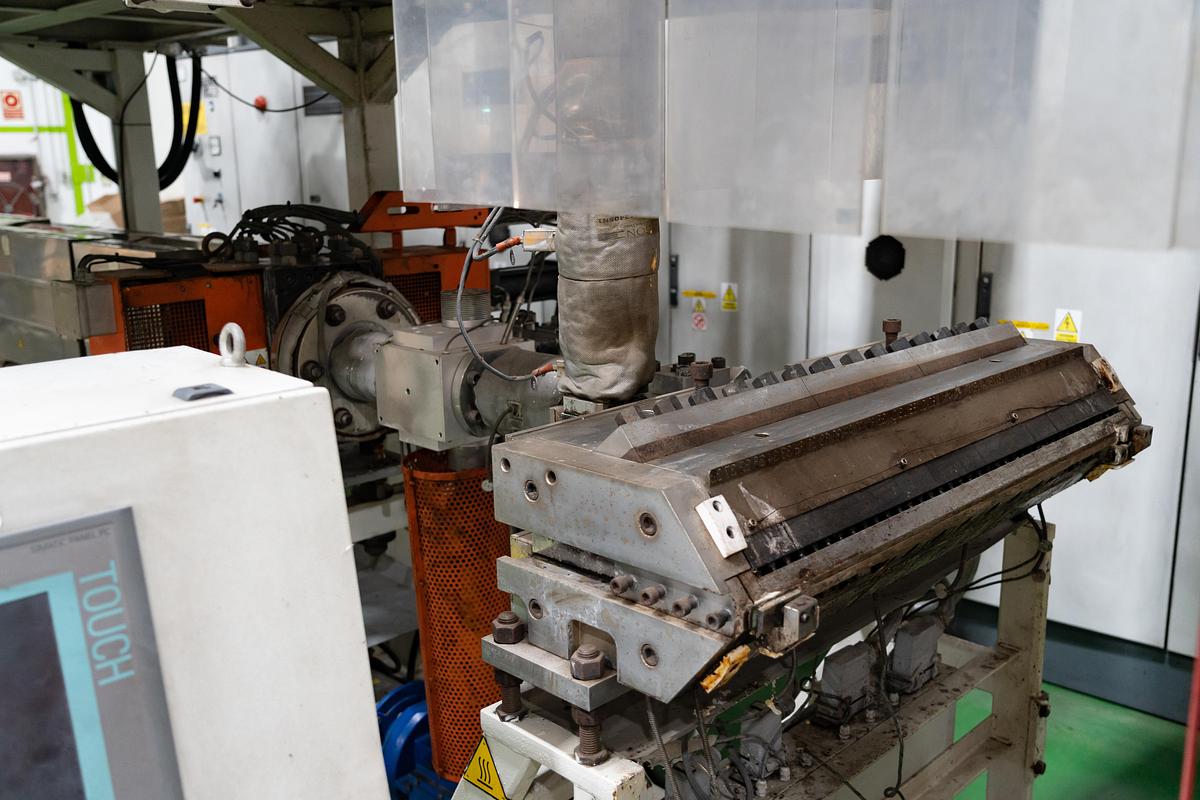

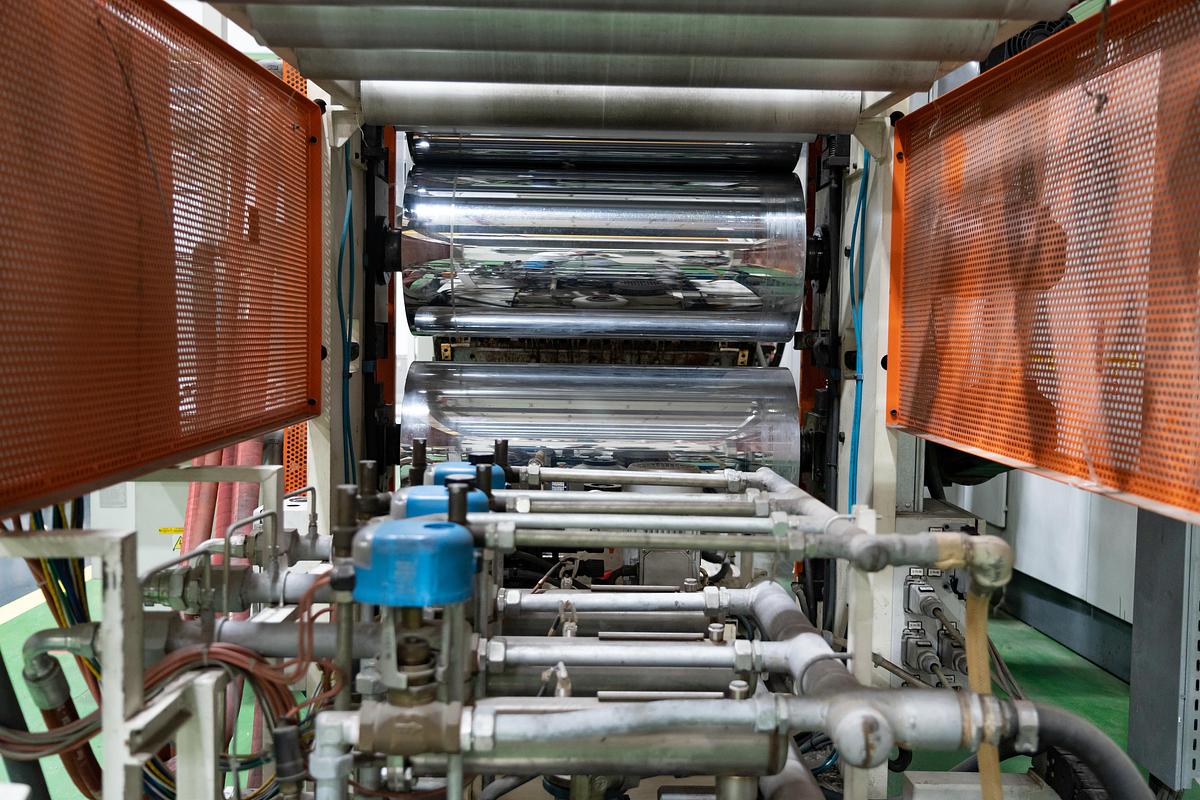

Complete AMUT E100 Coextrusion Line + Inline ILLIG RDM 75K Thermoformer, AMUT line year: 2010, ILLIG RDM 75K year: 2007, Consisting of:, AMUT E100 Coextrusion Line, - AMUT 4-component mixing and dosing unit with integrated vacuum pump, - Main extruder AMUT EA100, - Screw diameter: 100 mm, - L/D ratio: 35, - 8 heating zones, - Heating capacity: 54.9 kW, - Air cooled, - Drive motor: 178 kW, - Degassing pump: 2.2 kW, 35 m³/h, - Automatic screen changer, - Melt pump, Coextruder AMUT EA60, - Screw diameter: 60 mm, - L/D ratio: 33, - 3 heating zones, - Heating capacity: 26.4 kW, - Air cooled, - Drive motor: 59.5 kW, - Automatic screen changer, - A-B-A black-box adapter, - AMUT flex-lip die, - Die width: 800 mm, - Thickness range: 0.15 to 1.8 mm, - Complete pumping group, Cooling Stack and Control Desk, - 3-roll polished chrome cooling stack, - Working width: 1,000 mm, - Roll diameters: 450 / 450 / 450 mm, - Control desk with Siemens SIMATIC Panel PC touch HMI, Inline ILLIG RDM 75K Thermoformer, - Year: 2007, - Siemens SIMATIC Multi Panel HMI, - Thermoformer with auto-start function, - Indramat servomotor indexing, - Maximum material width: 750 mm, - Maximum indexing length: 480 mm, - Top and bottom heaters, - Total connected load of top and bottom heaters: 111.3 kW, - Automatic transport rail spreading for PP, - Sheet sag control, - Maximum forming area: 700 x 450 mm, - Servomotor plug assist, - Maximum part height: 150 mm, - Maximum mold closing force: 40,000 daN, - Automatic lubrication system, - Siemens S7 PLC controls, - Inline ILLIG RS90 Grinder with sound-proof housing & Blower, Downstream Equipment, - Mould & Matic pick-up stacker, automatic cup stacker / counter, - BVM inline wrapping unit for counted and stacked cups, - KUKA robot unit for packing sleeved cups into cartons, - Carton top flap closing and adhesive tape sealing unit, Molds, Molds for drinking cups for the ILLIG RDM75K is also available at the Plant., Note, Technical details are subject to confirmation., AMUT E100 Coextruder speed: 0.5 to 20 meters/ min, Max/ Min Sheet thickness: 0.15 to 1.8 mm, Max. Draw: 150 mm, Inline Grinder: ILLIG RS90, Packing wrapping Line for stacked cups: BVM
seller offer No. resale 627
