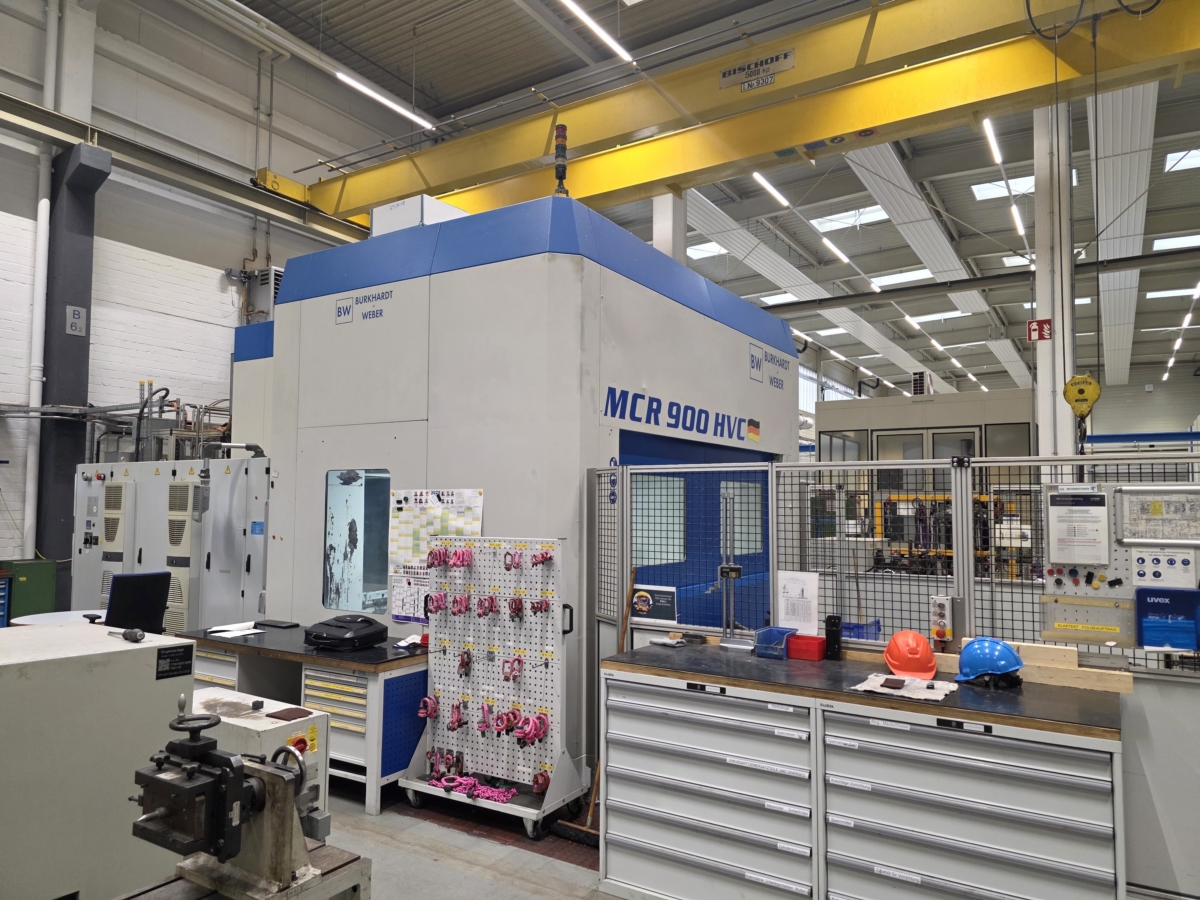

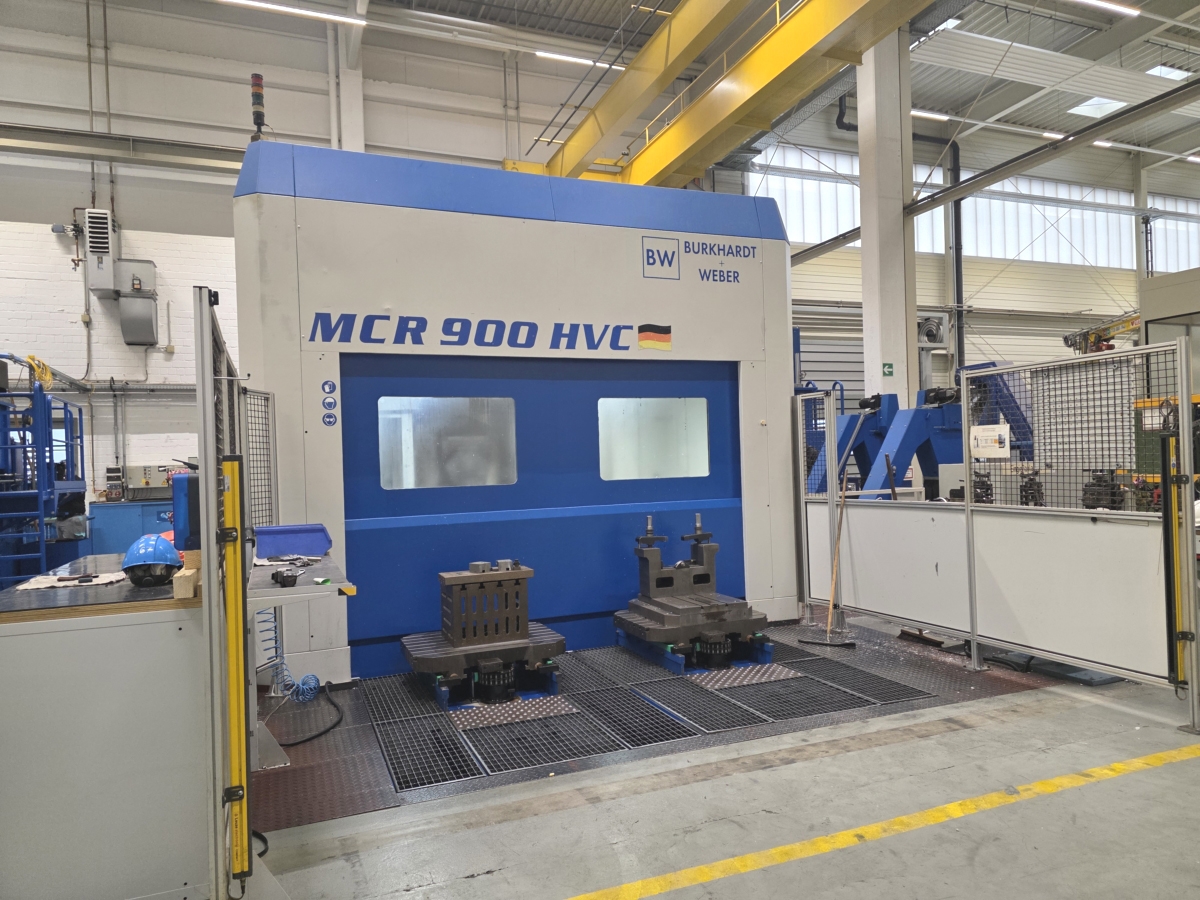

Centres de traitement CNC BURKHARDT + WEBER MCR 900 HVC

x-travel: 1600 mm
y-travel: 1250 mm
z-travel: 1600 mm
B-axis (table): 360.000 x 0,001° deg

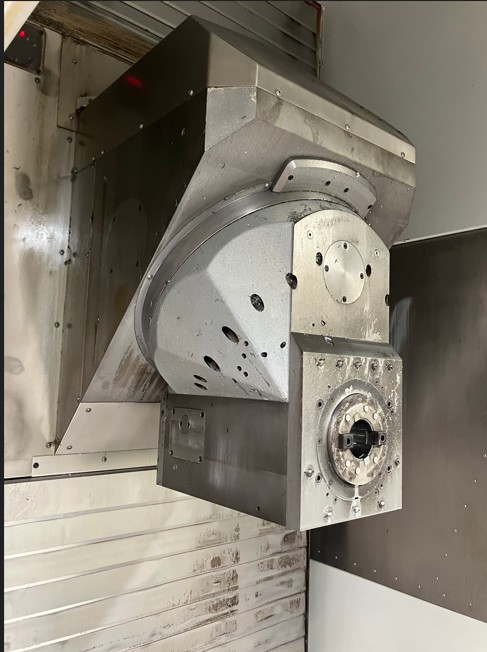

milling-head swivable +/-: (HV) 360.000° deg
pallet size:: 1000 x 800 mm
table load: 3000 kg
tool taper: SK 50-B Plananlage 125
spindle turning speed range: max. 8000 U/min
transmission ratio: 2
spindle drive: (100/40 % ED) 37/50 kW
feeds x/y/z -stepless: 30000 mm/min
max. torque on the spindle: 1410/2000 (100/40 % ED) Nm
total power requirement: 100 kVA
weight of the machine ca.: t
dimensions of the machine ca.: 11555 x 7998 x 5050 mm
Universal machining center 5 axes simultaneously
Original purchase price: EUR 1.295.000,-

First machine installation in September 2011.

A geometry measurement report (dated 30. August 2025) is available.

Equipment:

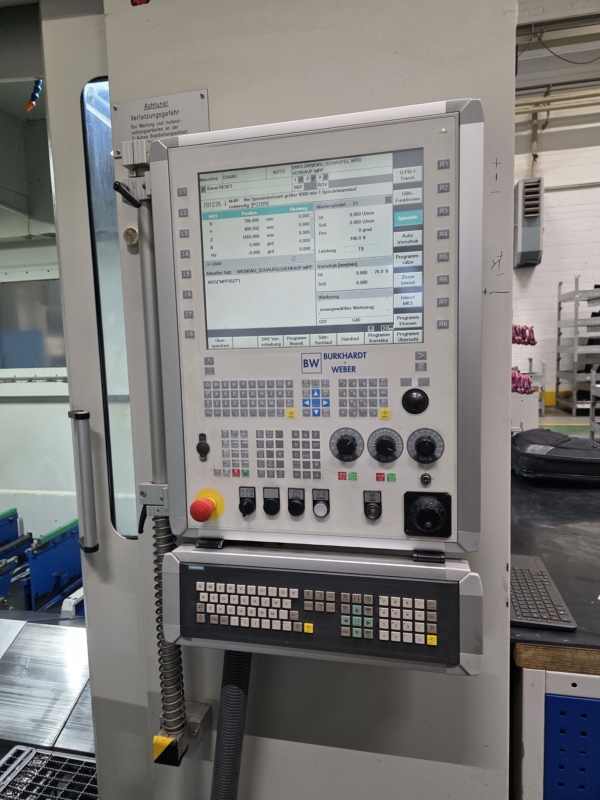

CNC-control Siemens 840D Solution Line
Separate handheld control unit, wired, Siemens HT-2

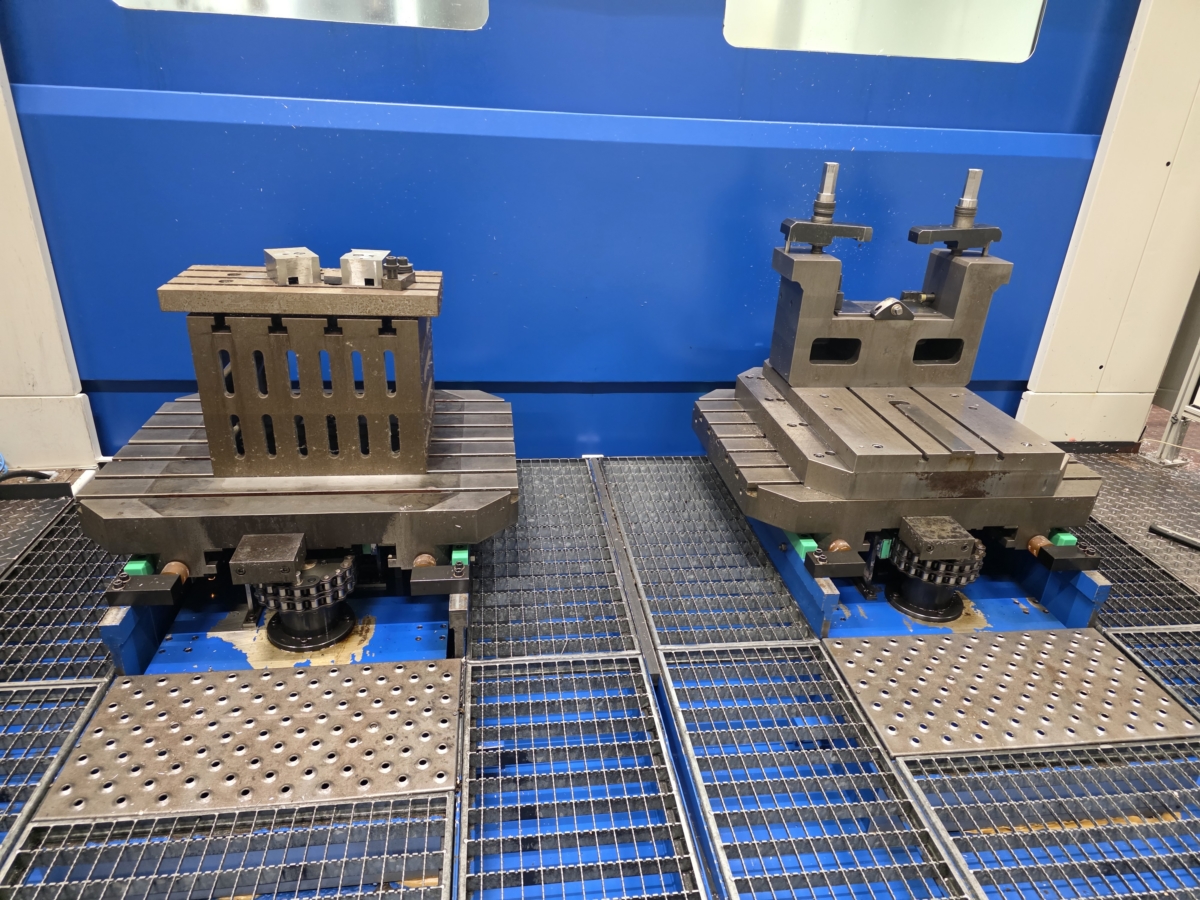

2-station pallet changer with safety light barrier
110-position tool changer (max. tool length 600 mm) with 2nd Siemens 840 D control panel
Tool taper cleaning system
Special cabin with oil mist extraction system
Coolant tank 3.300 liters, pump pressure 4 bar/50 bar (Q1/Q2)
Chip conveyor
Workpiece measuring probe
Manual books
Spare part: New ball screw.

Note:
The machine will be sold without tool holders, tools, and clamping devices.



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1022-2411
