Rectifieuses pour engrenages BURRI BZ 331
machines de travail des métaux / machines de découpe et de taillage de dentures / Rectifieuses pour engrenages
max. wheel diameter: 330 mmgear width: 175 mmmax. module: 6,0 min. module: 0,8 Control: centre distance: 162 - 556 mmshifting: 100 mmnumber of teeth: 6 - 600 max.helical angle: 45° deg.pressure angle: 14° - 30° deg.grinding worm dia.: max. 350 mmwidth of grinding worm: 84/104 mmnumber of starts: ...
Fabricant: BURRI
Modèle:BZ 331
Type de machine: Rectifieuses pour engrenages
Numéro de l'article: 169375410
Quantité: 1
Date: 24.04.2026
Année de fabrication: 2015
Emplacement: Deutschland
Prix:
Machine en stock:Oui
Seller-item-No.:1022-2432
max. wheel diameter: 330 mm
gear width: 175 mm
max. module: 6,0
min. module: 0,8
Control:
centre distance: 162 - 556 mm
shifting: 100 mm
number of teeth: 6 - 600
max.helical angle: 45° deg.
pressure angle: 14° - 30° deg.
grinding worm dia.: max. 350 mm
width of grinding worm: 84/104 mm
number of starts: max. 5
workpiece weight: max. 60 kg
total power requirement: 23 kVA
weight of the machine ca.: 6,7 t
dimensions of the machine ca.: m
The machine is in excellent condition and has been used maximum in 1-shift operation.

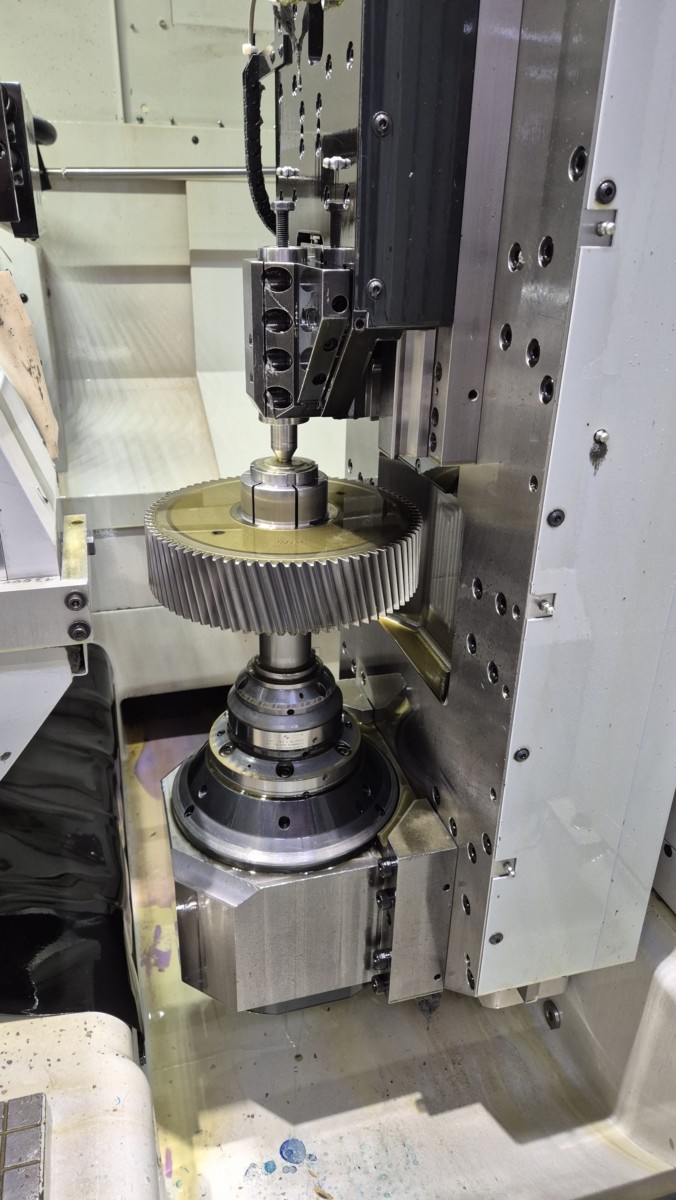

Generating and profil grinding.

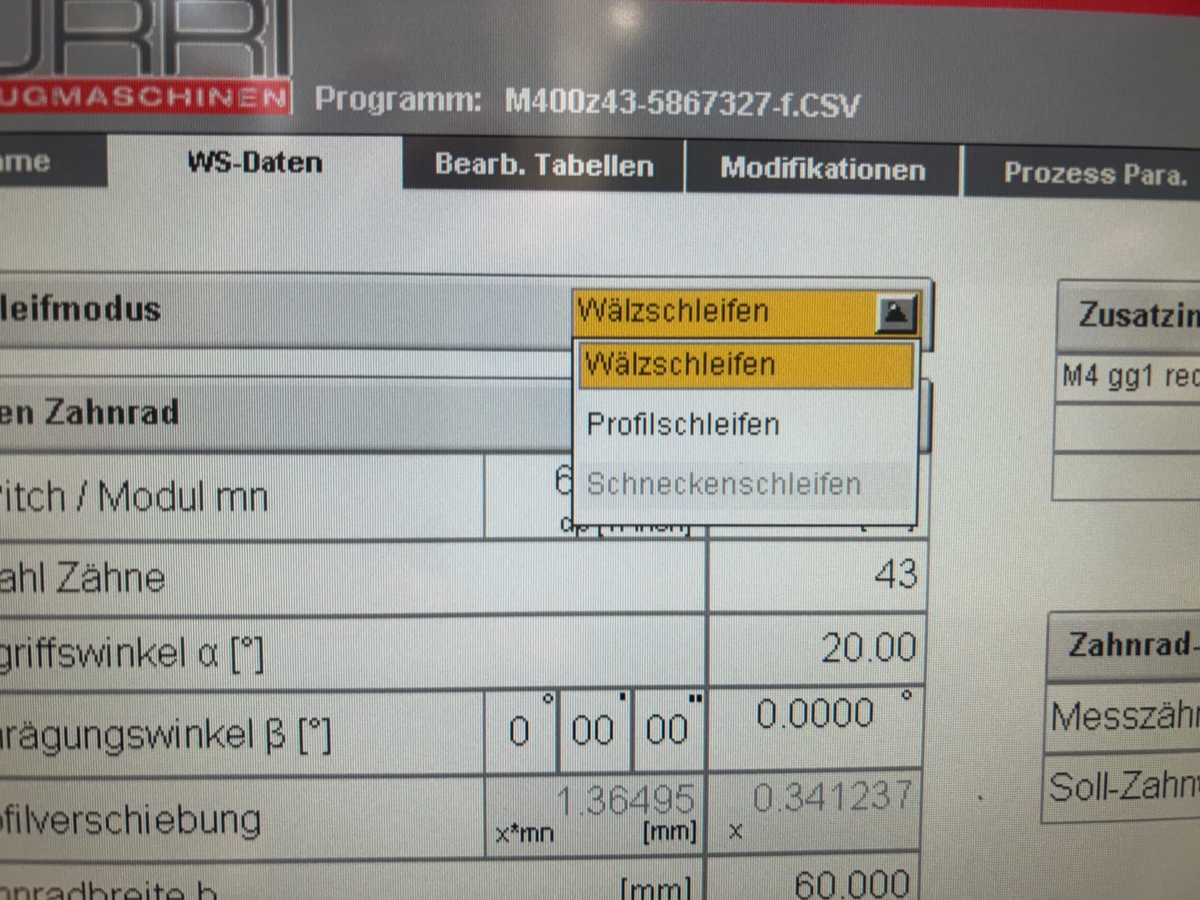

In July 2023, the machine was fitted with a new PC (PC APC910 1.4GHz, 2x2048MB RAM) and received a software update for profile grinding.
Working hours (dated 09. April 2026):
Working hours since software update: 12,689 h
Working hours grinding/profiling: 1,976 / 134 h
The machine was overhauled in July and October 2023:
- Replacement of the X, Y, U and V ball screws, guides for the U and V axes, etc.
Minimum workpiece root diameter: 10 mm
Maximum workpiece tip diameter: 330 mm
Maximum grinding stroke: 175 mm
Maximum tooth width: 175 mm
Maximum workpiece weight: 60 kg
Center distances: 162 to 556 mm
Grinding worm dimensions:
Maximum outer diameter: 350 mm
Minimum root diameter: 250 mm
Width: 84/104 mm
Maximum module (with limitations): 6.0 mm
Number of threads: up to 5
Maximum usable width (shift travel): 100 mm
Tooth design:
Minimum number of teeth: 6
Maximum number of teeth: 600
Module with automatic centering: min./max. 0.8/6.0 mm
Pressure angle: min./max. 14/30 deg.
Maximum helix angle left and right: 45 deg.
Grinding screw speeds:
Grinding: 0 - 3500 rpm
Profiling: 0 - 150 rpm
Setup (special operating mode): max. 50 rpm
Workpiece speed with gearbox: max. 400 rpm
Workpiece speed with direct drive: max. 750 rpm
Maximum shift travel: 100 mm
Total connected load: 23 kVA
Machine weight: 6.7 t
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
