Ligne COSMO FOOD MACHINERY Complete Vegetable Processing

Complete Vegetable Processing Line – Installed – Short Use – Inspection Possible.
Complete vegetable processing line, currently still installed and available for inspection at any time.
The line has been used for approximately 3 months only and was stopped due to a change in production.
The system remains in place, allowing full on-site inspection. Dismantling and loading onto trucks can be carried out by the owner free of charge.
Important:
Slicer is NOT included
No operational video available at this stage
Layout and full photo documentation available
The line is suitable for various vegetable processing applications depending on final configuration.
echnical Data (Structure it like this)
Condition: Used
Operating time: Approx. 3 months
Status: Installed
Inspection: Possible anytime
Dismantling: Included (FOC)
Loading: Included
Availability: Immediate

Scope of Supply:

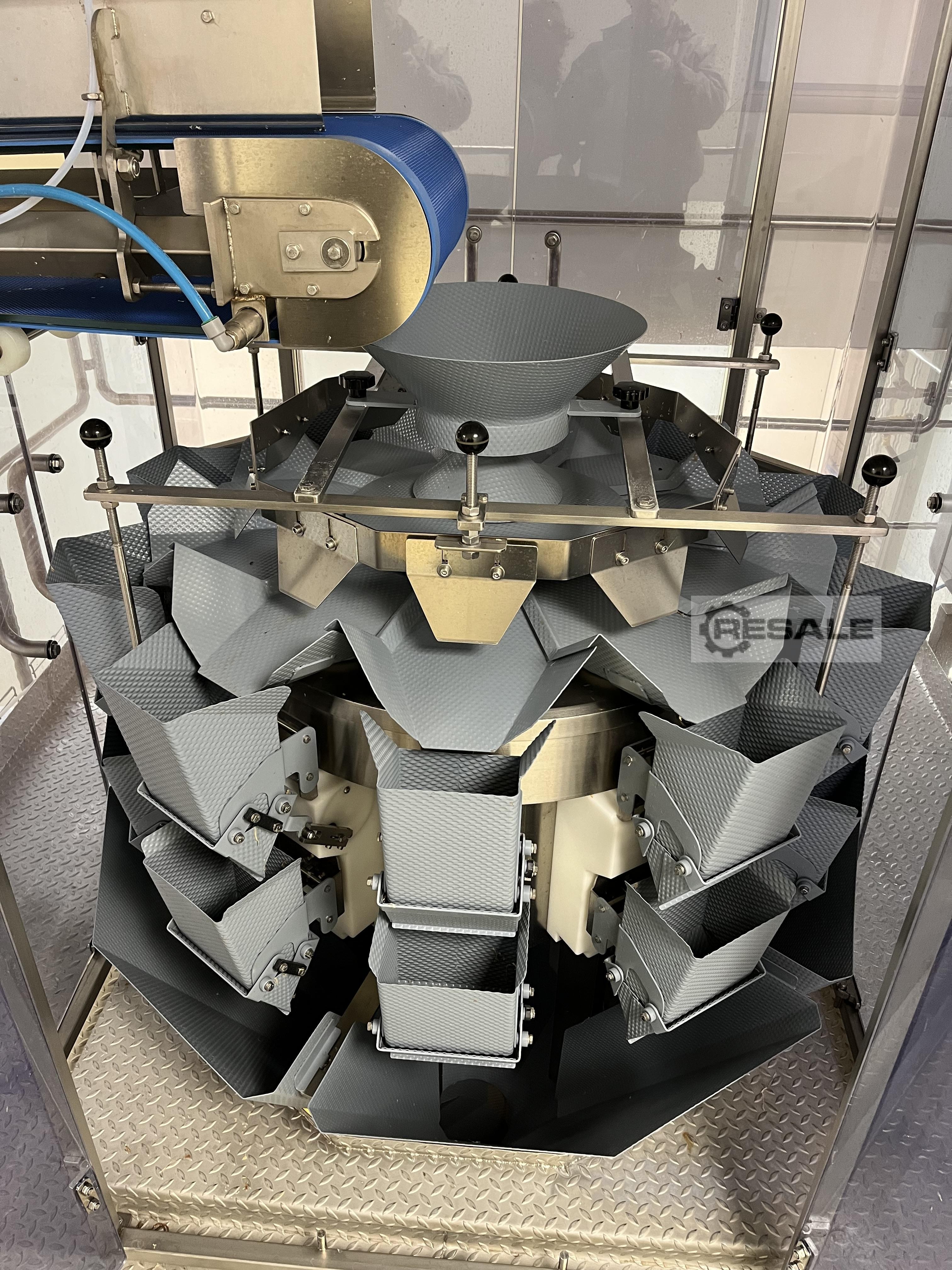

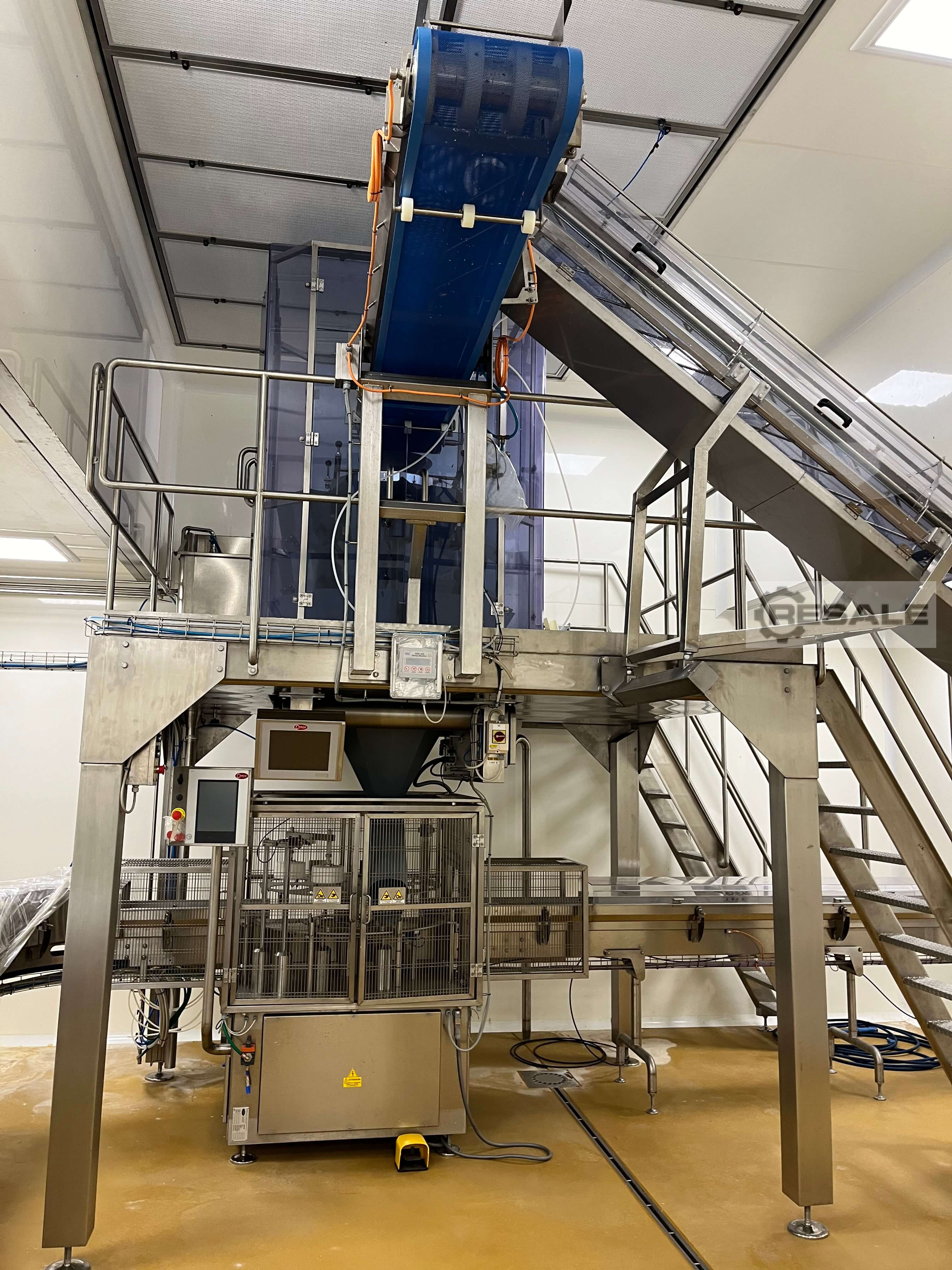

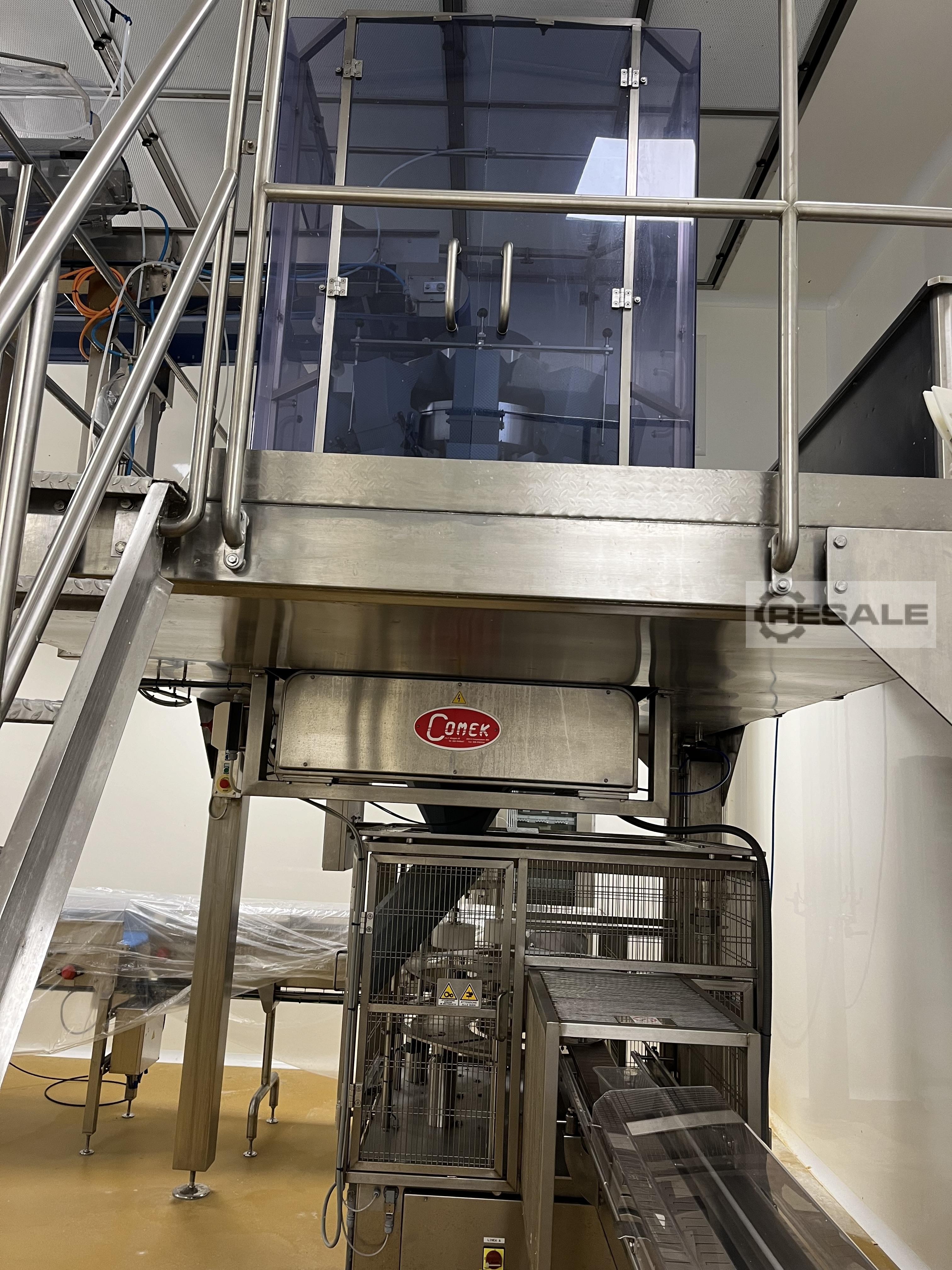

MULTI-HEAD WEIGHING MACHINE
no. 1 multi-head weighing machine 10 heads
internal parts and hoppers with non-stick treatment
no. 1 product loading belt
no. 1 stainless steel tank for washing baskets
PACKAGING LINE
no. 1 tray-filling machine
no. 1 machine for packing the product in vacuum trays and in a protective atmosphere (tray sealer)
no. 1 plant for destacking plastic containers
no. 2 conveyor belts
no. 1 accumulation table for full containers
FRUIT & VEGETABLE WASHING LINE
no. 1 bubble washing tank
no. 1 bubble washing and sanitising tank
VEGETABLE DRYING LINE
no. 2 continuous dryers, Cosmo
no. 1 weighing conveyor + loading conveyor
no. 1 exit conveyor

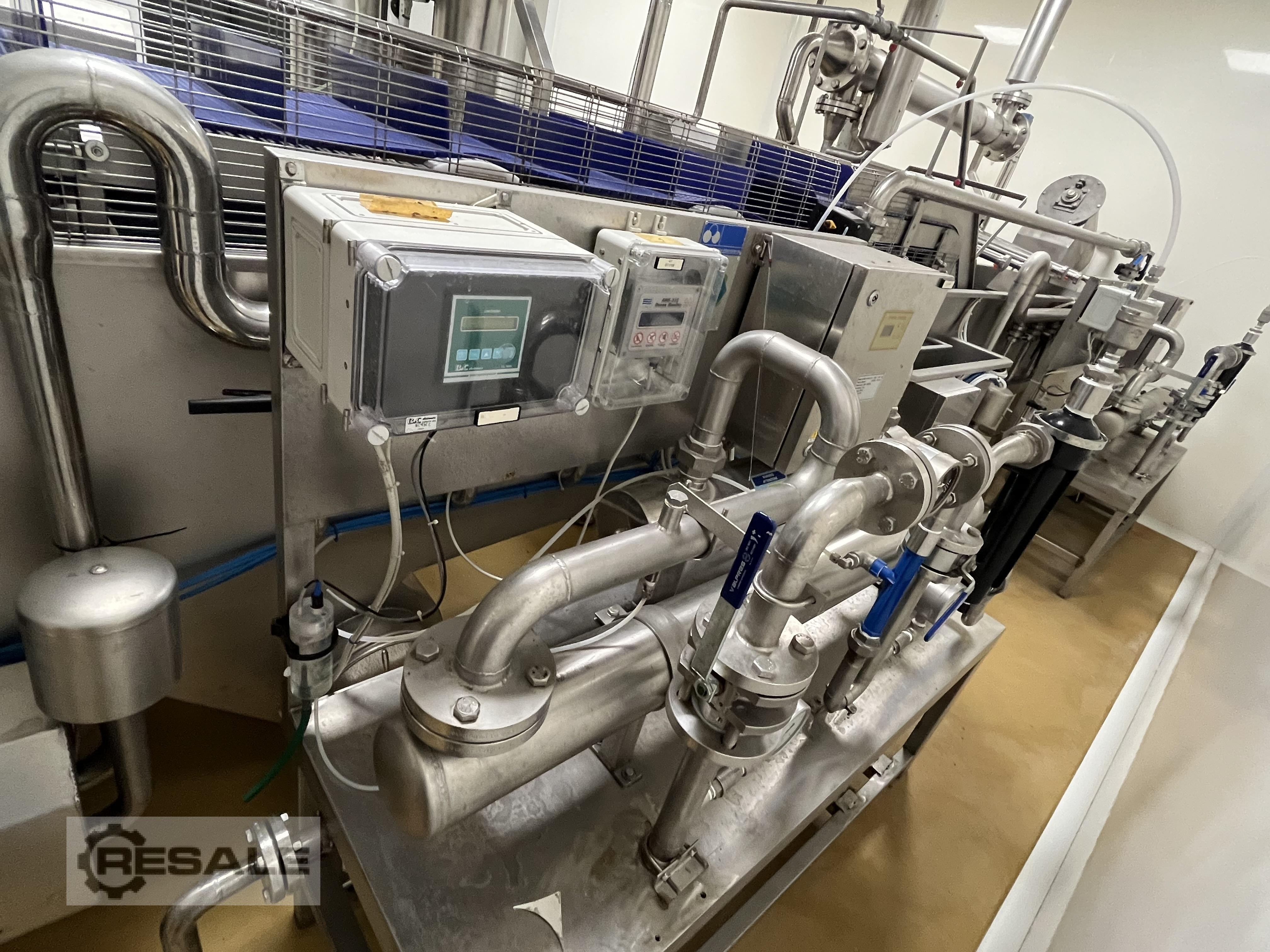

no. 2 tunnel conveyors for sanitation
VIBRATING TABLE


STORAGE BUNKER AND LOADING/UNLOADING SCREWS FOR VEGETABLES
no. 1 storage bunker
no. 1 small loading screw conveyor,
no. 1 long inclined screw conveyor,
no. 1 horizontal unloading screw conveyor,
The machine packs containers with a round base, with a bottom diameter of 185 mm and a top diameter of 208 mm. The height of the containers can vary from 60 mm, 130 mm, to 160 mm, depending on the weight of the product to be filled.

In the past, they worked with diced onions, and the pack sizes were 1000 g, 2000 g, and 2500 g.

The operating speed of the machine (with onions) ranges from 5–6 packs per minute up to 10–12 packs per minute.

The multihead weigher is also equipped with a discharge system that allows the product to be packed into bags, with the product being released directly from the bottom before being filled into the round containers (this is an alternative option).

The plant has a production capacity of 2000–2500 kg/h, depending on the type of product processed.
