d'autres machines de travail des métaux machines d'occasion à vendre (11,016)

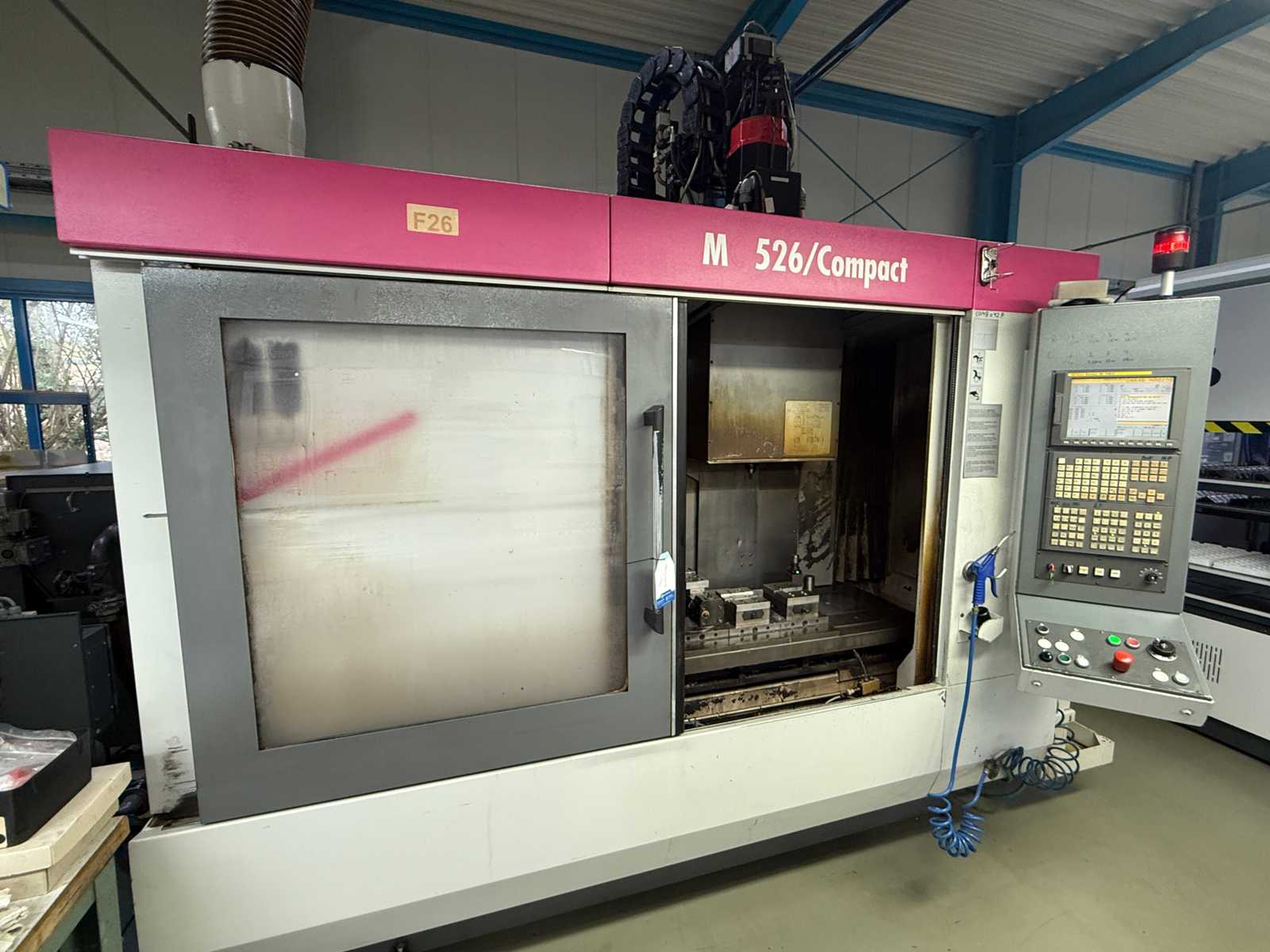

Machine number: KMM526 1506Operating voltage: 400 VFrequency: 50 HzRated current: 45 AControl: FANUC SERIES 18i-MB 5Table dimensions: 1500 x 470 m with three groovesAttention: without the clamping devices shown in the photosincl. 4th axisTravel X-axis: 1000 mmTravel Y-axis: 400 mmTravel Z-axis: 360 mmProjection: 350 mmWorking spindle Spindle bearing diameter: 65 mmTool holder: SK 40Spindle speed: from 36 to 12000 rpmincl. 42-fold tool changerMax. tool diameter: 125 mmMax. tool length: 250 mmFeed in X/Y/Z axis: 1 - 10000 mm/minRapid traverse in X/Y/Z axis: 45 m/minincl. chip conveyor and coolant systemReference: Elos - Lot 1

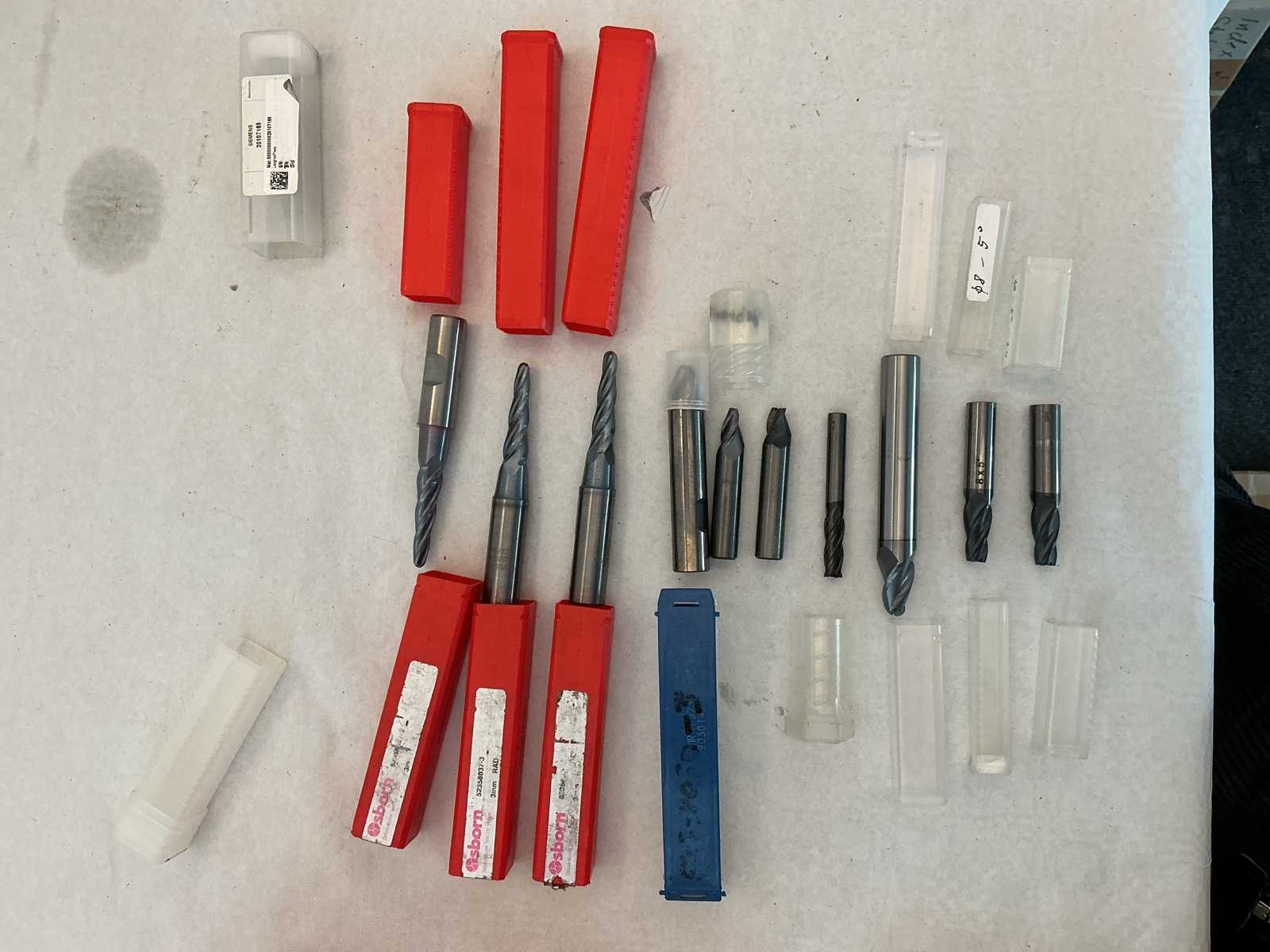

By Gühring, Widia, Hartmann

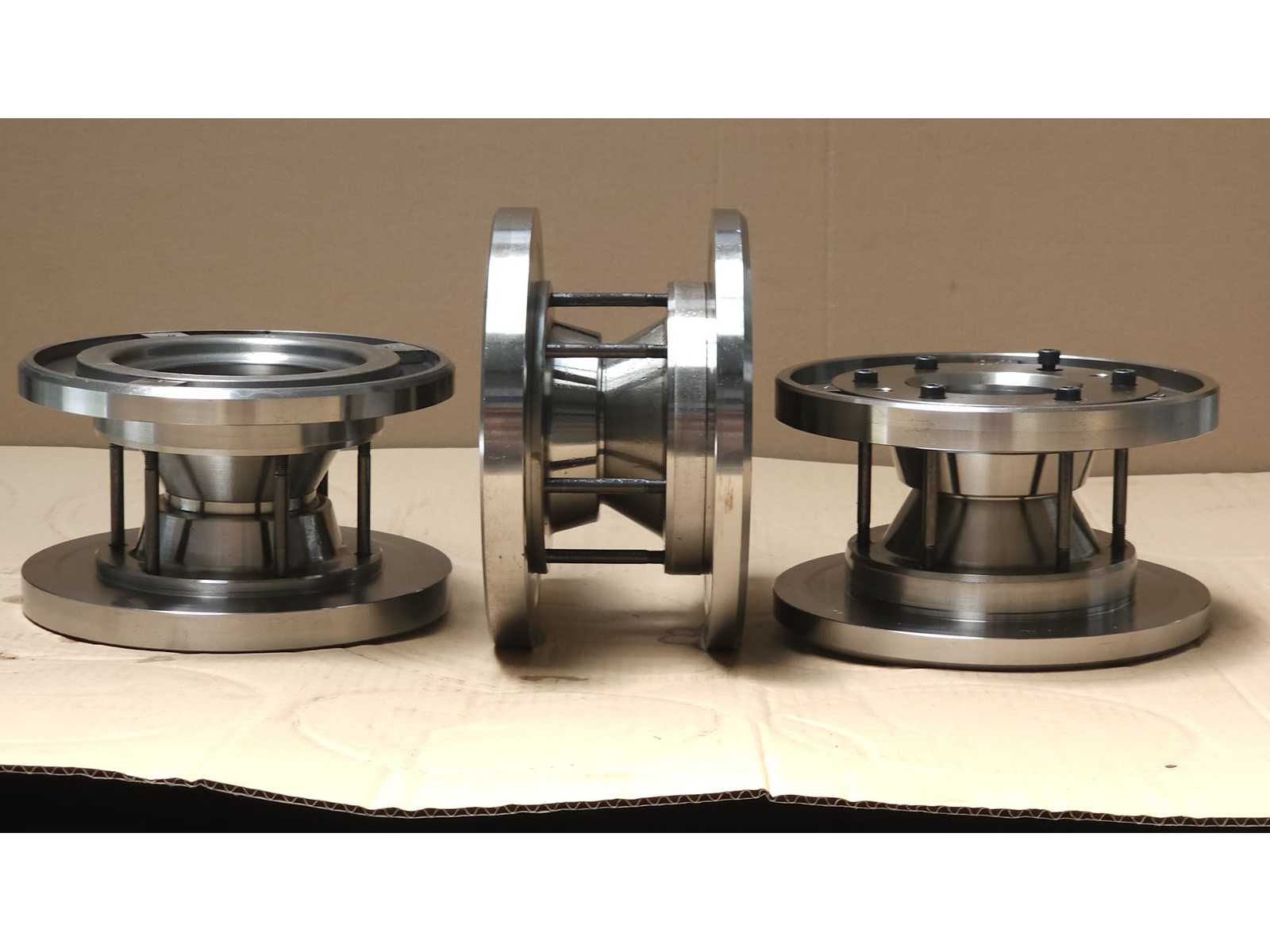

Grinding wheel flange for machine type Reishauer RZ 301 S (1x piece, more in stock on request) For holding ceramic grinding wheels for tooth flank grinding - 125 mm wide, dimensions according to machine type Reishauer RZ 301 S

Total: 5 pieces ; unused, various varieties, see photos for more details

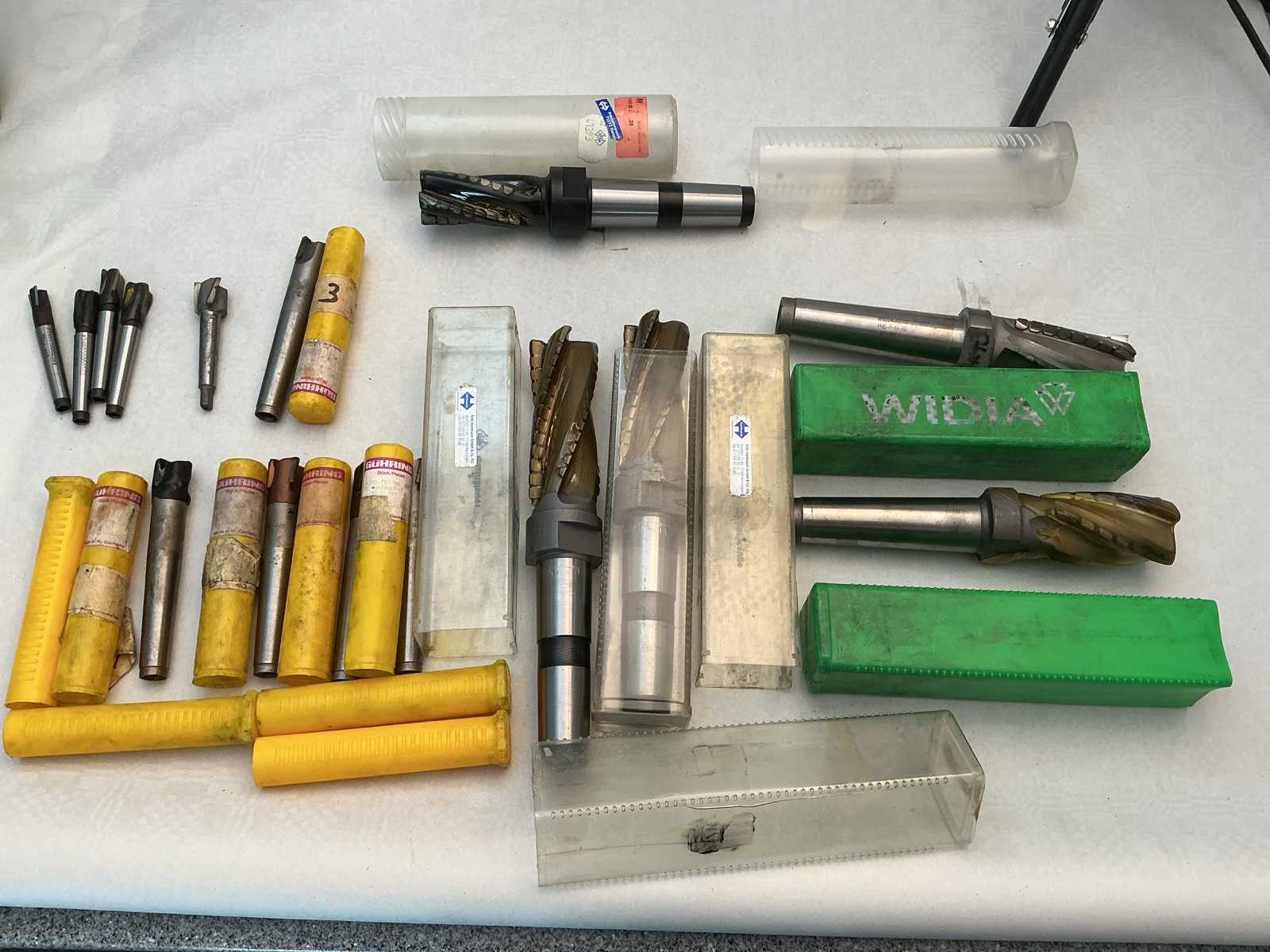

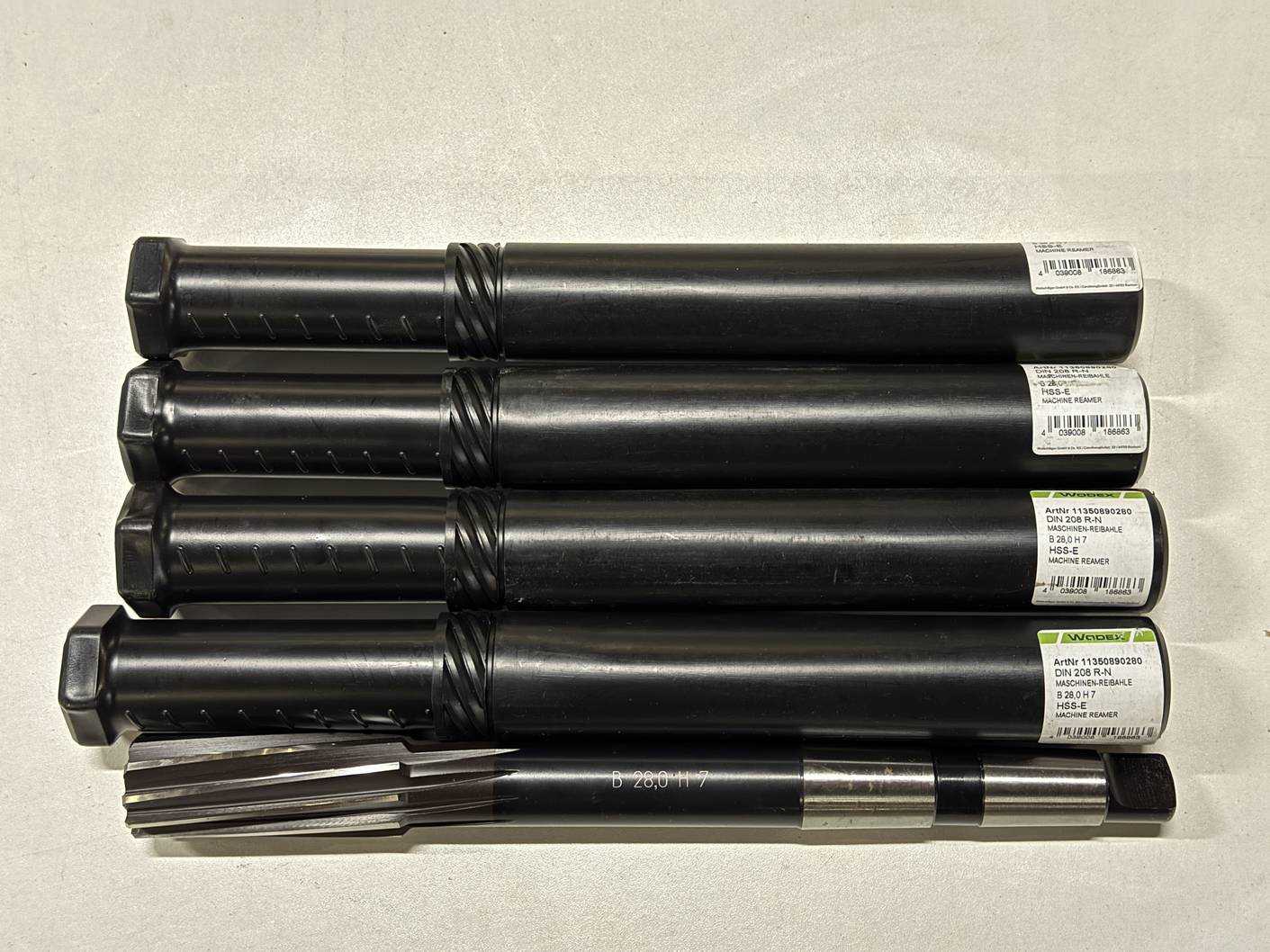

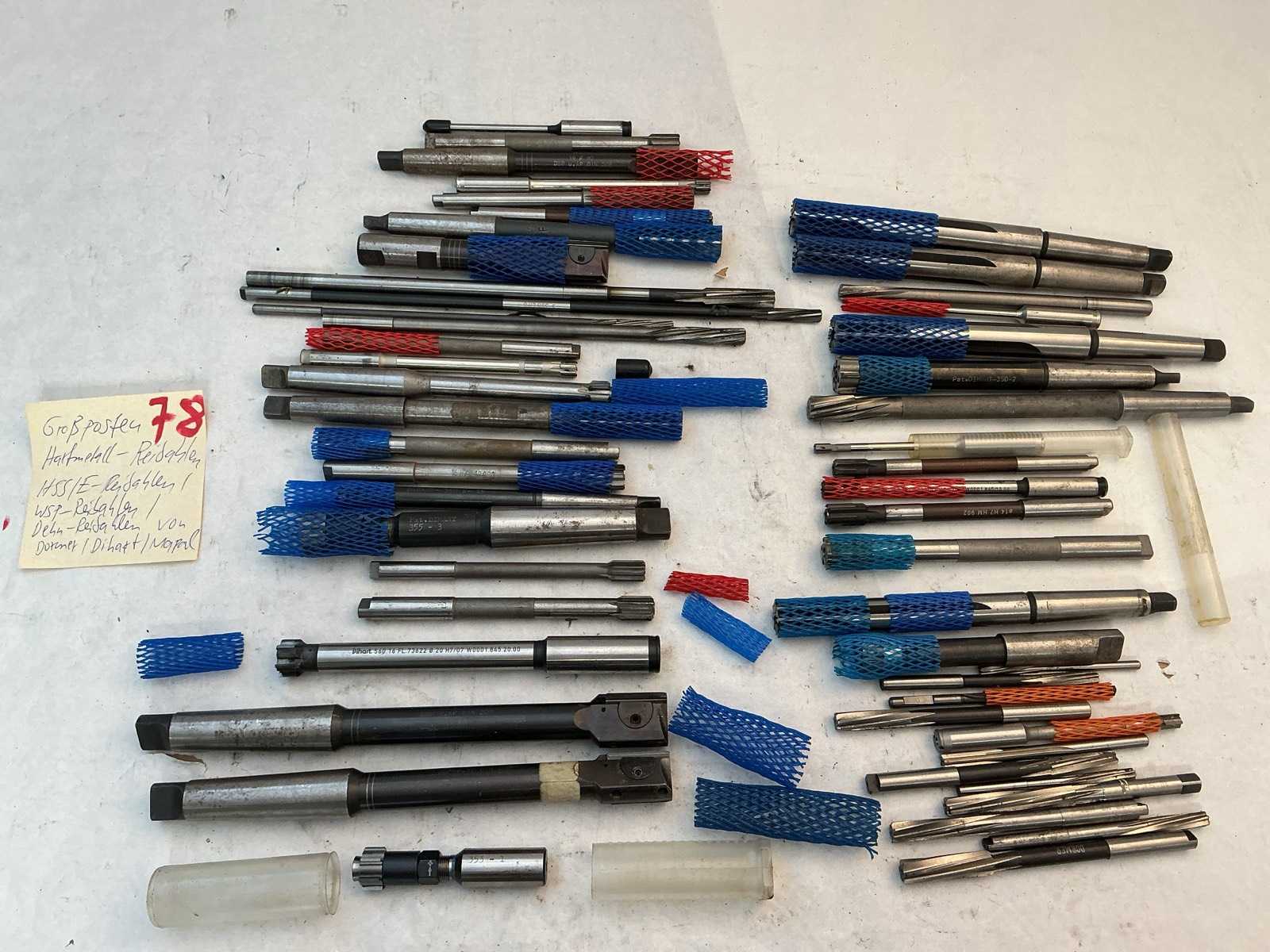

Incl. WSP reamers and Dehn reamers from Dormer / Dihart / Mapal

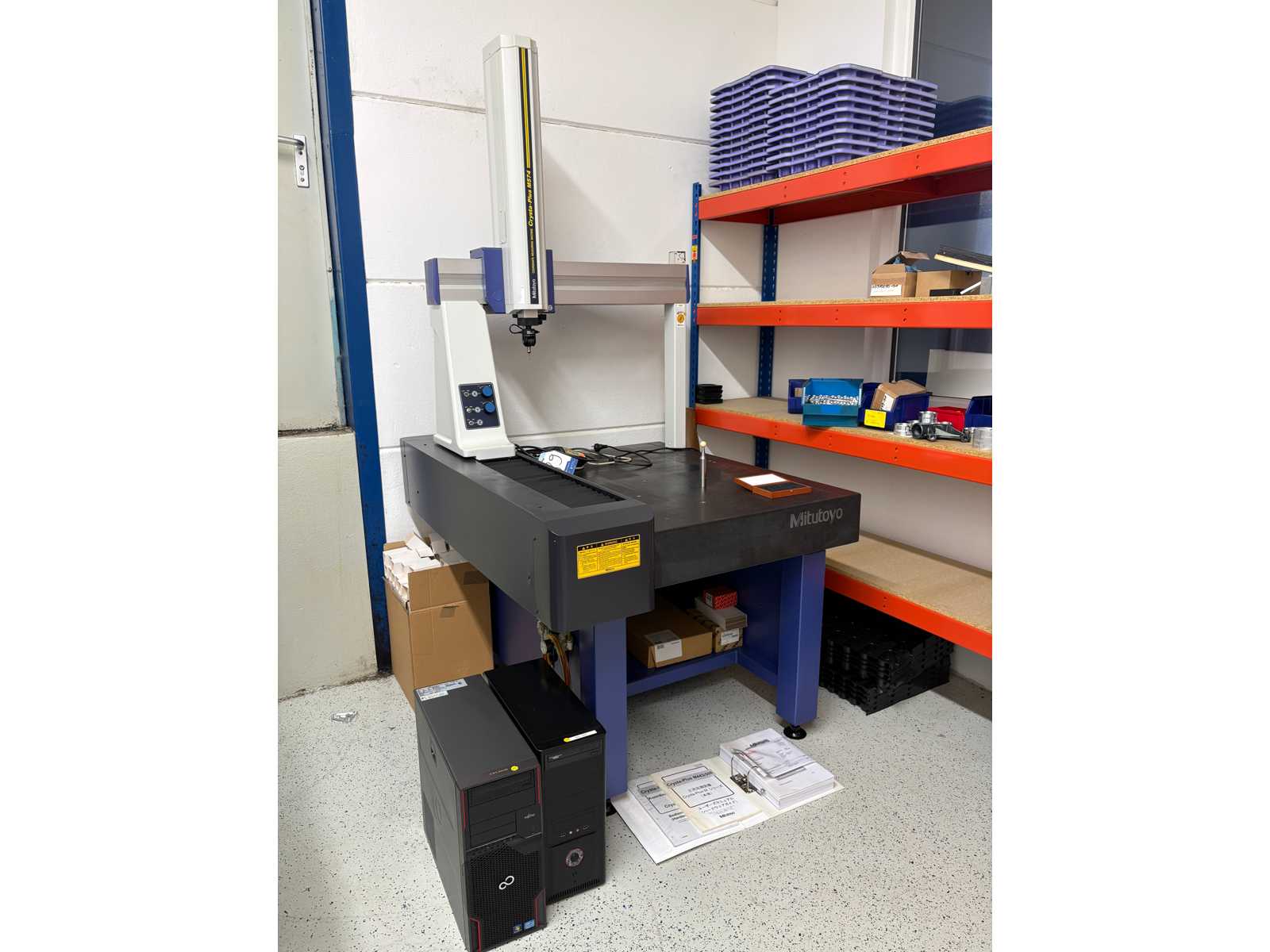

Serial number: 22320321Travel X-axis: approx. 500 mmTravel Y-axis: approx. 750 mmTravel Z-axis: approx. 300 mmincl. granite measuring platePlate dimensions: 1200 x 840 mmincl. documentation, calibration ball, touch probe and hardwareReference: Schmidt - Lot 89

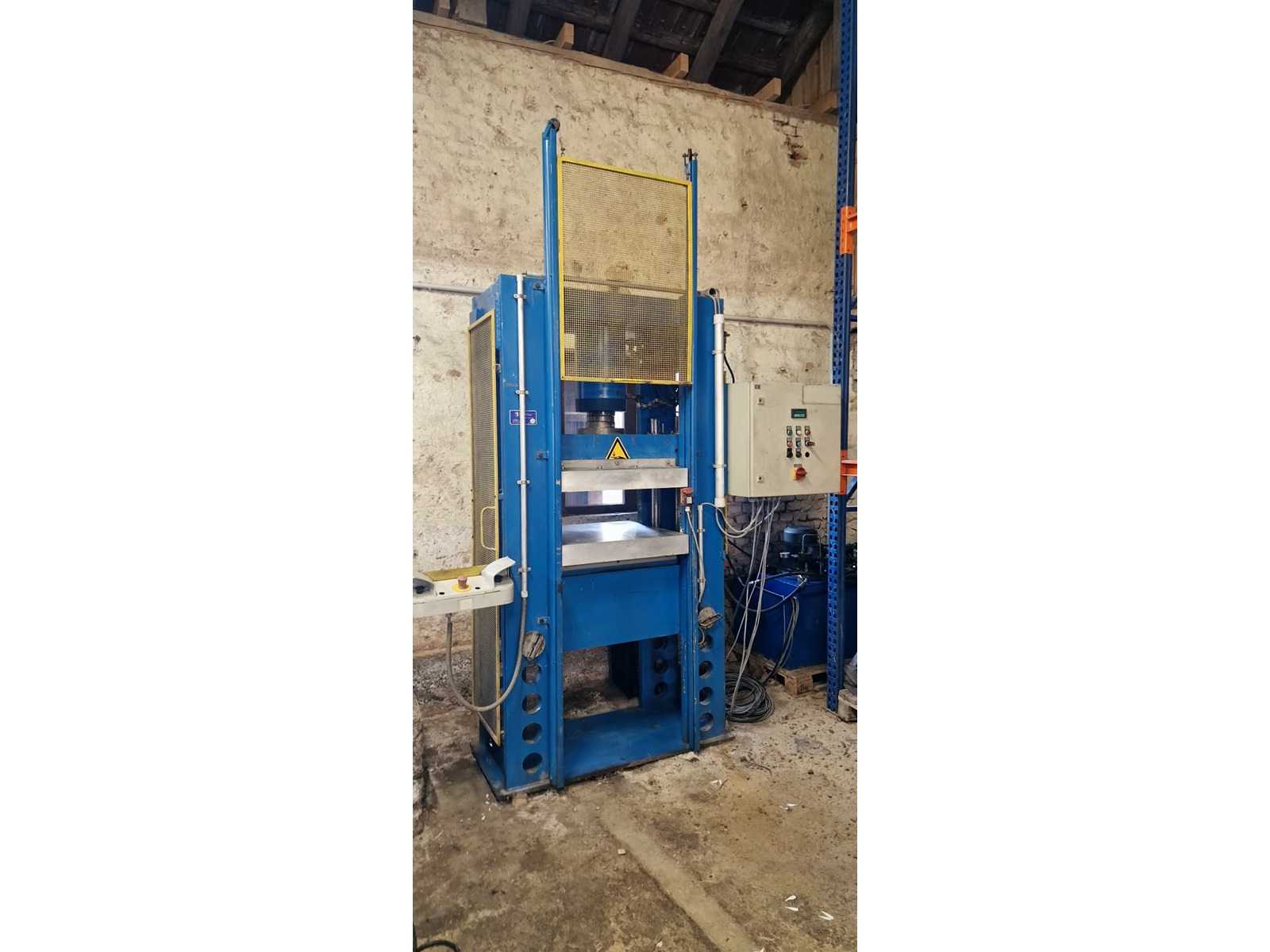

Hydraulic workshop press / industrial press – Steinebronn Industrietechnik – 250 t – year of construction 2000 Used hydraulic industrial press / workshop press from Steinebronn Industrietechnik in stable and functional design. The press is ideal for pressing, straightening, forming and assembly work in industrial use. Technical data: • Manufacturer: Steinebronn Industrietechnik • Year of manufacture: 2000 • Press force: 250 t • Lifting height: 250 mm • Passage height: 800 mm • Control: Siemens S7 • Hydraulic power unit: HAWE Hydraulik type BZ 4.0 • Connection voltage: 400 V / 3-phase • Machine weight: approx. 5 t Dimensions press: • Width: approx. 130 cm without control cabinet / approx. 200 cm with control cabinet • Depth: approx. 70 cm • Height: approx. 310 cm with protective grille / approx. 240 cm without protective grille Dimensions hydraulic powe ...

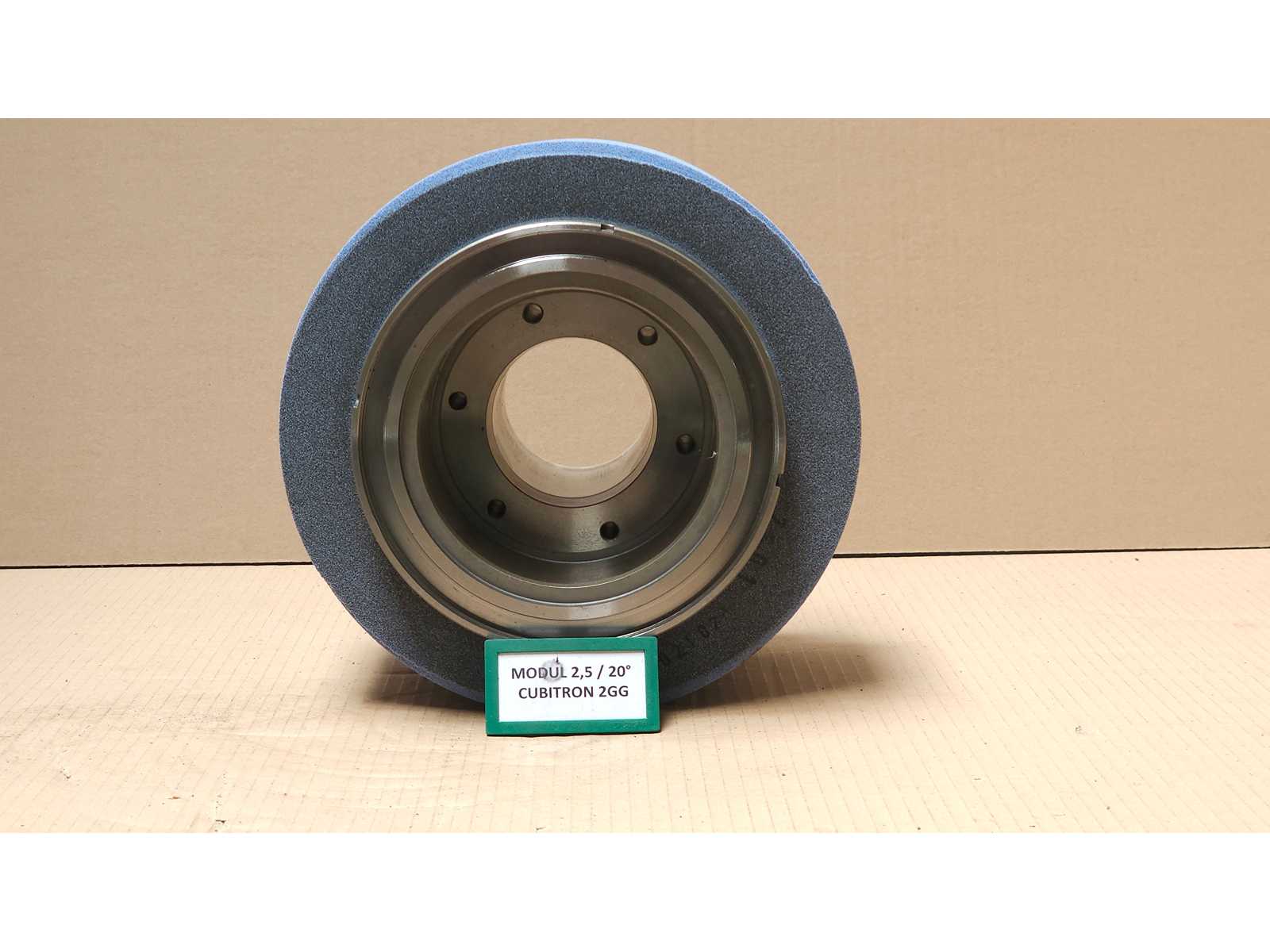

Carrier flange (machine type Reishauer RZ 400/800/1000) + including locking disc T1SP 300x145x160 M 2,5 EW20° 2GG Cubitron from the company 3M Ceramic grinding wheels for tooth flank grinding - 145 mm wide Dimensions by machine type Reishauer Profiling according to specification module m, movement gg, angle of engagement EW Pros: - Risk of grinding burn is close to zero - Up to 50% shorter grinding times - 2-fold reduction in dressing effort - Twice the service life of grinding wheels - Continuous, consistent grinding performance - Significantly higher grinding parameters than standard tools

Partly new from Wirth / Hachenbach / Osborn, 3 degrees, 4 degrees, 10 degrees and other stock 12 to 20mm

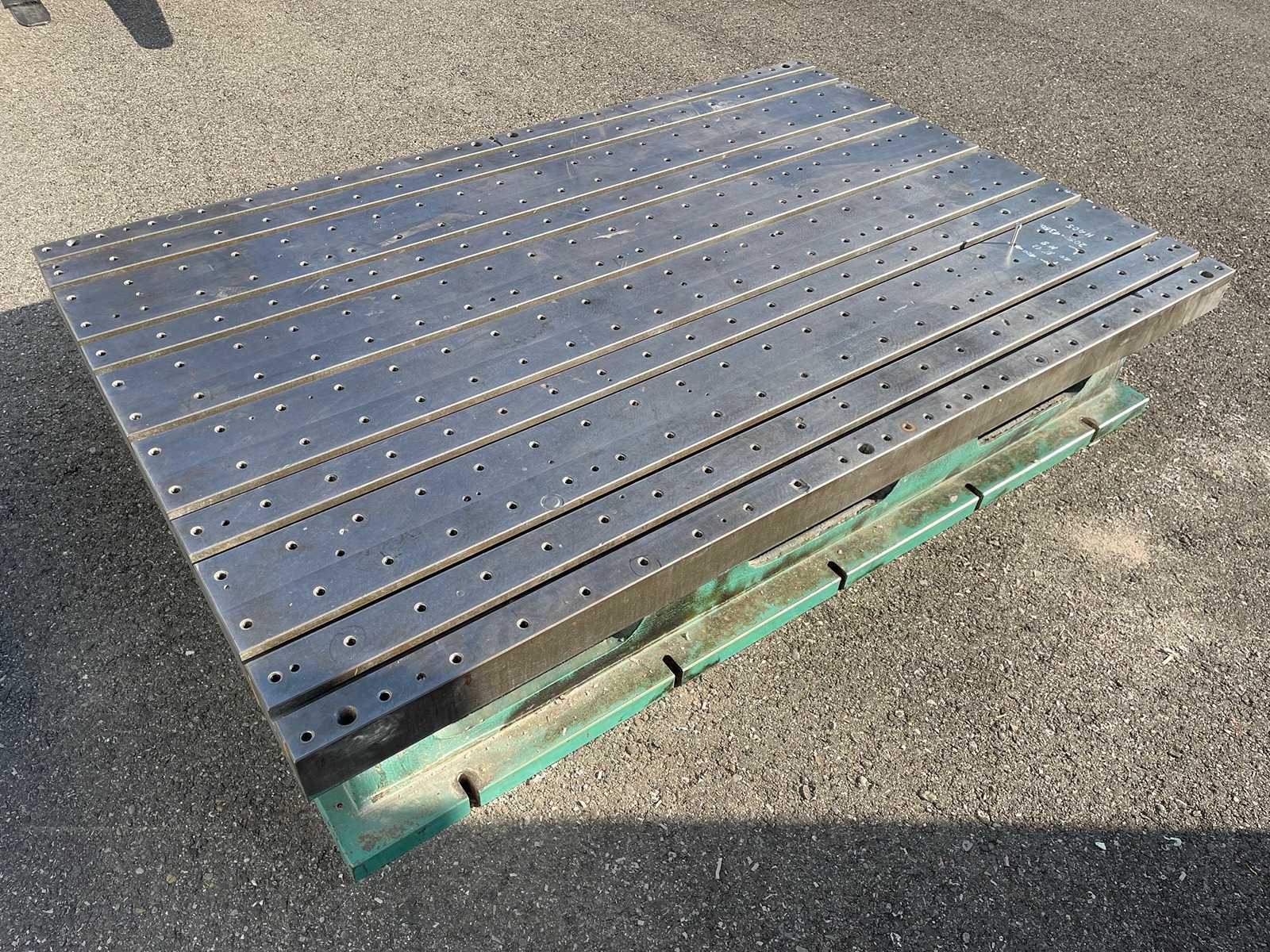

Steel plate 52.5 mm thick, T-slot for T18 slot nuts, slot spacing 100 or 200 mm, the outer groove is 75 mm from the outer edge to the middle of the groove, threaded hole grid 100x100 mm M8 thread and diameter 12 mm fitting holes

x-travel:3.000 mmy-travel:700 mmz-travel:1.200 mmSpindle RPM:2.500 1/mintool taper:SK50

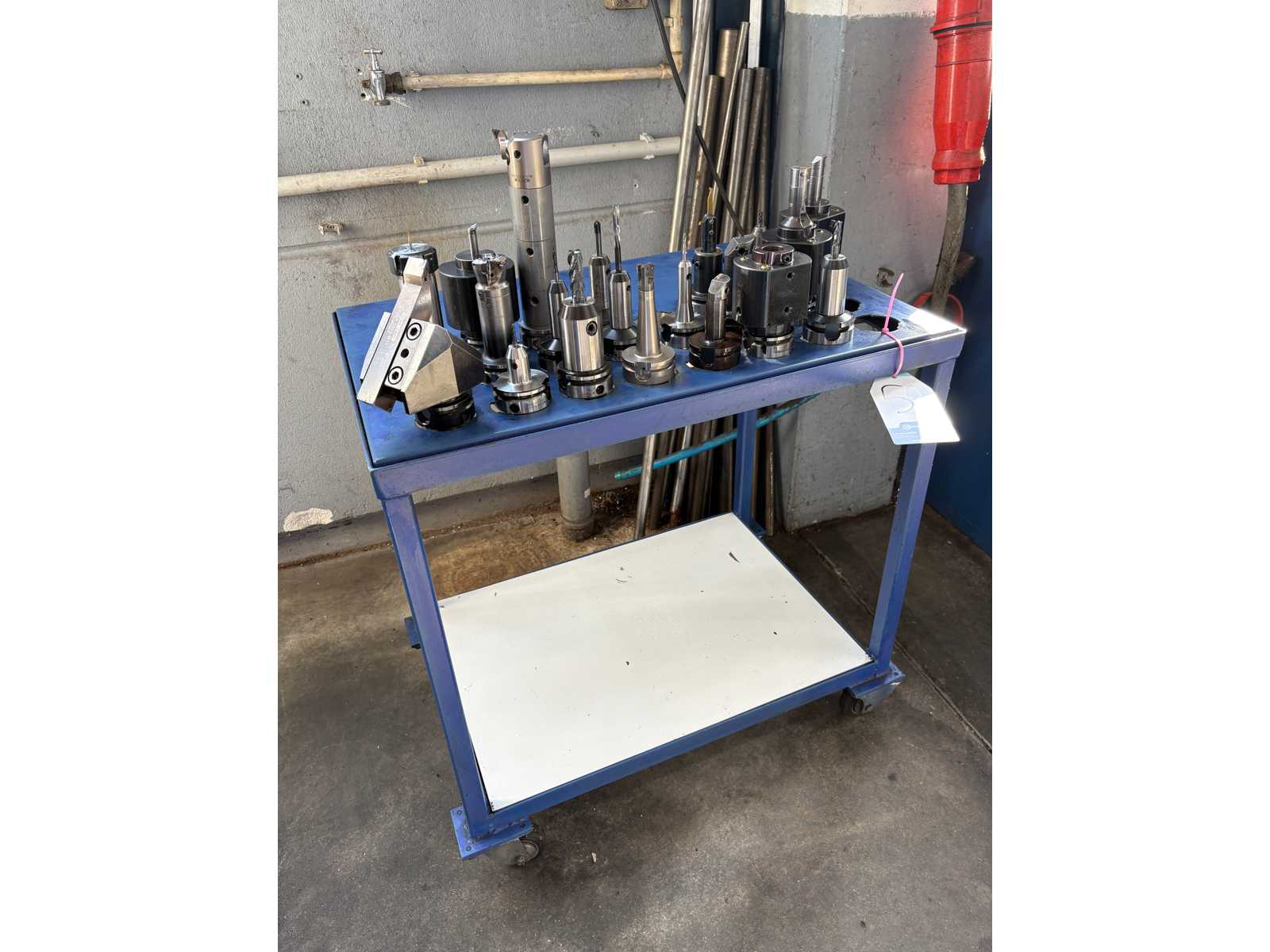

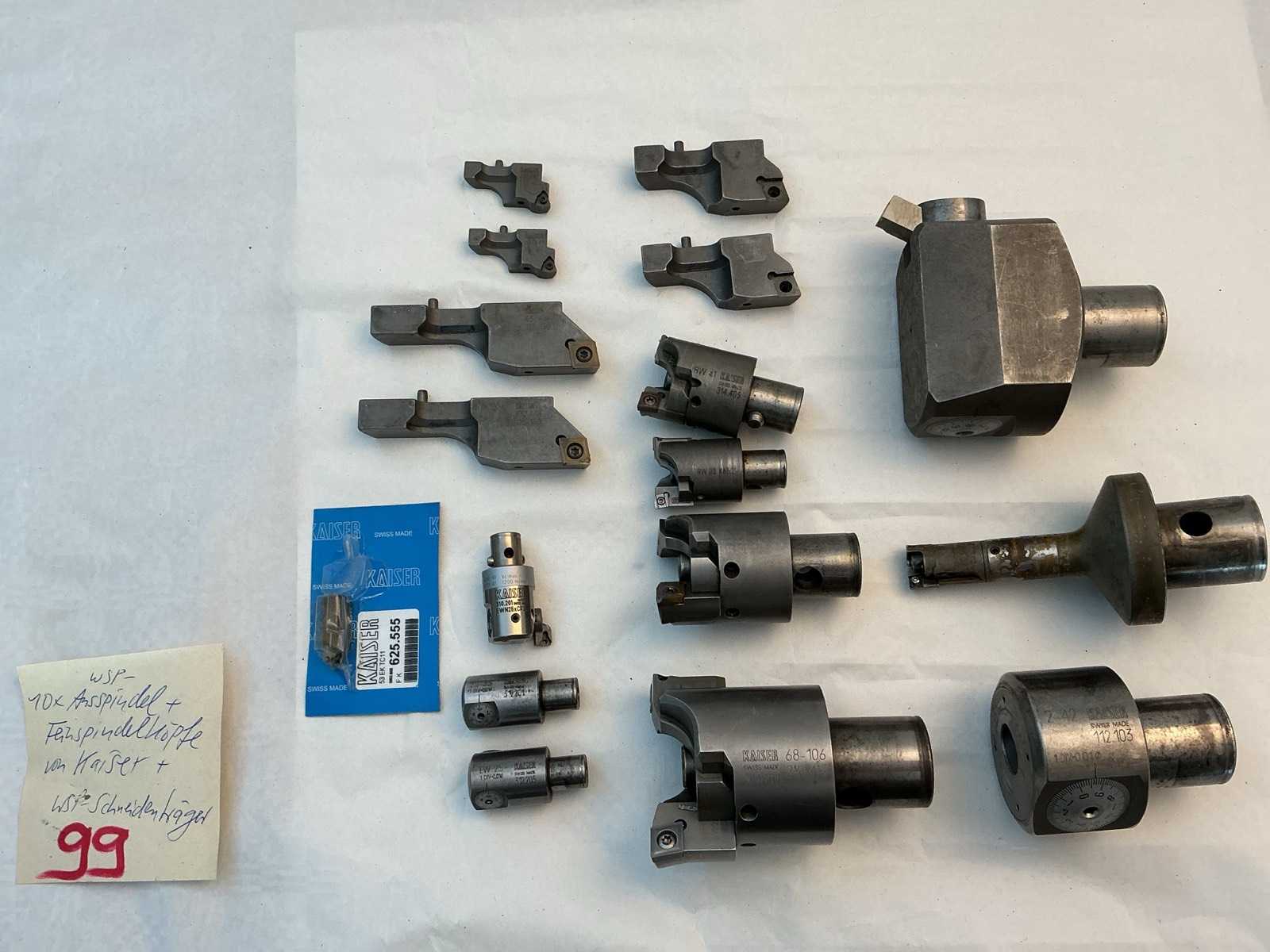

consisting of approx. 20 pieces, some equipped with cutting tools such as reamers, milling cutters, drills and a boring toolincl. tool carrier trolleyReference: Hercegfi - Lot 50 Weight: approx. 120kg

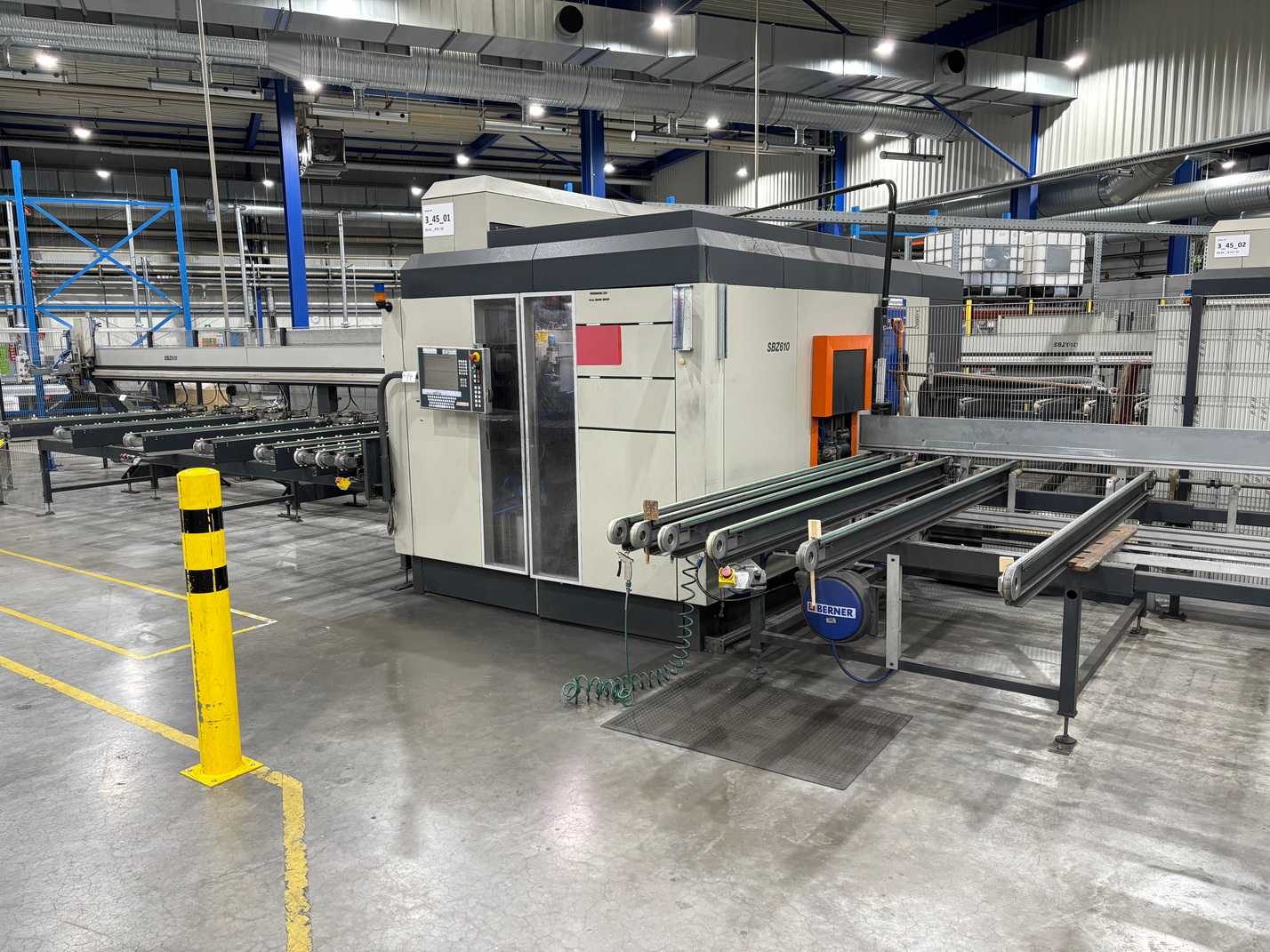

CNC Bar Machining Center for Aluminum, Machine No. 6100013187, control Beckhoff C6140 renewed in 2020, infeed of extrusion profile magazine length max. approx. 6000 mm, machining units (drilling / milling: vertical top 1 piece / vertical bottom 4 pieces / horizontal front 1 piece / horizontal rear 1 piece) and (sawing 3 pieces: 45 / 90 / 45 degrees), outfeed belt max. approx. 2700 mm, chip conveyor belt (The article is in condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! Mediation of dismantling and loading possible. Contact: Dejan Ducic / dejan.ducic@surplex.com

The control does not turn on when switched on and thus has a defect.

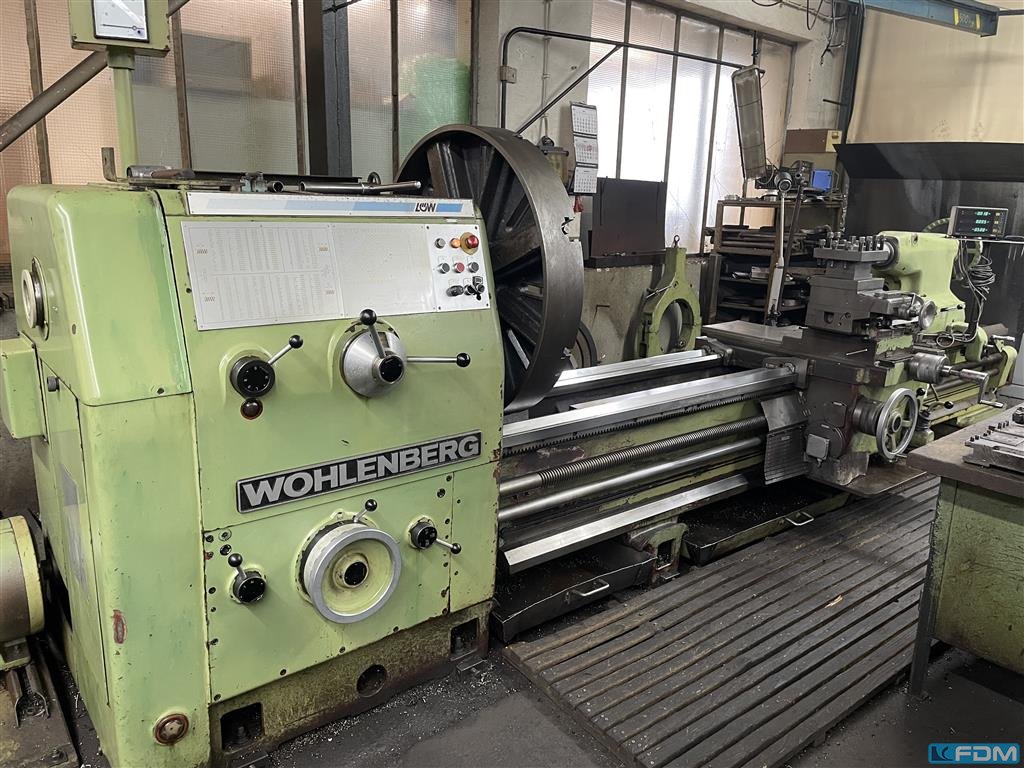

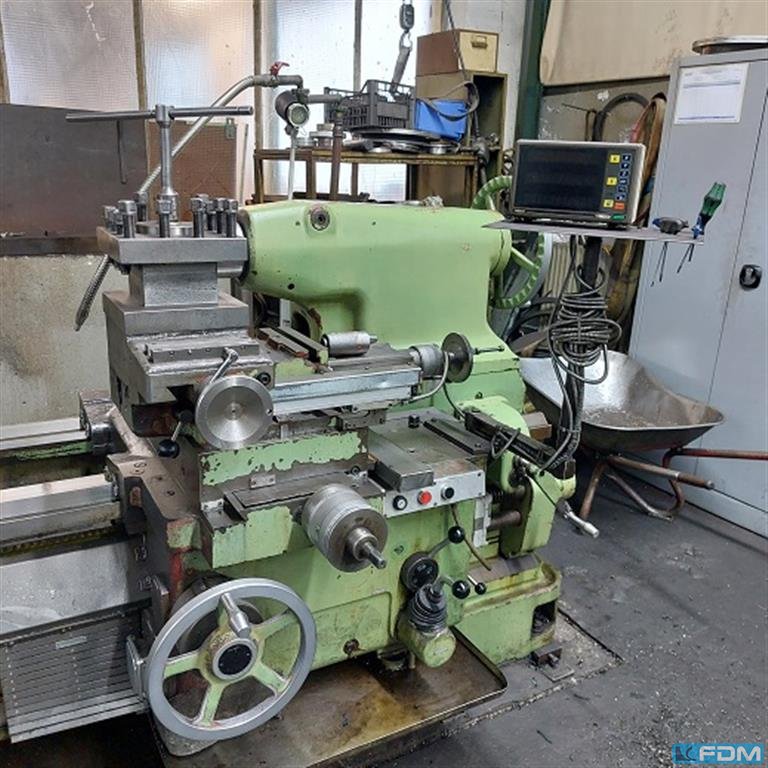

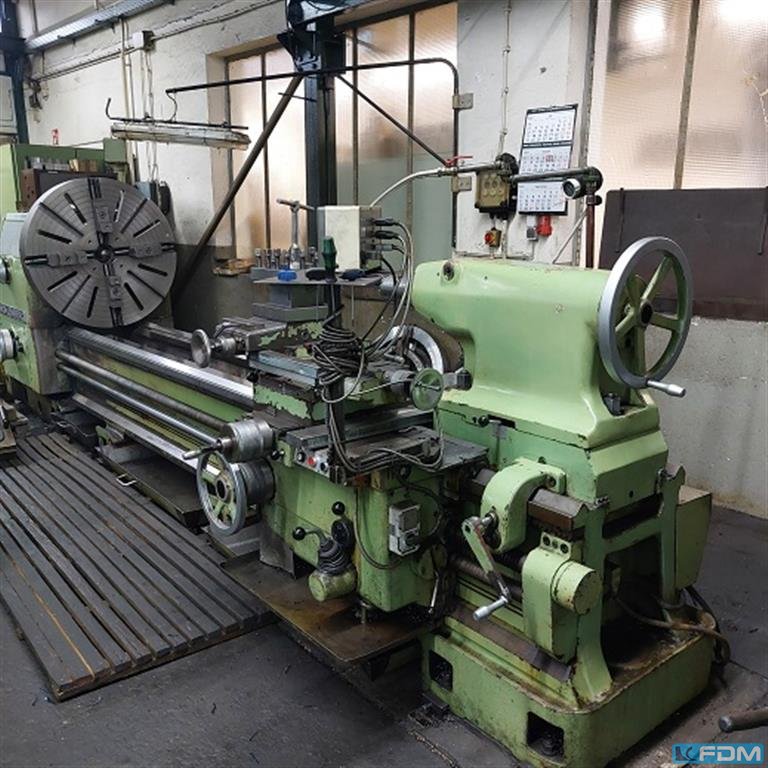

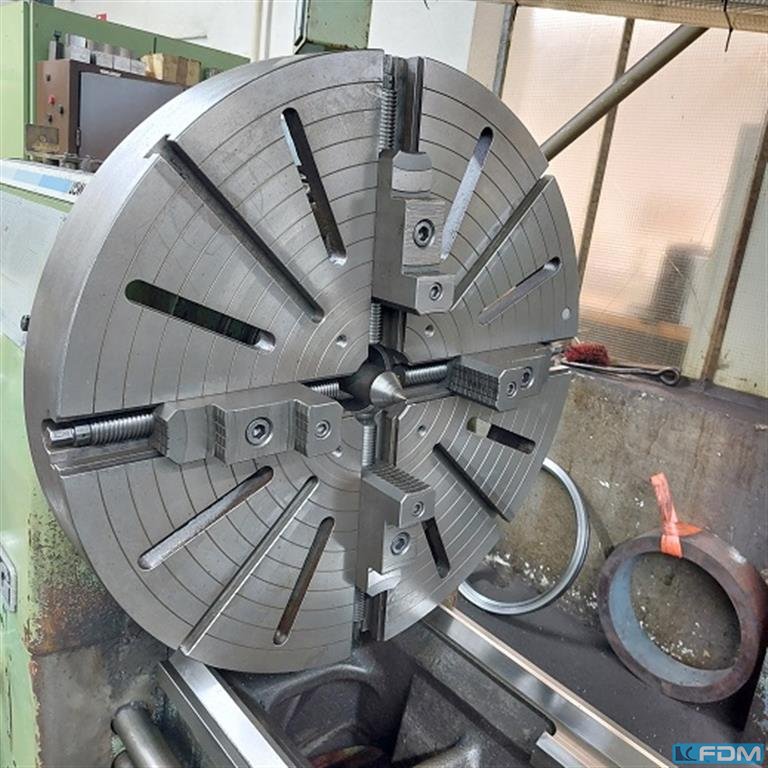

turning diameter over bed:1000 mmturning diameter over slide rest:750 mmturning length:3000 mmweight of the machine ca.:12 tdimensions of the machine ca.:6x2,5x1,8 mspindle bore:110 mmturning speed range:900 U/minYear:1986 Equipment:- Coolant device- 1 static steady rest- 1 rotating steady rest- Faceplate 1.000 mm- Digital display- Rapid traverse

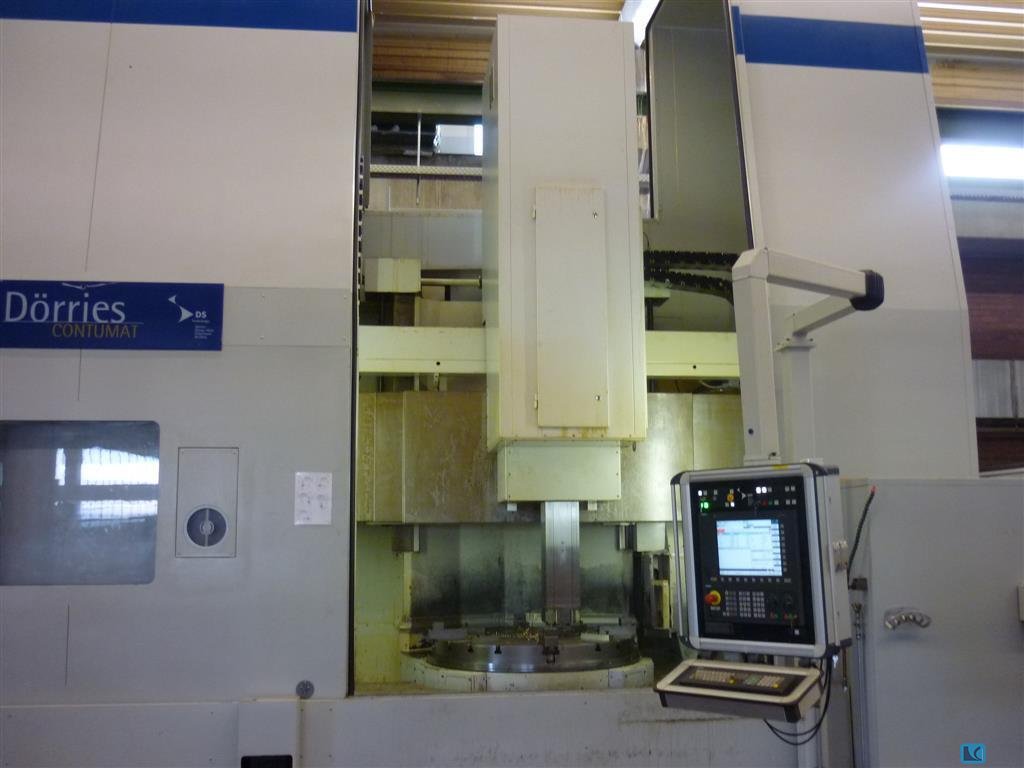

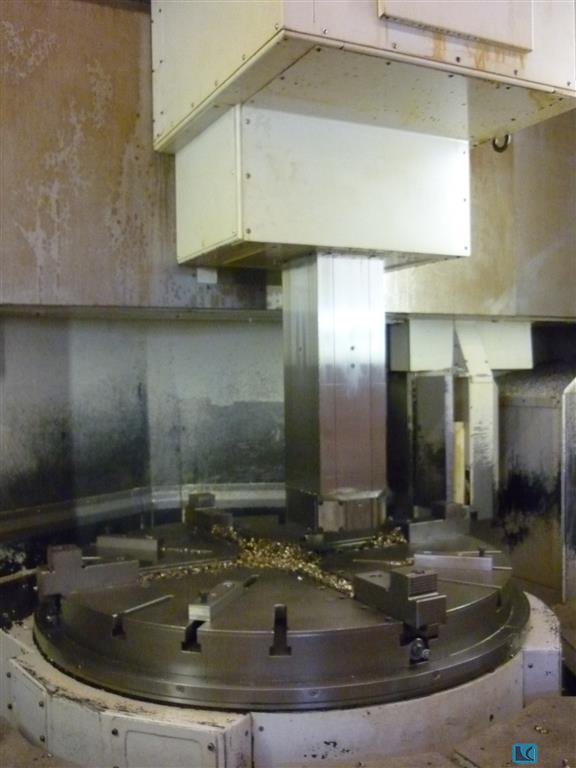

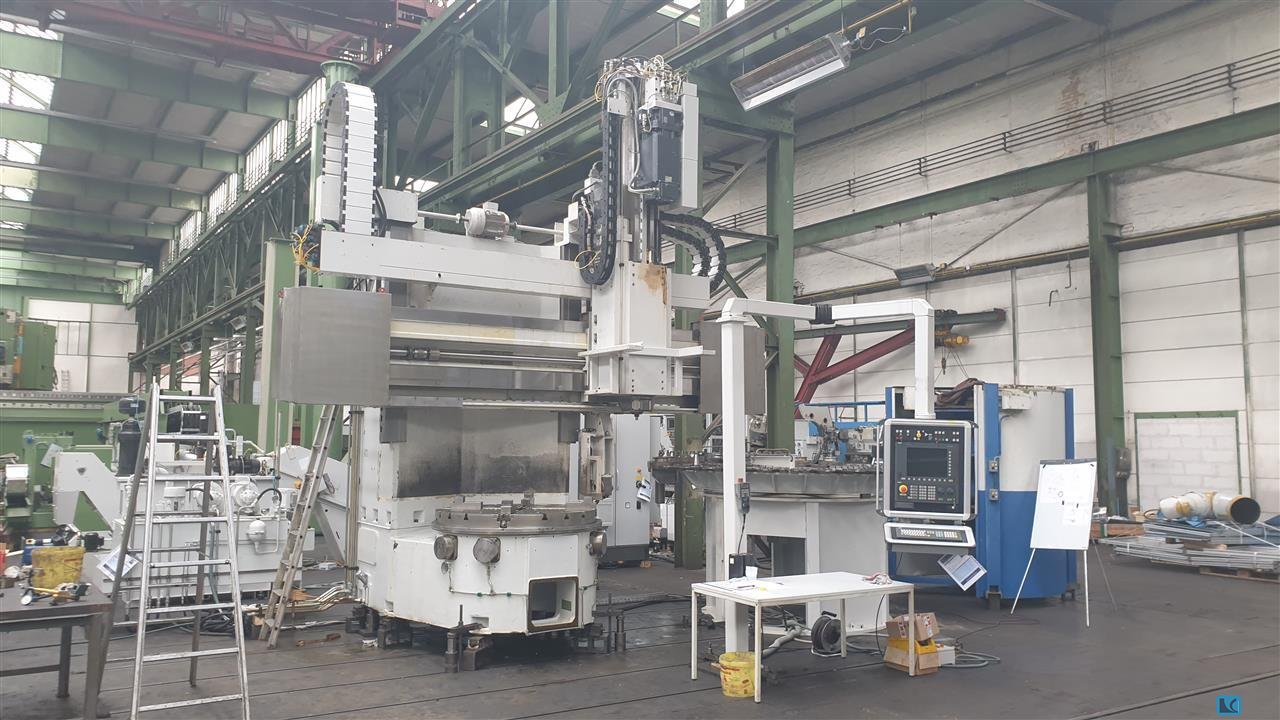

faceplate diameter:1400 mmswing diameter:2000 mmturning height:1500 mmmain drive:80 kWfaceplate speeds from - to:1 - 365 U/minmilling motor:37 kWram head dimension:240 x 240 mmmax. ram stroke:1250 mmtotal power requirement:133 kVAweight of the machine ca.:50 tdimensions of the machine ca.:11 x 5 x 6,4 mMachine was overhauled in 2008 by OEMNew control CNC SIEMENS 840 Dautomatic tool changer 72-pcsC-axis with driven toolsAngle-, straight tool holders with CAPTO holder Coolant deviceChipconveyour

x-travel:6.300 mmy-travel:2.000 mmz-travel:2.700 mmtool taper:ISO 50 surface area:7.000 x 3.000 mmturning speed range:60 - 4.000 U/minpower capacity:22/30 kWfeeds:0 - 10.000 mm/minrapid traverse:20.000 mm/minTool changer:80 max. workpiece weight:8.000 kgPlate clamping area 7,000 x 3,000 mmCNC rotary table 1,500 mmOrthogonal milling headDeep drilling unitIKZPaper belt filterMeasuring probe

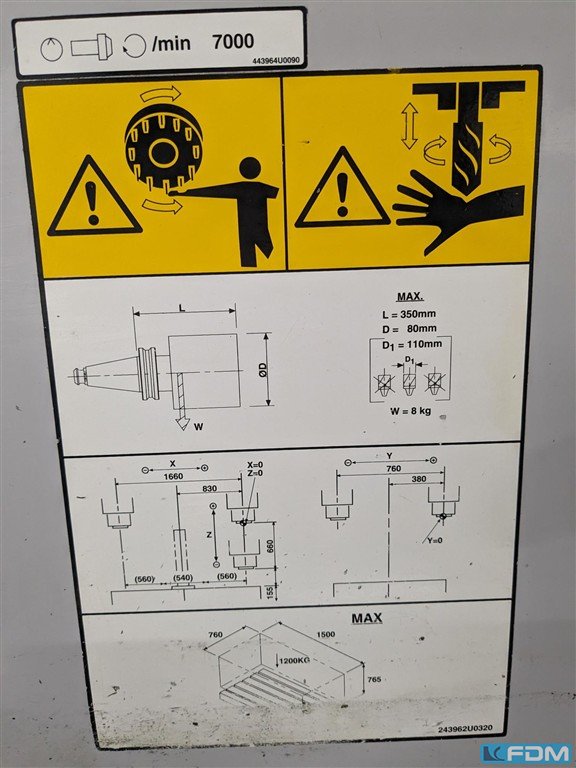

x-travel:1660 mmy-travel:760 mmz-travel:660 mmweight of the machine ca.:8700 tdimensions of the machine ca.:4.320 x 3.380 mmdistance spindlenose - table min./max.:808 mmdistance work spindle /surface of the table:155 - 815 mmMachine height:2850 mmfloor space required (w/o switchgear cabinet):4.320 x 3.380 mmspindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kWtool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/minsurface area:2.000 x 760 mmmax. table load:1.000 kgfeeds X-axis:1 - 5.000 mm/minrapid traverse X-axis:24.000 m/minrapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/minfeeds Z-axis:1 - 5.000 mm/minrapid traverse Z-axis:20.000 m/min

Serial number: 1537001259AOperating voltage: 400 VFrequency: 50 HzConnection: 17 kVARated current: 35 AControl: HEIDENHAIN TNC 620Spindle speed: up to 12,000 rpmMax. spindle torque: 83 NmFeed speed in X/YZ: up to 20,000 mm/minRapid traverse in X/Y/Z: 30 m/minSetup operation in X/Y/Z: 20 - 2000 mm/min TravelX-axis: 635 mmTravel Y-axis: 510 mmtravel distance Z-axis: 460 mmDisplacement measuring system X/Y/Z: 1 μPositioning uncertainty X/Y/Z: 6 μTool holder: SK 40Table dimensions: 790 x 560 mmSpindle hours read with 5 grooves: approx. 5000incl. 20-fold tool changerAttention: all tool holders located in the tool changer are included in the scope of delivery! Reference: Schönichen - Lot 47

turning diameter:145 mmturning length:210 mmtotal power requirement:40 kWswing diameter:145 mmSpindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mmgreates pass round over bed:145 mmRPM Main Spindle:7.000 1/minnumber of workpiece supports:12 Shank diameter:25 mmC-axis RPM:2.000 1/minChuck diameter spindle 1:140 mmChuck diameter Spindle 2:140 mmNumber of tools:12 fach St.Tool bore:VDI 25 Shank diameter:25 mmweight of the machine ca.:5.300 kgdimensions of the machine ca.:5.000 x 4.100 x 2.050 mmSlide path flat: X1, X2, X3: 220mm, 120mm ( 145mm )Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mmVertical slide travel Y1: +/- 30mmLongitudinal spindle travel Z3: 380mmClamping tube inner draw tube 46mm diameterSpeed range main drive 1+2 up to 7,000 rpmSpeed of driven tools up to 6,000 rpmMain and counter spindle collet chuck1 axial driven tool1 radial to ...

spindle diameter:150 mmx-travel:10000 mmy-travel:2500 mmbore spindle stroke:700 mmSpeed of boring spindles:1,25 - 1250 U/min.ram stroke:700 mmdimension of the ram:340 x 340 mm mmspindle taper ISO:50 rapid traverse:5 m/mintotal power requirement:120 kWweight of the machine ca.:115 tdimensions of the machine ca.:15,1 x 10 x 6,4 mCNC control Siemens 840 Dsl completely modernized 2010FIBRO CNC drilling work table 2500 x 2500 mm50 to. workpiece weightLongitudinal travel 2500 mmAngular milling head 4 x 90°Universal angular milling headPanel area approx. 10000 x 5000 mmChip conveyor and coolant deviceAerostatic guides

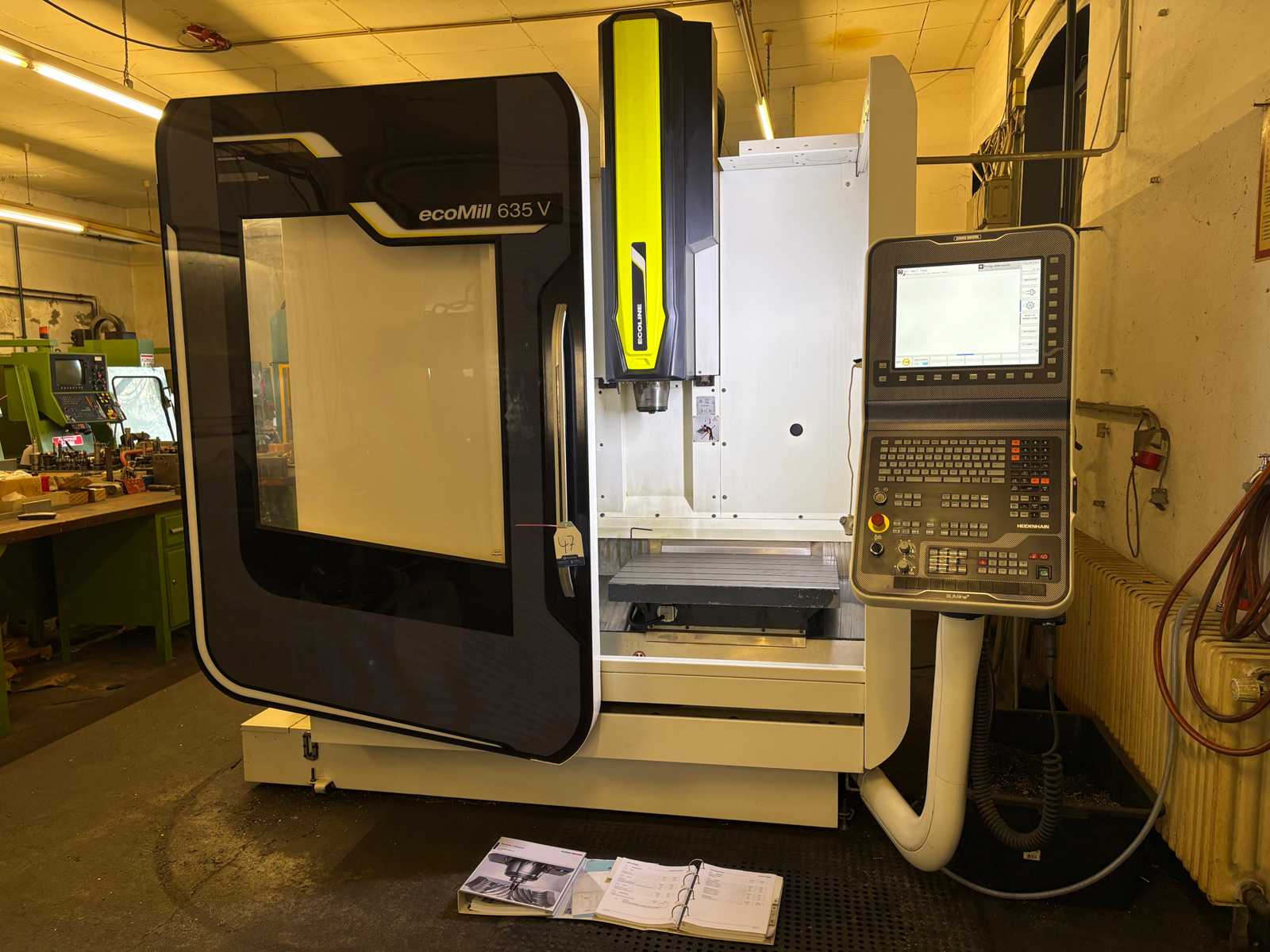

x-travel:635 mmy-travel:510 mmz-travel:460 mmturning speed range:20 - 10.000 U/mintool taper:SK 40 table clamping surface LxW:790 x 560 mmMachine with glass scalesFull safety cabin with sliding doors + interior lightingHeight-adjustable machine shoes 3 pcs.

Connection: 13 kWControl: HEIDENHAIN TNC 425Table dimensions: 700 x 360 mmT-slots Number x width x distance: 3 x 18 x 110 mmDistance table to floor: 840 mmMax. table load capacity: 300 kgTravel X-axis: 660 mmTravel Y-axis: 380 mmBall screw X and Y axis: 32 x 10 mm Pitch DiameterDistance from table center to stand: min. 190 mm, max. 570 mmSpindle mounting taper: ISO 40Travel Z-axis: 380 mmSpindle speed: 100 to 6000 rpmRapid traverse: 15 m/minPositioning accuracy: +-0.01 mmRepeatability: +-0.005 mmResolution: 0.001 mmincl. 16-fold tool changerMax. diameter for adjacent tools: 85 mmMax. diameter for free secondary positions: 135 mmMax. tool length: 250 mmPermissible weight per tool: 6 kgmax. total weight of the tools: 60 kgAttention: without the machine vice shown in the photos! incl. the tool holders located in the tool changer as well as touch probe and 4th axisReference: Schönichen -  ...

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nmtool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/mindistance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mMachine is in nearly new condition and was completely modernized in 2020!With CNC SIEMENS 840 DAutomatic tool magazine for 153 tool positionsAutomatic milling head magazine for 6 milling headsMachining module ? straight ? straight long ?Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50 ...

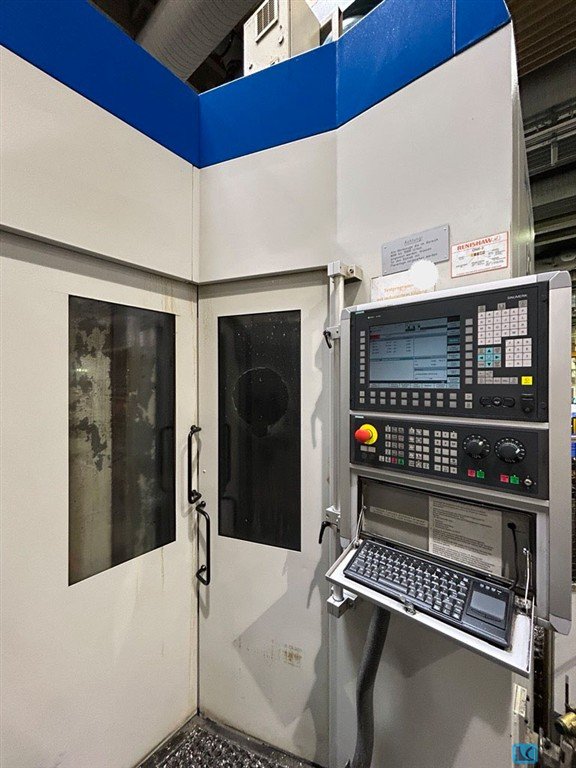

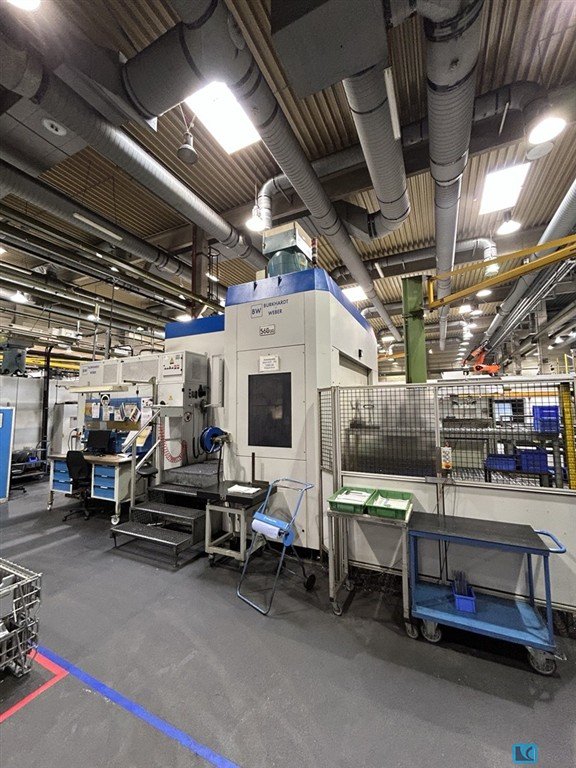

x-travel:1.100 mmy-travel:900 mmz-travel:1.250 mmtool length:750 mmrapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daNfeed capacity Z - max.:17.000 Nspindle taper:SK50 max. workpiece weight:1500 kgrevolutions per minute:10.000 U/minpallet table size:630 x 630 mmtool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

Condition unchecked

Reference: Pieper - Lot 21
