CNC presses plieuses DARLEY EHP-L 110 31/25

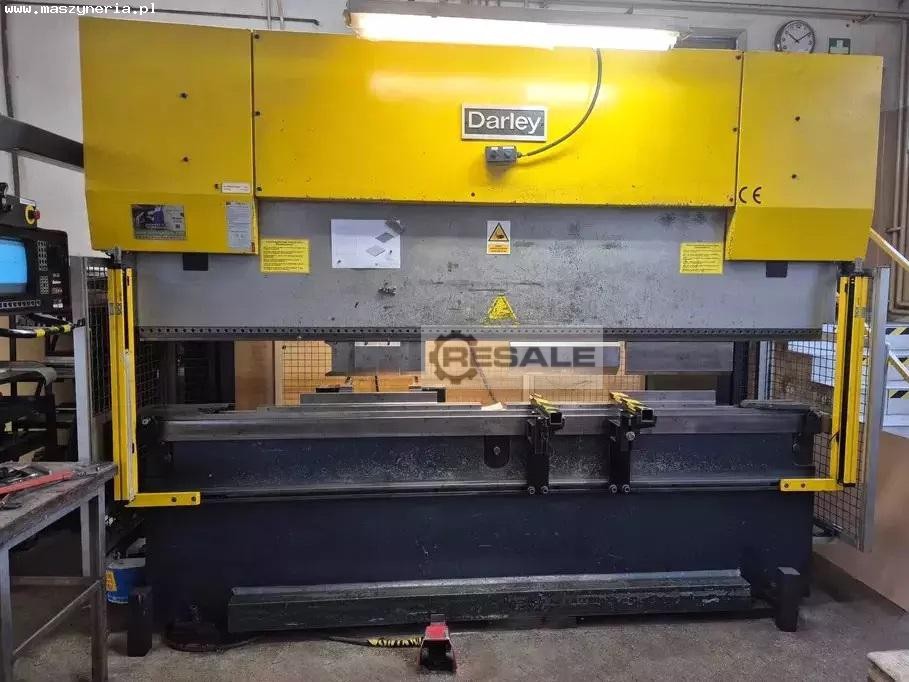

DARLEY EHP-L 110 31/25 CNC hydraulic press brake was built in 2000 in the Netherlands by DARLEY B.V. The machine is in very good technical condition and has been regularly maintained throughout its service life. In December 2023, all cylinder seals and oil with filters were replaced by an authorised service. In February 2024, on the other hand a full service of the WILA top tool clamping system was performed.

The DARLEY EHP-L 110 31/25 is used for precision machining of workpieces with a maximum length of 3100 mm. The high press force of 110 tonnes, combined with an extremely stable design, guarantees the best bending results during even the most intensive challenges. The deflection arrow compensation function additionally ensures the desired angle along the entire length of the bent workpiece. The offer also includes an extensive equipment, consisting of, among others, DELEM’s advanced CNC control and light curtains. The EHP-L 110 31/25 CNC press brake weighs 8900 kg.

Technical specifications of the DARLEY EHP-L 110 31/25 press brake
- number of axes: 9 (X1, X2, Y1, Y2, Z1, Z2, R1, R2 + deflection arrow compensation)
- maximum press force: 110 t (1100 kN)
- maximum sheet metal length: 3100 mm

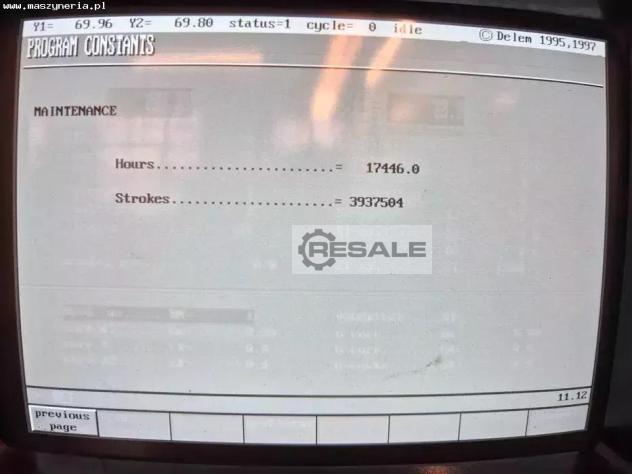

- operating hours: 17446 h
- hydraulic oil tank capacity: 130 l
- hydraulic system pressure: 28 MPa
- power: 11 kW
- power supply: 400 V
- dimensions (L x W x H): 3300 x 2000 x 2440 mm
- weight of the DARLEY EHP-L 110 31/25 machine: 8900 kg

Equipment of the DARLEY press brake

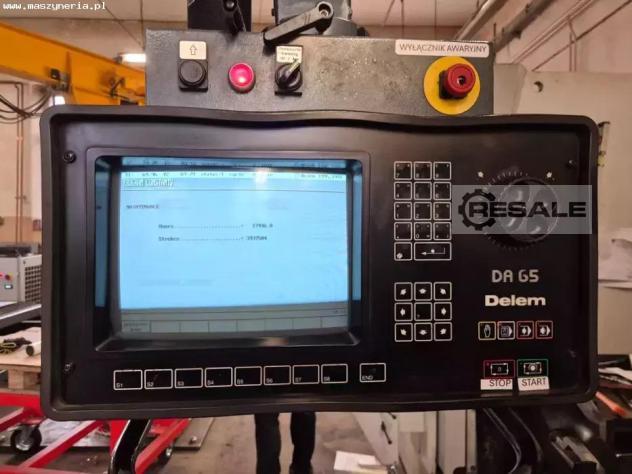

- CNC control: DELEM DA 65

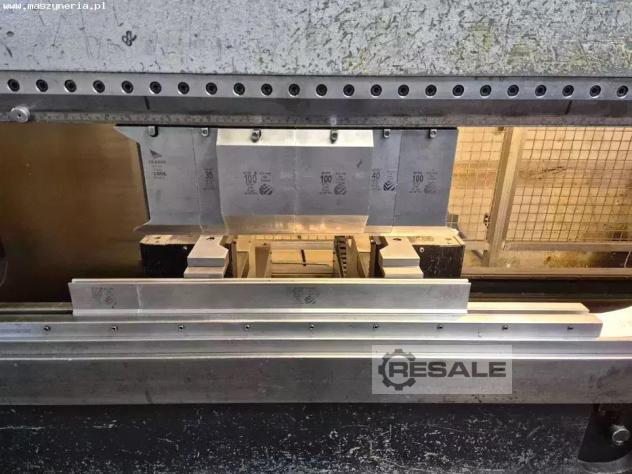

- WILA/TRUMPF hydraulic tool clamping system

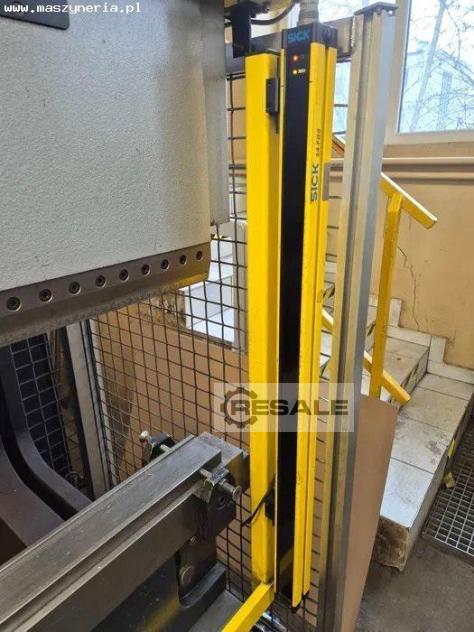

- light curtains: SICK 14-FGS
- hydraulic system: HOERBIGER
- oot switch control

seller offer No. resale 168817922
