Fraisage CNC EXERON DIGMA HSC 600

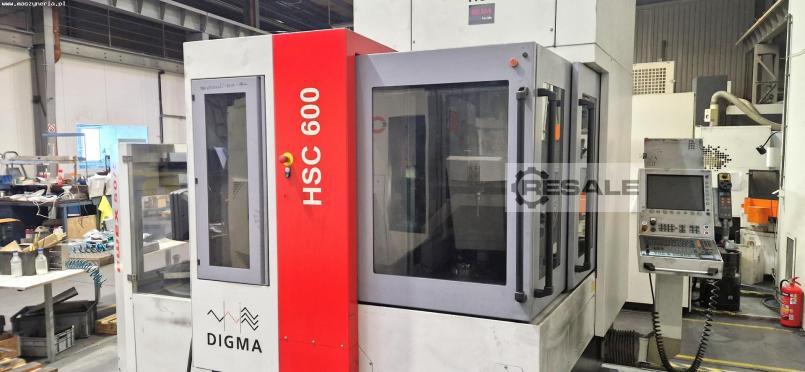

EXERON DIGMA HSC 600 milling center was built in 2010 in Germany by Exeron GmbH. It is an extremely versatile yet compact machine designed for the production of precision tools and moulds. A number of state-of-the-art technical solutions, combined with extensive equipment, guarantee excellent repeatability of the manufactured parts over many years of intensive operation.

The EXERON DIGMA HSC 600 is distinguished by its extremely rigid gantry structure, made of polymer concrete. The entire workspace has been fully maximised to ensure maximum freedom of operation. It features all the necessary equipment, i.e. a reliable electro-spindle, a 30-position tool magazine and a large work table with a length of 900 mm and a width of 550 mm.

The machining process is performed fully automatically in HSM (High Speed Cutting) technology. This technology allows a significant reduction in cycle time while increasing productivity and maintaining high quality. The electro-spindle used, thanks to temperature compensation, does not deform thermally and maintains a constant temperature during heavy-duty operation and high speed. The cutting tools, on the other hand, are continuously cooled to increase their overall service life.

All linear axes are driven by digital drives attached directly to backlash-free helical gears. Their movement is performed on precision rolling guide rails with guards. Excellent positioning precision, in turn, is ensured by direct opto-electrical measuring systems. All this is complemented by extensive equipment, that includes, among others, the advanced HEIDENHAIN CNC control with many useful functions, such as dynamic block recalculation (look-ahead), graphic program test and tool management. The DIGMA HSC 600/3 CNC machining center weighs 7000 kg.

Technical specifications of the EXERON DIGMA HSC 600 machining center
- feed in the X/Y/Z axis: 650/550/400 mm
- feed rate in the X,Y,Z axis: 50 m/min
- work table dimensions (L x W): 900 x 550 mm
- maximum workpiece weight (with reduced dynamics): 800 kg
- maximum workpiece weight: 400 kg
- maximum electro-spindle rotational speed: 42000 rpm
- electro-spindle drive power (S1/ S6 40%): 10/13 kW
- distance from electro-spindle end to work table surface: 200-600 mm
- distance from electro-spindle end to pallet: 100-500 mm
- tool diameter: 16 mm
- maximum tool length: 175 mm
- tool holder: HSK 40-E
- number of T-slots: 7
- spacing of T-slots: 70 mm
- resolution of linear axes: 0.0001 mm
- acceleration of X,Y,Z axes: 1,5 G
- compressed air pressure: 7 bar
- maximum compressed air consumption: 550 l/min
- power requirement: 50 kVA
- power supply: 3x 400 V; 50 Hz
- dimensions for transport (L x W x H): 2400 x 2200 x 2900 mm
- weight of the EXERON DIGMA HSC 600 machine: 7000 kg

Equipment of the EXERON CNC milling machine

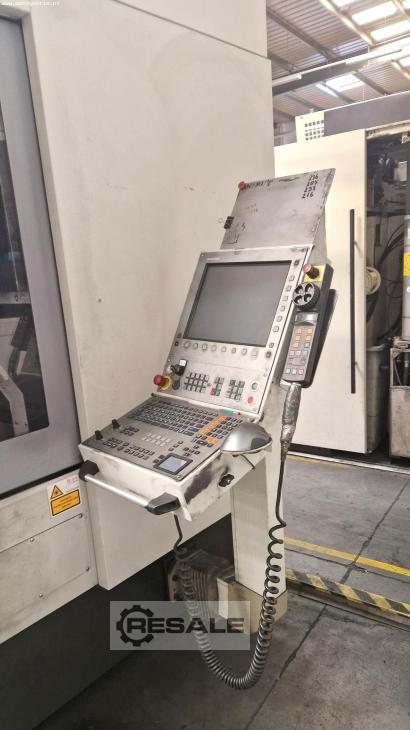

- CNC control: HEIDENHAIN iTNC 530
- software: DIGMA Job Management System

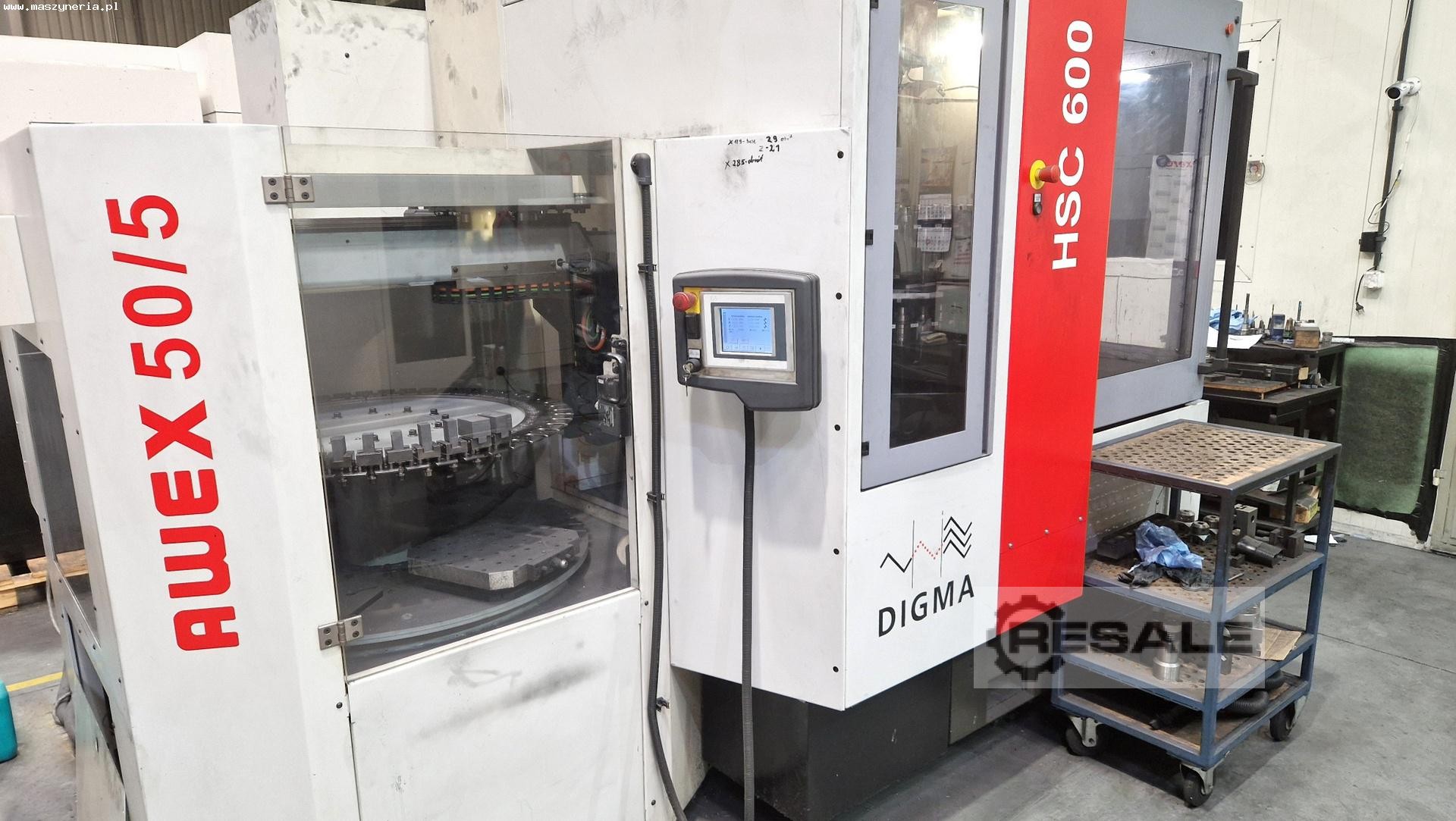

- AWEX 50/5 automatic workpiece (electrode) and pallet changing system
number of electrodes: 50
maximum electrode diameter: 140 mm
maximum electrode diameter at 25 electrodes: 115 mm
maximum electrode diameter at 50 electrodes: 55 mm
total weight of all electrodes: 150 kg
number of pallets: 5
maximum dimensions of workpieces mounted on a pallet (L x W x H): 320 x 320 x 190 mm
maximum weight of workpieces mounted on a pallet: 240 kg

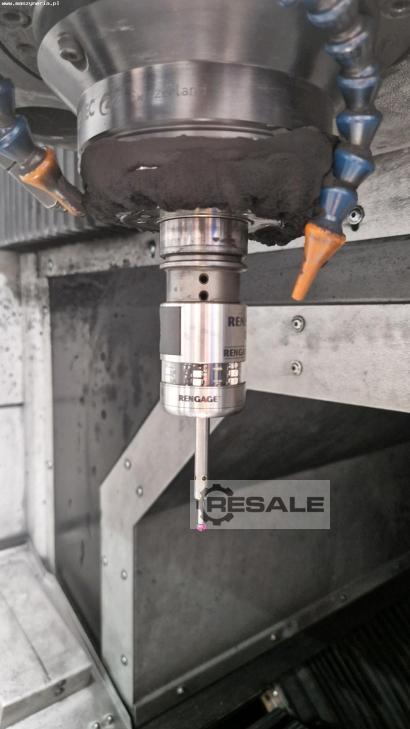

- workpiece measuring probe: RENISHAW OMP 400
- tool measuring probe: BLUM

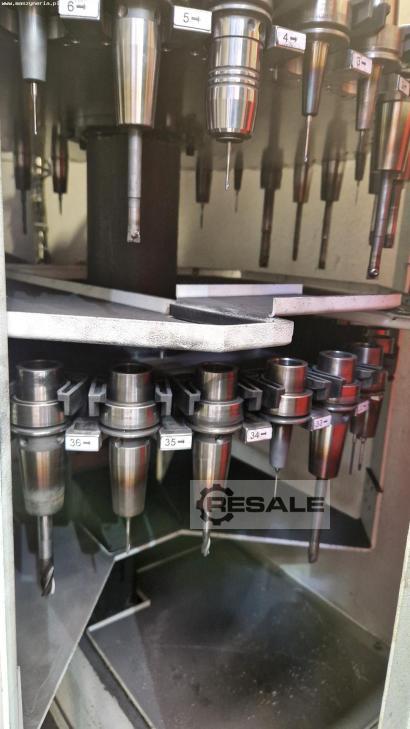

- 30-position tool magazine with double gripper
- automatic tool clamping system
- tool length, diameter and contour sensor
- direct opto-electric measuring system in all linear axes

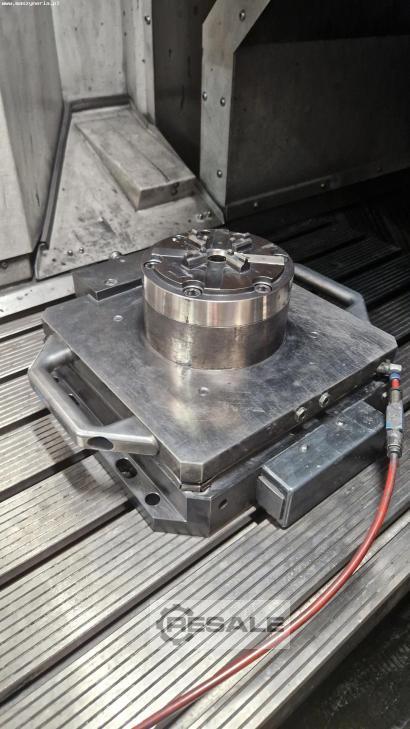

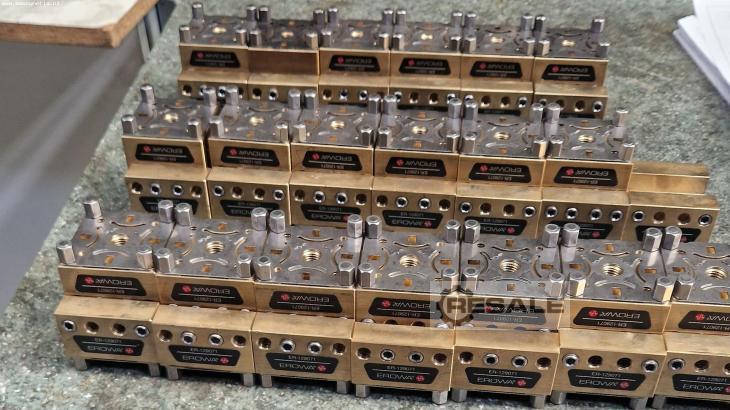

- electrode holder: EROWA ITS 50
- pallet holder: EROWA ER-015661
- shrinkfit holders for HSK 40-E cutters (50 pcs.)
- temperature compensation
- Z-axis compensation

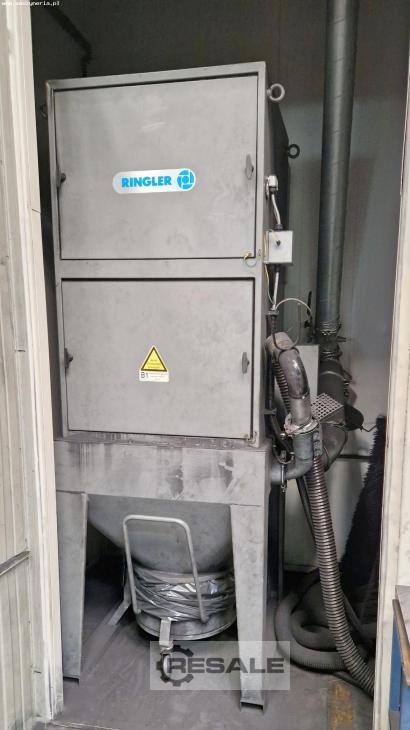

- graphite extraction unit: RINGLER
- spindle cooling system
- compressed air nozzle for tool cooling and chip blowing
- oil mist lubrication system with 3.6 l tank
- roller guide rails with guards in all linear axes
- hand controller with electronic wheel
- workspace illumination
