fraiseuses machines d'occasion à vendre (2,369)

Key data: 13750 mm, 5000 mm, 1000 mm

Raboteuse CNC 5 axes Ingersoll MasterHead Modèle : MasterHead Âge : 2016 N° DE SÉRIE : 28806 (27-01) FONCTIONNALITÉS: FANUC 31I 5 AXES NOUVEAU 2016 LOGEMENT DOUBLE RAIL RÉGLABLE CHANGEUR D’OUTILS AUTOMATIQUE CHANGEUR D’ACCESSOIRES AUTOMATIQUE FIXATION DE LA TÊTE DE FRAISAGE 2 AXES UNITÉS À 5 BROCHES VOYAGES: AXE X, DÉPLACEMENT DE LA TABLE 541,1 pouces (13750 mm) AXE Y, COURSE HORIZONTALE DE LA TÊTE 196,85 pouces (5000 mm) AXE Z, COURSE DU VÉRIN 39,37 pouces (1000 mm) AXE W, DÉPLACEMENT VERTICAL DU RAIL TRANSVERSAL 98,42 pouces (2500 mm) AXE A, ROTATION DE LA TÊTE, 360 DEGRÉS 360 000 POSTES AXE B, TÊTE PIVOTANTE, 180 DEGRÉS 360 000 POSTES SPÉCIFICATIONS: TAILLE DE LA TABLE, JOINTE 137,79 pouces x 509,4 pouces (3500 x 12940 mm) TAILLE DE LA TABLE, FAÇADE NON COUPLÉE 137,79 pouces x 255,5 pouces TAILLE DE LA TABLE, DOS DÉCOUPLÉ 1 ...

Fraiseuse de vilebrequin GFM FKP-60 CNC Mfg. 1984. Très bon état. Très peu d’heures de travail Longueur max. de la pièce : 6000mm Longueur de travail max. : 5800mm Hauteur centrale (sans cale de retenue) : 2100 mm Course max. de la tête de serrage : 5800mm Course max. du chariot longitudinal : 5995mm Trait max. du portail : -Axes X (horizontaux) : 910 mm (2x 442+13) mm Course max. du chariot de fraisage -Axes Y (verticaux) : 910 mm (2x 442+13) mm Vitesse rapide du chariot longitudinal : 3975 mm/minute Vitesse rapide du portail : 2982mm / minute Vitesse rapide du chariot de fraisage : 2982 mm/minute Alimentations du portique : 0...2000mm/minute Avances du chariot de fraisage : 0...2000mm/minute Puissance : 200kW Diamètre de la tête de coupe : 720 mm Diamètre extérieur de la tête de coupe : 1680mm Régime de la tête de coupe : 41,5-48-5 ...

: gebraucht : 2005 : 4541 : prompt, Zwischenverkauf v : China : 5700 €: 1 : 40 - 1.300 U/min: ISO 30 : 465 x 230 x 380 mm: 1000 x 280 mm: 2.2 kW: 1400 mm: 1300 mm: 2200 mm: 1120 kg: 90 °: 115 - 1.750 (115, 230,290 U/minMilling head rotatable and swivellable +/- 90° with manual quill 120 mm travel rangeSpindle sleeve feed takes place via a turnstile or with the fine feed by means of a handwheelSpindle head 350 mm manually traversableMax. drilling capacity 30 mmManual tool clamping vertical/horizontal by means of tightening screwAutomatic feed in X Axis,(8) 12 - 370 mm/minCoolant unitChip trayLighting1x Collet chuck set1 Stk Drill chuck with mounting4 Milling cutter holdersUser Manual in ENGLISHDoes not comply with the German UVV &, Austrian AMVOThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:600 mmy-travel:500 mmz-travel:450 mmturning speeds:5 - 5000 U/minquill stroke:90 mmtotal power requirement:9 kWfeed range:0-10.000 mm/minweight of the machine ca.:3260 kgdimensions of the machine ca.:2200x2800x2000 mmspindle:6 kWvertical milling head:SK 40 CNC universal milling machine with toolchanger,Equipped with CNC-Heidenhain TNC 407el.handwheelcoolant deviceoroginal table included

x-travel:850 mmy-travel:500 mmz-travel:610 mmrotary table::400 mmspindle turning speed range:12.000 1/mindrive capacity - spindle motor:17/10 kWcontrol:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 ttotal power requirement:28,5 kWdimensions of the machine ca.:3 x 2.70 x 3,2 m5-axis simultaneously universal-machining center,NC-rotary-swivelling table dia. 400mm,3D infrared touchprobe,el. handwheel,chipconveyor,airblast through spindle,internal coolant supply 40bar,flushgun,direct measuring system,approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:600 mmy-travel:400 mmz-travel:400 mmnumber of spindle speeds:63 - 3.150 1/minfeed stepless:12-3000 / 6-1500 (Z) mm/minquill stroke:100 mmmilling-head swivable +/-:90° spindle taper ISO:SK 40 surface area:630 x 400 mmtotal power requirement:8 kWweight of the machine ca.:2,2 tdimensions of the machine ca.:2 x 1,9 x 1,95 muniversal milling machine with point to point control,mechanical handwheels,swivel - rotary table (mech.) +-45°,hydr. tool clamping,half cabin,coolant device,manuals (German language)

x-travel:1000 mmy-travel:320 mmz-travel:400 mmTable dimensions:1000 x 400 mm

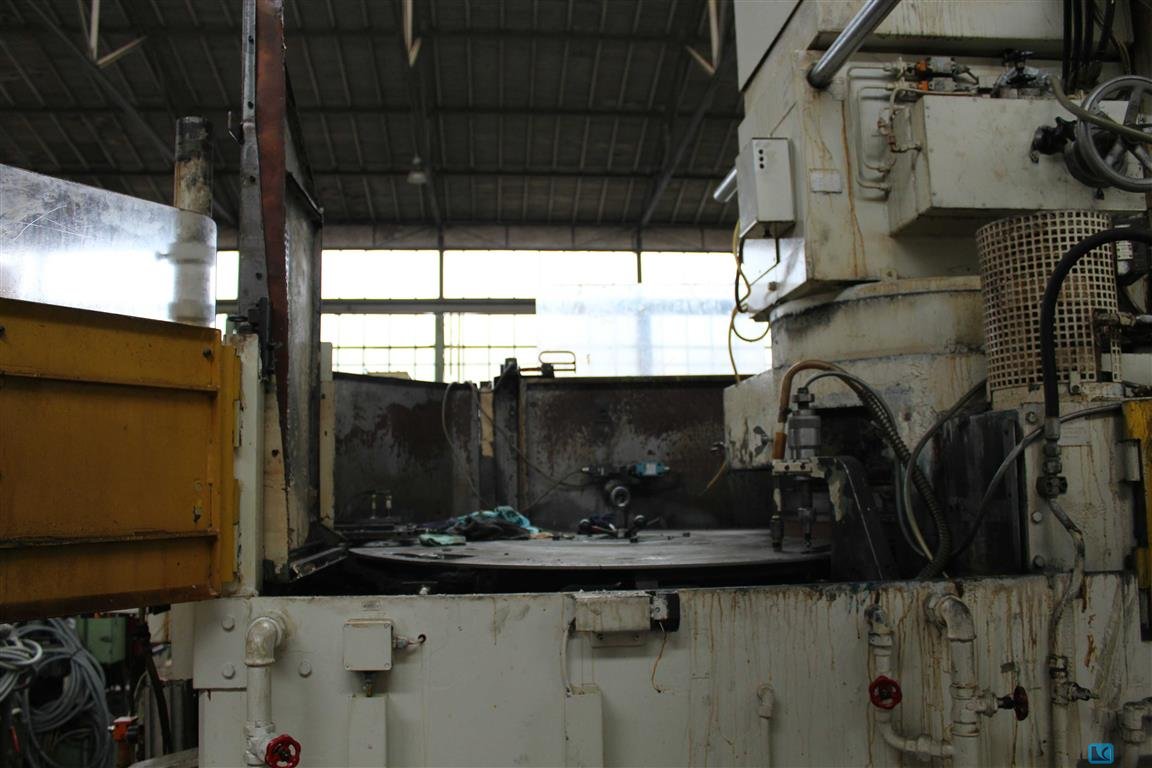

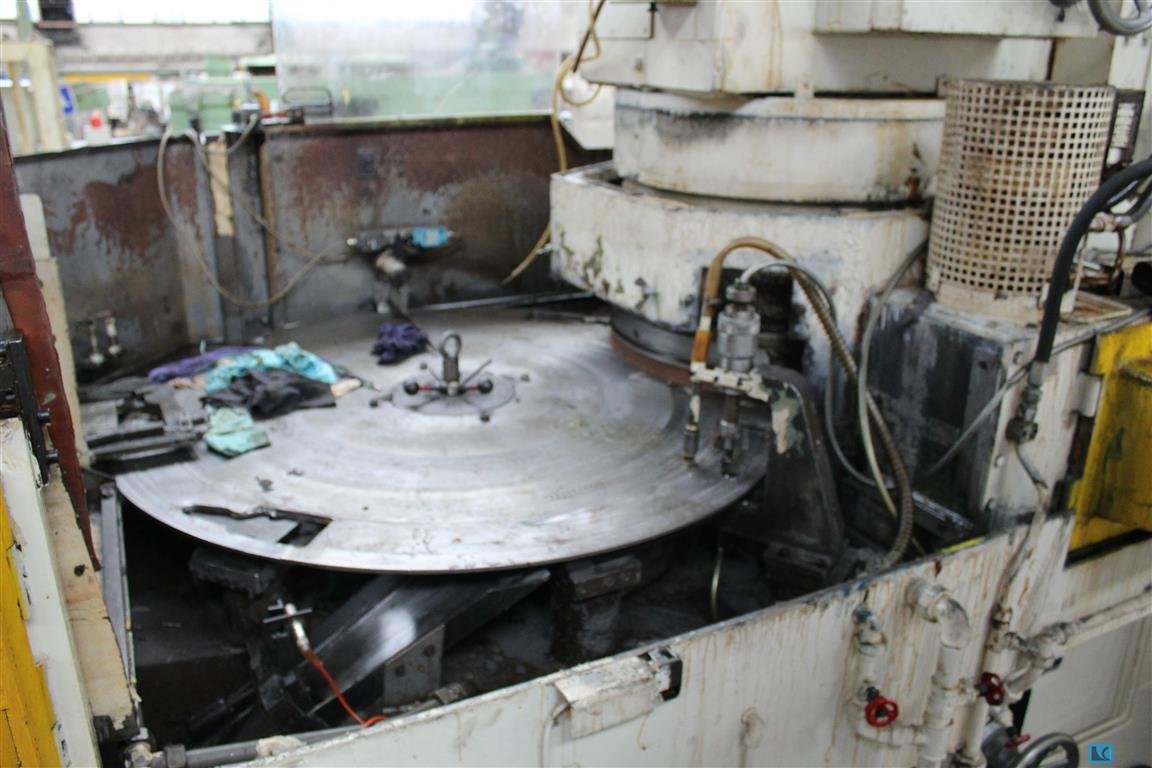

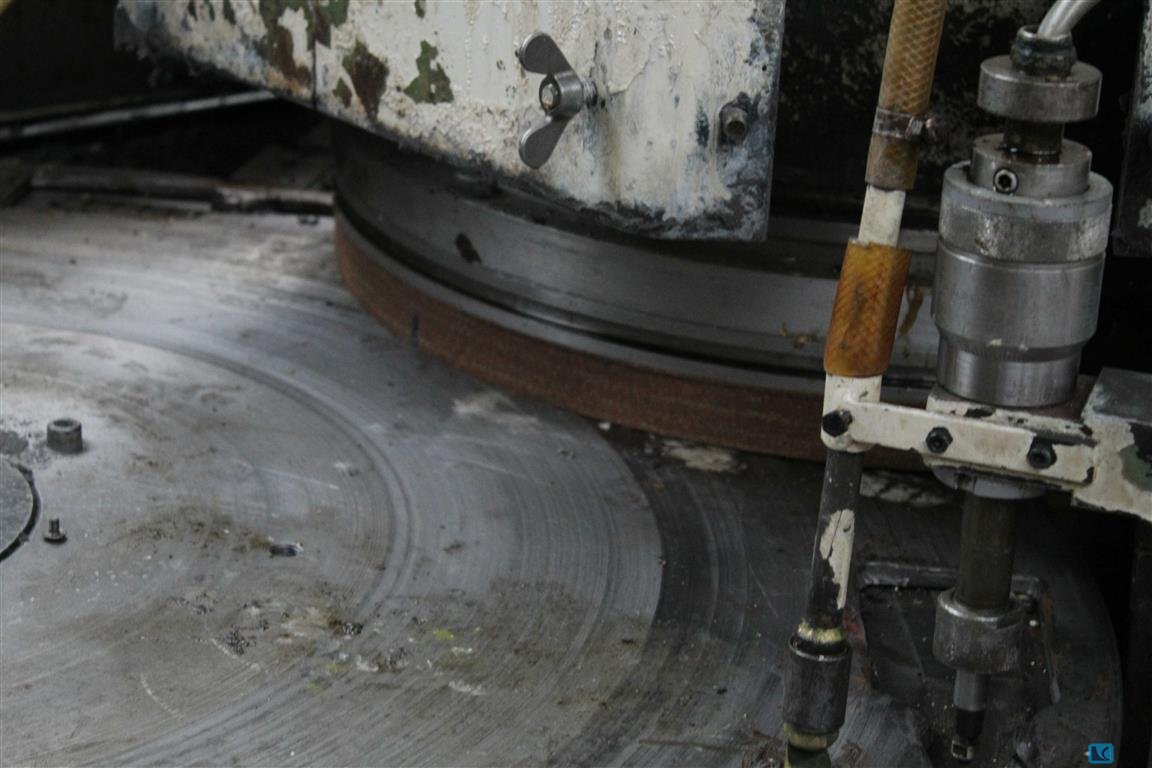

adjustment drive of the grinding spind.slide:0,0025 - 0,05 mmtotal power requirement:100 kWadjustment of grinding head slide:150 mmweight of the machine ca.:17 tgrinding spindle drive:2 x 37 kWgrinding width:30-150 mmperipheral speed:34 m/secworkpiece speeds:60 - 300 mm/Sek.grinding height:70 mmgrinding wheel diameter:750 mmgrinding tools:750 x 75 x 350 mmgrinding wheel turning speeds:870 U/Min.max. workpiece diameter:250 mm

x-travel:560 mmy-travel:500 mmz-travel:450 mm

x-travel:560 mmy-travel:500 mmz-travel:450 mm

x-travel:7000 mmy-travel:1200 mmz-travel:1300 mmrapid travel x/y/z:10 m/mintable-size:7.200 x 1.000 mmtable load:max. 4 t/qmuniversal head:5 Pos. plus manuell 1° tool taper:SK 50 milling head speed:20 - 2.000 1/minpower capacity:30 kWmax. torque on the spindle:Getriebe 2 stufig , 1.500 Nmcontrol:HEIDENHAIN TNC 360 total power requirement:50 KWdimensions of the machine ca.:9,0 x 3,8 x 4,6 mweight of the machine ca.:25,0 tuniversal travelling column - universal milling machine orthogonal milling head with 5 controlled Pos. with M-code and additional 1° indexing, manually in spindle axis,prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel,chipconveyor,incl. controlled security fence,miscellaneous accessories (angle milling heads, vices...) on requeststill under power in closed factory

x-travel:600 mmy-travel:500 mmz-travel:450 mmturning speeds:5 - 5000 U/minquill stroke:90 mmtotal power requirement:9 kWfeed range:0-10.000 mm/minweight of the machine ca.:3260 kgdimensions of the machine ca.:2200x2800x2000 mmspindle:6 kWvertical milling head:SK 40 CNC universal milling machine (without toolchanger),Equipped with CNC-Heidenhain TNC 407el.handwheelcoolant device

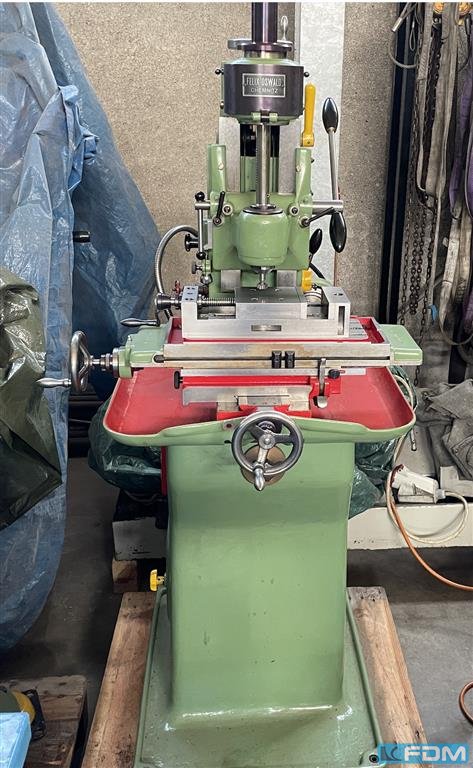

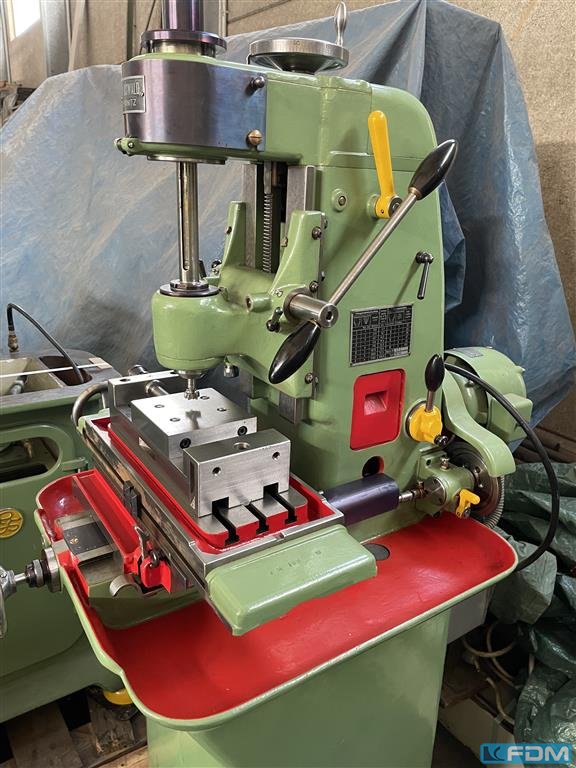

x-travel:200 mmy-travel:100 mmz-travel:100 mmtotal power requirement:1,5 kWweight of the machine ca.:1,1 tdimensions of the machine ca.:0,6 x 0,6 x 1,8 mtable-size:350 x 150 mmNew class condition milling machine with vize and dividing head- Original year of manufacture unknown

x-travel:14000 mmy-travel:3100 mmz-travel:1.200 mm (220 - 1.420) mmdistance between columns:4.417 mmtable-size:14.000 x 2.500 mmworkpiece weight:15.000 kg/mdrive capacity - spindle motor:25 kWspindle cone:63 HSKspindle turning speed range:18000 rpmmilling feeds:30000 mm/mindimensions of the machine ca.:15.000 x 8.418 x 6.033 mmweight of the machine ca.:135 tCNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mmy-travel:800 mmz-travel:800 mmtable-size:2.000 x 700 mmworkpiece weight:3500 kgdrive capacity - spindle motor:17 kWspindle cone:50 ISOspindle turning speed range:3000 U/mindimensions of the machine ca.:5265 x 3250 x 2730 mweight of the machine ca.:9 tCNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines.- Completely repair of the head, replacing bearings, shafts and engaging gears.- Completely replacement of all the bearings of the machine.- Replacing the joining screws of the bodies.- Completely repair of spindles.- Adjustment and repair of axis.- Grinding and adjusting all guides, because of deterioration.- Grinding and adjusting of the guide ways of the ram.- Repairing o ...

x-travel:1000 mmy-travel:1150 mmz-travel:700 mmtable-size:900 mmtable load:1500 kgspindle speeds:10.000 1/minspindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nmspindle taper:A100 HSKT-slots:18mm/7/100 mmmilling feed range:20.000 mm/minrapid traverse feeds:X/Y/Z: 24 m/mindiameter of tools max.:150 mmworkpiece length:300 mmweight of tools max.:20 kgweight of the machine ca.:15 tdimensions of the machine ca.:s. Katalog mCNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fachScales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:3600 mmy-travel:1250 mmz-travel:1600 mmtable load capacity:8000 kptable clamping surface::4100 x 1050 feed range:10 - 5000 mm/minrapid traverse feeds:10000 mm/minspindle motor:29 kWspindle taper::ISO 50spindle turning speed range:5 - 4000 U/mintotal power requirement:70 kWweight of the machine ca.:28 tdimensions of the machine ca.:8,5 x 5,4 x 3,2 mMachine with Heidenhain TNC 430 Steuerung- tool changer 30-fold- milling head indexable 2,5°- 4. axis turn table

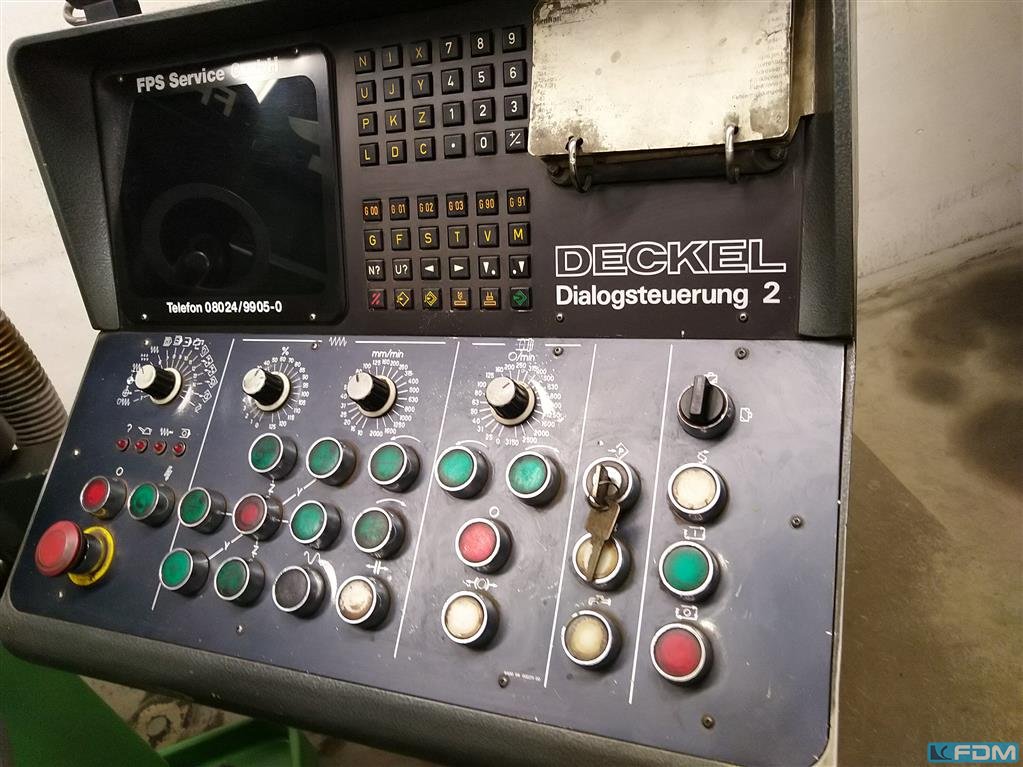

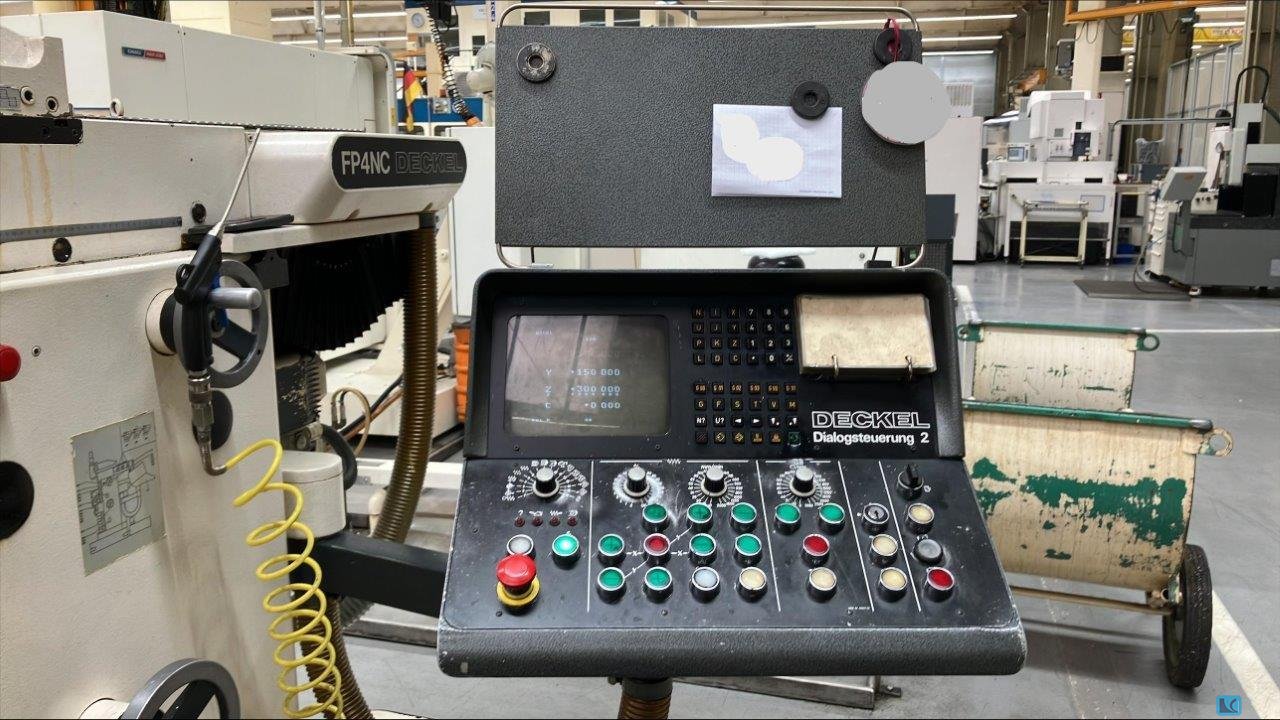

x-travel:600 mmy-travel:450 mmz-travel:400 mmTable area:700 x 480 mmspindle turning speed range:10 - 3150 U/minspindle taper ISO:40 quill stroke:80 mmdimensions of the machine ca.:1,8 x 2,1 x 1,9 mtotal power requirement:8 kWweight of the machine ca.:3,5 tMachine with universal turn, sviwel and tilting table- CNC control DIALOG II- splash guards- misc. parts

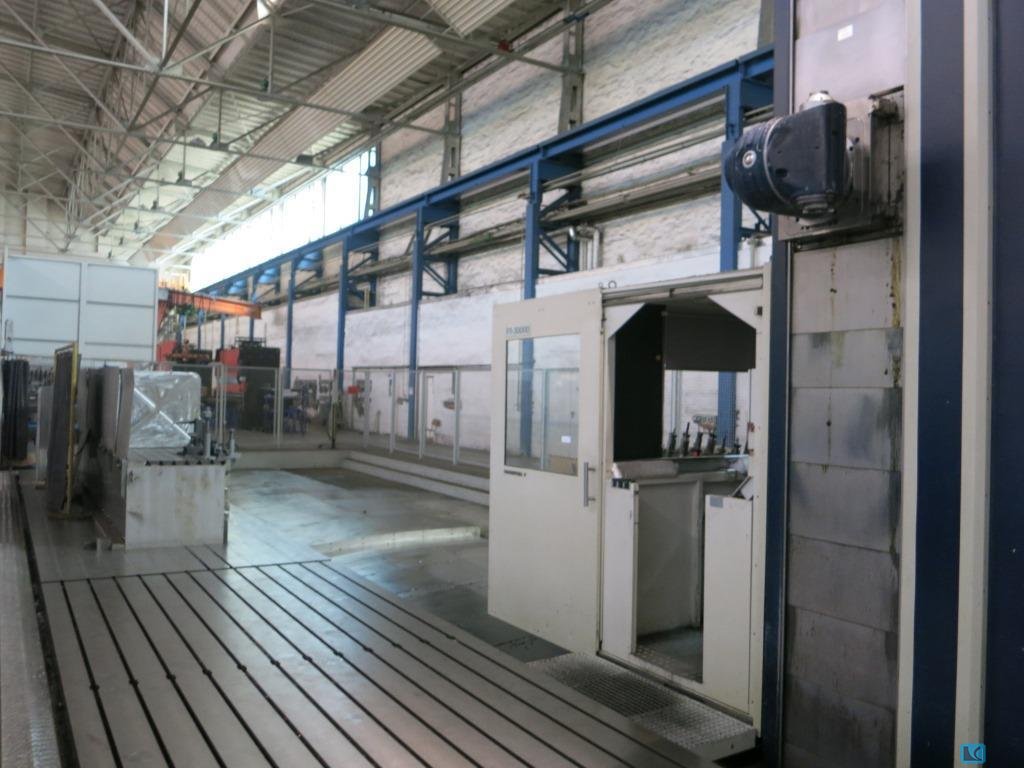

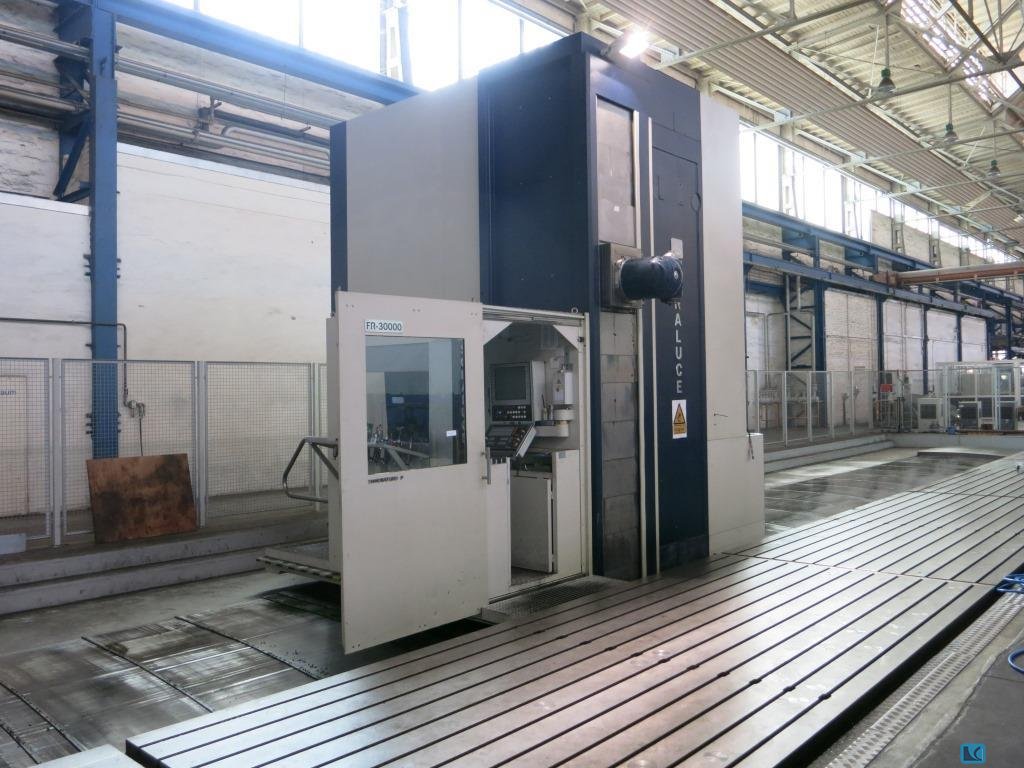

x-travel:30000 mmy-travel:3600 mmz-travel:1900 mmmilling head speed:1 - 4000 U/minspindle taper ISO:50 feed speeds:1 - 10000 mm/minrapid traverse:25 m/minmilling spindle motor:46 kWtotal power requirement:85 kWdimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. mwith CNC HEIDENHAIN iTNC 530autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm )2 chip conveyors, coolant attachment

x-travel:2000 mmy-travel:1500 mmz-travel:1460 mmmilling spindle motor:35/30 kWspindle taper ISO:50 spindle turning speed range:24 - 3000 U/mintable surface area:1350 x 1550 mmtable load:6 tfeed speeds:10 - 3000 mm/minrapid speed:10 m/mintotal power requirement:48 kWweight of the machine ca.:24 tCNC HEIDENHAIN TNC 426B-axis table roundHoriz. and Vertikal automatic positioning Milling Head

x-travel:16300 mmy-travel:2600 mmz-travel:1600 mmspindle taper ISO:50 spindle turning speed range:22 - 4000 U/minrapid traverse:24 / 36 m/minmain drive:37 kWtotal power requirement:50 kWwith CNC HEIDENHAIN TNC 430automatic Universal Milling Headautomatic toolchanger 90-pocketscoolant attchament and chip conveyor

x-travel:6500/13150 mmy-travel:4000 mmz-travel:1250 mmw-axis:2250 mmtable surface area:5500/12150 x 3000 mmmax. workpiece weight:70.000/105.000 kgram head dimension:480 x 510 mmmilling spindle motor:63 kWmax. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/minfeed speeds:1 - 24000 mm/minw-axis:1 - 6000 mm/min.distance between columns:3500 mmpassage:3000 mmtotal power requirement:120 kWweight of the machine ca.:245 tdimensions of the machine ca.:29,0 x 7,7 x 8,1 mThe machine is in mint condition and was generally overhauled in 2020!with CNC SIEMENS 840 Dautom. tool magazine for 153 tool stationsautom. milling head magazine for 6 heads milling heads - straight - straight extended length -milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm, 144 x 2,5°, ISO 50m ...

x-travel:6000 mmy-travel:2100 mmz-travel:1500 mmControls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mmFLOOR PLATE:. - clamping surface (left-right):7000 mm - clamping surface (front-back):2000 mmWORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 NmAXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/minE ...

automatic:Werkzeugspannung Spannk.15000 Ntotal power requirement:63 KVAweight of the machine ca.:56000 kgtable-size:22000 x 800 mmTool bore:ISO 50, DIN 69871 AD x-travel:20500 mmy-travel:1600 mmz-travel:1000 mmdimensions of the machine ca.:24 x 6 x 4 mtool piece magazine with:30 Plätze

x-travel:600 mmy-travel:500 mmz-travel:450 mmweight of the machine ca.:3,5 t

x-travel:550 mmy-travel:300 mmz-travel:425 mmCNC-control:Sinumerik table-size:950 x 350 mmmax. table load:500 kgspindle taper ISO:30 spindle turning speed range:20 - 10500 U/minspindle drive motor:5,5 kWtool change unit:12 Pos. coolant:inkl. voltage:380 Vtool adaptor:Steilkegel 40 groove width:32/28 mmno. of flutes:3 rapid speed:40.000 mm/mintotal power requirement:15 kVAweight of the machine ca.:3,3 tchip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mmDocuments:vorhanden - Serial Number: 186 - 78- Control: FANUC O-M- with various tool holders- coolant equipment

x-travel:500 mmy-travel:400 mmz-travel:330 mmtable-size:710 x 410 mmspindle taper ISO:40 quill stroke:100 mmcontrol:HEIDENHAIN TNC 335 B table load:180 kgno. of flutes:8 groove width:14/25 mmtool taper:SK 40 speeds::20 - 3000 U/minfeeds:infinitely variable1-1250 mm/minrapid traverse:5000 mm/mintotal power requirement:13 kWweight of the machine ca.:2500 kgdimensions of the machine ca.:2000 x 2800 x 2300 mmYear:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:800 mmy-travel:250 mmz-travel:350 mmtable-size:1130 x 250 mmno. of flutes:4 groove width:14/25 mmtaper MK:4 spindle turning speed range:56 - 2800 U/mintotal power requirement:9,5 kWweight of the machine ca.:2009 kgdimensions of the machine ca.:1400 x 1700 x 2800 mmDocuments:vorhanden
