automatic sprayer GIARDIANA DUAL TECH 420 SBC DRY
machines à bois / autres machines à bois
2020 Giardiana DUAL TECH 420 SBC DRY Overall dimensions - Width: 4850 mm - Length: 4930 mm - Max height: 2845 mm - Working height: 900 mm (+/- 50) Workpiece capacity - Width: 100–1300 mm - Length: 100–2800 mm - Max thickness: 50 mm Electrical - Voltage: 400 V - Motor protection: ATEX3G + PTC - ...
Fabricant: GIARDIANA
Modèle:DUAL TECH 420 SBC DRY
Type de machine: automatic sprayer
Numéro de l'article: 169973335
Quantité: 1
Date: 12.08.2026
Année de fabrication: 2020
Emplacement: Budapest, Hungary
Prix:
Seller-item-No.:5343707
2020 Giardiana DUAL TECH 420 SBC DRY
Overall dimensions
- Width: 4850 mm
- Length: 4930 mm
- Max height: 2845 mm
- Working height: 900 mm (+/- 50)
Workpiece capacity
- Width: 100–1300 mm
- Length: 100–2800 mm
- Max thickness: 50 mm

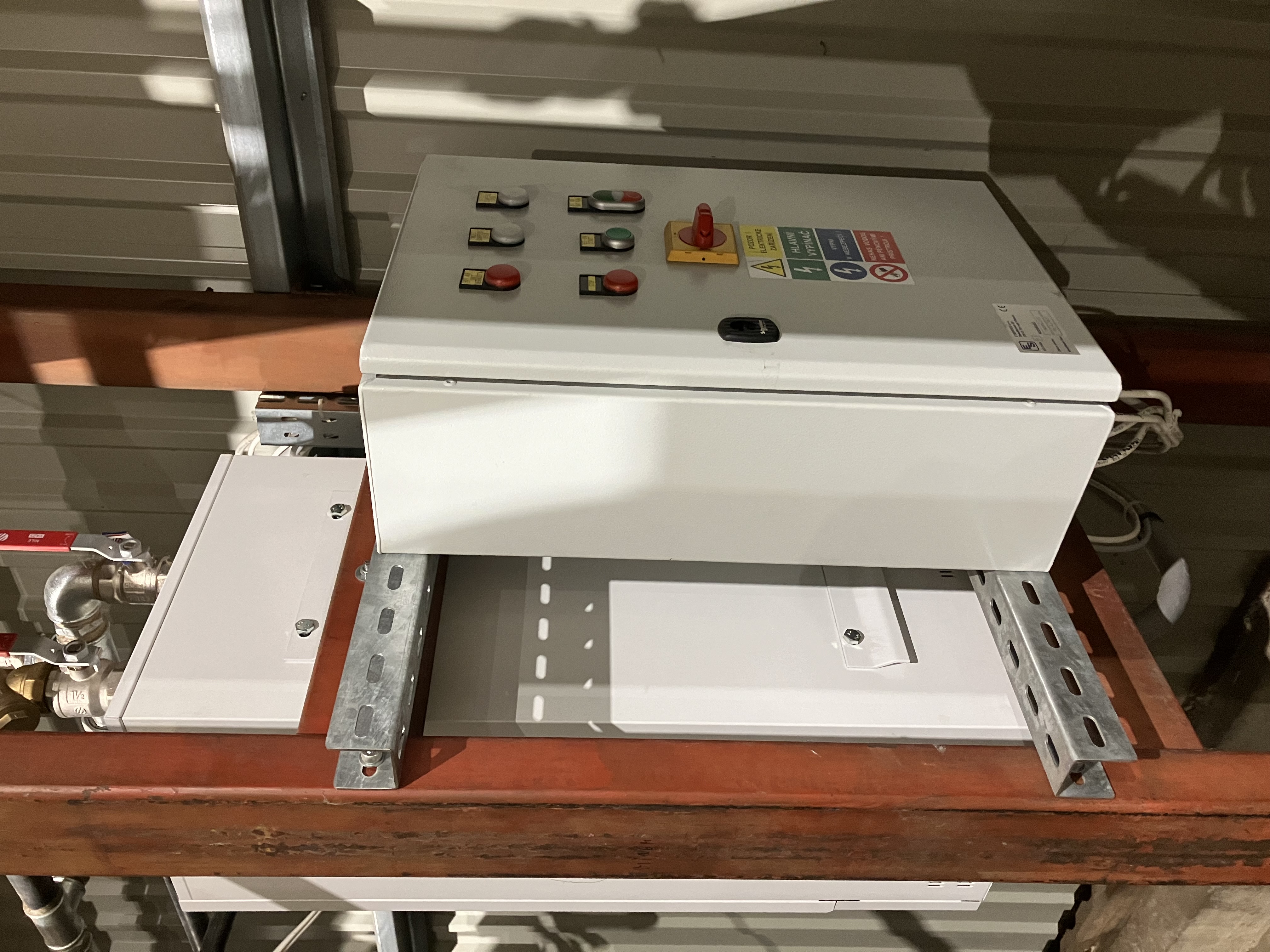

Electrical
- Voltage: 400 V
- Motor protection: ATEX3G + PTC
- Total power: 14.5 kW
Paper belt conveyor
- Speed: 1–3 m/min
- Gearbox: S301P 1:8.9 P.71 B3
- Motor: 0.37 kW
Infeed conveyor
- Speed: 2–6 m/min
- Gearbox: VF44FA1100 P63 B5 B3
- Motor: 0.18 kW
Central conveyor
- Speed: 1.5–4.5 m/min
- Gearbox: C323P 1/136 P71 B3
- Motor: 0.37 kW
Outfeed conveyor
- Speed: 2–6 m/min
- Gearbox: VF 44 P 100 P63 B5 B8
- Motor: 0.18 kW
Spray guns
- Quantity: 4
- Model: TT1301 MACH5 UG.09-154 FILTERMEDIA
Spray gun drive system
- Gearbox: C322P 7.2 SK110B B7
- Motor: brushless
- Gun travel speed: 0–120 m/min

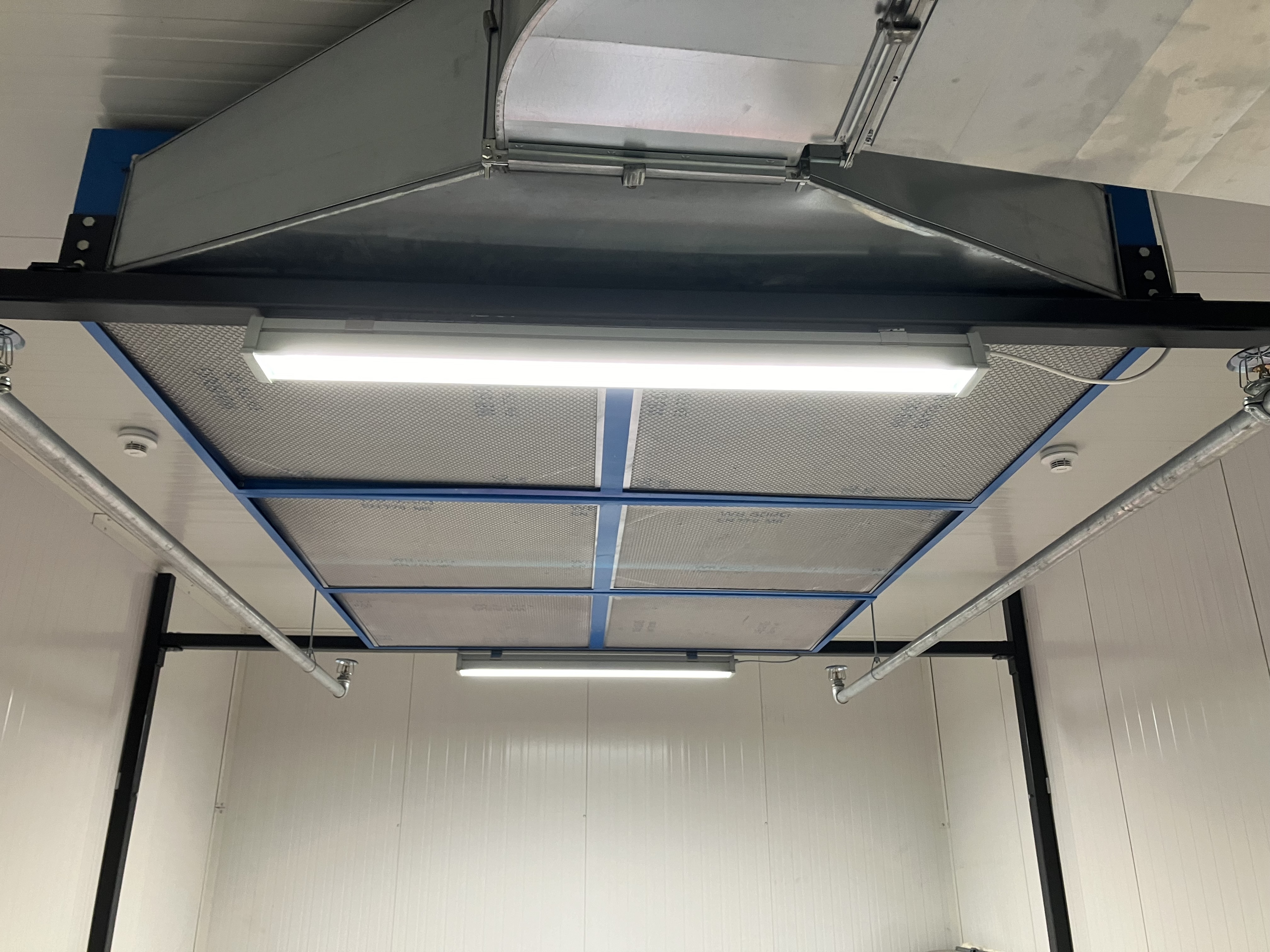

Air supply unit
- Intake air flow: 9000 m³/h
- Pre-filters: yes
- Heating coil: optional
- Motor: 2 x 0.55 kW
- Fan: MQ-BC 500 axial

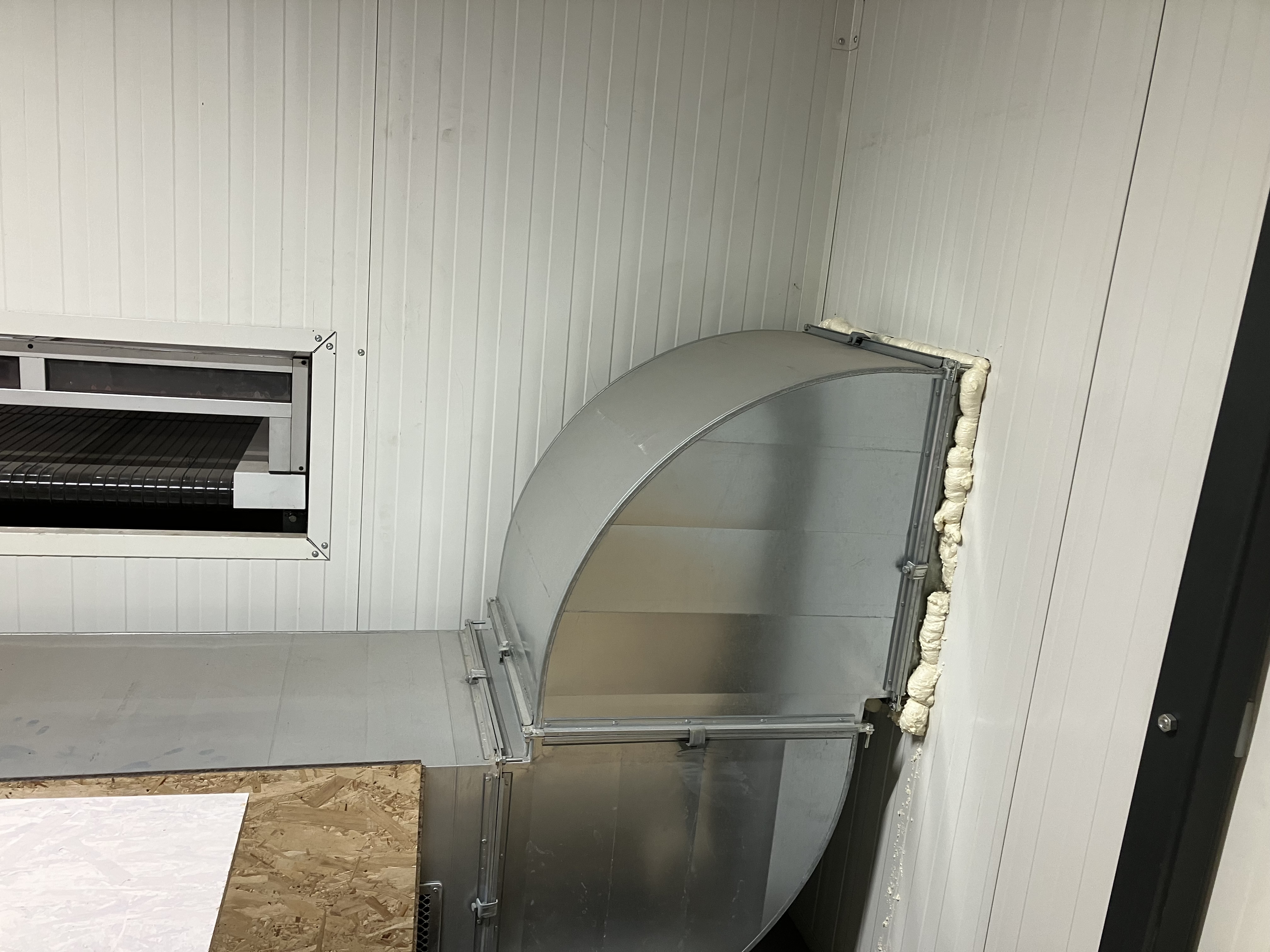

Exhaust / cleaning system
- Exhaust air flow: 9000 m³/h
- Fan: MRLQ 562
- Cleaning unit filters: 4
- Spray zone filters: yes
Pneumatic system
- Compressed air consumption (6 bar): 1600 NL/min
- Connections: 1 x 1/2
Find more here - .ucymachines/
Contact us at - sales@ucymachines
