Centres CNC de tournage GILDEMEISTER NTX 1000
machines de travail des métaux / tours / Centres CNC de tournage
cpl. Workstation with NTX 1000 turning-milling center, UNO Microset tool presetter, Solidworks/ Solidcam programming station (with 4-axis post-processor) and tools NTX 1000 Bj 2011 (CTX alpha 450 TC) new controller 2016/17, total switch-on hours since 2011 = 7600 hrs, total spindle hours 3600 hrs ...
Fabricant: GILDEMEISTER
Modèle:NTX 1000
Type de machine: Centres CNC de tournage
Numéro de l'article: 170281847
Quantité: 1
Date: 05.10.2026
Année de fabrication: 2011
Emplacement:
Allemagne
Prix: 139,000 EUR
Votre proposition de prix:
Machine en stock:Oui
cpl. Workstation with NTX 1000 turning-milling center, UNO Microset
tool presetter,

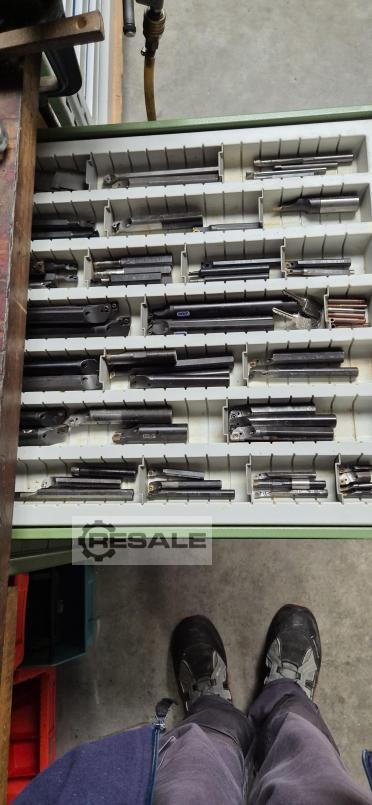

Solidworks/ Solidcam programming station (with 4-axis post-processor) and tools
NTX 1000 Bj 2011 (CTX alpha 450 TC) new controller 2016/17, total switch-on hours since 2011 = 7600 hrs, total spindle hours 3600 hrs CNC control: Siemens 840D with control extension by 2nd control channel
Turning length mm: 665
Max. turning diameter mm: ø Ø370
Turning-milling spindle:
Travel X-axis mm: 380
Y-axis travel mm: ±105
Travel of Z-axis mm: 450 direct travel system
B-axis degree: ±120 (0,001º)
Spindle speed: 20,000
Drive power kW: 7.5
Tool magazine
Magazine slots: 38

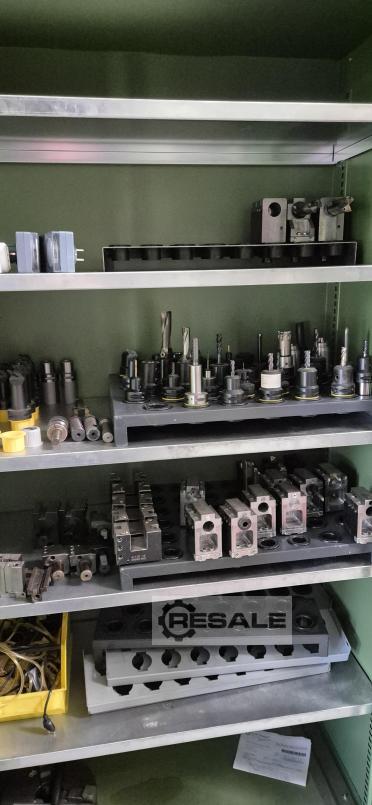

Tool holder: Capto C5
Tool length max. mm: 250
Tool diameter max. mm: 70/130
Tool weight max kg: 5
Turret: X-axis travel mm: 160
Travel of the Z-axis mm: 730
Number of tool slots pcs.: 2 x 12
Main spindle:
Spindle speed: 6,000
Drive power spindle kW: 11/7.5
Spindle bore mm: 73 Hollow clamping device with bore 66mm

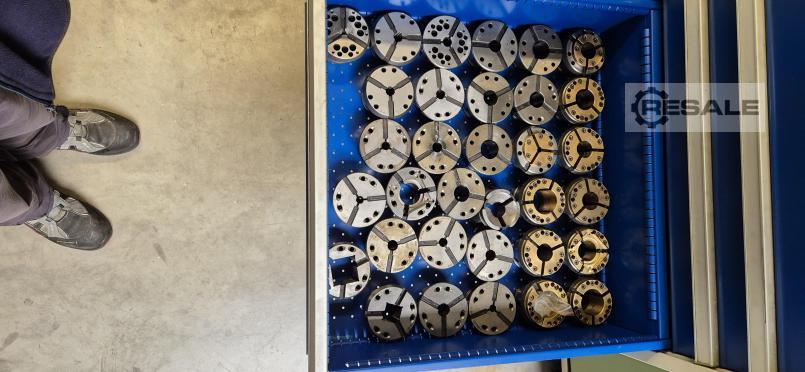

Chuck type: SHW and Hainbuch collet
Sub-spindle:
Spindle speed: 6,000
Drive power spindle kW: 7.5/5.5
Chuck Type: Solid Chuck: SHW
Equipment: chip conveyor, signal lamp
High pressure pump: 80 bar, medium pressure: 20 bar, low pressure: 8 bar, coolant 980 ltr with belt filter system and immersion cooler 4.5 kW
Chuck foot switch (double) for main and counter spindle
Coolant gun

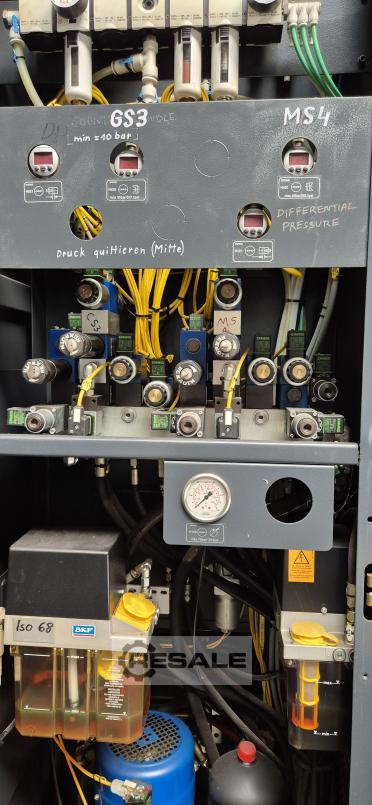

Differential stress for main and sub-spindle Chuck flushing outside for main & sub-spindle machine could also be 5-axis simultaneous machining
Solidworks/ Solidcam programming station (with 4-axis post-processor) and tools
NTX 1000 Bj 2011 (CTX alpha 450 TC) new controller 2016/17, total switch-on hours since 2011 = 7600 hrs, total spindle hours 3600 hrs CNC control: Siemens 840D with control extension by 2nd control channel
Turning length mm: 665
Max. turning diameter mm: ø Ø370
Turning-milling spindle:
Travel X-axis mm: 380
Y-axis travel mm: ±105
Travel of Z-axis mm: 450 direct travel system
B-axis degree: ±120 (0,001º)
Spindle speed: 20,000
Drive power kW: 7.5
Tool magazine
Magazine slots: 38
Tool holder: Capto C5
Tool length max. mm: 250
Tool diameter max. mm: 70/130
Tool weight max kg: 5
Turret: X-axis travel mm: 160
Travel of the Z-axis mm: 730
Number of tool slots pcs.: 2 x 12
Main spindle:
Spindle speed: 6,000
Drive power spindle kW: 11/7.5
Spindle bore mm: 73 Hollow clamping device with bore 66mm
Chuck type: SHW and Hainbuch collet
Sub-spindle:
Spindle speed: 6,000
Drive power spindle kW: 7.5/5.5
Chuck Type: Solid Chuck: SHW
Equipment: chip conveyor, signal lamp
High pressure pump: 80 bar, medium pressure: 20 bar, low pressure: 8 bar, coolant 980 ltr with belt filter system and immersion cooler 4.5 kW
Chuck foot switch (double) for main and counter spindle
Coolant gun
Differential stress for main and sub-spindle Chuck flushing outside for main & sub-spindle machine could also be 5-axis simultaneous machining
