Machines de nettoyage de bouteilles GM GERA

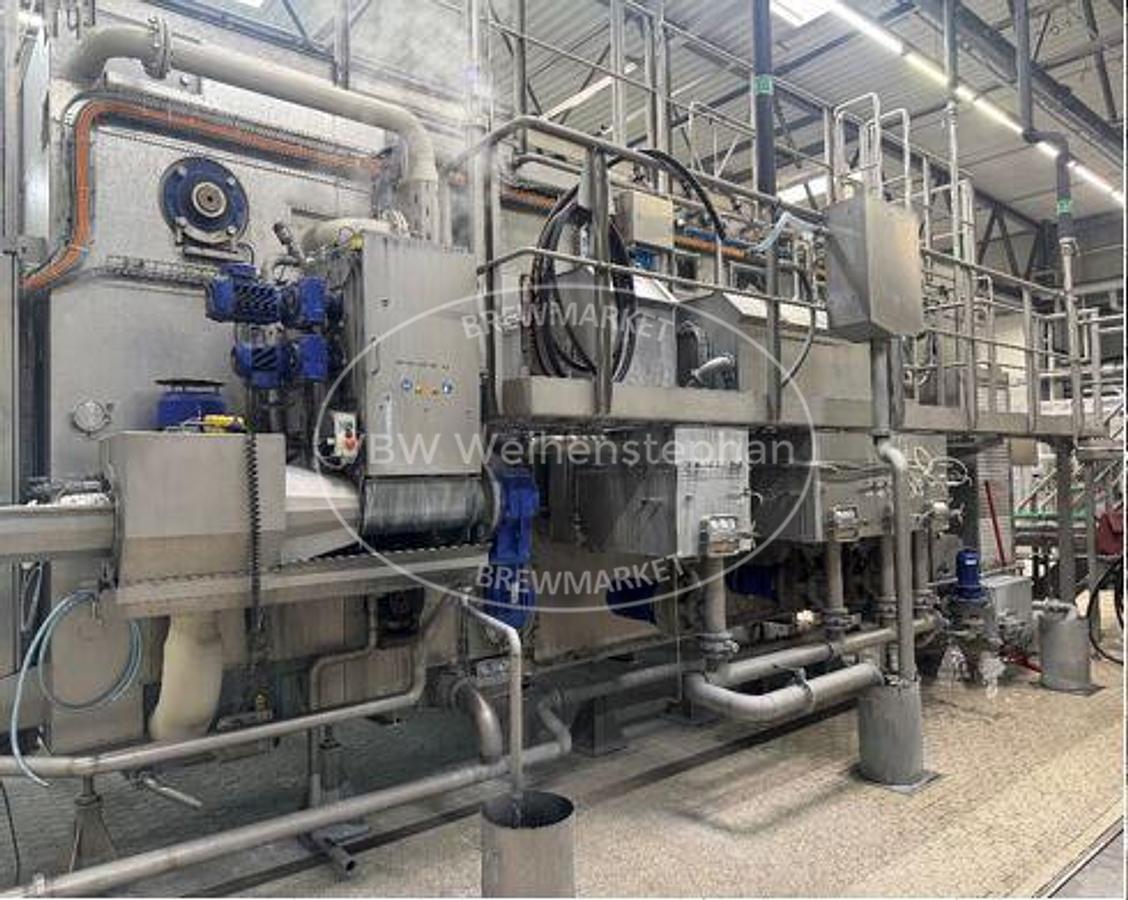

A washing machine for cleaning glass bottles prior to beverage filling. The soiled empty bottles are loaded into bottle baskets and pass through the system for approximately 14 minutes. First, the bottles pass through a pre-soaking bath and a lye bath in the lower section, and are then rinsed in the upper section with lye, twice with hot water, cold water and finally fresh water. The cleaned bottles are discharged onto the bottle conveyor above the bottle inlet., Additional title: single-ended machine for cleaning glass bottles, Nominal capacity: 33000 Fl/h ; mechanical control range: 13.200 - 36.000 Fl/h, Number of basket holders: 269 pcs. ; of which 259 were filled – total number of bottles: 7.770 pcs., Processing time: 14,14 min, Heating / Cooling: 1.352.712 kJ/h, Water: 7,92 m³/h, Formats: 0,5 l NRW bottles, Material: housing from stainless steel, Position: in a cabinet on legs with an enlarged surface area, Base construction: single-ended machine, Features: pre-soaking and lye baths; spray nozzles; bottle conveyor with drives; pumps; top surface serving as a work platform with guardrails; housing; control cabinet; touchscreen display serving as an HMI panel
seller offer No. resale 210852MW
