Centres CNC de tournage HAAS ST-20

HAAS ST-20 CNC turning center was built in 2011 in the United States by HAAS AUTOMATION, INC. The machine is designed for the production of precision parts used in various industries. It enables the efficient turning of workpieces with a maximum diameter of 381 mm and a length of 533 mm.

Machining is performed using a spindle with a maximum rotational speed of 4000 rpm. The HAAS ST-20 works in two axes, X and Z, with feeds of 236 mm and 533 mm respectively. The 12-position turret allows for the use of different tools during machining and enables their rapid exchange. All this is complemented by a compact, highly rigid design.

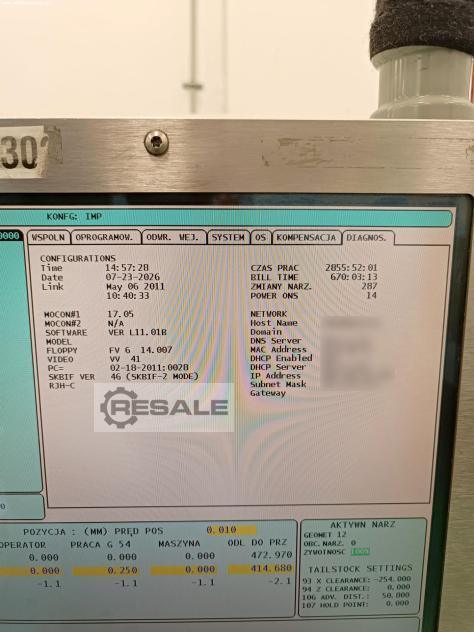

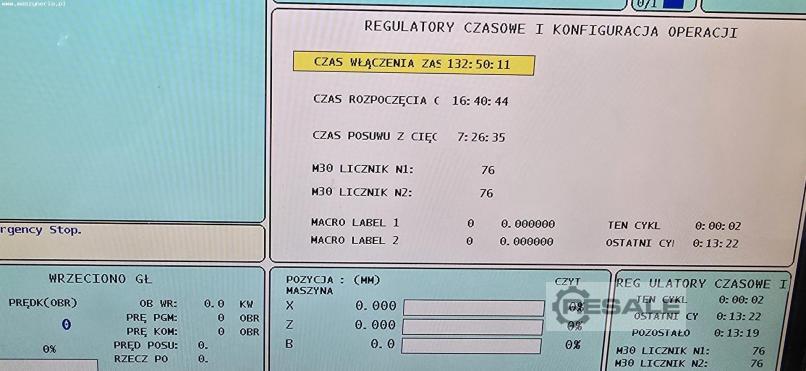

The ST-20 CNC lathe is operated using an intuitive HAAS CNC controller with access to numerous advanced functions. The machine is also equipped with a measuring probe and a chip conveyor designed to automatically remove chips from the work area. The total weight of the machine is approximately 3900 kg.

Technical specifications of the HAAS ST-20 metal lathe
- CNC controller: HAAS
- maximum turning diameter: 381 mm
- maximum turning length: 533 mm
- swing over bed: 806 mm
- feed in the X/Z axis: 236/533 mm
- maximum spindle rotational speed: 4000 rpm
- spindle bore: 51 mm

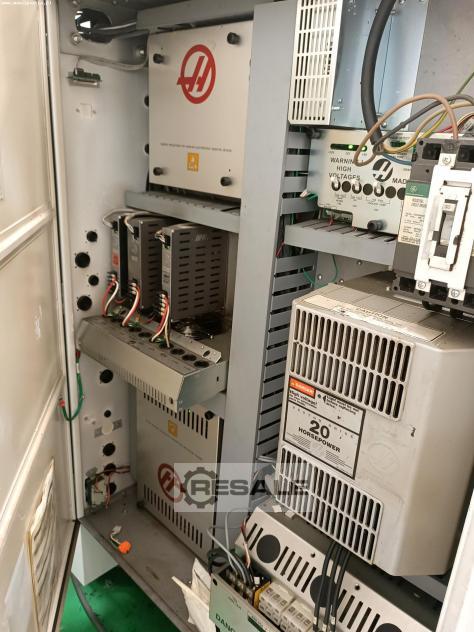

- spindle drive power: 14,9 kW (20 HP)

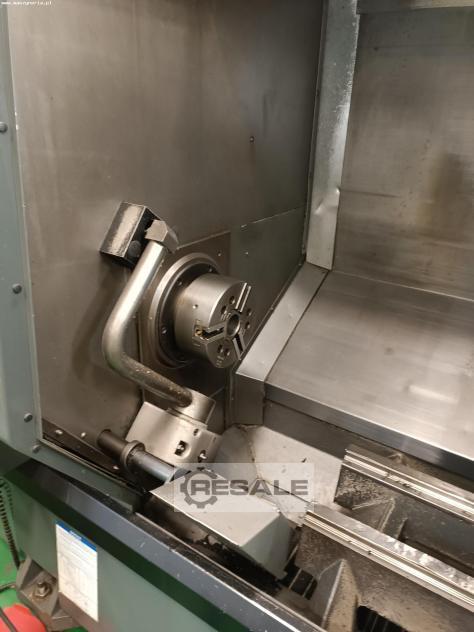

- 12-position turret
- chuck diameter: 210 mm (8,3″)
- measuring probe
- tailstock
- maximum tailstock extension: 530 mm
- distance from tailstock to spindle: 176-708 mm

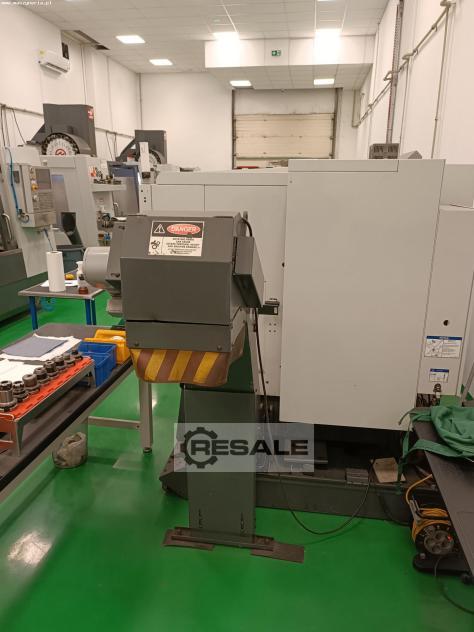

- chip conveyor
- operating hours: 2855 h
- power supply: 360-480 V; 50-60 Hz
- dimensions (L x W x H): approx. 3175 x 1980 x 1955 mm
- weight of the HAAS machine: approx. 3900 kg
seller offer No. resale 170268593
