ILLIG RDKp72g

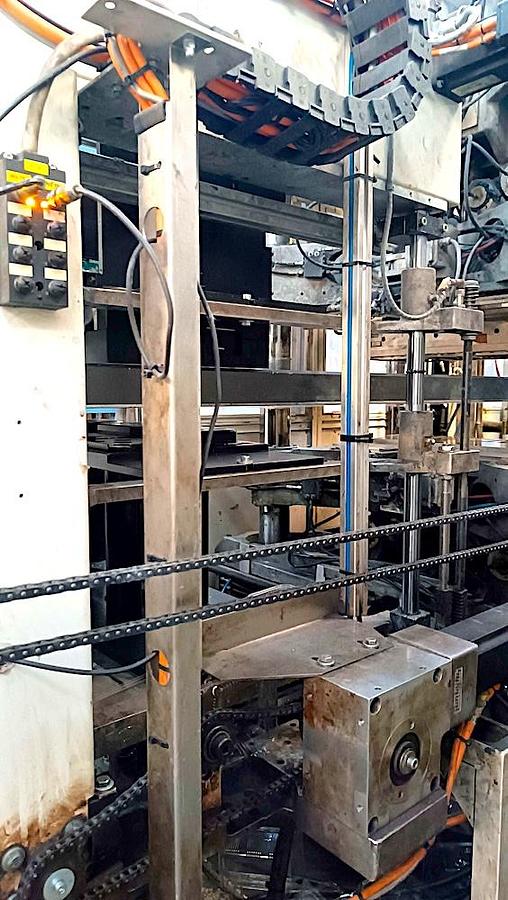

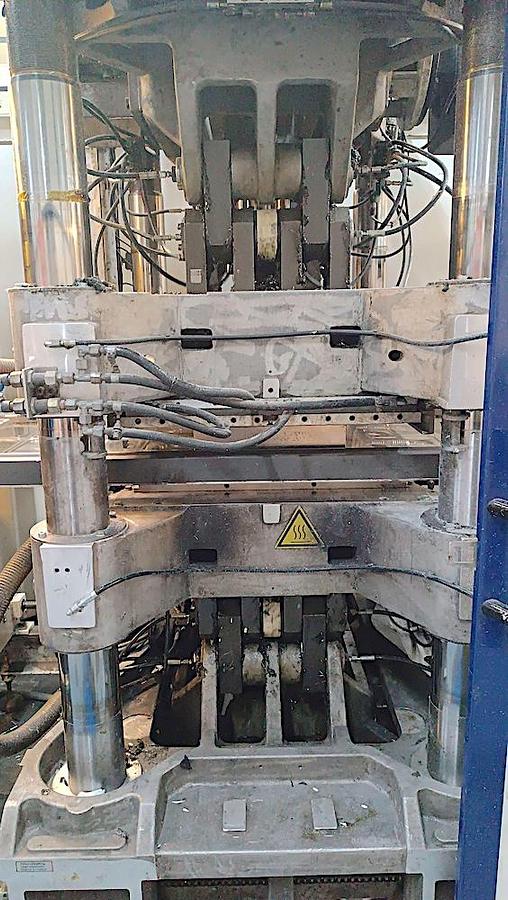

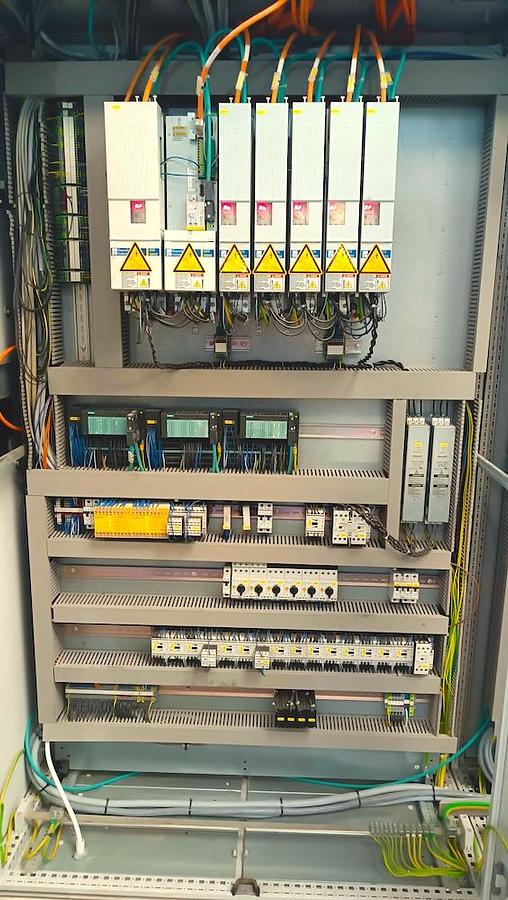

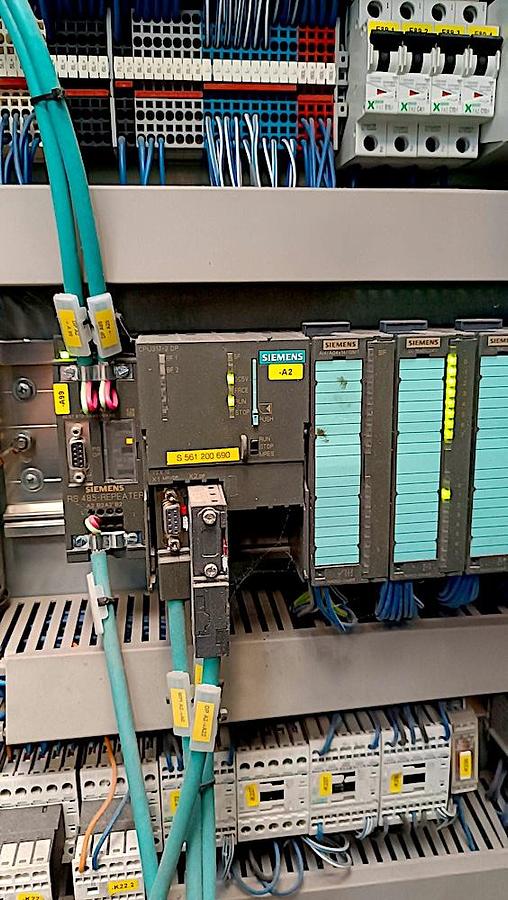

Inline ILLIG RDKP72g full Servomotor 4-Station Thermoformer, age 2010, Double Heating Oven, Top heater 37,1 kW, Bottom heater 37,1 kW, Bosch REXROTH Indexing Servomotor, Form Station with Toggles and Servomotors on both Top and Bottom Form Plattens, Forming area with pneumatic clamping frame max. 671 x 535 mm, Material width with/ without sprung clamping frame max. 805 mm, Material thickness (varies with material type) max. 2.5 mm, Material transport accuracy ± 0.2 mm, Feed length max. 553 mm, Feed length min. 150 mm, Moulding height above material level, max. 120 mm, Formed part height beneath material level max. 120 mm, Total formed part height max. 120 mm, Sheet Sag Control, Transport Rail auto-spreading for PP, Servomotor Hole Punch Station, Servomotor Steel Rule Die Punching Station, Servomotor Stacking/ Counting Station, Cycle rate max. 40 rpm, Total electrical connection - Standard (Option) 85.4 (86.6) kW, Siemens S7 PLC, Skeletal Waste Material Winder, Inline ILLIG RS75b Grinder with Blower ILLIG FD74, This equipment is suitable for PET, PP & PS Trays, Fruit & Vegetable baskets etc!
seller offer No. resale 614
