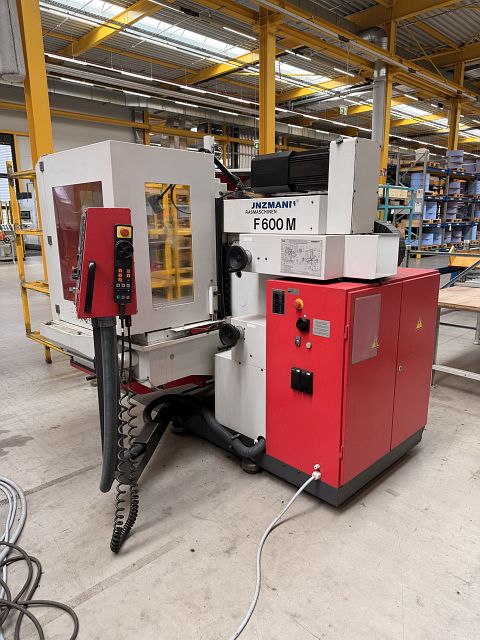

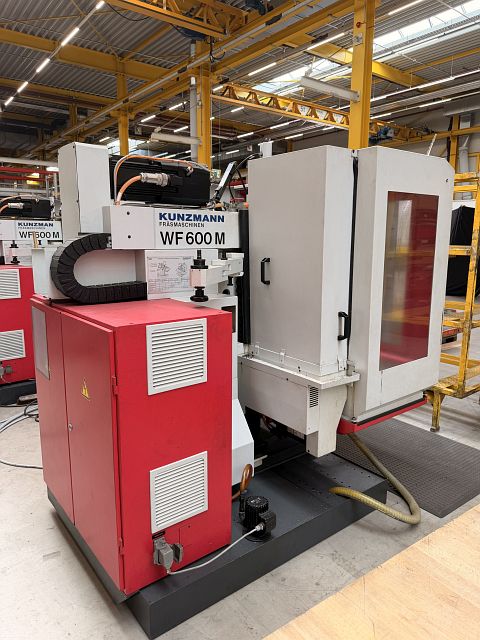

Fraiseuses verticales KUNZMANN WF 600 M
machines de travail des métaux / fraiseuses / Fraiseuses verticales
CONTROLS NC controls HEIDENHAIN TNC 124 WORKING RANGE -CUBIC- X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mmTABLE table surface (left-right): 800 mm table surface (front-back): 425 mm workpiece load (max): 250 kgSPINDLE / HEAD spindle revolutions (max): ...
Fabricant: KUNZMANN
Modèle:WF 600 M
Type de machine: Fraiseuses verticales
Numéro de l'article: 170078996
Quantité: 1
Date: 26.08.2026
Année de fabrication: 2011
Emplacement:
Suisse (Confoederatio Helvetica)
Prix:
Machine en stock:Oui
Seller-item-No.:57356
CONTROLS
NC controls HEIDENHAIN TNC 124
WORKING RANGE -CUBIC-
X-axis travel: 600 mm
Y-axis travel: 400 mm
Z-axis travel: 400 mm
TABLE
table surface (left-right): 800 mm
table surface (front-back): 425 mm
workpiece load (max): 250 kg

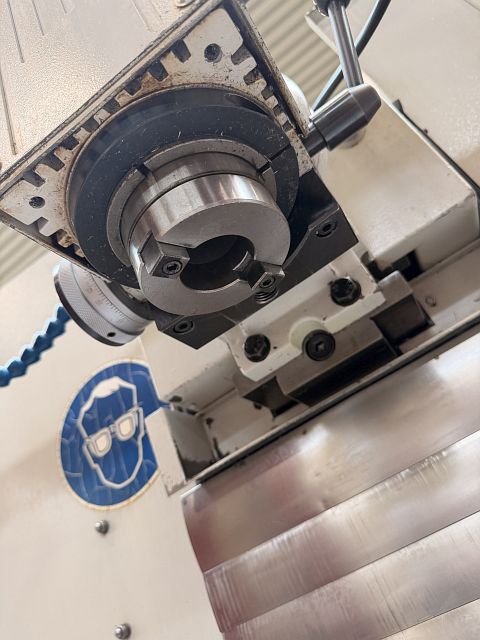

SPINDLE / HEAD
spindle revolutions (max): 4500 /min
tool fixture: ISO SK 40
drive power: 7.5 kW
ELECTRICAL SPECIFICATIONS
mains power supply: 13 kVA
DIMENSIONS / WEIGHTS
space requirements -left/right-: 2720 mm
space requirements -front/back-: 1850 mm
total height: 2300 mm
total weight approx.: 2025 kg
ca 2000 h
NC controls HEIDENHAIN TNC 124
WORKING RANGE -CUBIC-
X-axis travel: 600 mm
Y-axis travel: 400 mm
Z-axis travel: 400 mm
TABLE
table surface (left-right): 800 mm
table surface (front-back): 425 mm
workpiece load (max): 250 kg
SPINDLE / HEAD
spindle revolutions (max): 4500 /min
tool fixture: ISO SK 40
drive power: 7.5 kW
ELECTRICAL SPECIFICATIONS
mains power supply: 13 kVA
DIMENSIONS / WEIGHTS
space requirements -left/right-: 2720 mm
space requirements -front/back-: 1850 mm
total height: 2300 mm
total weight approx.: 2025 kg
ca 2000 h
