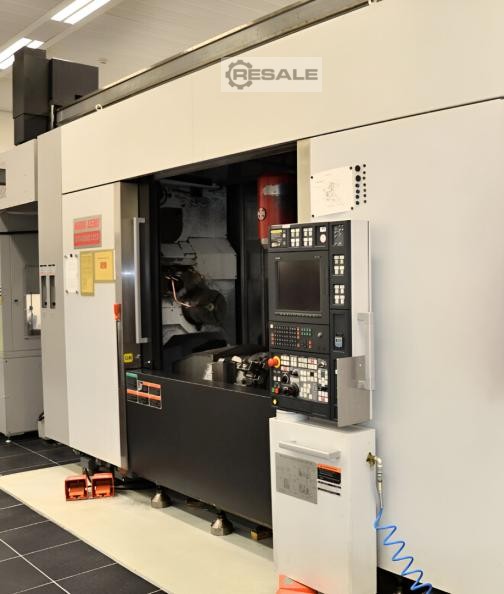

Centres CNC de tournage MORI SEIKI NT4250 DCG/1500 SZ

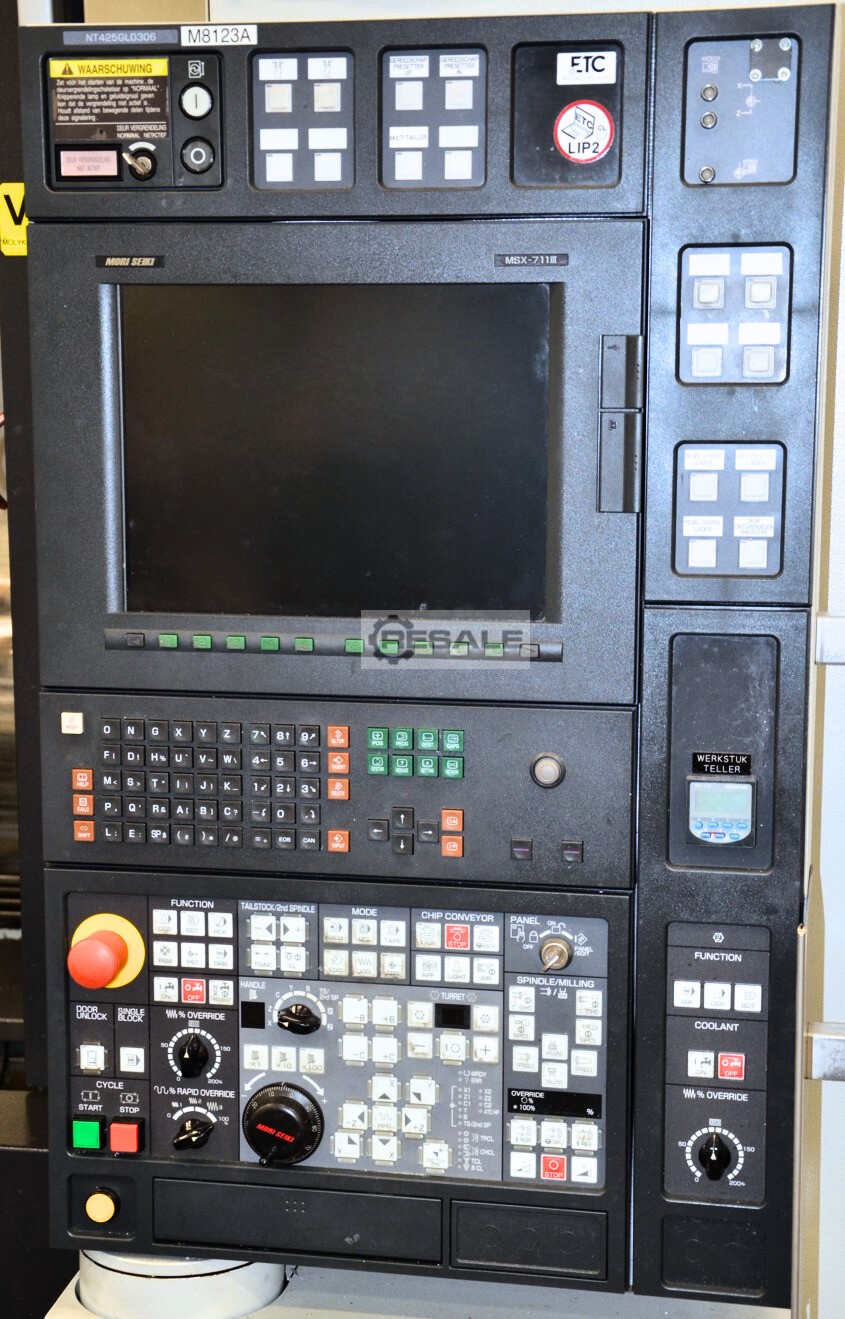

CNC controller: FS-31IA5 (MAPPS 3)
Capacity
Z-axis travel mm: 1.550 + 100
Turning length mm: 1.542
Max. turning diameter mm: ø: 660
Swing over bed mm: ø: 730
Bar work capacity mm: 80 / 80
Turning diameter f. lower turret mm: 350
Distance between spindle centers mm: 1.862

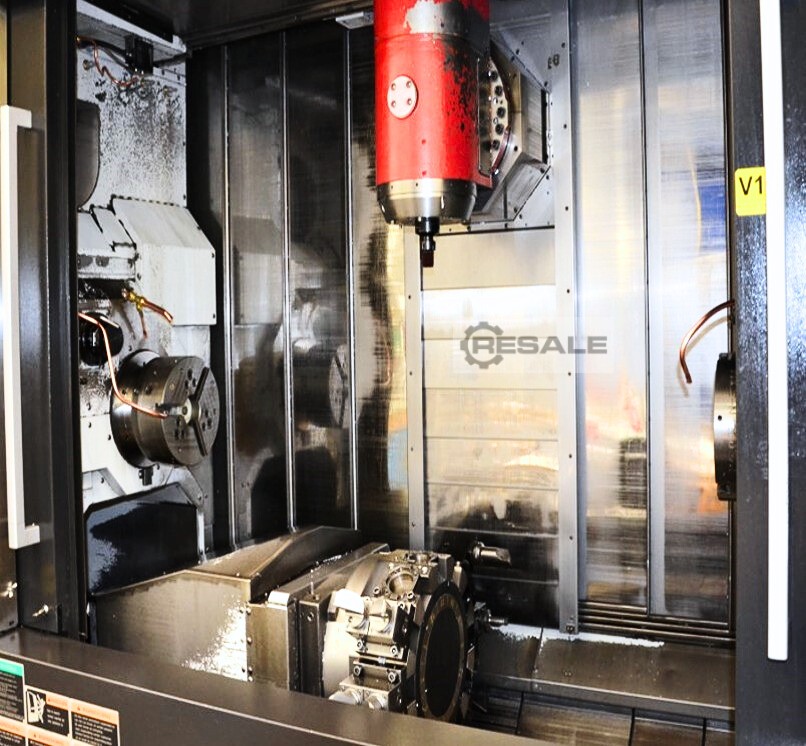

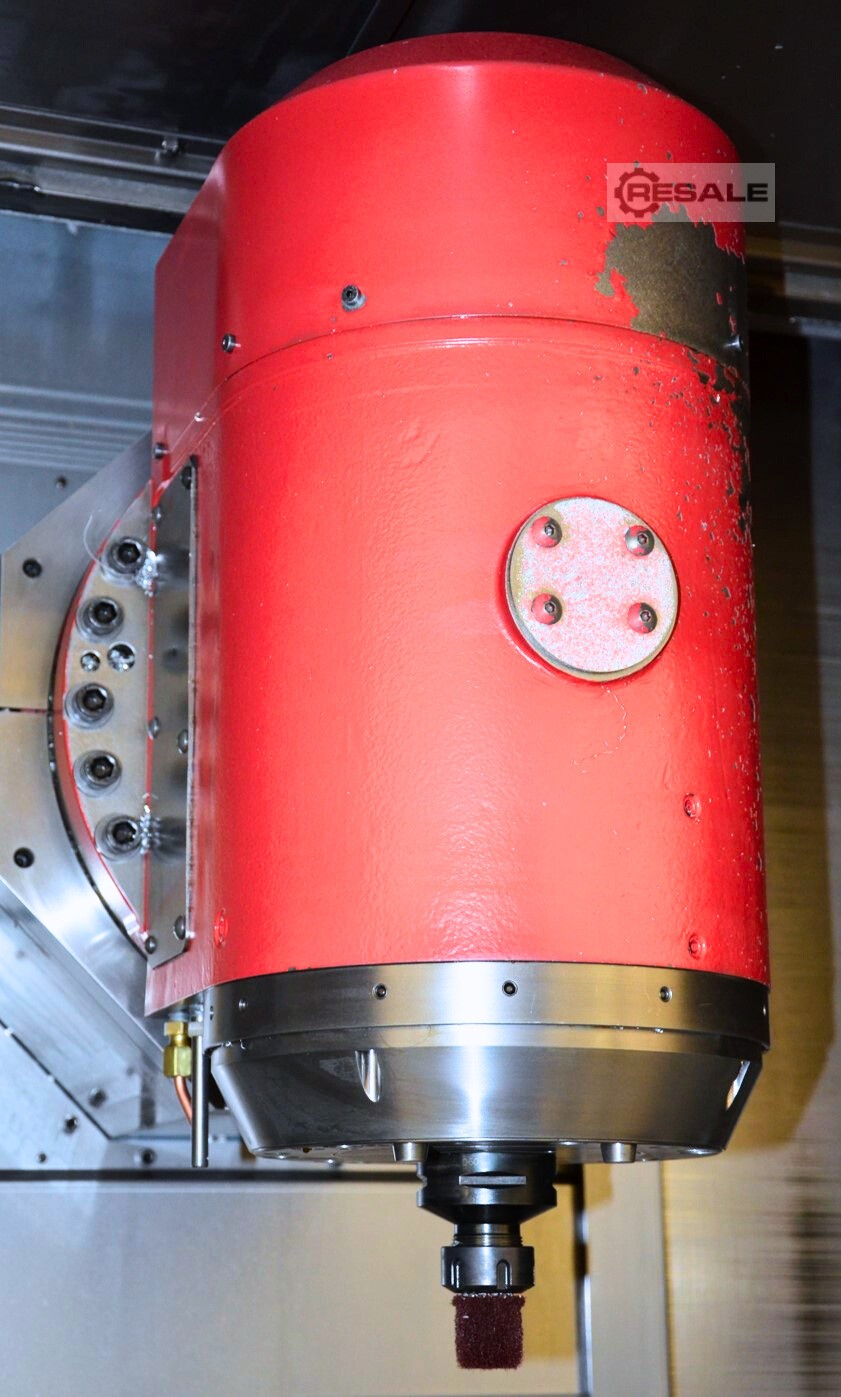

Turn-mill spindle
X-axis travel mm: 750
Y-axis travel mm: ±210
B-axis degree: ±120° (Index 1°)
C-axis degree: 360º (0,001º)
Speed spindle rpm: 12.000
Drive power kW: 18,5 / 11 (30min/cont)
Tool magazine
Magazine places: 100
Tool holder: CAPTO C6
Tool length max. mm: 400
Tool diameter max. mm: 140
Tool weight max kg: 8
Lower turret
X-axis travel mm: 195
Z-axis travel mm: 1.525
Number of tool slots St .: 12
Speed driven tools RPM: 6.000
Milling function: PROVIDED

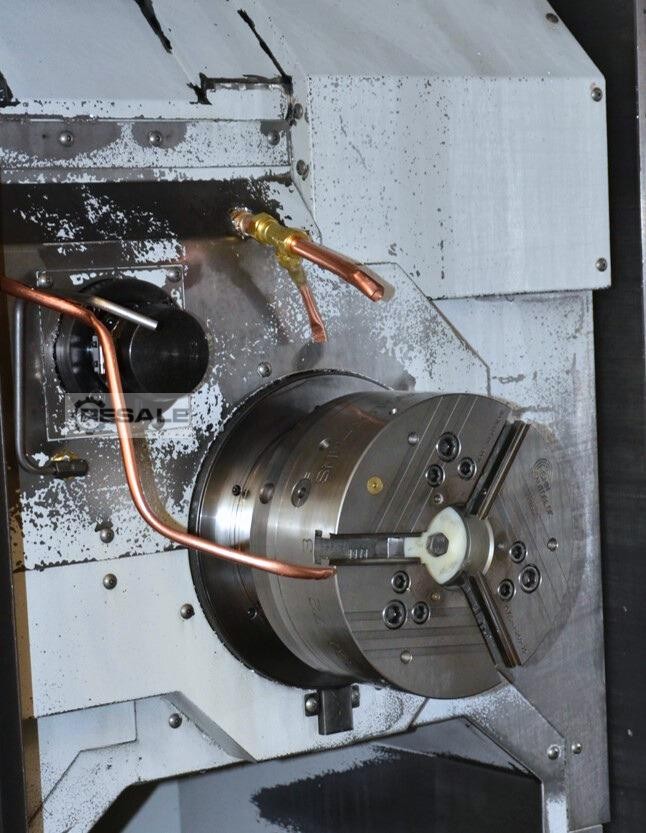

Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22 / 18,5 (30min/cont)
Spindle bore mm: 91

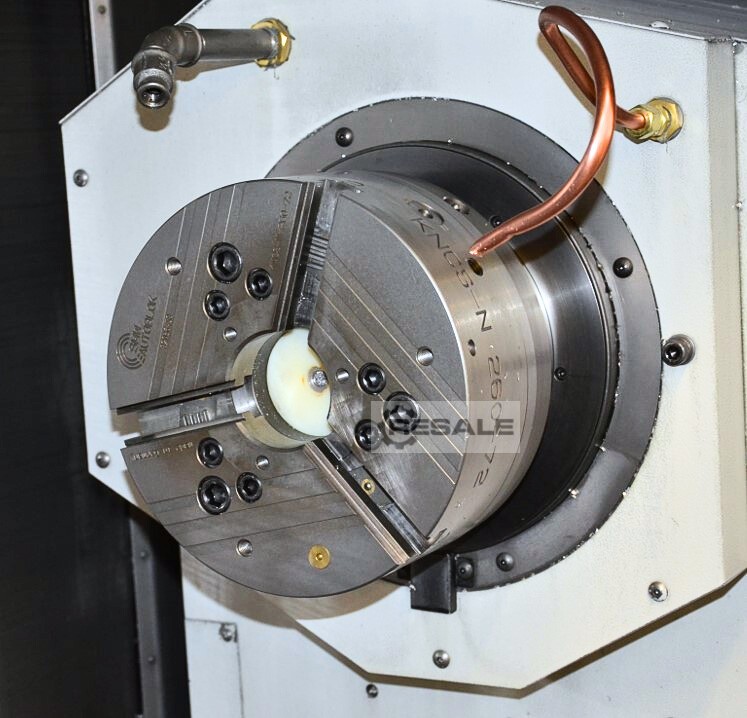

Counter spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 22 / 18,5 (30min/cont)
Spindle bore mm: 91

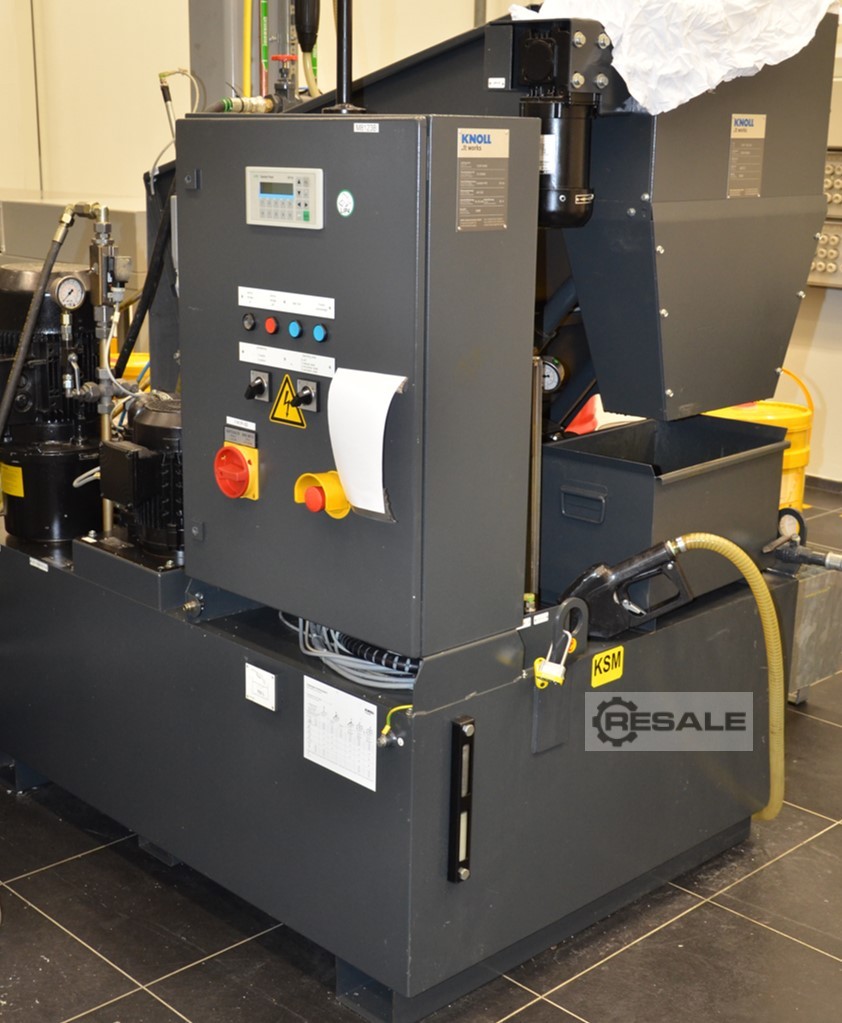

Coolant system
High-pressure bar: 28
Equipment
Electronic Handwheel
Chip conveyor
Tool breakage probe
Workarea light
Blowing air outside the spindle
Coolant gun
Internal coolant supply
Measuring probe

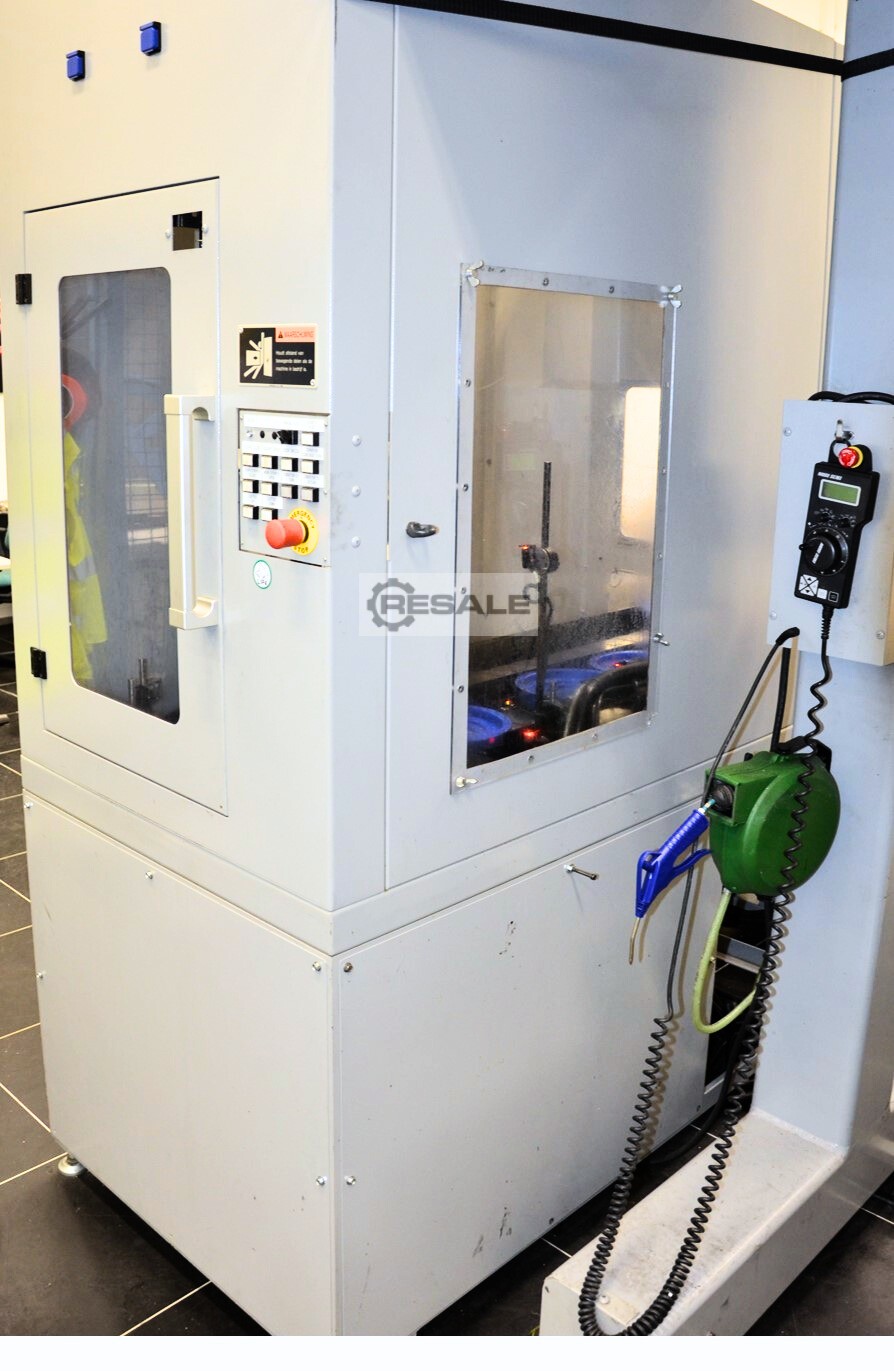

Gantry loader LG-10; 10 Pallets, 10kg per Hand, pieces of Ø200 x 150 (W x H)
Basic machine dimensions / weight
Length mm: 6.800
Width mm: 3.200
Height mm: 2.900
Weight kg: 25.600
