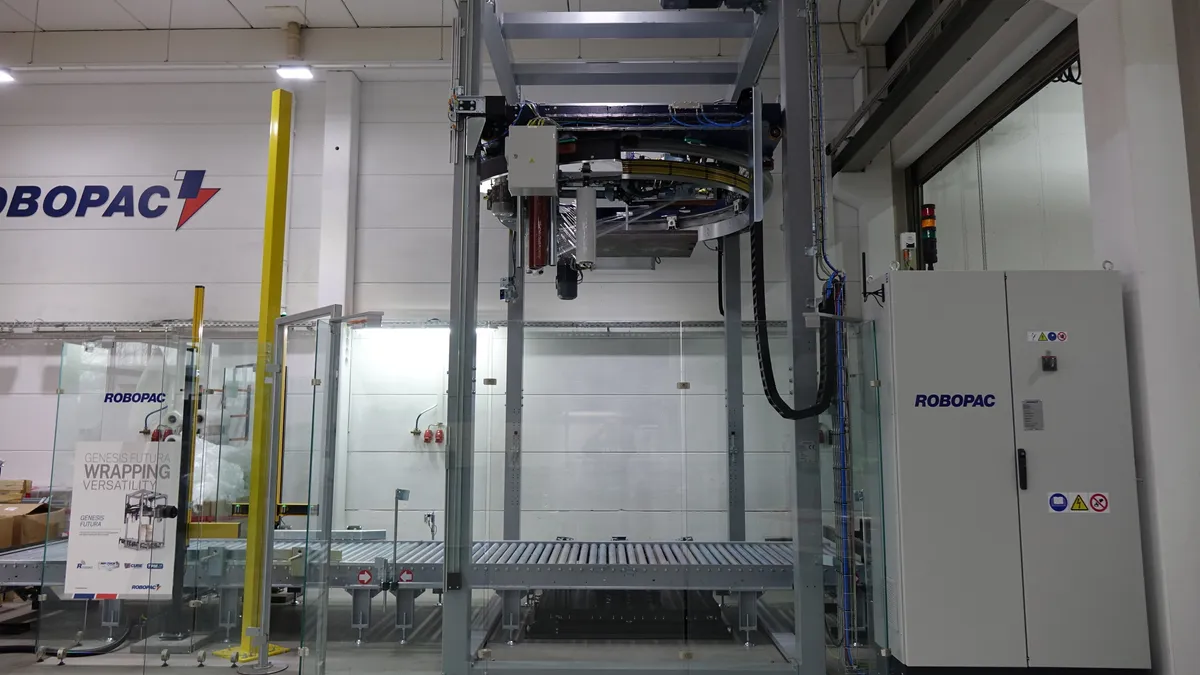

Pallet Winder ROBOPAC Genesis Futura HS

Overview This Robopac Genesis Futura HS pallet winder was built in 2023. It has under 500 operating hours - technically close to new. The rotating ring carries the pre-stretch carriage around the stationary pallet for high throughput without moving the load (see Capacity below). Delivered as a stand-alone unit with integrated roller conveyor, prepared for line integration over Ethernet TCP/IP. Technical data Manufacturer: Robopac Model: Genesis Futura HS Year of manufacture: 2023 Machine type: automatic rotating-ring stretch wrapper (pallet winder) Operating hours: less than 500 h Capacity: up to 92 pallets/h (13 wraps, H 1,000 mm), 77 pallets/h (17 wraps, H 1,600 mm), 70 pallets/h (19 wraps, H 2,000 mm) Pallet size: 800 x 1,200 mm Load height: 1,000 - 2,000 mm (incl. pallet) Load weight: 100 - 1,200 kg Conveyor height: approx. 550 mm; speed 15 m/min Machine height: approx. 4,862 mm; hall height from 7,000 mm Pre-stretch: SCV-B carriage, electronically adjustable 150 - 400 % Stretch film: LDPE / LLDPE, 17 - 23 µm, roll width 500 mm, max. diameter 250 mm, core 76 mm, max. weight 20 kg Control: Siemens SIMATIC S7-1200 PLC, Siemens TP700 7 colour touch panel Wrapping programs: 15 (expandable to 64), 12 steps/recipe, 4 password-protected access levels Power supply: 400 V / 50 Hz, TN-S, control voltage 24 VDC Compressed air: 6 bar, dry, oil-free Documentation and HMI languages: German / English Equipment High-speed rotating ring: power transfer to the pre-stretch carriage via sliding contacts, Wi-Fi commands Integrated roller conveyor with pneumatic pallet lifting station (SMC PL-D) Automatic film clamping, cutting and wide-band sealing unit Fixed vertical hold-down (top press unit) stabilises the load during wrapping Roping device gathers the film web from below Photocell for automatic pallet-height reading, plus a pre-scan photocell with 3,800 mm reflector mast Inverter-controlled IE3 motors, SEW geared, IP55, FESTO pneumatic components, SICK photocells Siemens Scalance S615 VPN / firewall router and Scalance XB005 Ethernet switch, TCP/IP link to up-/downstream machines Safety: Reer Safegate SMPO 1803 light curtain, fenced enclosure, dynamic fall protection on the ring Operator panel separate from the main switch cabinet, plus remote control unit with emergency stop R-Connect remote monitoring hardware: cloud portal for production data and teleservice TPM package (centralised lubrication points, maintenance intervals on display), integrated HMI troubleshooting Complete documentation on USB stick and in print: operating / maintenance manual, wiring / pneumatic diagrams, spare parts catalogue, layout Condition Used - almost as new, no visible production wear. Still installed and under power; inspection in operation on request. Sold without warranty. Availability Immediately. Location: Germany. Handed over dismantled and packed (EXW).
seller offer No. resale DE-PAL-ROB-2023-00001
