Tamis SIEBANALGE Eigenbau

Compact 2-deck vibratory screening system (custom-made)

For sale is a robust, fully functional 2-deck vibratory screening system custom-built in 2017. The system was specially designed for the precise screening and dusting/classification of feed pellets, but is also ideally suited for a wide range of other bulk materials (e.g. granules, pellets, seeds, wood pellets, etc.).

The screening plant is in good, well-maintained condition, is immediately ready for use and is characterized by its compact design and high-quality workmanship.

Technical data & equipment:
- Type/type: Vibratory screening system / Linear vibrating screen (custom-made)

- Year of construction: 2017

- Condition: Used, good, fully functional

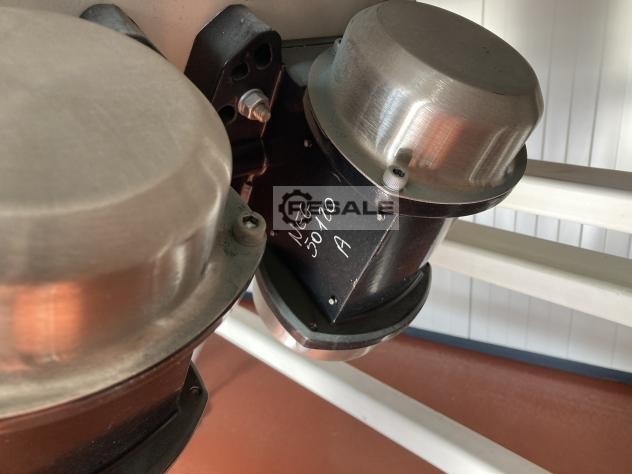

- Drive: 2x Netter Vibration Motors (Type NEG 50120)

- Power connection: 400 V high-voltage current (incl. connection cable and CEE plug)

- Screen levels / decks: 2 levels with a total of 3 interchangeable screen elements


Screening equipment:
Upper deck (1st level):

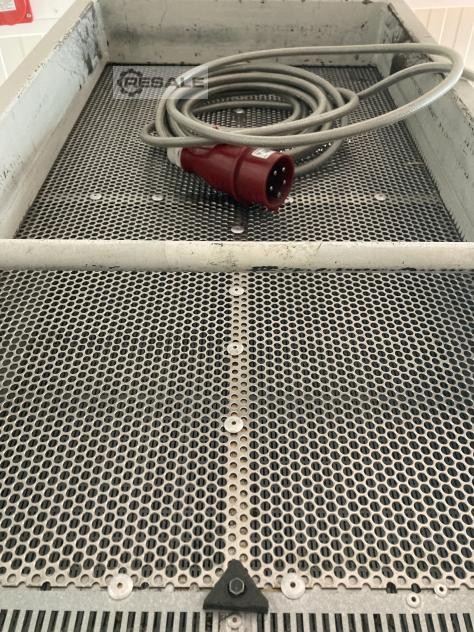

Sieve 1: Stainless steel round hole screen Ø 6 mm

Sieve 2: Galvanized slotted sheet metal screen 2 x 18 mm

Lower Deck (2nd Level):

Sieve 3: Galvanized slotted sheet metal screen 1 x 18 mm

Dimensions & Surfaces:
Screening area (top & bottom): 45 cm x 125 cm each

External dimensions of the system (W x L x H): 60 cm x 150 cm x 108 cm


Highlights & Details:

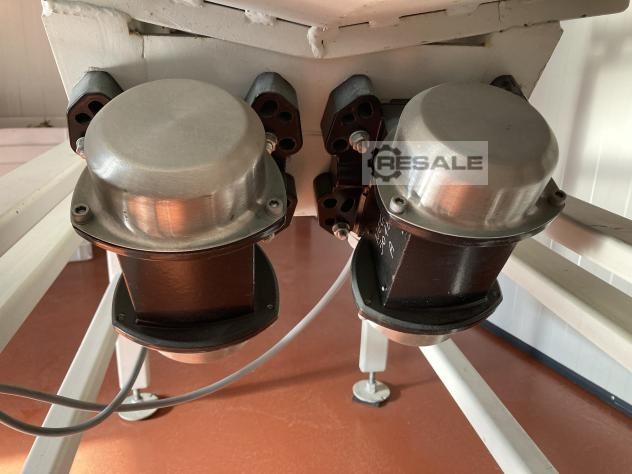

Efficient dual drive: The two Netter NEG vibration motors underneath ensure uniform vibration behaviour and continuous crop conveyance.

Damped running: Suspension/bearing on robust coil springs to decouple vibrations.

Clean material separation: With outlet chutes for separate removal of oversize, target grain and fines/dust.

Level control: Stable feet with threaded plates for exact alignment on site.

Areas of application:
Ideally suited for agricultural businesses, feed manufacturers, pelleting plants, recycling or industrial commercial enterprises for the separation of fines, abrasion or oversizes.
