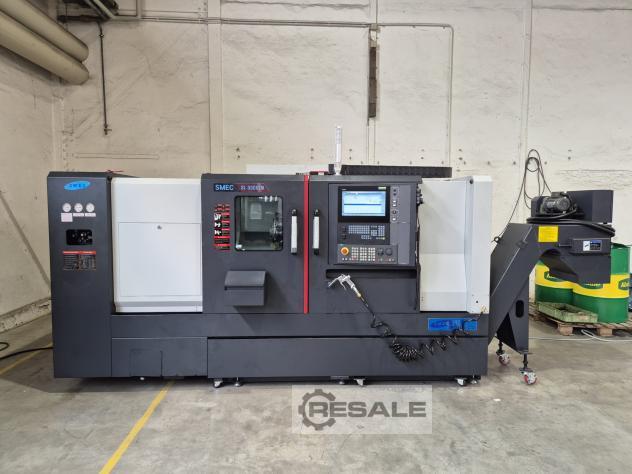

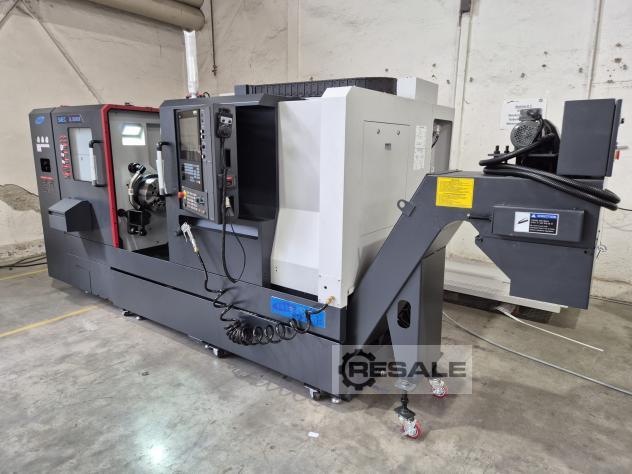

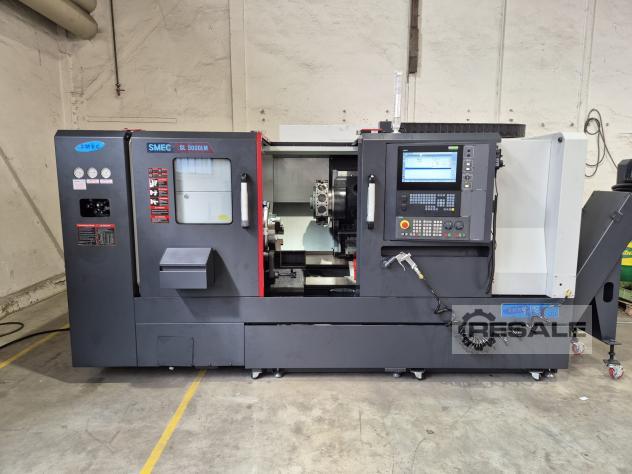

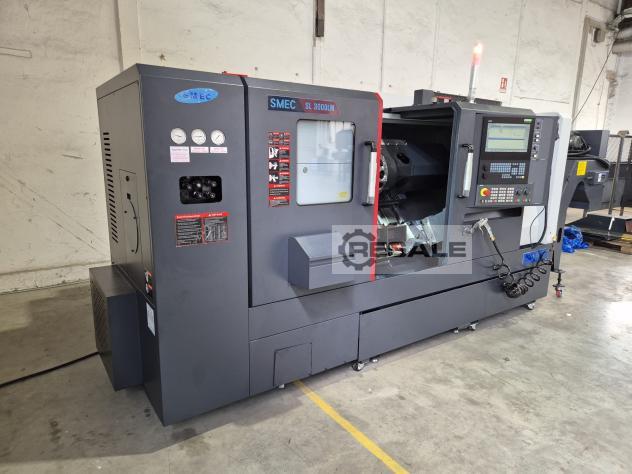

Tours CNC SMEC SL 3000 BLM

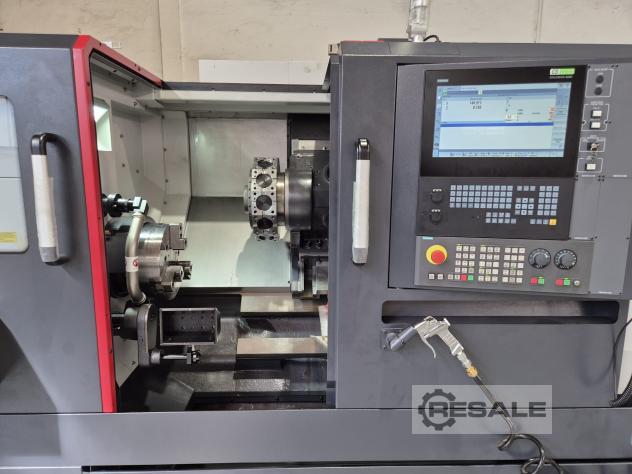

Control Siemens 828D - ShopTurn
Rotary diameter. [mm] 405
Turning length [mm] 956

Main spindle:

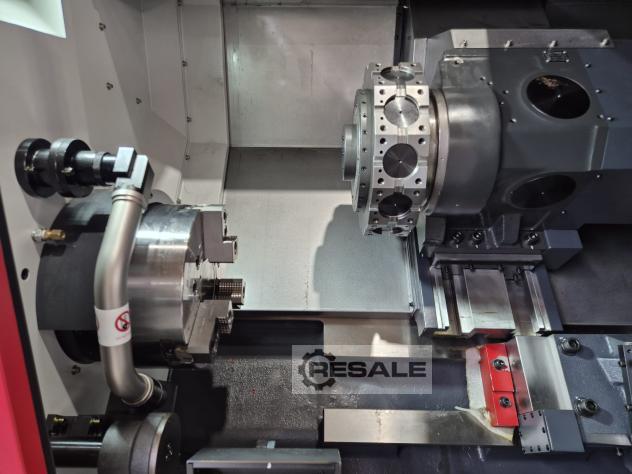

Lining SAMCHULLY HS-12 (12 inches)
Spindle speed (max.) 3,000 rpm
Spindle nose A2-8
Motor power (Cont./Max) 18.5 kW / 26 kW
Max. turning Ø x turning length 405 mm x 956 mm

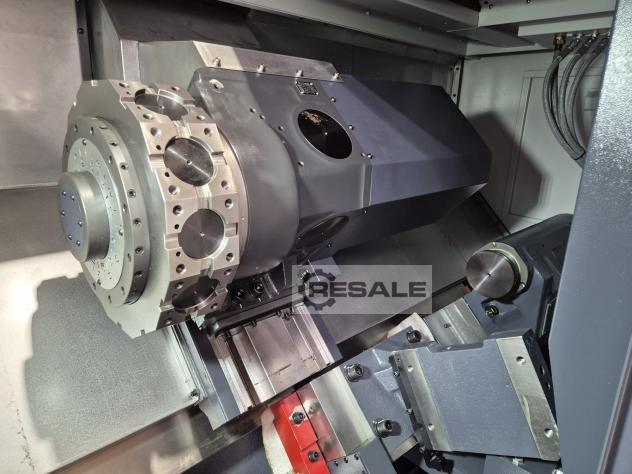

Tool carrier (X/Z):
Number of tool positions 12x BMT65
Max. milling Ø 433 mm
Travel (X/Z) 245 mm / 1,040 mm
Rapid traverse (X/Z) 24 m/min / 30 m/min

Tailstock:
Quill Ø 110 mm
Quill stroke 100 mm

Equipment/accessories:
Control SIEMENS 828D - ShopTurn
Bed construction 45° inclined bed (cast from one piece)
Additional equipment Tool Probe (Tool Setter, swivel)
Collision protection turret with Hirth serration
Weight 5,600 kg (according to configuration nameplate)
Chip Management Chip Conveyor
Electrical connection 380 V / 3PH. PE / 50/60 Hz / 42 kVA
seller offer No. resale 89-001496
