Testeur en circuit SPEA 3030C BU100
pièces électriques / pièces électriques

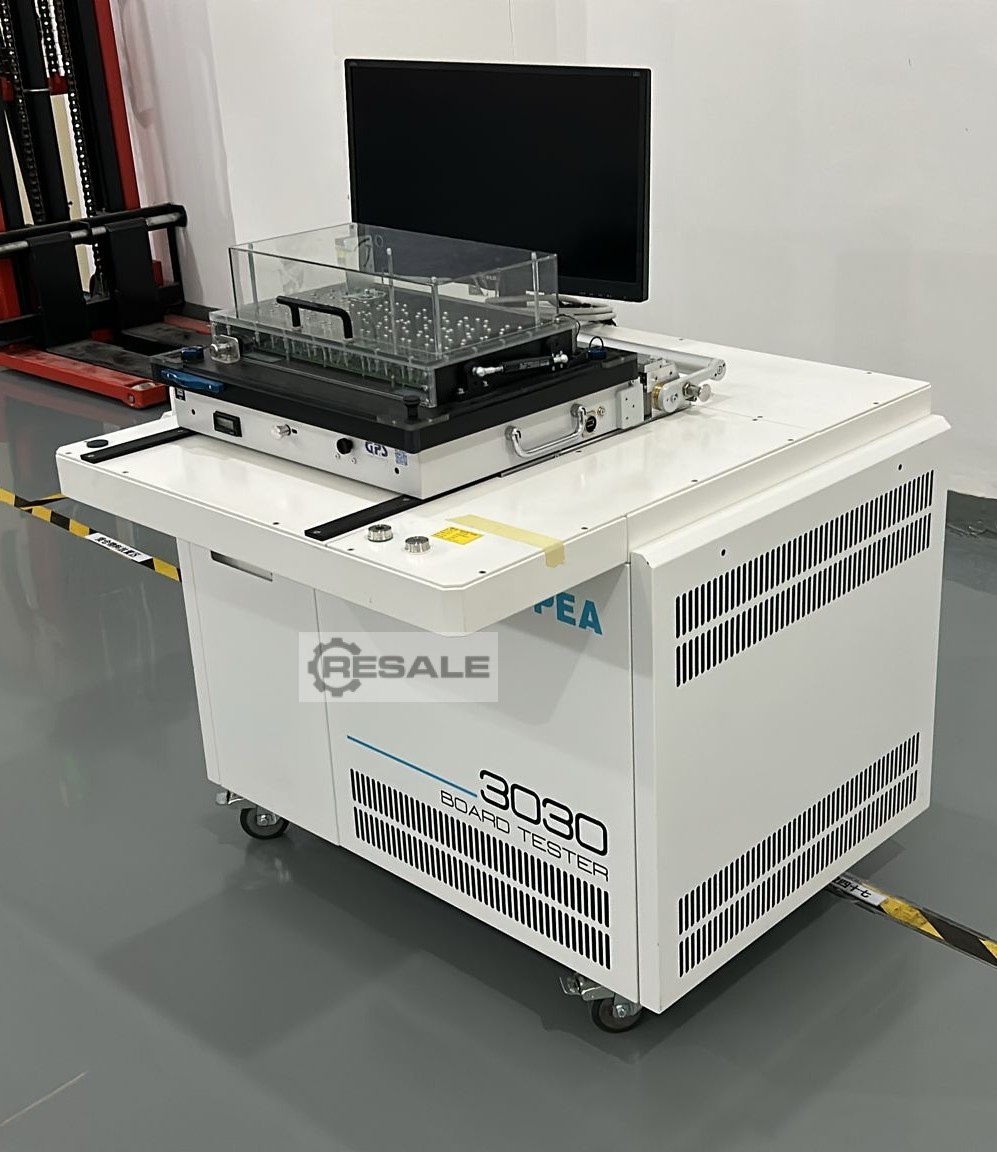

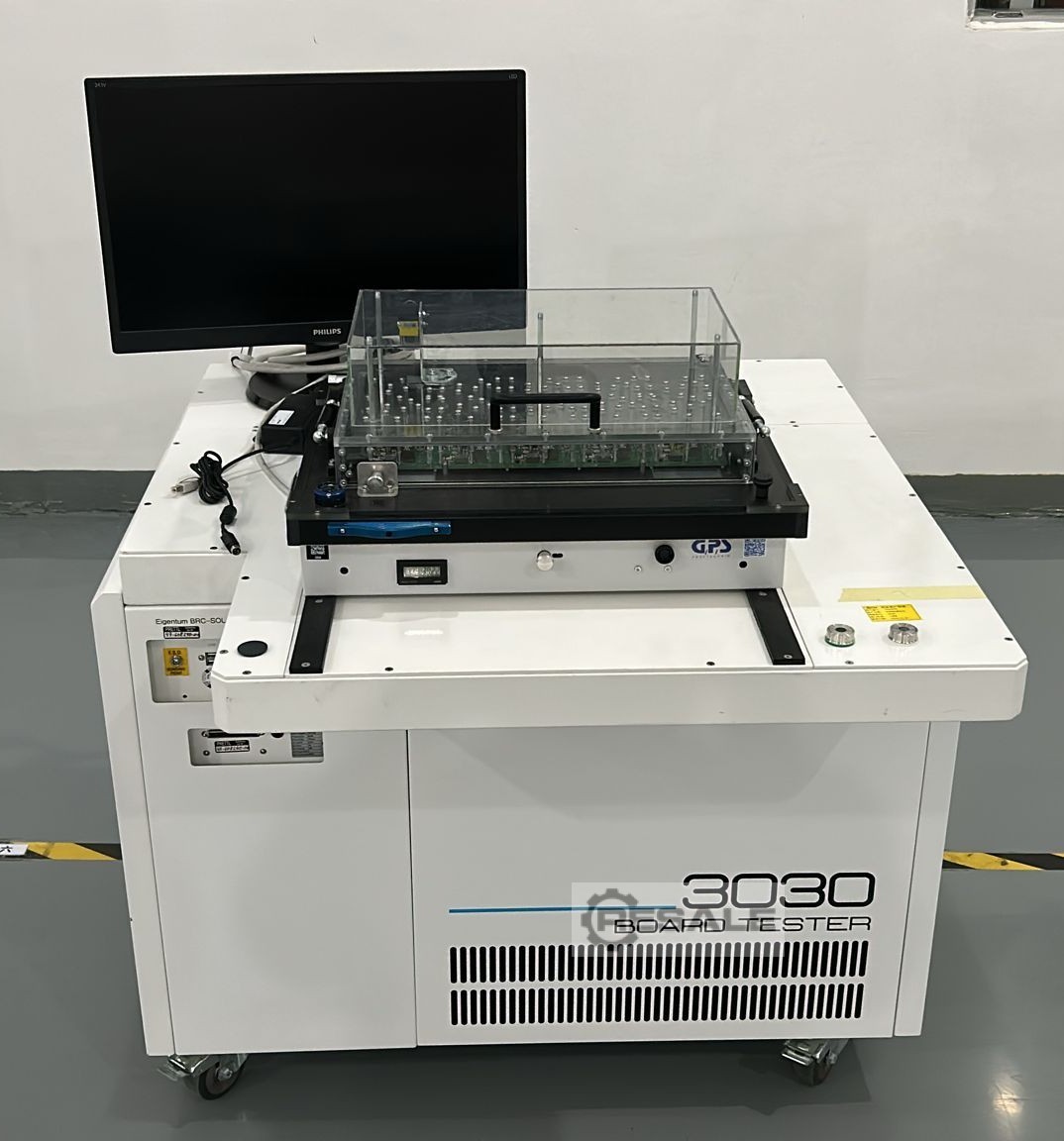

For sale is a high-precision in-circuit test system (ICT) from the market leader SPEA, model 3030C BU100 in the compact version. This machine was used in our production in China for specialized testing tasks. In order to guarantee you a smooth takeover, we will take care of the transport of the ...
Fabricant: SPEA
Modèle:3030C BU100
Type de machine: Testeur en circuit
Numéro de l'article: 169403422
Quantité: 1
Date: 27.04.2026
Année de fabrication: 2023
Emplacement:
Chine
Prix: 72,000 EUR
Machine en stock:Oui
For sale is a high-precision in-circuit test system (ICT) from the
market leader SPEA, model 3030C BU100 in the compact version. This
machine was used in our production in China for specialized testing
tasks. In order to guarantee you a smooth takeover, we will take care
of the transport of the machine to Germany for you if you make a
purchase.
The system is fully equipped, including digital pin electronics, high-precision stimuli and a powerful on-board programming (OBP) module.
Key Features & Technical Highlights:
System Configuration:
Model: SPEA 3030C BU100 Compact (Colour: RAL 9010 Pure White)
Footprint: Only 970 x 670 mm – ideal for installation close to the line.

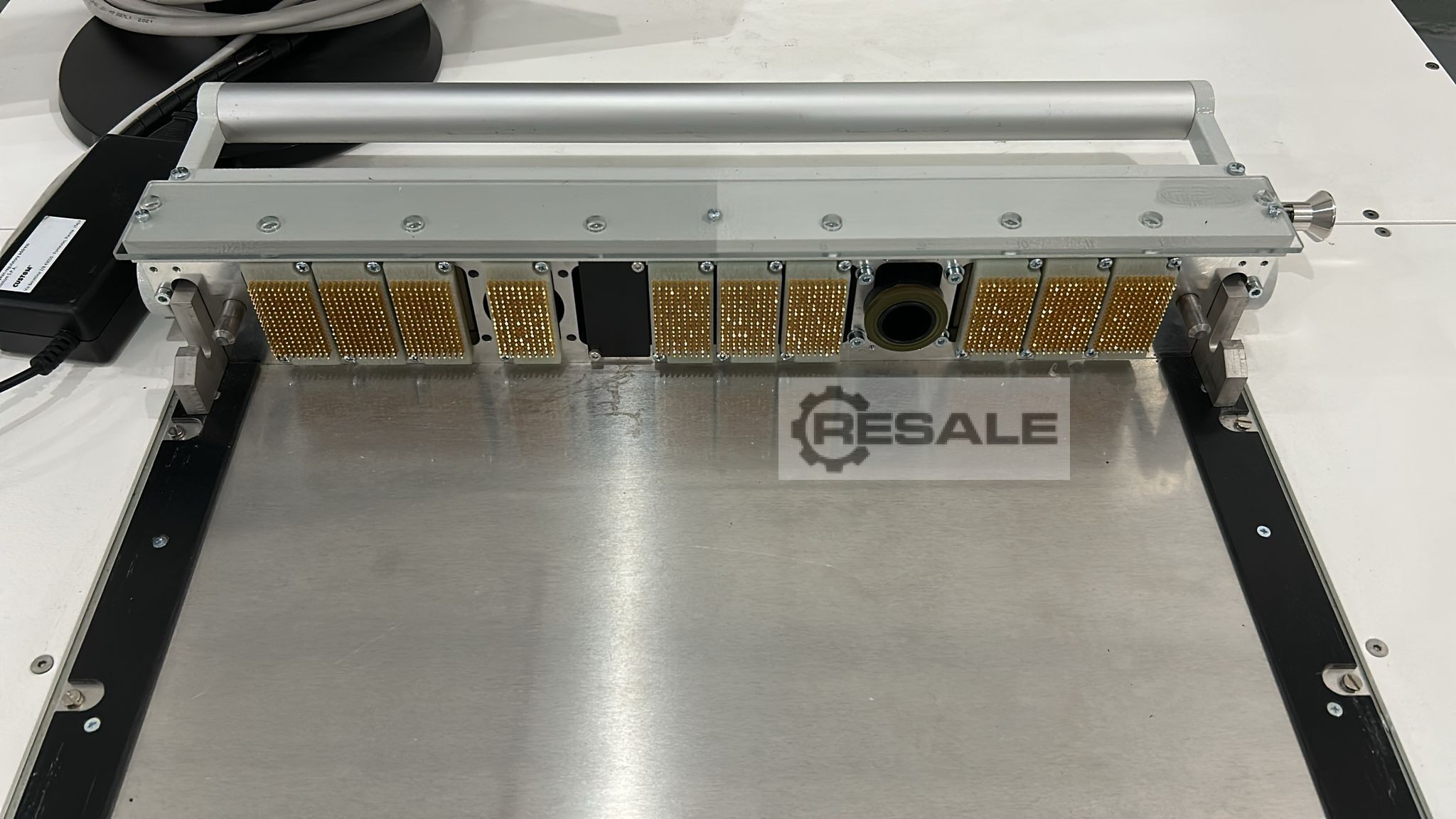

Interface: Pylon vacuum interface (max. 12 blocks), currently equipped with 10 pylon blocks.
Test Channels: Prepared for up to 1024 channels.
Powerful control computer:
Industrial PC with Windows 10 IoT Ent 2021 LTSC.
16 GB RAM, 2x 512 GB SSD (RAID options possible).
Incl. 22" TFT monitor, keyboard and mouse.
Measurement & Stimulus Units (YAICT 320 & YASAU 400):
Precision: 16-bit resolution for voltage and current measurements.
Dynamics: DVM measurement unit with timer/counter, digitizer (256K memory) and waveform generator.
High-power stimuli: Includes high-voltage (±100V/1A) and high-current (±40V/3A) modules.
DSP extension: 6x DMU 100 units for high-precision impedance measurements (L+C).
Active Guarding: For precise isolation of complex circuit parts.
Digital Pin Electronics & Programming:
SPDI 500 Subsystem: Equipped with 640 digital test channels.
Ultra Fast OBP 500: module for on-board programming with 64 channels.
Parallel Programming: Programming of up to 4 different modules at the same time possible.
If you are interested in buying or have any questions about the advertisement, please contact us.
The system is fully equipped, including digital pin electronics, high-precision stimuli and a powerful on-board programming (OBP) module.
Key Features & Technical Highlights:
System Configuration:
Model: SPEA 3030C BU100 Compact (Colour: RAL 9010 Pure White)
Footprint: Only 970 x 670 mm – ideal for installation close to the line.
Interface: Pylon vacuum interface (max. 12 blocks), currently equipped with 10 pylon blocks.
Test Channels: Prepared for up to 1024 channels.
Powerful control computer:
Industrial PC with Windows 10 IoT Ent 2021 LTSC.
16 GB RAM, 2x 512 GB SSD (RAID options possible).
Incl. 22" TFT monitor, keyboard and mouse.
Measurement & Stimulus Units (YAICT 320 & YASAU 400):
Precision: 16-bit resolution for voltage and current measurements.
Dynamics: DVM measurement unit with timer/counter, digitizer (256K memory) and waveform generator.
High-power stimuli: Includes high-voltage (±100V/1A) and high-current (±40V/3A) modules.
DSP extension: 6x DMU 100 units for high-precision impedance measurements (L+C).
Active Guarding: For precise isolation of complex circuit parts.
Digital Pin Electronics & Programming:
SPDI 500 Subsystem: Equipped with 640 digital test channels.
Ultra Fast OBP 500: module for on-board programming with 64 channels.
Parallel Programming: Programming of up to 4 different modules at the same time possible.
If you are interested in buying or have any questions about the advertisement, please contact us.
