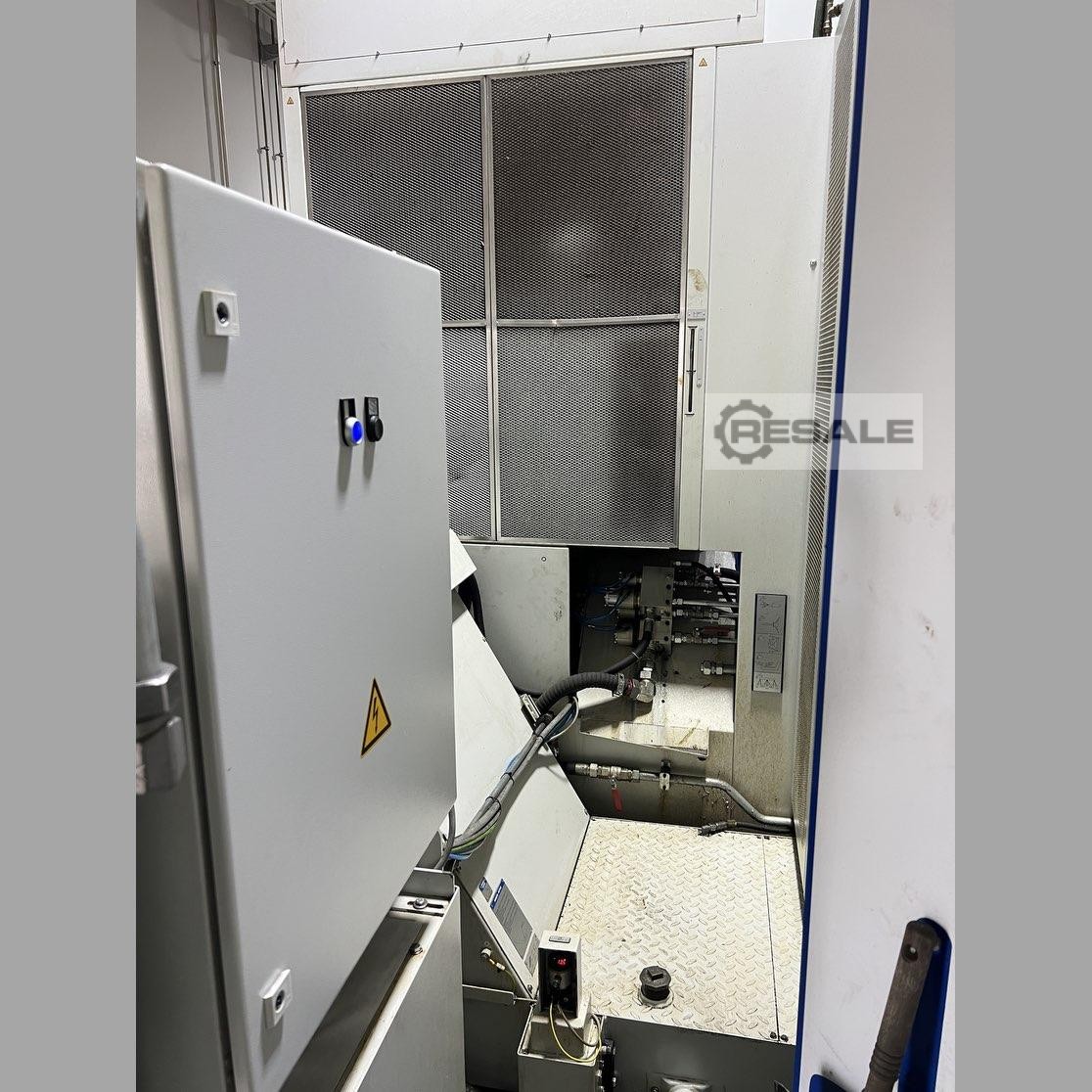

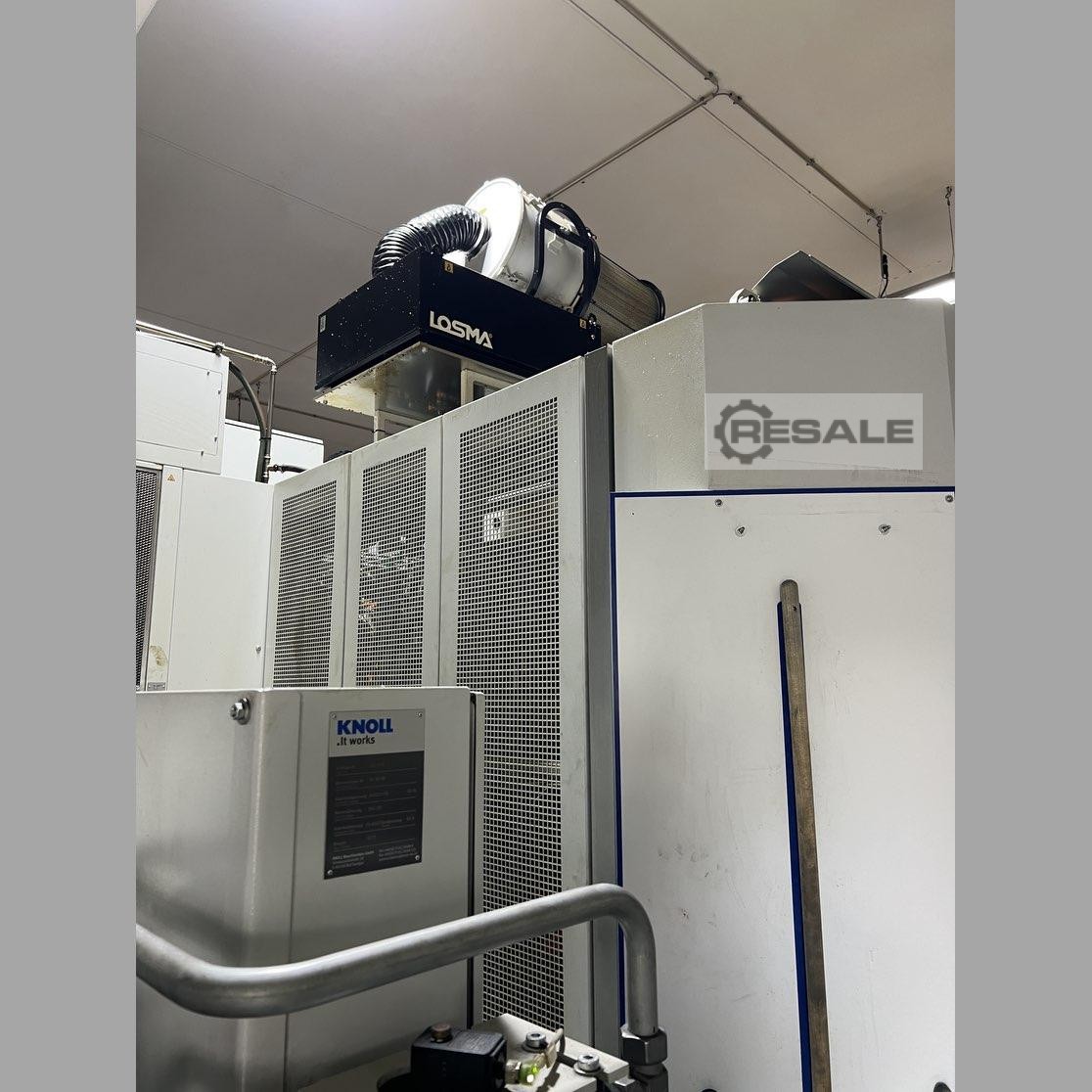

Centres horizontaux de traitement CNC SW BA W04-22

SW Swabian Machine Tools
BA W04-22
Double-spindle 5-axis machining center

GENERAL

Project No.: 906018
Quantity: 1 pcs.
Manufacturer: SW Schwäbische Werkzeugmaschinen
Type: BA W04-22
Control: Siemens 840 D solutionline
Year of Make: 2017
Condition: Used machine
Approx. (hrs): 40252
Spindle Approx (Hrs): 18554
Layers Machine Approx (Hrs): 2-3 Layers

DESCRIPTION

MILLING

Travel in X 400 mm
Travel in Y 500 (775) mm
Travel in Z 425 mm
Max. rapid traverse speed in X/Y/Z 100/100/100 m/min
Max. acceleration in X/Y/Z 13/12/23 m/s2
Feed force in X/Y/Z 10000/10000/2x5000 N
Direct displacement measurement system X/Y/Z/A(U)/C1(C2)/W1(W2)
Linear Actuator
Two independent Z-axes
Tool holder HSK-A 63
Max. speed milling spindle 17500 1/min
Max. power at ED 10-40/100% 35/26 kW
Max. torque at ED 10-40/100% 80/60 Nm
Spindle diameter in the front bearing 80 mm
2 pcs horizontally arranged milling spindle
Spindle spacing 400 mm
Pneumatic tool system control
Torque support for multi-spindle drill heads
Chain Tool Magazine 2x36 Stations
Max. tool diameter 80 mm
Max. tool diameter with free neighboring spaces 160 mm
Max. tool length 300 mm
Max. tool weight 10 kg
Chip to chip time 2.25 s
Swivel pallet changer 2-fold
Max. workpiece weight per pallet 450 kg
2 pcs. swivel unit NC-controlled
4 pcs NC-controlled rotary table (2x 5th axis per side)
Workpiece swivel range diameter 550 mm
2 set of tension bridge supports
Clamping hydraulics
4 pcs Additional clamping circuit
Pneumatic workpiece system control

OTHER EQUIPMENT

IR Workpiece Probes
Inductive tool breakage detection
Splash protection cladding with fully encapsulated working area
Automatic loading door
Lighting in the work area
Scraper Chip Conveyor
Machine is/was operated with emulsion
Internal coolant supply

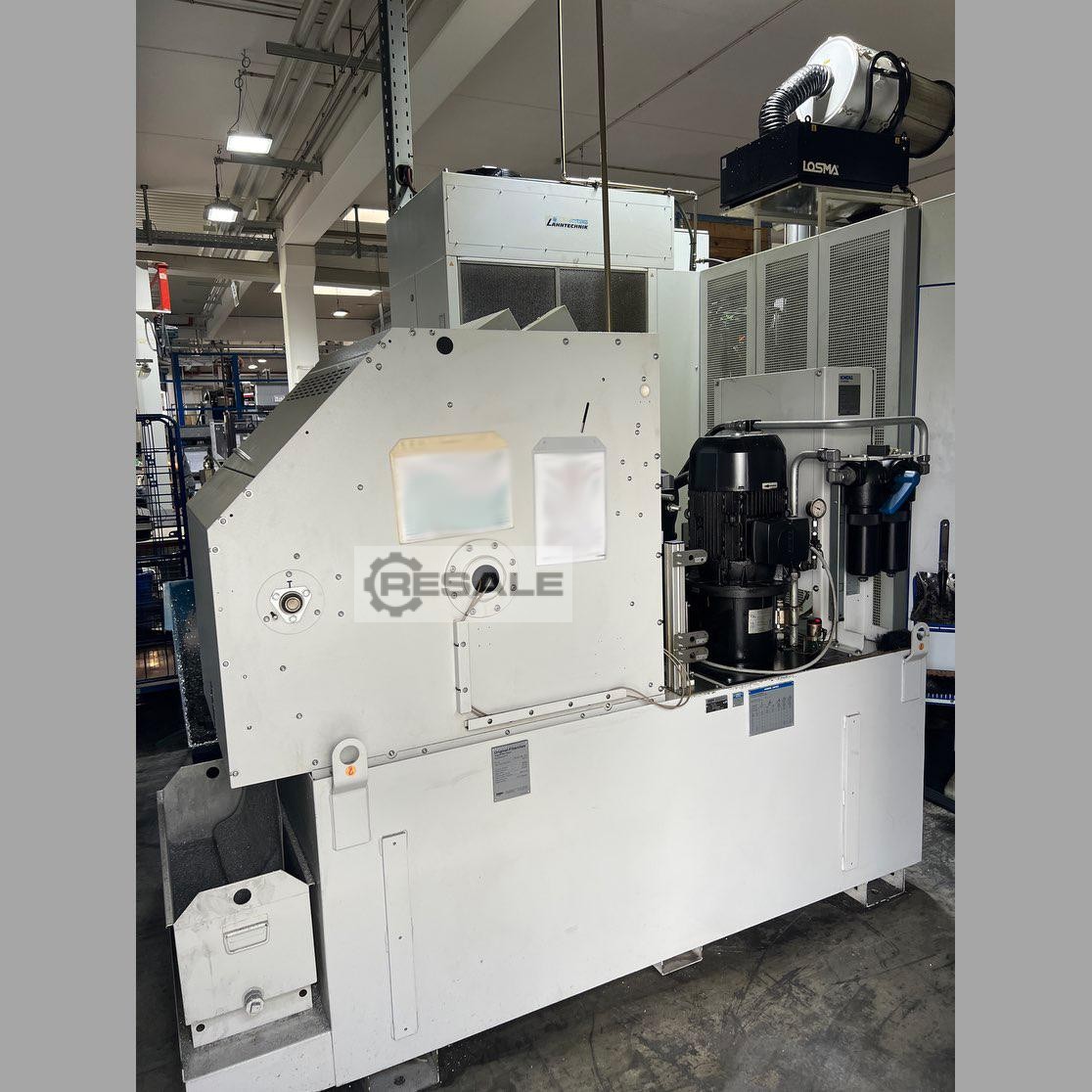

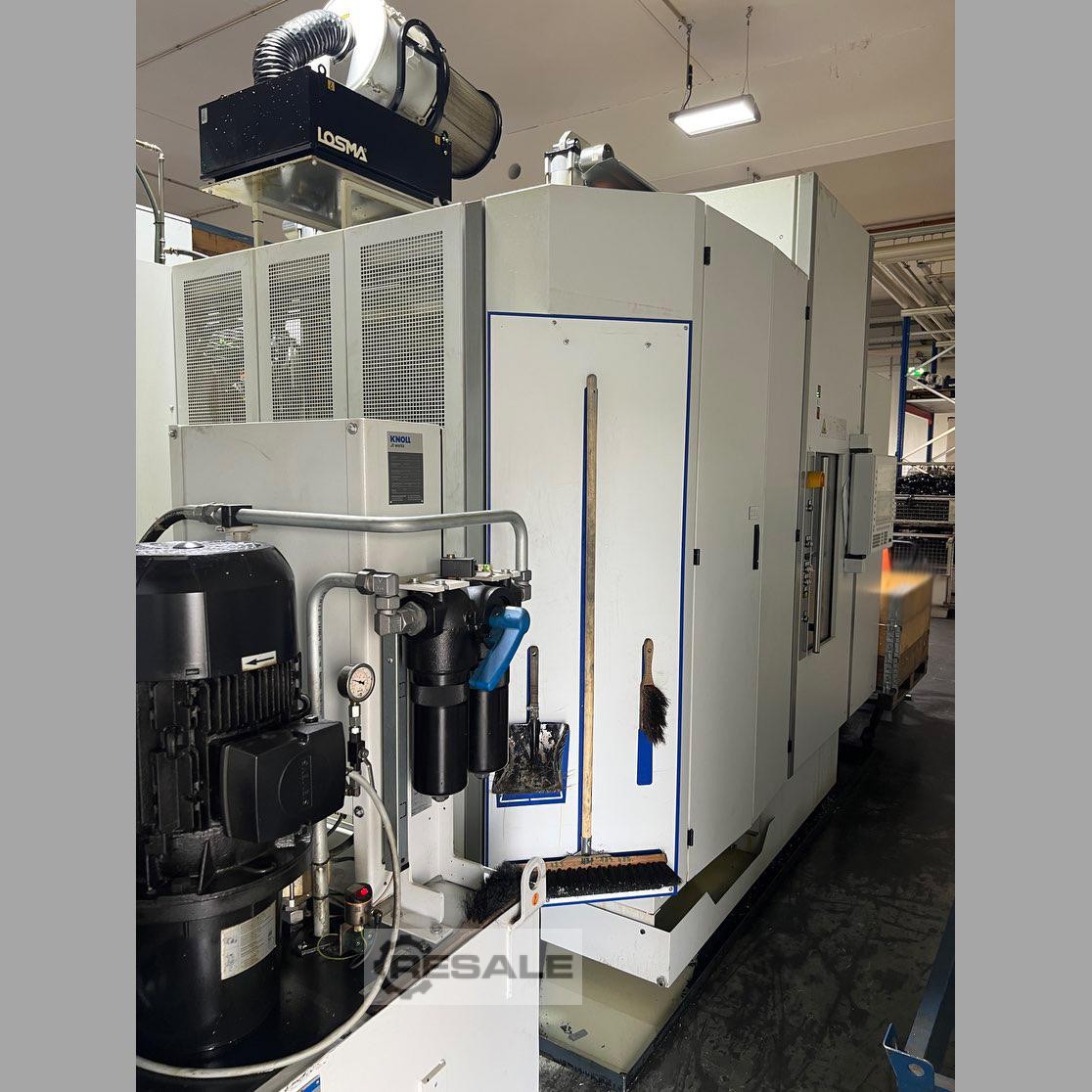

Coolant device with paper belt filter
Coolant temperature control
High pressure pump 70 bar
Modem for remote diagnosis and teleservice
Threading without compensating chuck
Additional control panel for tool management
Machine condition light

GENERAL TECHNICAL DATA

Air connection 6 bar
Operating voltage 3x400/50 V/Hz
Total power requirement 133 kVA
Transport dimensions of the machine (LxWxH) approx. 3230x5100x3050 mm
Area requirement of the entire system LxWxH) approx. 4350x7000x3100 mm
Machine weight approx. 14500 kg

NOTE

We have described the named product with the greatest possible care. However, since this does not come from our production, the data mentioned and the equipment details may differ. We therefore ask you to consider the description as non-binding and to check the data in detail during an inspection.
