Ponceuses pour rebords TONELLI OTB.15
machines à bois / rectifieuses bois / Ponceuses pour rebords
AUTOMATIC EDGE SANDING machine with 3 units , model TONELLI OTB.15 ( made in ITALY ) second hand machine working condition: Excellent, like new CE regulation: YES voltage: 380/50 for sanding panel edges, on raw and painted edges, flat and shaped, solid, veneered, profiles, frames and various ...
Fabricant: TONELLI
Modèle:OTB.15
Type de machine: Ponceuses pour rebords
Numéro de l'article: 169409372
Quantité: 1
Date: 28.04.2026
Année de fabrication:
Emplacement:
Italie
22066 MARIANO COMENSE
Prix:
Machine en stock:Oui

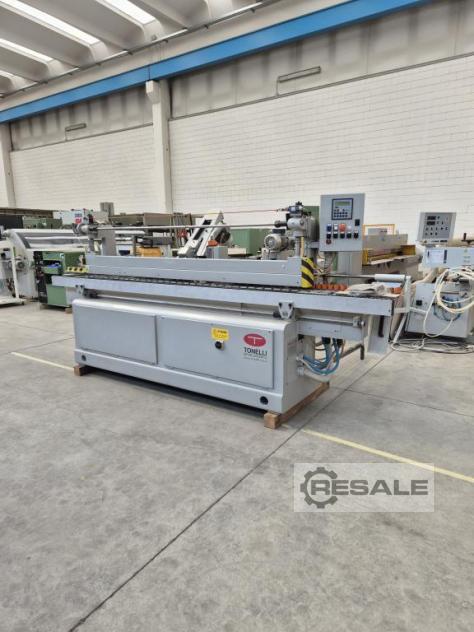

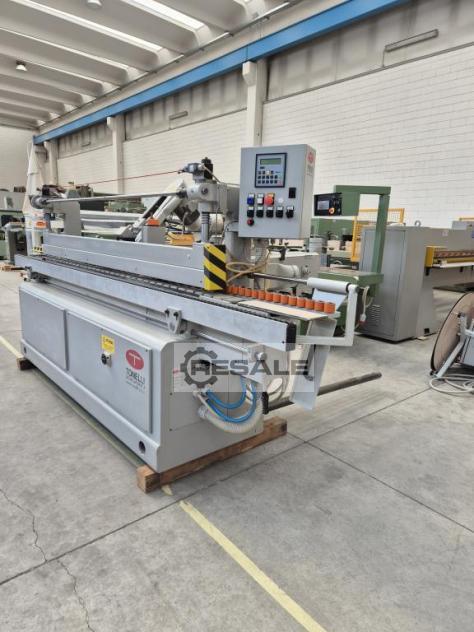

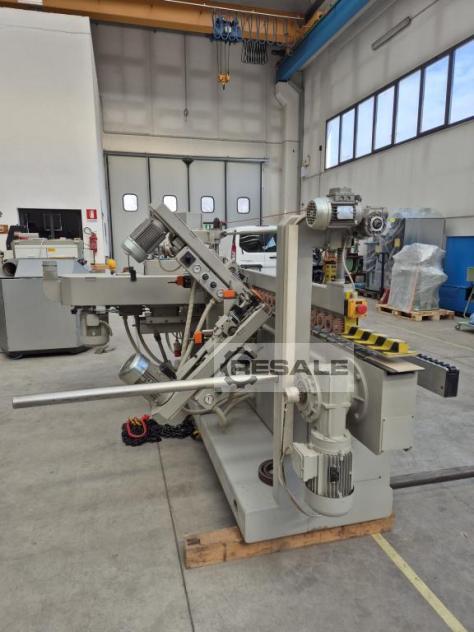

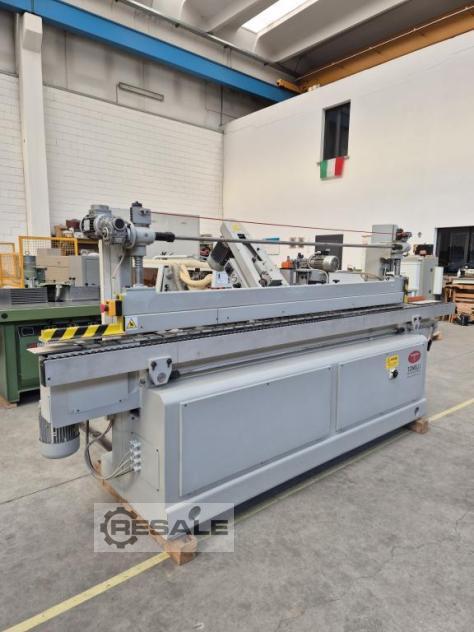

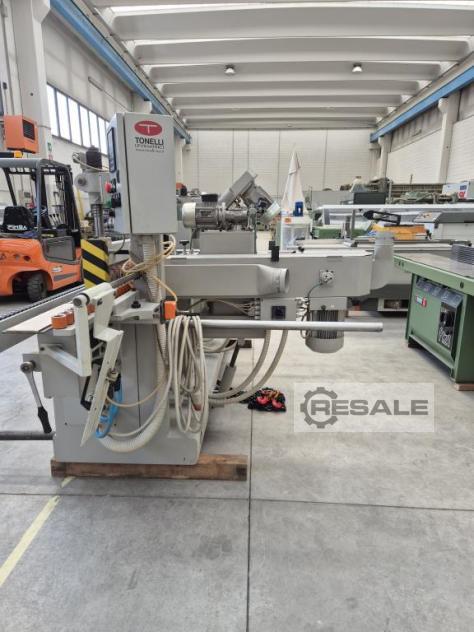

AUTOMATIC EDGE SANDING machine with 3 units , model TONELLI OTB.15 (
made in ITALY )
second hand machine
working condition: Excellent, like new
CE regulation: YES
voltage: 380/50
for sanding panel edges, on raw and painted edges, flat and shaped, solid, veneered, profiles, frames and various
technical data:
electric working height adjustment
minimum working height: mm.3
maximum working height: mm.100
minimum working width: mm.60

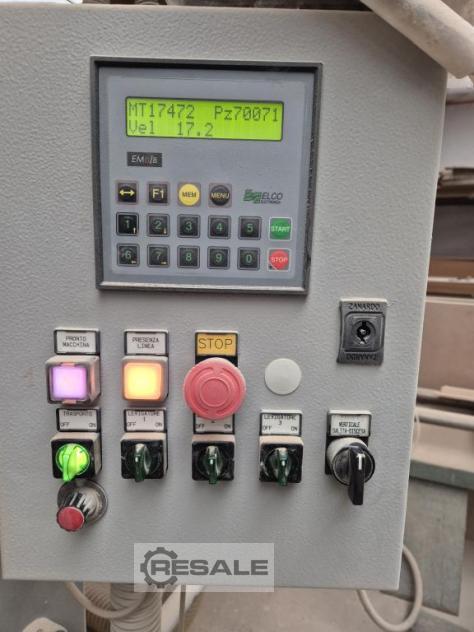

track feed speed adjustable from the control panel: from 5 m/min to 30 m/min
track feed with rubber pads and adjustable rubber pressure wheels
feed track motor power: 2 HP
machine composed of 3 independent units:

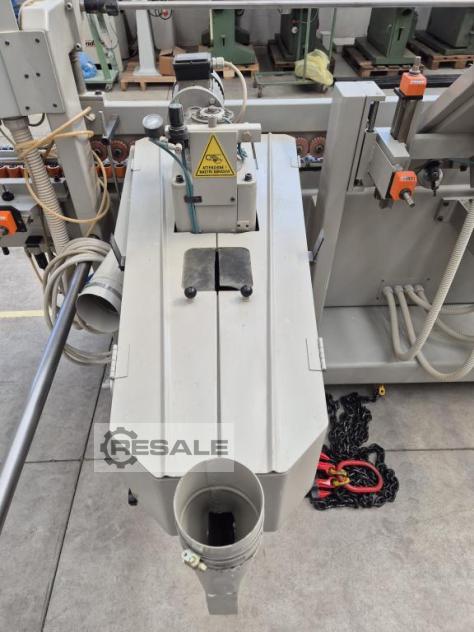

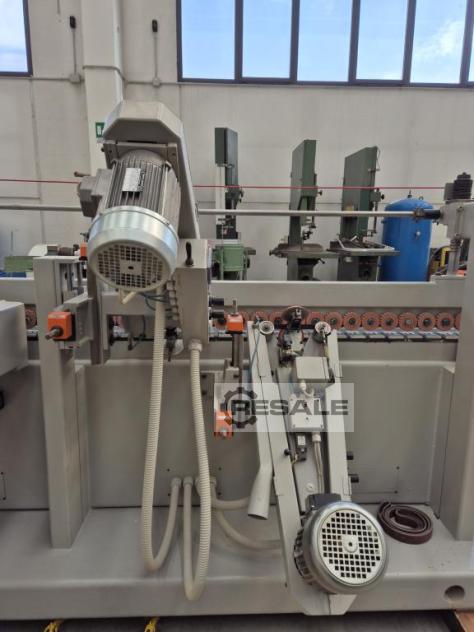

1° unit : tilting oscillating sanding unit - pneumatic pad - motor 2 speeds Hp 1,9 / 3,3 - automatic group entry - belt cleaning blower
2° unit : 45° oscillating sanding unit - pneumatic pad - motor 2 speeds Hp 0,6 / 1,2 - automatic group entry - belt cleaning blower
3° unit : 45° oscillating sanding unit - pneumatic pad - motor 2 speeds Hp 0,6 / 1,2 - automatic group entry - belt cleaning blower
removable support for panel support
installed power: 10 kW
overall dimensions: 3600 x 1600 x 1600 mm
weight: 2000 kg
second hand machine
working condition: Excellent, like new
CE regulation: YES
voltage: 380/50
for sanding panel edges, on raw and painted edges, flat and shaped, solid, veneered, profiles, frames and various
technical data:
electric working height adjustment
minimum working height: mm.3
maximum working height: mm.100
minimum working width: mm.60
track feed speed adjustable from the control panel: from 5 m/min to 30 m/min
track feed with rubber pads and adjustable rubber pressure wheels
feed track motor power: 2 HP
machine composed of 3 independent units:
1° unit : tilting oscillating sanding unit - pneumatic pad - motor 2 speeds Hp 1,9 / 3,3 - automatic group entry - belt cleaning blower
2° unit : 45° oscillating sanding unit - pneumatic pad - motor 2 speeds Hp 0,6 / 1,2 - automatic group entry - belt cleaning blower
3° unit : 45° oscillating sanding unit - pneumatic pad - motor 2 speeds Hp 0,6 / 1,2 - automatic group entry - belt cleaning blower
removable support for panel support
installed power: 10 kW
overall dimensions: 3600 x 1600 x 1600 mm
weight: 2000 kg
