tours machines d'occasion à vendre (3,039)

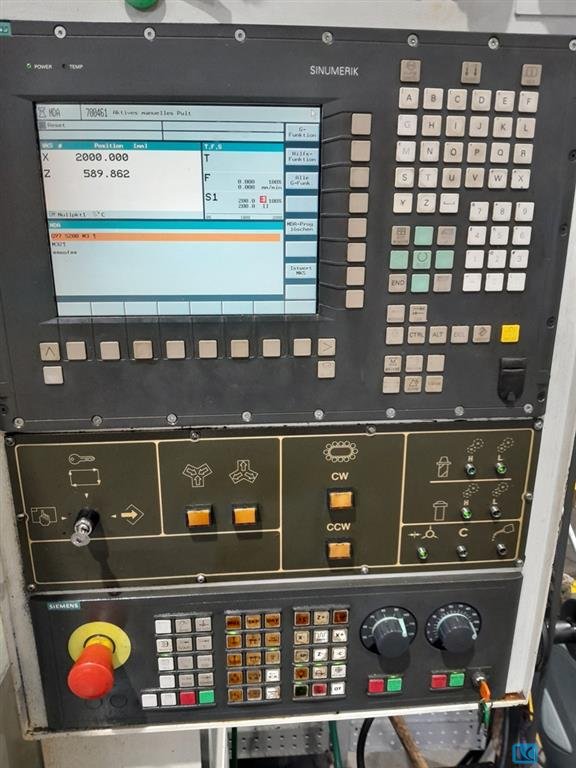

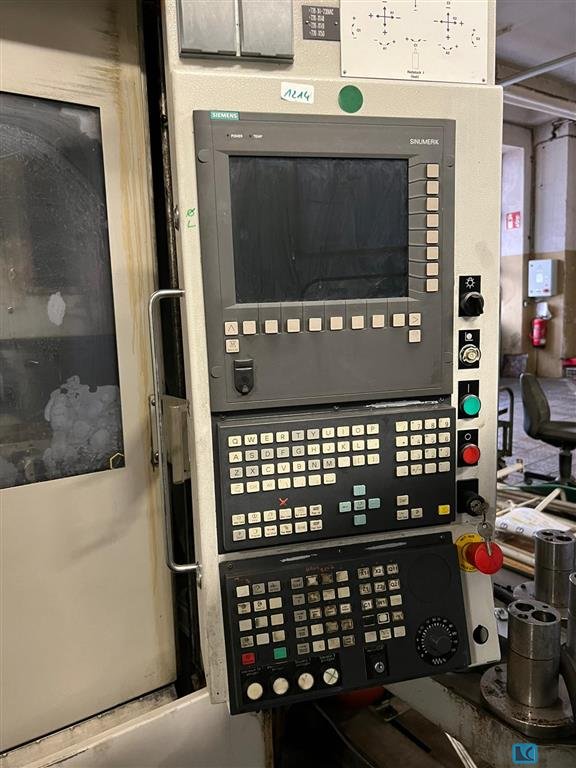

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2016Machine was only used for reworking, i.e. only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading beltCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. transmit functionAdjusting microscope 16x magnificationCoolant supply through the spindle clamping cylinder,Sealing air,Speed increase of the motor spindle to 8. 0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant device KnollMBE interfaceSmall fire extinguishing system Kraft & BauerN ...

number of spindles:8 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AG20Yob: 2002eight-spindle automatic lathe8 main spindlesfor bars up to D=20mmcontrol: Siemens 840D1x polygonal turning/thread milling device (new 2011)1x polygonal turning/thread milling device for long turning (new 2011)1x thread cutting/quick drilling spindle (new 2011)1x pick-up device incl. various pick-up collets 4 cnc-cross slidesDouble cross slide in position 7Loading magazine PRA 52/P type 33 (bar length 3m), year 2004High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004Tool monitoring BrankampAir conditioning unit Rittal in the front switch cabinetincl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slidesThe machine has been run with oil and has processed brassPlease, contact us for getting ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SFH130Yob: 1995six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCDnt driveloading and disloading in position 6additional cooling pump with magnetic spark plug filterPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SG18Yob: 1999six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCloading and disloading in position 6spindle brakePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF20 S DntYob: 1999Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=20mmSpindle drum hirth coupled,CNC cross slide in positions 4,CNC cross slide in positions 5,pick up in position 6, sorting chute, 1x independent feed,thread cutting couplings,workpiece belt,Coolant tank with hinged belt chip conveyor Ruez,Oil/steel operation,PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611,The scope of delivery regarding the tooling equipment could be different like pictures.Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2003Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=36mm!Spindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the images;various collets are included in delivery up to D36mmPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PCArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchutteType: S32PCYob: 1998One machine is operational; the other two can be used for spare partsIncludes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader)Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader)Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine)tooling included in delivery may differ from the picturesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:36 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: A36PCYob: 2005Loading magazine by Pietro CucchiKnoll unit7 radial cross-type carriages2 additional speed motors in 4th and 5th positions2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle)1 polygon cutter1 motorized front spindle1 radial motorized in position IV for cross-type carriage1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage)1 straight head for motorized position IV1 90-degree tilted head for motorized position IV1 tilt-adjustable head for motorized position IVPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

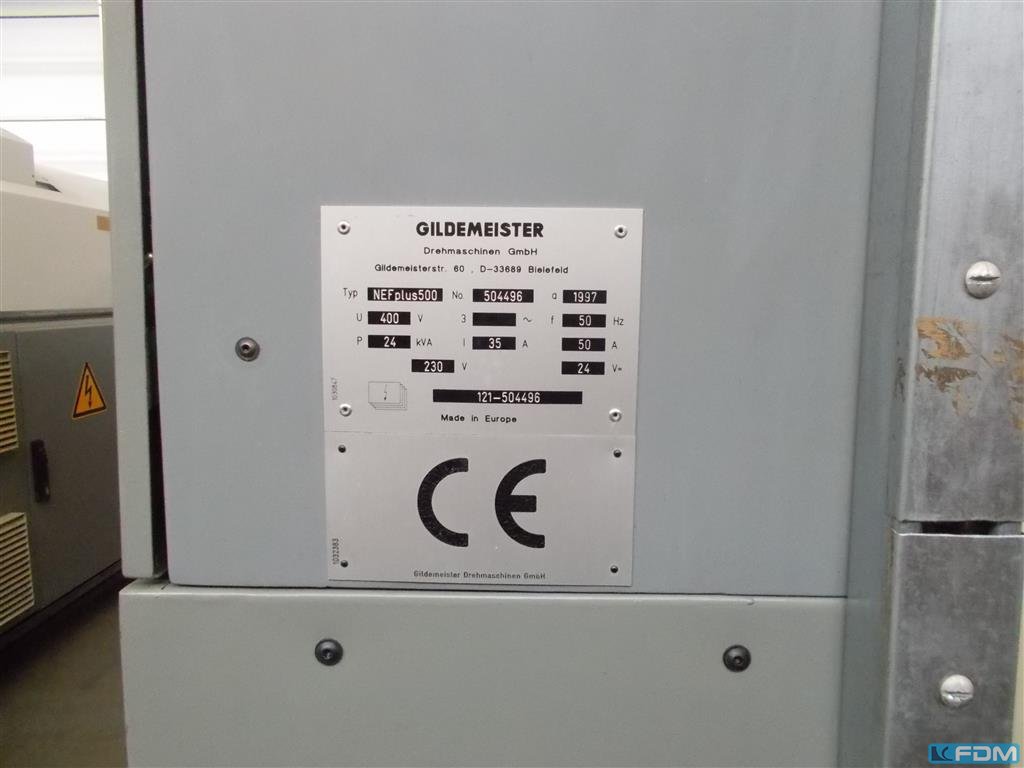

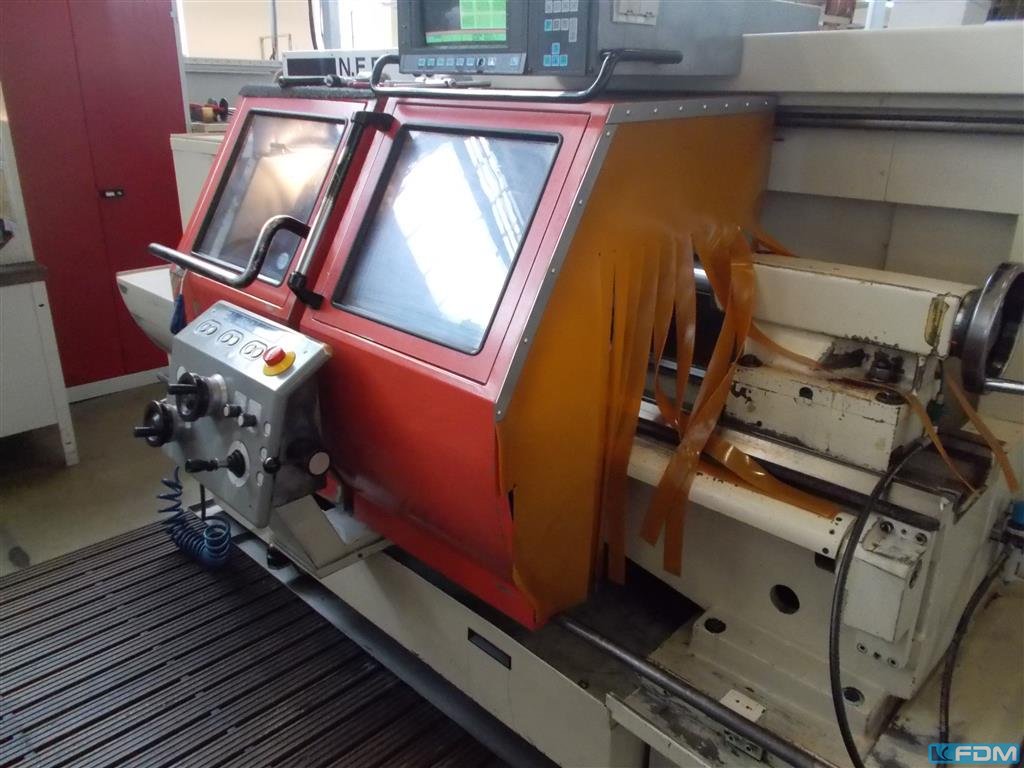

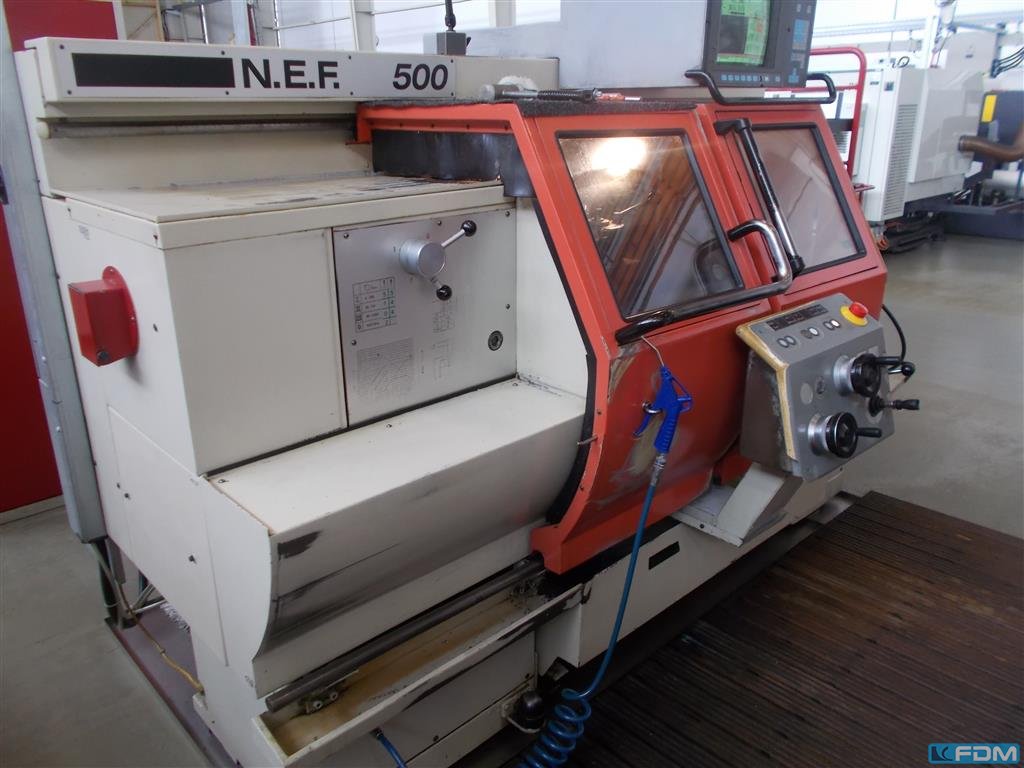

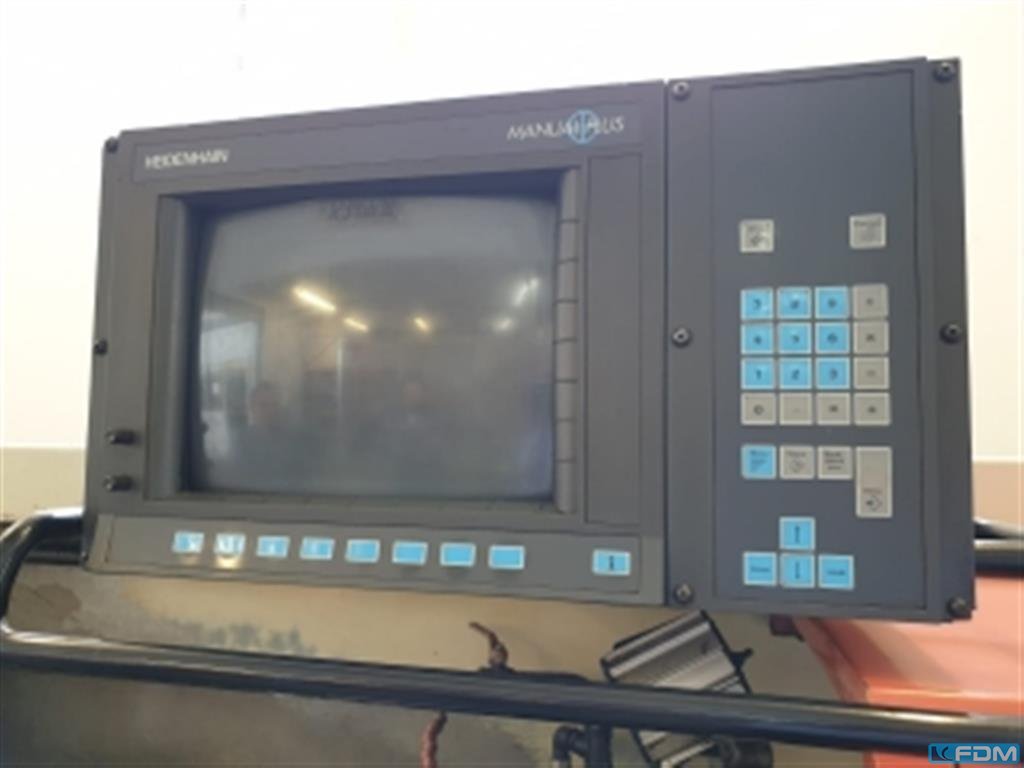

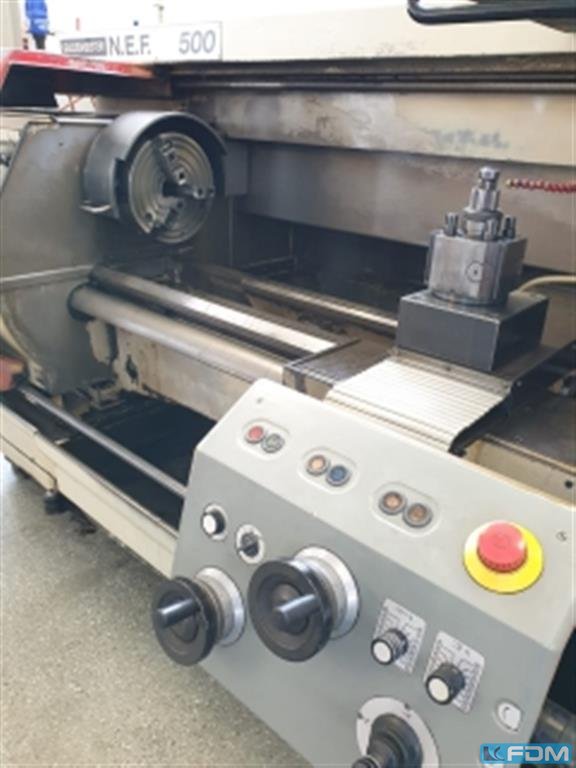

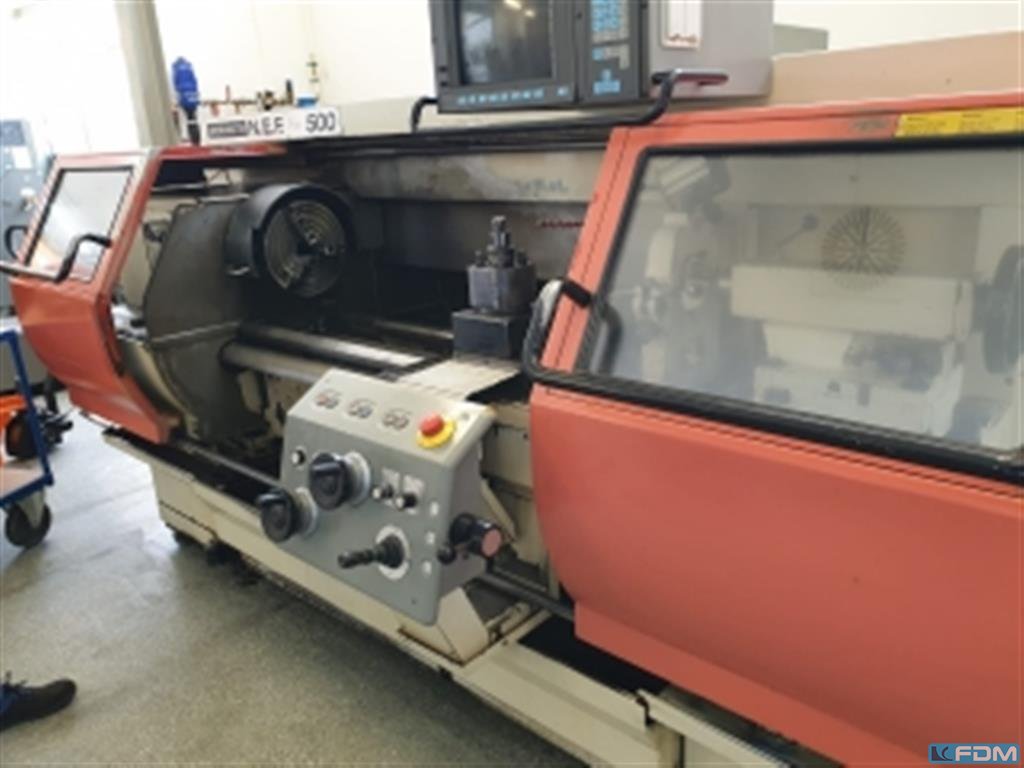

turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5 Documents:vorhanden

turning length:800 mmtotal power requirement:380 Vweight of the machine ca.:1400 kgdimensions of the machine ca.:2200 x 1200 x 1300 mcentre height:160 mmchucking diameter:150 mm

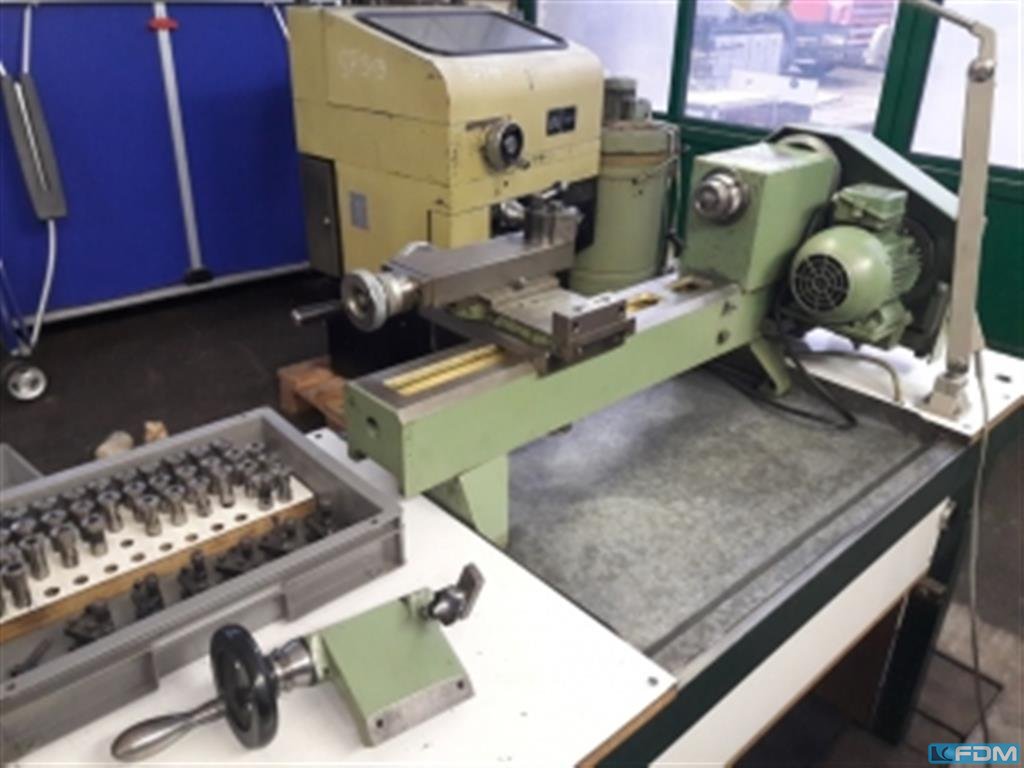

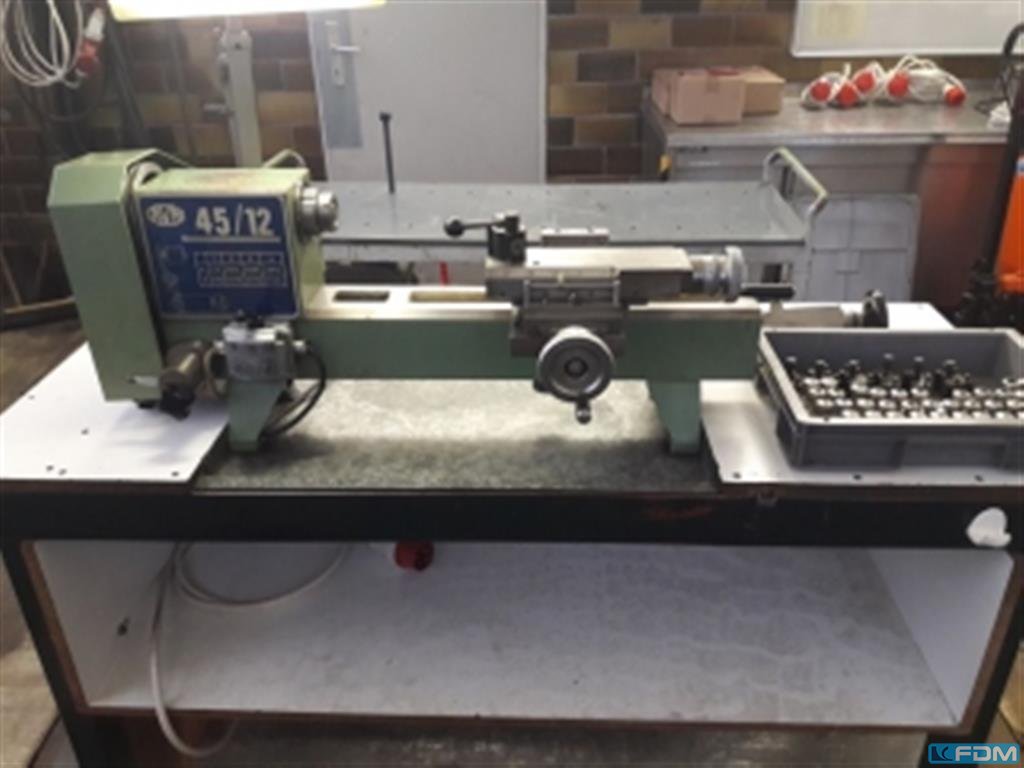

turning diameter over bed:240 mmturning length:450 mmtotal power requirement:0,5 kWweight of the machine ca.:120 kgdimensions of the machine ca.:1500 x 600 x 1200 mmcentre height:120 mmspindle bore:21 mmrevolutions per minute: 75 - 2980 U/min

turning diameter:200 mmswing diameter:260 mmturning height:200 mmTool table:1054 x 400 mmDimensions (L/W/H):2200 x 2300 x 2300 mmweight:3300 kgslide travel radial ( X-axis ):520 mmslide travel axial ( Z-axis ):200 mmno pallet circulating belt, no C-axis, no driven tools

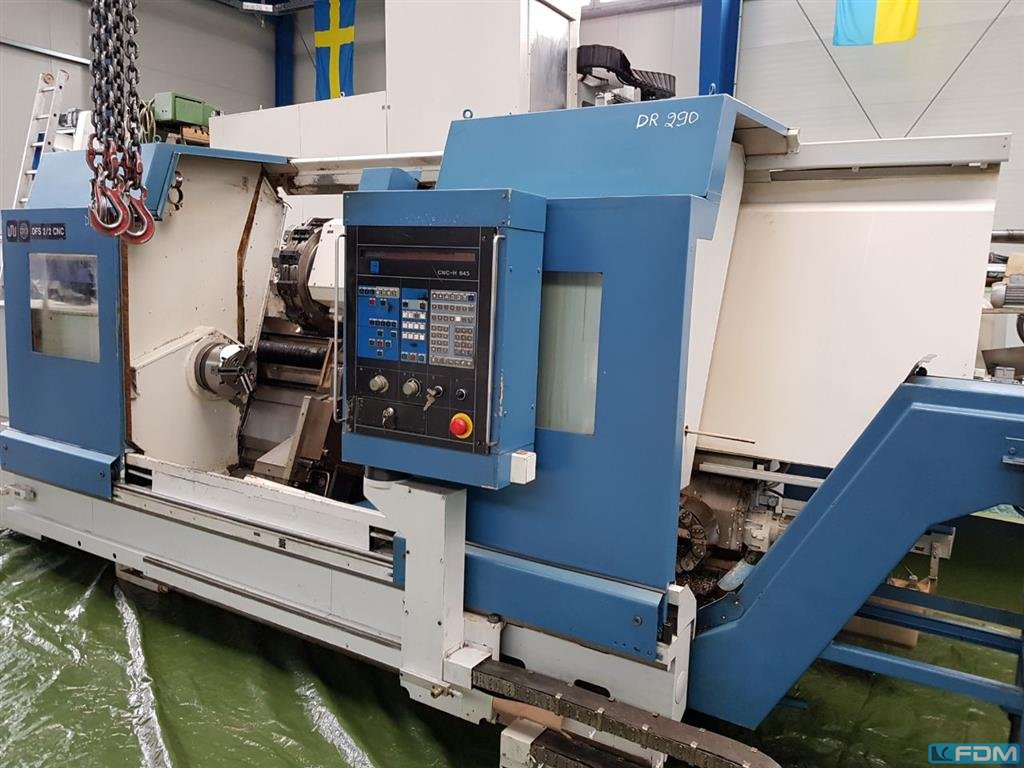

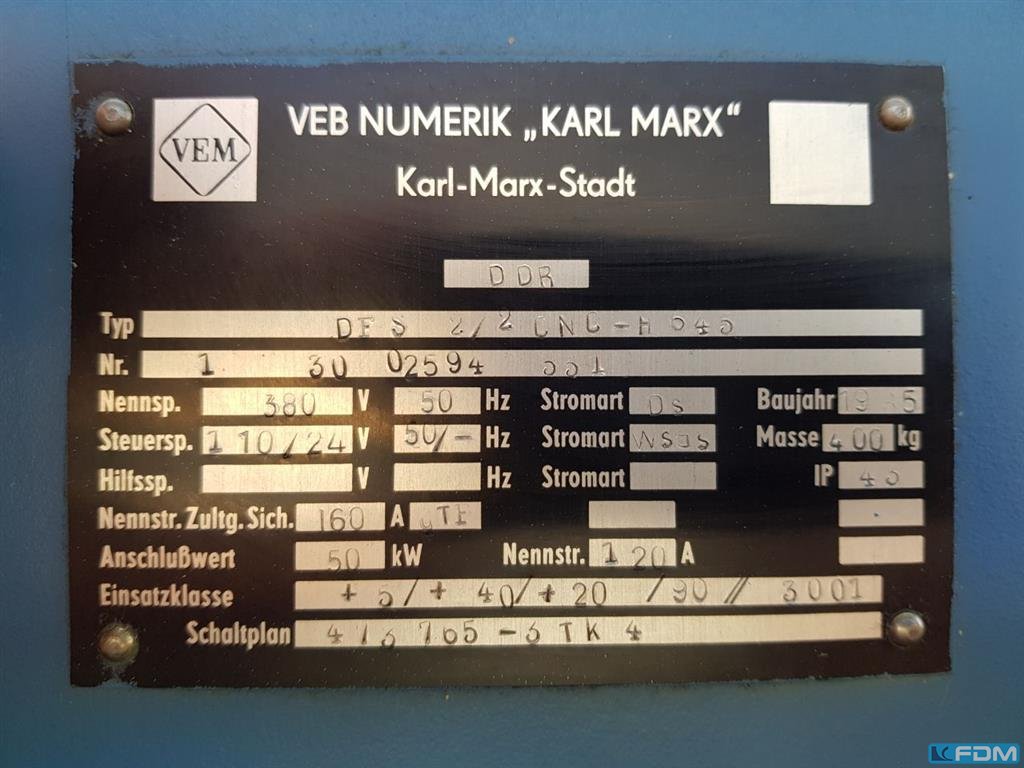

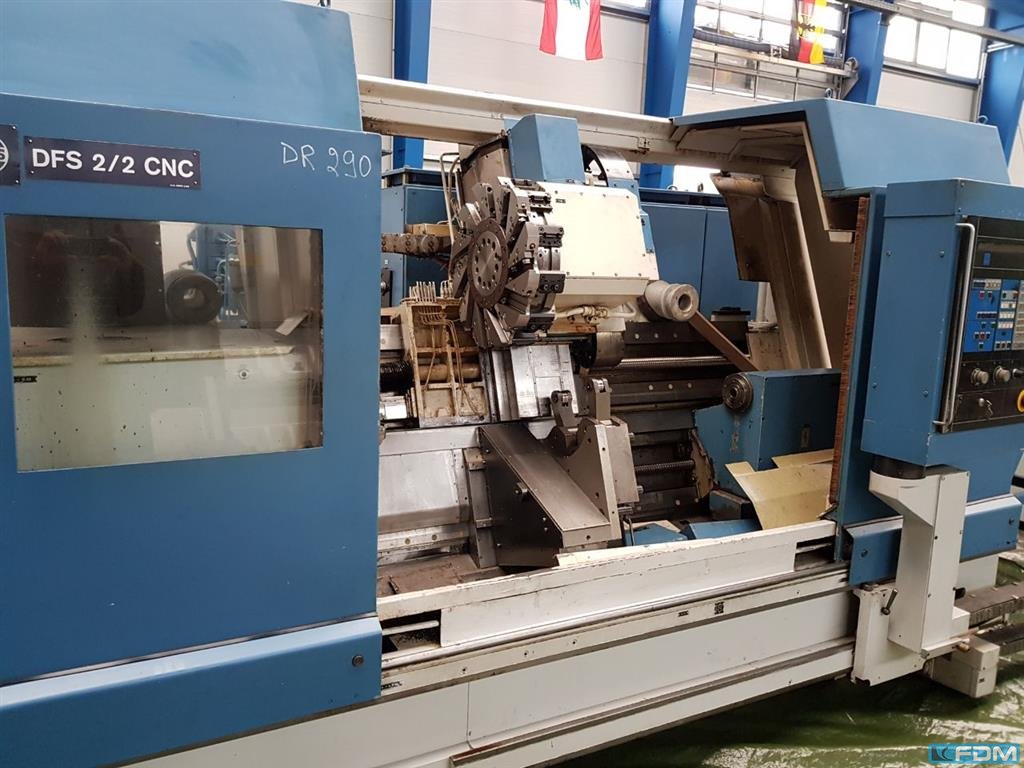

turning diameter:480 mmturning length:1250 mmcontrol:H 645 weight of the machine ca.:8 tdimensions of the machine ca.:5 x 2 x 2 mcentre distance:1580 mmswing over bed:495 mmswing diameter:üb.Querschlitten ca.350 mmworking area:1600 mmcontrol:H645 connected load:50 kW

control: Numeriksteuerung CNC 700 K total power requirement:28 KVAweight of the machine ca.:7,8 tdimensions of the machine ca.:6610 x 2280 x 2235 mmwork height max.:1060 mmgreates pass round over bed:305 mmspindle bore:82 mmDocuments:vorhanden

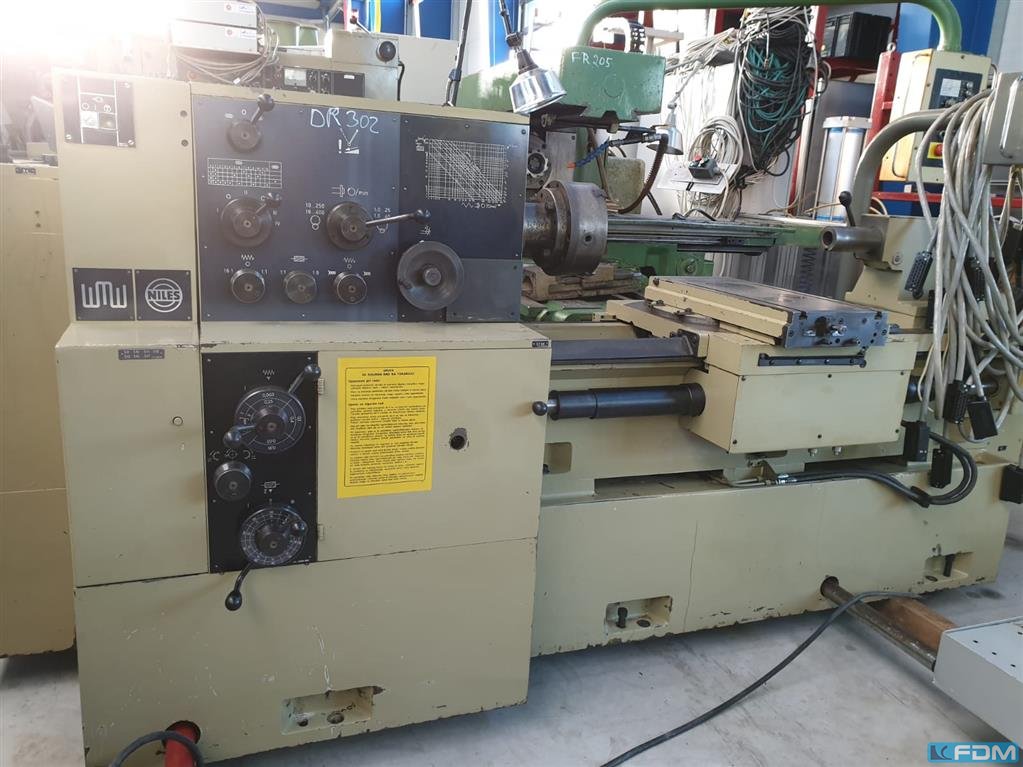

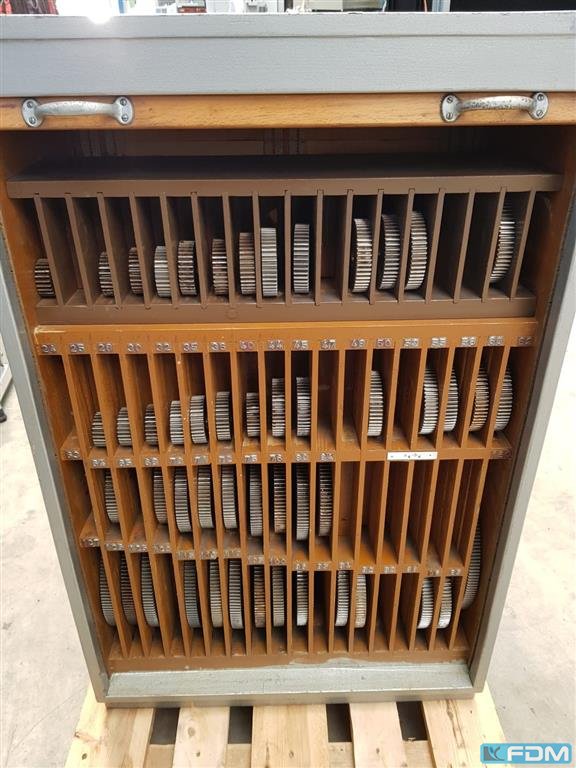

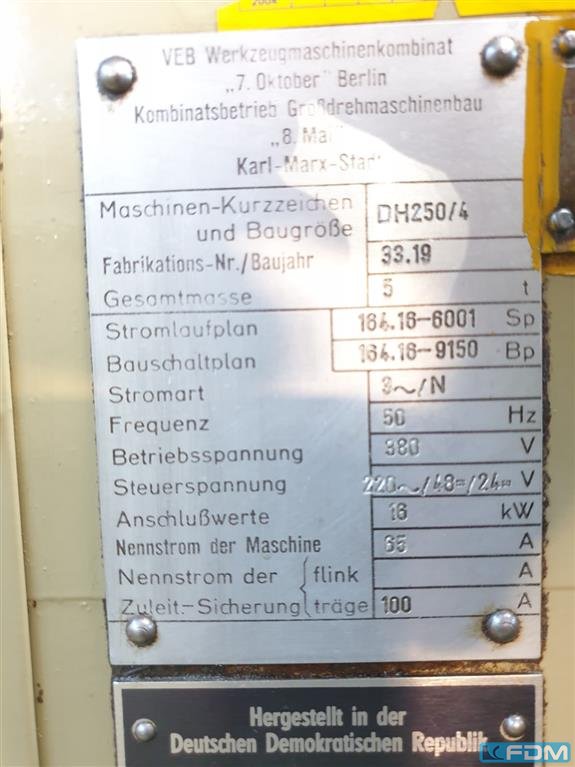

turning length:630 mmtotal power requirement:16 kWweight of the machine ca.:5 tdimensions of the machine ca.:3400 x 1500 x 1600 mmswing diameter over slide rest:Hinterdrehschlitten 250 mmcentre height:über Hinterdrehschlitten 150 mmcenter height over bed:300 mmturning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mmaccessories::2 Schränke Wechselräder

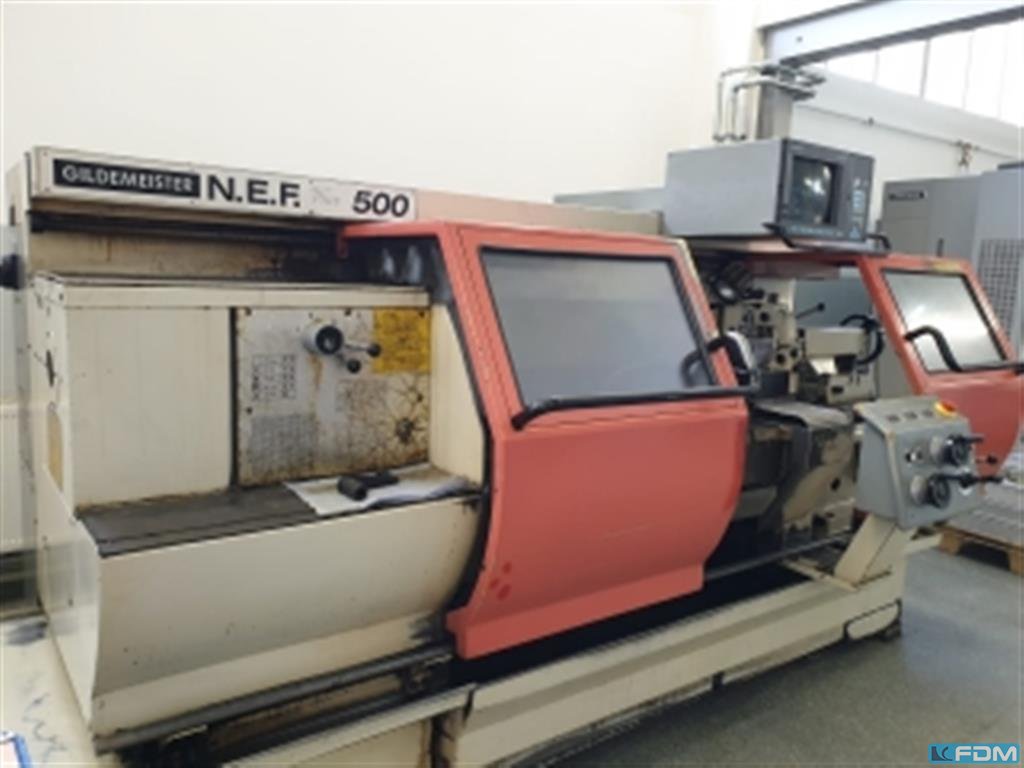

turning diameter:500 mmturning length:1000 mmcontrol:MANUAL PLUS Grundig total power requirement:24 kVAweight of the machine ca.:2650 kgdimensions of the machine ca.:2500 x 1750 x 1850 mmswing diameter over face slide:290 mmchuck:Ø max. 260 mmcross movement:260 mmspindle head:DIN 55027 Größe 8 spindle bore diameter:70 mmrapid travel - longitudinal/face:8 /6 m/minspindle speeds::8 - 2800 tailstock travel:180 mmtailstock quill taper MT:5

turning length:2000 mmcontrol:- total power requirement:25 kWweight of the machine ca.:3 tdimensions of the machine ca.:3800 x 1800 x 1850 mmswing over bed:500 mmswing diameter over face slide:280 mmcontrol:Zyklen-Steuerung Heidenhain bed width:350 mmDocuments:vorhanden

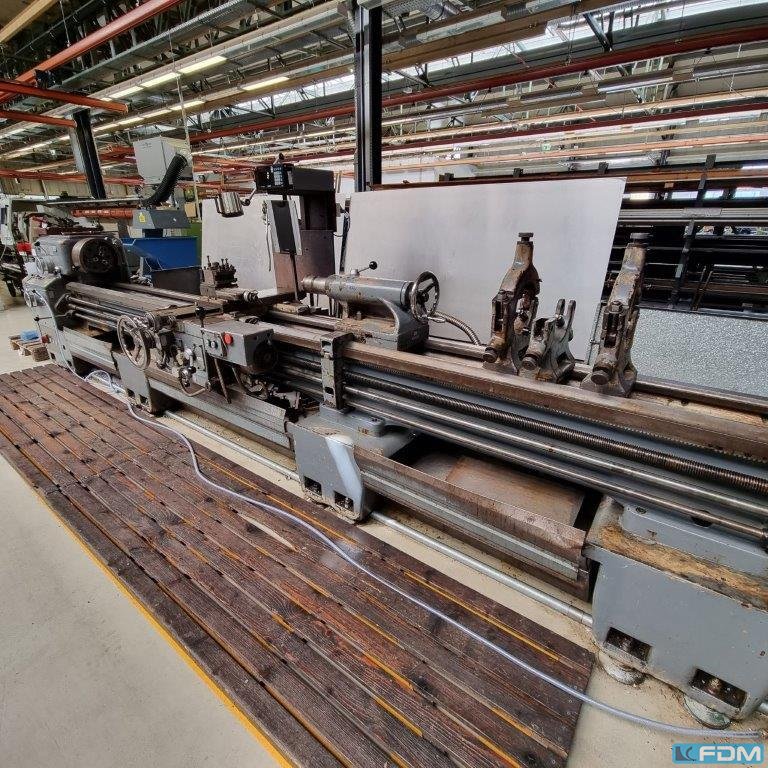

turning diameter over slide rest:280 mmturning length:4000 mmtotal power requirement:7,8 kWweight of the machine ca.:6 tdimensions of the machine ca.:5,9 x 1,9 x 1,40 m

turning length:140 mmdimensions of the machine ca.:4 x 2 x 1,9 m

turning diameter:570 mmturning length:1000 mmdimensions of the machine ca.:3,25 x 2,03 x 1,95 mTool disc turret for 8 tools with VDI 30.Not for power toolsmachine manual, technical documentation;Accessories: 3-jaw chuck, various tool holdersVideo is available

swing diameter:200 mmweight of the machine ca.:15 tDistance between tips:832,5 mmturning length:380 mmwith chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers

number of spindles:6 spindle passage:22 mm?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU.The complete energy supply of all 6 main spindles was replaced in April 25.No socket for powered tools!

number of spindles:8

Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.
