tours machines d'occasion à vendre (3,093)

turning diameter:200 mmswing diameter:260 mmturning height:60 mm

number of spindles:6 spindle passage:22 mm?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU.The complete energy supply of all 6 main spindles was replaced in April 25.

number of spindles:8

Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024

turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-Axis

faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

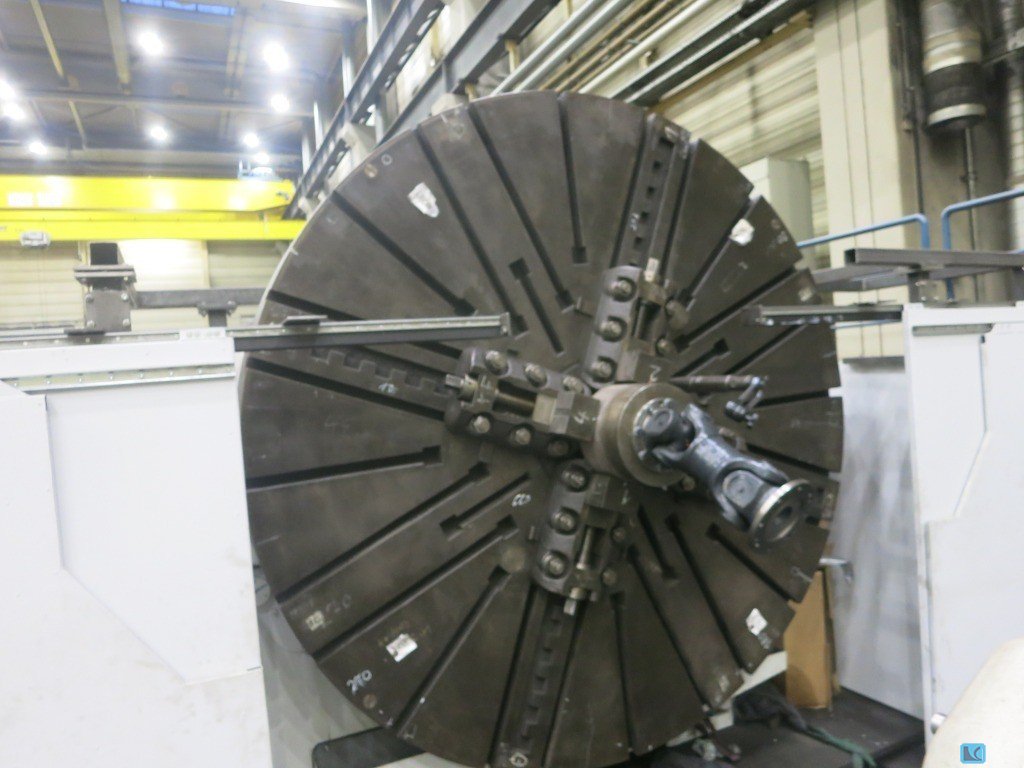

faceplate diameter:1600 mmpower requirement:80 kWweight of the machine ca.:25 tdimensions of the machine ca.:4,4 x 4,62 mmax. workpiece diameter:2000 mmmax. diameter of face turning:1800 mmtool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

turning diameter:270 -300 mmturning length:710 mmtotal power requirement:43 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:3,16 x 2,15 x 2,15 mThe machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!

turning diameter:220 mmturning length:310 mmtotal power requirement:17 kWweight of the machine ca.:3,3 tdimensions of the machine ca.:2,25 x 1,63 x 1940 mgreates pass round over bed:430 mmbore diameter:45 mmcentre distance:687 mmslide travel radial ( X-axis ):160 mmslide travel axial ( Z-axis ):310 mmspindle turning speed range:0-6.300 U/min

turning diameter:220 mmturning length:700 / 665 mmtotal power requirement:17 kWweight of the machine ca.:2,6 tdimensions of the machine ca.:2,63 x 1,98 x 1,94 mgreates pass round over bed:430 mmPart length max.:510 slide travel radial ( X-axis ):160 mmbore diameter:45 mm

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m

turning diameter:490 mmturning length:2000 mmtotal power requirement:15/20 kWweight of the machine ca.:3,6 tdimensions of the machine ca.:2,8 x1,85 x 1,9 mIn like new conditionHeidenhain cycle controlTorsion-resistant bed, made of high-quality cast iron with hardened, precision-ground guideways and a glass scale on the X-axisSafety clutch on the Z and X axesSealing air with carbon filter in direct position measuring systemHigh accuracy and rigidity of the lathe spindle thanks to precision spindle bearings, spindle bore Ø 93 mm standard, optional Ø up to 130 mmSolid tailstock, quill Ø 90 mm with internal taper MK5Large overhang above the facing slide for easy accessibility during shaft machining.The machine has Teach-in CNC Programms.Control: MC420.Tool holder: SAUTER.Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwend ...

Largeur centrale d’environ 600 mm, avec accessoires Auction-ID: A1-44702-144

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionChip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system, chip conveyorG300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!

Out of valve production

turning diameter:1600 mmturning length:3000 mmcentre height:800 mmturning diameter over bed:1600 mmturning diameter over bed slide:1400 mmturning dia. over face-slide:1200 mmmax. workpiece weight between centers:20 tospeeds:5,6 -800 1/mintransmission ratio:3 spindle bore:112 mmturret (x-stations):8 / VDI 60 travel -x axis:850 mmtravel -z axis:3020 mmrapid power traverse in X-and Z direction:6 / 10 m/minpower maindrive:46 kWweight of the machine ca.:22 to.dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 mtech-in lathe, flatbed,tailstock,8-pos. BARUFFALDI turret with 4 live tools, power 9kW,4-pos. BARUFFALDI square-headed turret horizontal,C-axis,3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm,quick adjustment, power cylinder with 2 pressure clamping system,chipconveyor,coolant device,accessories

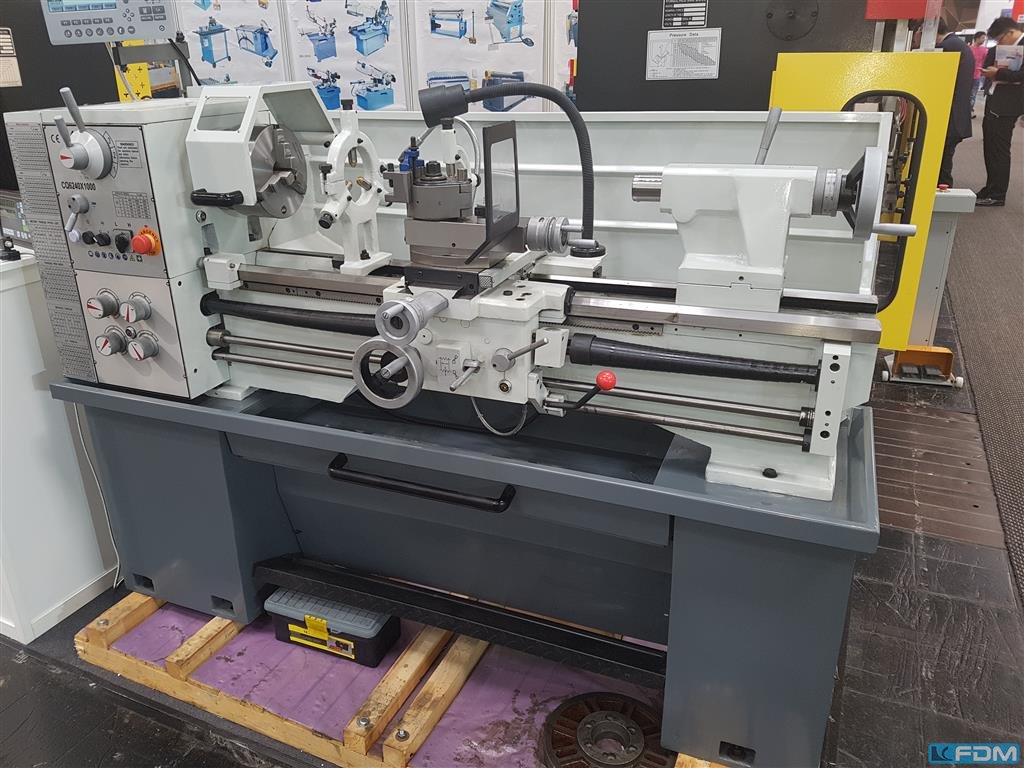

turning diameter over bed: 160 mmTurning diameter over slide: 90 mmturning length: 700 mmSpindle Speed: 85-2000 U/min.taper MK: 3 spindle bore: 30 mmtotal power requirement: 2,2 kWweight of the machine ca.: 700 kgdimensions of the machine ca.: 1800x800x1600 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 356 mmturning length: 510 mmcontrol: M 730 BM total power requirement: 40 kVAweight of the machine ca.: 6,6 tdimensions of the machine ca.: mCNC control:Mitsubishi 730 BMMain spindle:Speed: 5000 rpmPower: 15/11 kW (15% duty cycle / constant)Bar diameter: 65 mmSub spindle:Speed: 6000 rpmPower: 11/7.5 kW (25% duty cycle / constant)Turret:12 stationsTool spindle speed: 10000 rpmPower: 5.5/3.7 kW (5 minutes / constant)Y-axis travel: +/- 50 mmEquipment:Machine with gantry loader:Left-hand installation, 14-station storage, 20-pallet workpiece storage,Double gripper conveyor3-jaw hydraulic KITAGAWA power chuck, 210 mm diameterHigh/low pressure chuck system for main and counter spindlesMABEO high-pressure pump with 1.5 MPa filter unitCoolant gunCoolant sprayer on the chuck for main and counter spindlesCoolant sprayer for the machine bed claddingOil mist separatorHinged belt c ...

turning diameter:150 mm
