Machines de coupage au jet d'eau WJS NC 3000 T

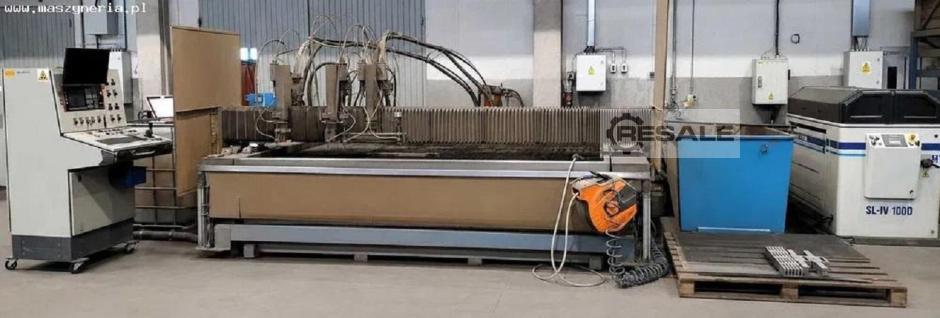

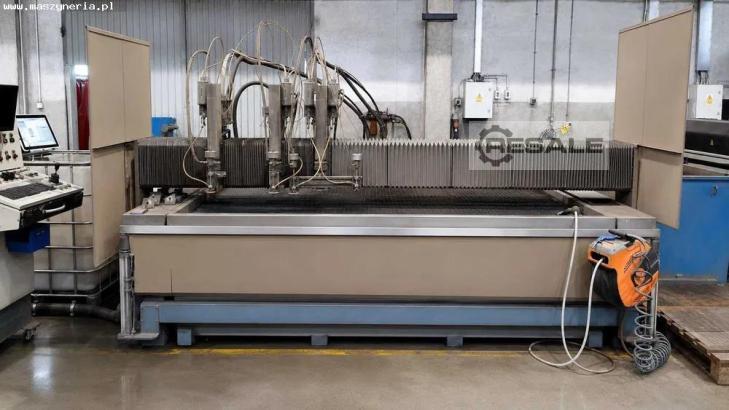

WJS NC 3000 T waterjet cutting machine was built in 2002 in Sweden by Water Jet Sweden AB. The high-pressure pump working with the machine has been regularly serviced using only the manufacturer’s original parts.

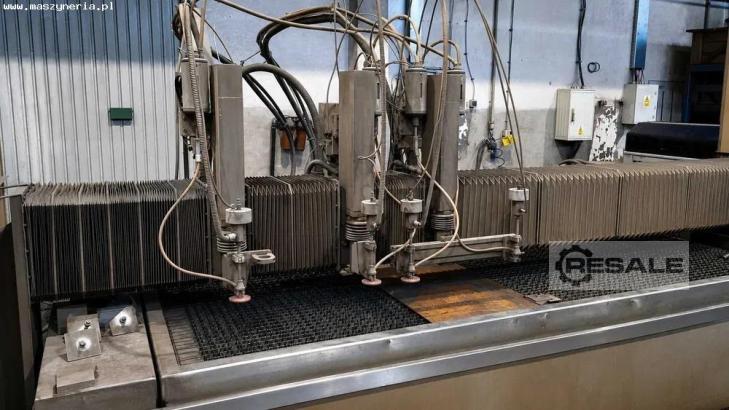

The WJS NC 3000 T is designed for the precision 2D cutting of workpieces made from metal and non-metallic materials, such as ceramics, glass and acrylic. Cutting is performed using pure water or water with an addition of abrasive. The machine is equipped with four cutting heads. The third and fourth heads are mounted on a common Z-axis, with a spacing of 80 mm. This solution allows simultaneous cutting with three heads, which increases cutting efficiency and reduces production time.

The WaterJet NC 3000 T is operated using an intuitive NUM 1040 CNC controller. The equipment also includes, among others, an abrasive tank with a feeder and a 100 HP high-pressure pump. All this makes the WJS waterjet cutting machine an excellent choice for the precise cutting of a wide range of materials in both unit and series production.

Technical specifications of the WJS NC 3000 T water cutting machine
General data
- work table dimensions (L x W): 3200 x 2850 mm
- cutting area (L x W): 3050 x 2010 mm
- feed in the X/Y/Z axis: 2500/2010/175 mm
- maximum distance between nozzles: 1010 mm
- minimum distance between nozzles: 280 mm
- cutting with pure water or water with an addition of abrasive

High-pressure pump
- operating pressure: 4150 bar
- water flow rate: 7,6 l/min
- programmable pressure adjustment
- power: 100 HP

Equipment of the WJS water cutting machine
- CNC controller: NUM 1040

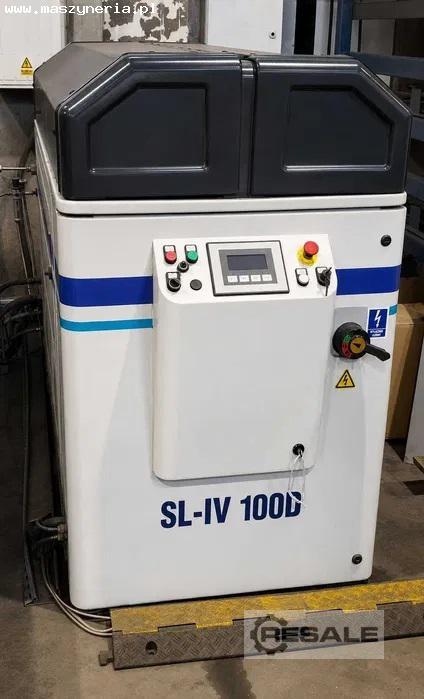

- high-pressure pump: SL-IV 100D
- cutting head with a set of nozzles (4 pcs.)
- numerically controlled (CNC) Z-axis with height sensors
- abrasive dosing unit (4 pcs.)
- abrasive tank with feeder
- sludge removal system with two pumps
- safety system
seller offer No. resale 170268594
