7 NORDFILTER machine à vendre

Edelstahl-Filterkerzen 316L von NORDFILTER Äußerst robuste Konstruktion und hohe mechanische Festigkeit. Für aggressive Lösungsmittel sowie viskose und heiße Lösungen geeignet. Rückspülbar, Reinigung mit chemischen Lösungsmitteln, heißem Wasser oder Dampf möglich. Lange Standzeit, die plissierte Ausführung bietet eine größere Filtrationsfläche. Typische Anwendungen: Dampffiltration. Vorfiltration und Entkarbonisierung hochviskoser Flüssigkeiten. Entfernung von Verunreinigungen aus Flüssigkeiten in der petrochemischen Industrie. Filtration aggressiver Lösungsmittel. Reinigung stark korrosiver Flüssigkeiten und Gase. Filtration von Flüssigkeiten und Gasen bei hohen Temperaturen und Drücken. Technische Daten: Werkstoff: Edelstahl SUS316L / 316L. Ausführung STP – plissiert: Plissiertes Edelstahlgewebe, Trennschärfen 5, 10, 20, 25 und 50 µm, Porosität 65–85 %. Aus ...

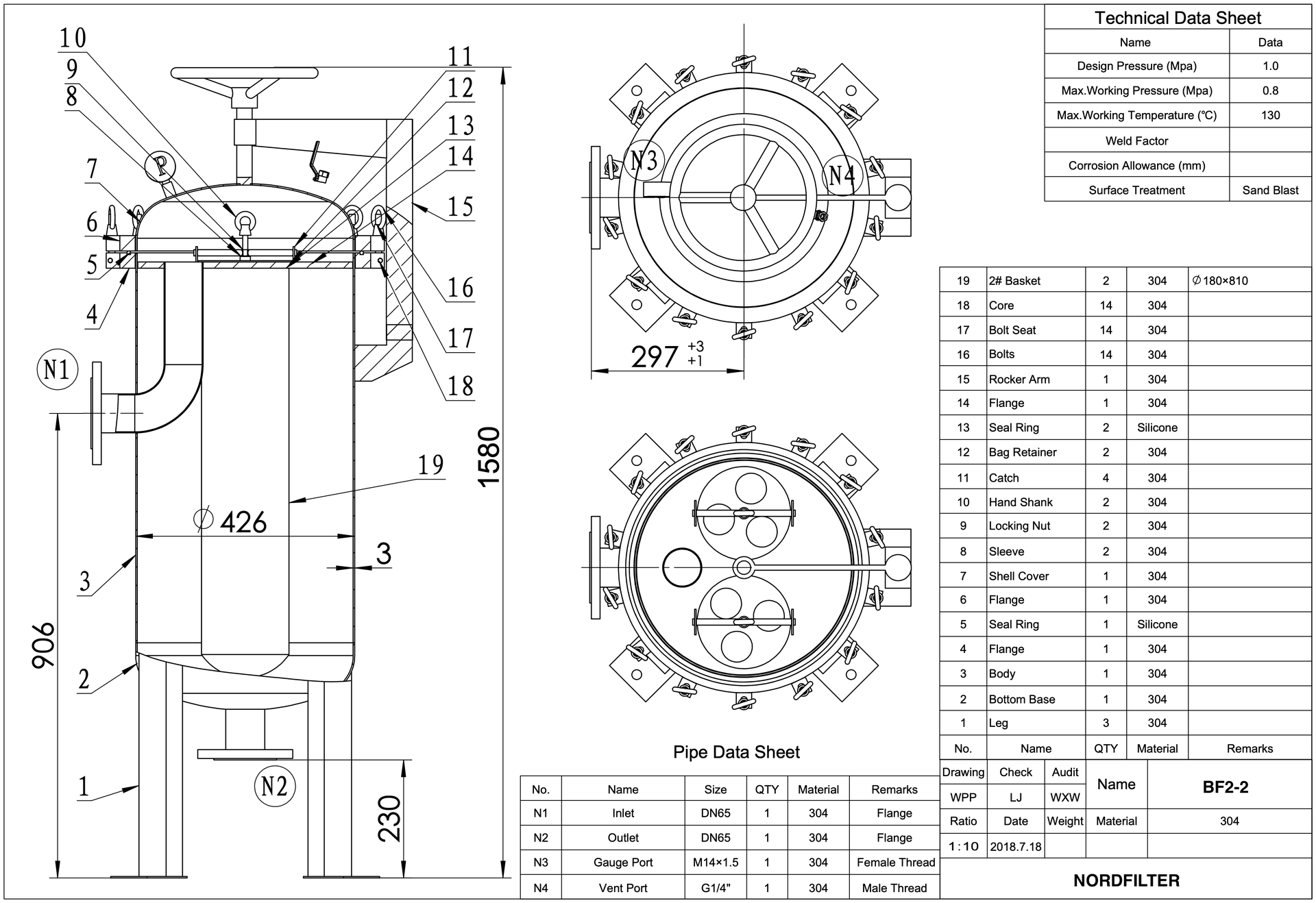

Bag filter housing – 2 size #2 bags – stainless steel 304 Number of bags: 2 Bag size: #2 Material: Stainless steel 304 Housing dimension D (mm): 426 Height H (mm): 1580 Max. working pressure (bar): 8 Design pressure (bar): 10 Max. working temperature (°C): 130 Inlet/outlet: DN65 flange Seal: Silicone Surface: Sandblasted Data source: Individual drawing Dimensions and operating limits follow the assigned technical drawing. The offered material is stainless steel 304, the drawing also applies geometrically where its title block specifies a different material.

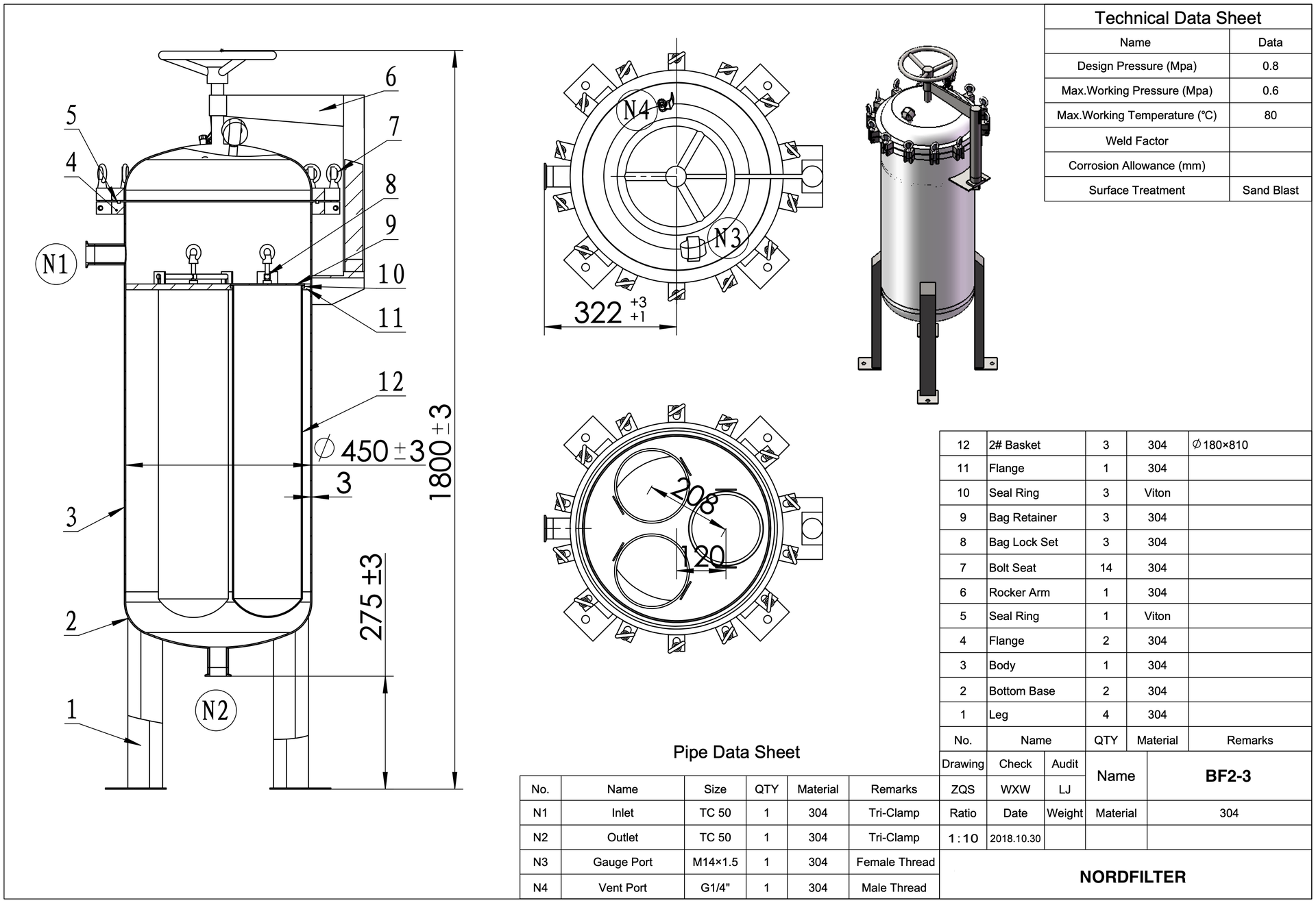

Bag filter housing – 3 size #2 bags – stainless steel 304 Number of bags: 3 Bag size: #2 Material: Stainless steel 304 Housing dimension D (mm): 450 ±3 Height H (mm): 1800 +3/?1 Max. working pressure (bar): 6 Design pressure (bar): 8 Max. working temperature (°C): 80 Inlet/outlet: TC50 Tri-Clamp Seal: Viton Surface: Sandblasted Data source: Individual drawing Dimensions and operating limits follow the assigned technical drawing. The offered material is stainless steel 304, the drawing also applies geometrically where its title block specifies a different material.

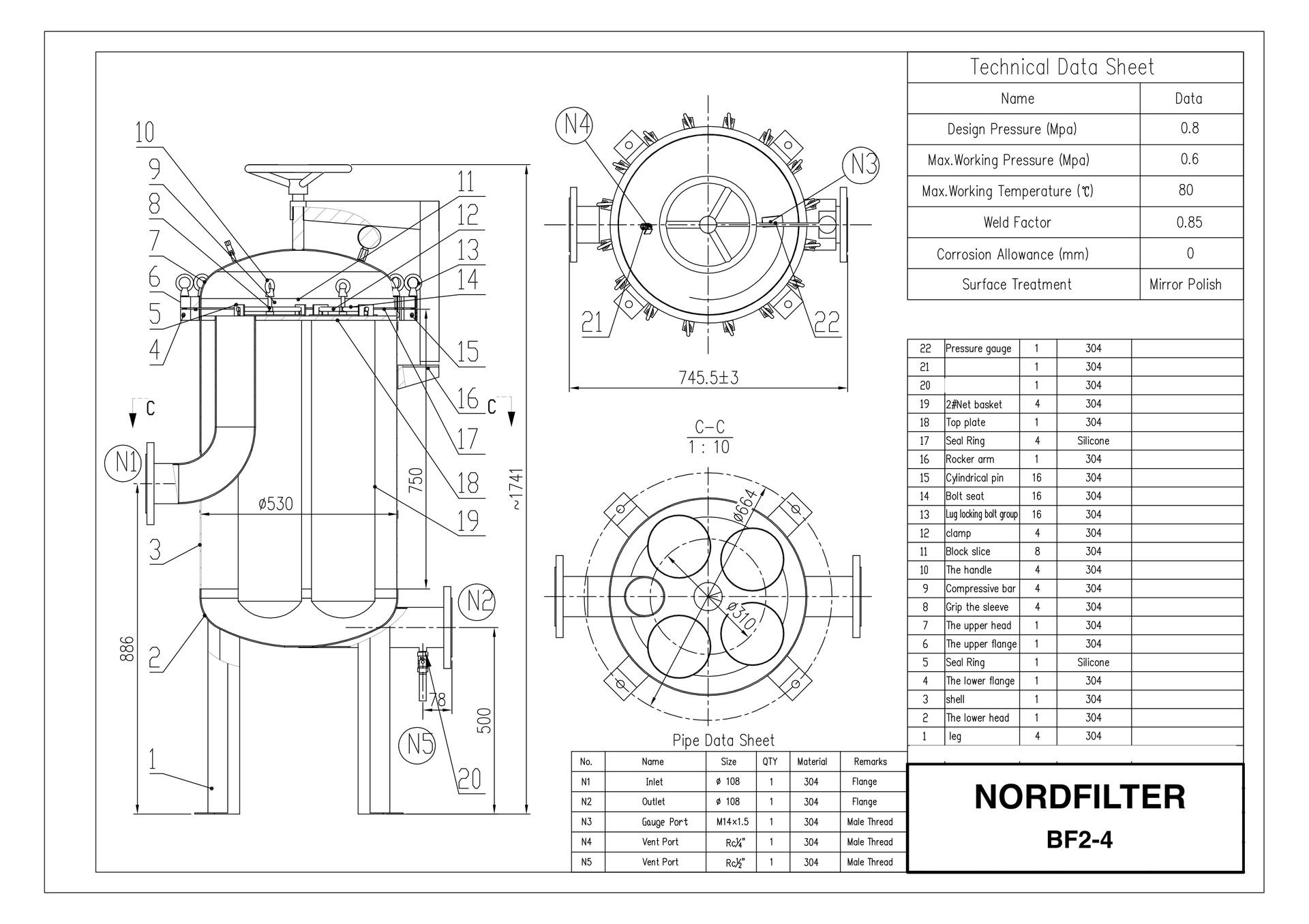

Bag filter housing – 4 size #2 bags – stainless steel 304 Number of bags: 4 Bag size: #2 Material: Stainless steel 304 Housing dimension D (mm): 530 Height H (mm): approx. 1741 Max. working pressure (bar): 6 Design pressure (bar): 8 Max. working temperature (°C): 80 Inlet/outlet: Ø108 flange Seal: Silicone Surface: Mirror polished Data source: Individual drawing Dimensions and operating limits follow the assigned technical drawing. The offered material is stainless steel 304, the drawing also applies geometrically where its title block specifies a different material.

Filtre à sac pour type de sac #2Material : Acier inoxydable Type 304 Pression : 8 BarDN25

Cartridge filter housing – 5 × 30? – SUS304 Cartridges: 5 Cartridge length (inch): 30 Material: SUS304 The inch value refers to cartridge length, not overall housing height. Connections, seals, operating pressure and temperature must be confirmed for the selected version. Adapter Code 07 (standard): SOE (single open end), fin at the closed end, 2 locking tabs and external 226 O-rings.

Cartridge filter housing – 3 × 30? – SUS304 Cartridges: 3 Cartridge length (inch): 30 Material: SUS304 The inch value refers to cartridge length, not overall housing height. Connections, seals, operating pressure and temperature must be confirmed for the selected version. Adapter Code 07 (standard): SOE (single open end), fin at the closed end, 2 locking tabs and external 226 O-rings.
