105 PEDDINGHAUS machine à vendre

Machine à tondre/poinçonner PEDDINGHAUS 210 SUPER 11 Profondeur de gorge : 305 mm Capacité de perforation maximale : 40 T Puissance : 3 kW Capacité de poinçonnage : Ø 20 x 15 mm - Ø 90 x 5 mm (voir abaque) Capacités de cisaillement : (voir abaque) Cisaillement en rond : Ø 34 mm Cisaillement carré : 30 x 30 mm Capacité de cisaillement en angle : 100 x 10 mm 1 côté pour le cisaillement/undercut - 1 côté pour le poinçonnage Livré avec quelques coups Tension : 380 V Dimensions (L x L x H) : 1400 x 1000 x 1800 mm Poids : environ 1,2 T

Ce cube a 3 surface de serrage magnétique. Dimensions de chaque zone : Longueur : 2 000 mm Largeur: 2.000 mm Hauteur: 2.000 mm

La machine à poinçonner hydraulique PEDDINGHAUS Hydraulic 800 a été fabriquée en Allemagne par Paul Ferdinand Peddinghaus GmbH. Cette machine très fiable est utilisée pour l’usinage de précision de barres angulaires et de barres plates. Il permet de percer des trous carrés et ronds dans des pièces en acier de structure d’une épaisseur maximale de 25 mm. Le traitement est effectué avec une force de pression élevée pouvant atteindre 80 tonnes à l’aide de poinçons. Le design parfaitement équilibré de la machine assure une excellente stabilité même lors des défis les plus intenses. Tout cela fait du PEDDINGHAUS Hydraulique 800 un excellent ajout aux usines industrielles et aux ateliers de serruriers. Le poids total de la machine est d’environ 1500 kg. Données techniques de la machine à poinçonner PEDDINGHAUS Hydraulique 800 Données générales - Force de ...

plate thickness:4 mm blade length:180 mm weight of the machine ca.:21 kg dimensions of the machine ca.:400 x 100 x 1500 mm

working pressure: 300 bar total power requirement: / kW weight of the machine ca.: 1 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 100 t punching cross-cut in cmm: Ø 31 in 25 mm stroke: 10 - 50 mm column arm: 510 mm work height max.: 1100 mm no. of strokes: 14 - 45 Hub/min punch diameter: max. Ø 90.0 mm oil volume: 103 l total power requirement: 7.5 kW weight of the machine ca.: 2400 kg. range L-W-H: 1750 x 1020 x 2050 mm maintained condition () New price without accessories approx. 25.000 euros Special price on request Furnishing: - heavy / robust electro-hydraulic hole punch, with large throat - Punching station with material/sheet metal scraper - stepless stroke adjustment .. 10-50 mm - freely movable foot switch including protective cover - hydraulic low pressure finder for foot switch operation - Crane hanging eye for easy transport - side storage area - Hydraulic unit, integrated - Three-phase motor, 400 volts, 50 Hz - original instruction manual The data for this ad was created with ModulMWS ...

round bar steel: 50 mm square edge steel: 45 mm L-beam: 150 x 14 mm total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,3 x 1 x 2,1 m No. 3418 5-fold combined profile steel shears with flat steel shears PEDDINGHAUS 210 Super 16 pressure capacity 80 to Round steel 50 mm Square steel 45 mm angle steel 150 x 14 mm Punching up to 90 mm diameter 5.5 HP Space requirement 2.30 x 1.0 x 2.1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

punching pressure: 28.0 t punching cross-cut in cmm: 31 in 7.0 mm ST throat: 250 mm dayligth: 223 mm no. of strokes: 10 - 30 Hub/min oil volume: 32.0 ltr. work height max.: 1033 mm total power requirement: 3.0 kW weight of the machine ca.: 553 kg dimensions of the machine ca.: 730 x 540 x 1530 m Furnishing: - Punch quick-change device up to Ø 31 mm - green series - installed: round punch no. 5 Ø 25.0 mm and round die no. 3 Ø 25.7 mm - Free: LED lighting in the punching area - Swiveling scraper (plates exchangeable) - Various material support tables are available separately - Brace - 2-step foot switch, with double press for grain search function - electrical controls - Stroke length and stroke position continuously adjustable - integrated hydraulic unit with oil filling - Performance specifications apply to a material strength of 450 N/mm² - Main connection cable and plug for 16 amp ...

: 5 weight: 5 t : . The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 63 mm square edge steel: 55 mm flat steel: 100 x 25 mm : engine: 380 V, 6,3 kW weight: ca. 2.450 kg Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 45 mm square edge steel: 40 mm L-beam: 120 x 13 mm flat steel: 500 x 12 mm punching pressure: 60 t throat: 510 mm : 500 x 12 oder 400 x 16 mm punch diameter: 27 in 17 mm punch diameter: 39 in 12 mm oil volume: 80 l total power requirement: 7,5 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 1,8 x 0,9 x 1,8 m Hydraulic machine with 5 stations so punching, notching, shearing flat iron, angle iron, solid material, punching with hand lever, profile steel side with foot switch. Punching discharge: 510 mm! All performance data refer to a material strength of 450 N / mm². Electric 380 volt The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

volt: 380 V weight: 1,4 t : The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 32 mm square edge steel: 60 x 6 mm L-beam: mm pressure: 50 t stroke: 10 - 28 mm total power requirement: 4 kW weight of the machine ca.: 1 t dimensions of the machine ca.: 0,65 x 1, 2 x 1, 67 m Maximum pressing force 50 t FLAT STEEL SHEAR PERFORMANCE Flat steel: 150 x 15 mm or: 180 x 18 mm PERFORMANCE OF PROFILE STEEL SHEARS Steel 90°: 80 x 8 mm 45°: 50 x 6 mm Angle steel 90°: 100 x 10 mm 45°: 50 x 6 mm PERFORMANCE OF BAR STEEL SHEARS Round steel: 32 mm Square steel: 30 x 30 mm PERFORMANCE SQUARE NOTCHER: 60 x 6 mm Sheet metal up to: 10 mm Notch width: 42 mm: Notch depth: 55 mm PERFORMANCE HOLE PUNCH Punching force: 50 t Stroke: 10 - 28 mm Punches: 27 in 14 mm Projection: 155 mm GENERAL DATA Drive power: 4.0 kW Oil capacity: 40 lDimensions L x W x H: 650 x 1200 x 1670 mm Weight approx.: 840 kg Translated with DeepL.com (free version) The data for this ad was creat ...

serial number: 4412956673057 : 95 to. ca. engine output: 7,5 kW weight of the machine ca.: ca 5 t dimensions of the machine ca.: 2,2 × 1,0 × 2,3 m Technical specifications (from the label)Angle steel (L-profile):150 × 15 mm at 90°100 × 14 mm at 45°Flat steel:up to approx. 150 × 16 mmlarger cross-sections up to 340 × 16 mm (depending on function)Beam profiles:U-profiles (UPN): 220I-sections (IPN) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

punching force max.: 50 t throat: 510 mm stroke: 32 mm stroke - stepless adjustable: 10 - 32 mm no. of strokes: 35 bei 10 mm Hub/min Working height: 1070 mm daylight: 350 mm table width: 255 mm dimensions: ca. 1080 x 650 x 1680 mm material layer: 630 X 535 weight: ca. 1400 kg Scraper, height-adjustable and removable, with interchangeable plate Hydraulic low-pressure finder for foot switch operation Two-stage foot switch and electrical controls Integrated hydraulic unit With punching saddle for dies no. 3 and 4, up to Ø 39.5 mm Quick-change device for punches 3 and 6 up to Ø 39.5 mm Peddinghaus blue series with material support table no. 513, dimensions 630 x 535 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 34 mm square edge steel: 30 x 30 mm L-beam: 100 x 10 mm flat steel: 100 x 14...160 x 11 mm blade length: 175 mm T-beam: 100 x 10 mm notching: l + T material: 10 mm hole punhing press: pressure: 45 t throat: 305 mm total power requirement: 3 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 1,4 x 0,8 x 1,5 m 5-fold combinated profile steel shear incl. flat steel shear profile steel shear bar steel shear notcher hole punch 2 foot switches contact limit stop various punching saddles The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

blade length: oben 211/unten 180 mm plate thickness: max. 6 mm round bar steel: max. 13 mm weight: ca. 19 kg Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm. With compound action. Cuts sheet metals and round steel bar. Colour: Red-brown The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

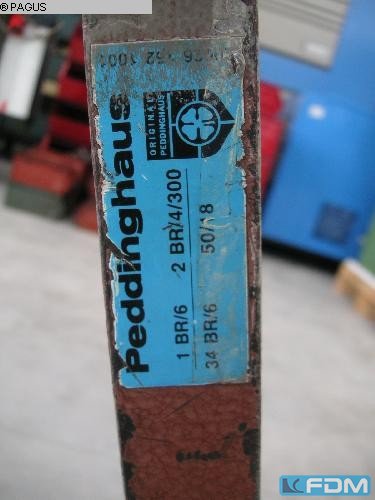

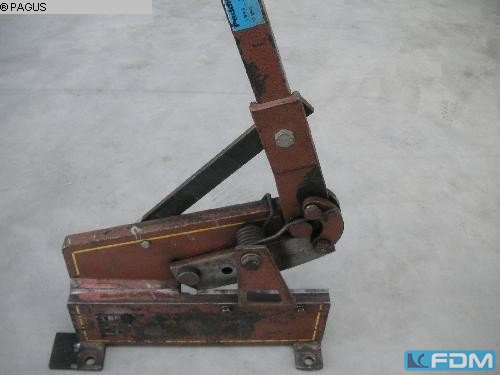

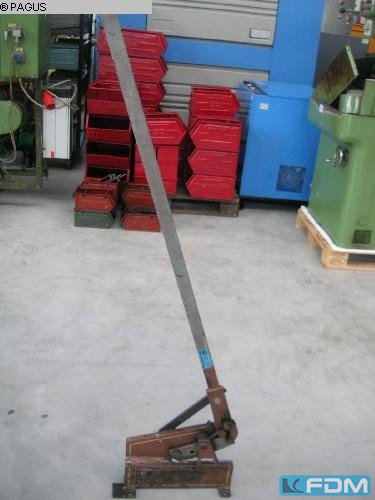

Cisaille à levier manuel Pagus 1 BR/6 Epaisseur de la tôle : 4 mm Longueur du couteau : 180 mm Dimensions : 400x100x1500 Année de construction 1995

Fabricant : Peddinghaus Modèle : FDB 600 Type de machine : Perceuse et brûleuse d’acier plat Pour en savoir plus, cliquez ici - / Contactez-nous au -

Scie à froid Peddinghaus 960 et ligne de perçage de poutre de broche Peddinghaus TDK 1000/3 18M d’entrée et de sortie, Système de traînée 5M d’entrée et de sortie, Système d’estampage dur, Système d’exploitation du logiciel Fagor 1 scie et perceuse et système de mesure, personne ne les achèterait à moins d’être vendus à l’unité 2 Système d’alimentation et de transfert 3 Estampage dur Pour en savoir plus, cliquez ici - / Contactez-nous au -

Ciseaux pour acier d’armature ou barres max 32mm

Keeldiepte: 405 mm slag: 21 mm 55 slagen per minuut Punching pressure: 45 ton Max punching dia: Ø 27 in 13 mm / Ø 39 in 9 mm Power needed: 2,2 kW Length: 1300 mm Depth: 800 mm Height: 2050 mm Weight: 1000 kg

• Numéro de machine: 4221875989007 • Force de poinçonnage max: 800kN • Épaisseur du matériau max: 25 mm • Dispositif de poinçonnage max: Ø 90 mm • Accessoires selon photos (vendus séparément sur demande)

N° Inv. : 8405 Type : Peddimax No 1 Producteur : Peddinghaus Création : 2019 Paramètres: Heures de fonctionnement : 150 h Résistance : 140 t Pression : 300 bar Équipement: Volets

round bar steel: - mm square edge steel: - mm L-beam: - mm total power requirement: 7,5 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 2,212,35 m div. punches and dies Foot switch Spare blade The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Cutting blades, replacement blades for guillotine shears, replacement cutting edges, cutting knives, shear blades, flat steel blades for profile steel shears, lever shears, sheet metal knives -Manufacturer: Peddinghaus, 3 cutting blades for profile steel shears 210/16 210 Super 16, unused -Zg. No.: 44085 510 00 Cutting length: 260 mm -Hole spacing: 140 mm / 2x M20 see photos -Submission/Price: complete -Dimensions: 280/18/H70 mm -Weight: 2.6 kg/pc.

Offered is a combined Peddinghaus section shear with punch unit for punching, shearing and notching flat bar, sections and bar stock. Punching force: approx. 80t, punching capacity: 31mm in 20mm steel, throat depth: 510mm, max. round bar diameter: 50mm, max. square bar size: 45mm, max. angle iron dimensions X/Y/Z: 140mm/140mm/13mm, weight: approx. 3400kg. An on-site inspection is possible.

Die holder, separating tool, punching tool, punch, punch die, punch stamp, gill forming tool, die holder -Stamping tool: die holder -Hole: Ø 45 mm -Bore: Ø 33 mm -Hole spacing: 180 x Ø20 mm -Dimensions: 240/85/H120 mm -Weight: 7.3 kg
