5 SAMPUTENSILI machine à vendre

max. wheel diameter:50 mm gear width:20 mm max. module:4 mm min. module:0,1 mm total power requirement:12,5 kW weight of the machine ca.:4000 kg dimensions of the machine ca.:2,2 x 2,5 x 2,3 m workpiece length - max.:300 mm

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

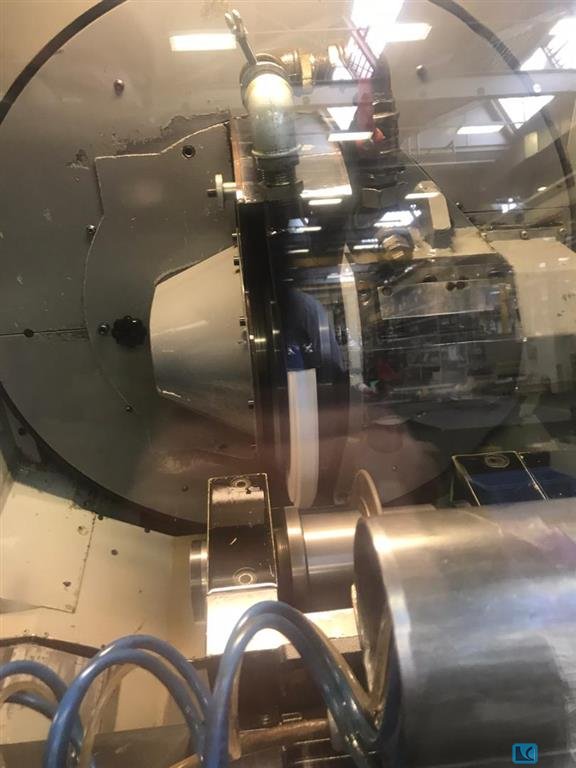

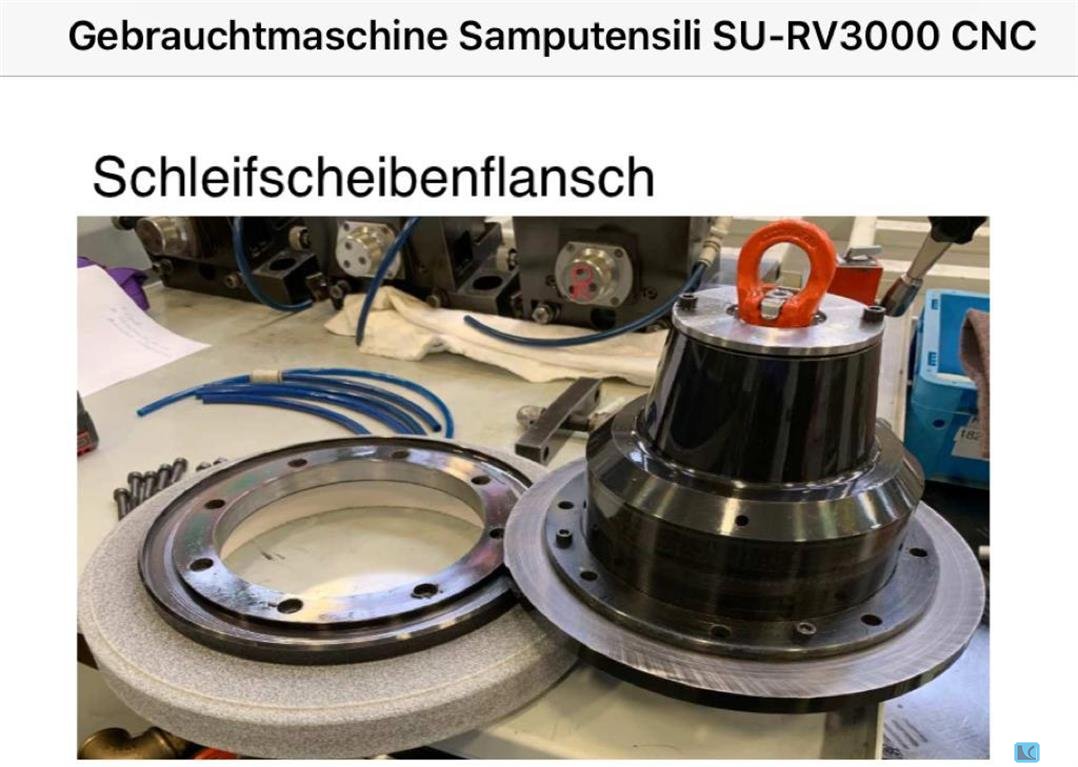

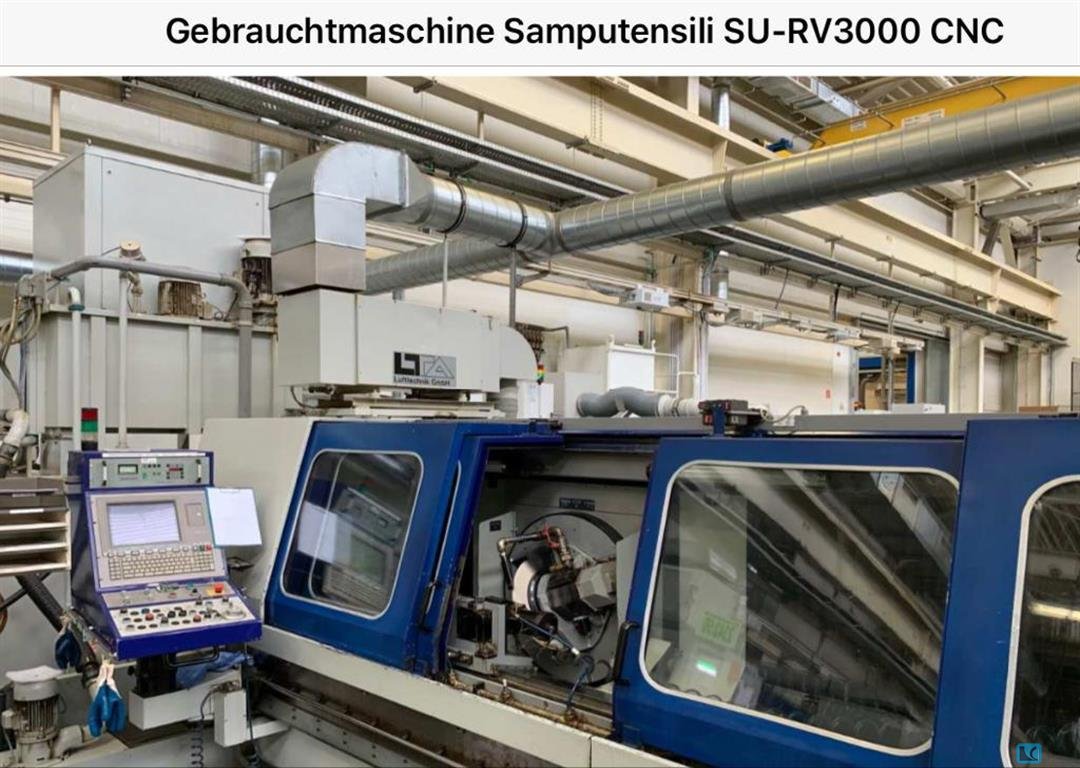

grinding diameter: 200 mm profile depth: 30 mm workpiece length - max.: 2790 mm grinding length: 2310 mm Maximum pitch of the screw: -/+ 50 ° Maximum number of gears: 1-999 workpiece weight max.: 250 kg z-travel: 3000 mm x-travel: 185 mm max. dia. of grinding wheel: 450-330 mm Grinding wheel thickness (with recess): 20-70 mm roll diameter: 120 mm Speed of the grinding wheel spindle: 1500 - 6000 U/min Workpiece spindle speed: 0 - 600 U/min Speed of the pitch axis: 0-4 1/min Speed of the dressing spindle: 1500-16000 1/min feed speed z-axis: 0-10000 mm/min feed speed x-axis: 0-10000 mm/min total power requirement: 150 kVA control: Siemens Sinumerik 840D SL weight of the machine ca.: 30 t dimensions of the machine ca.: 10,65 x 5,37 x 2,75 m Features/Accessories: - Filtration system: KNOLL VL1500/5000 - many accessories—list to follow - documentation The data for this ad was create ...

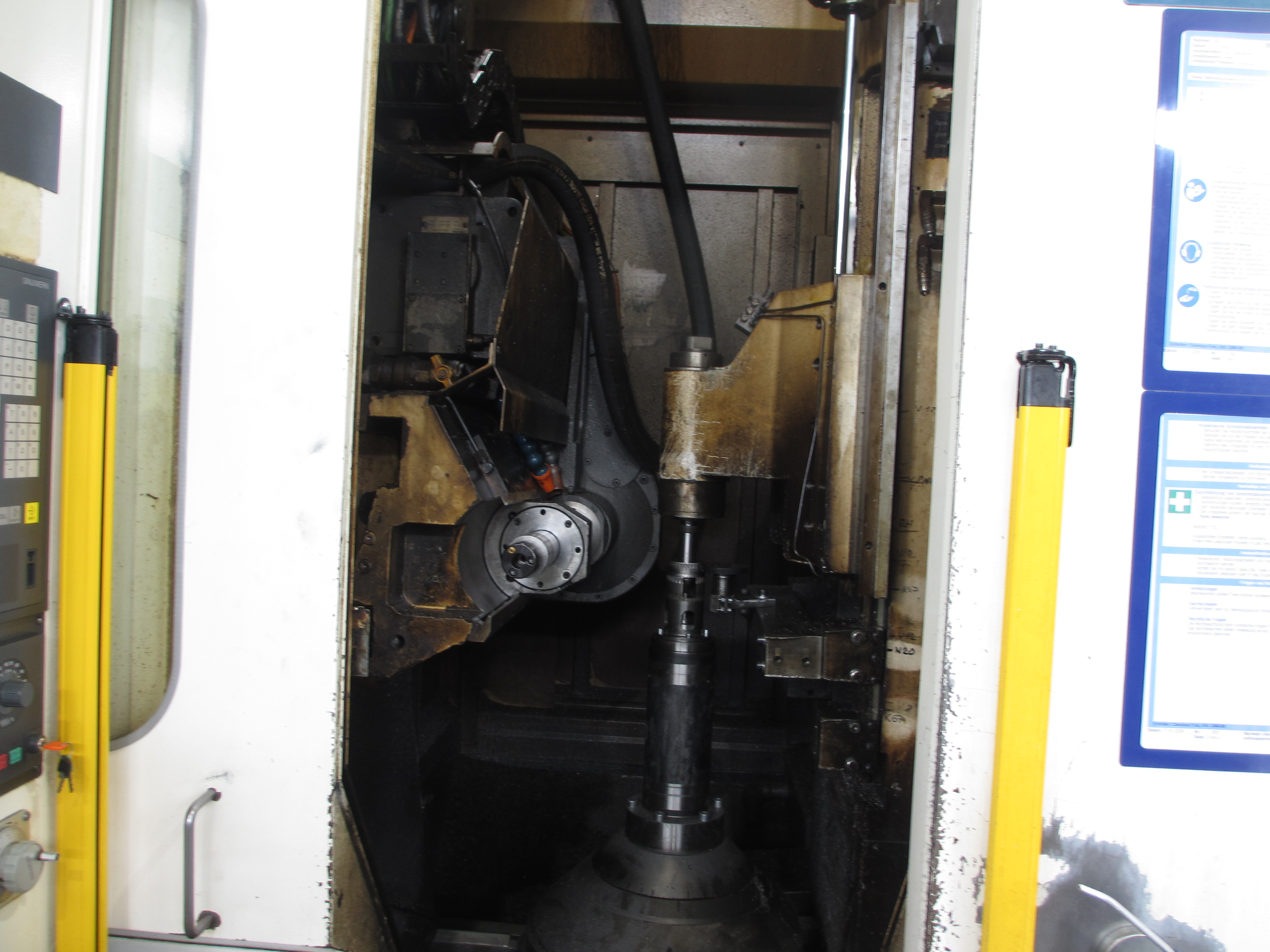

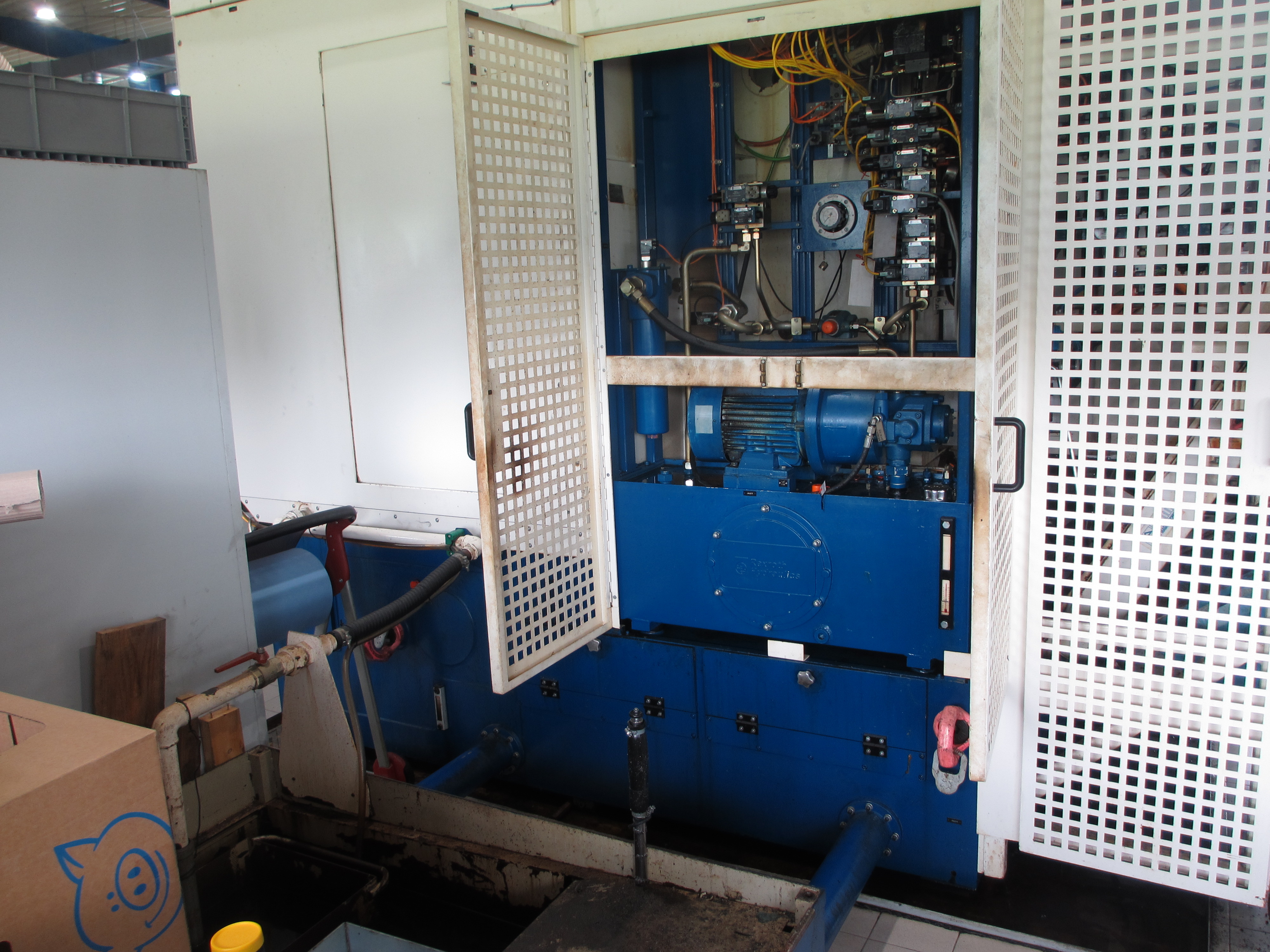

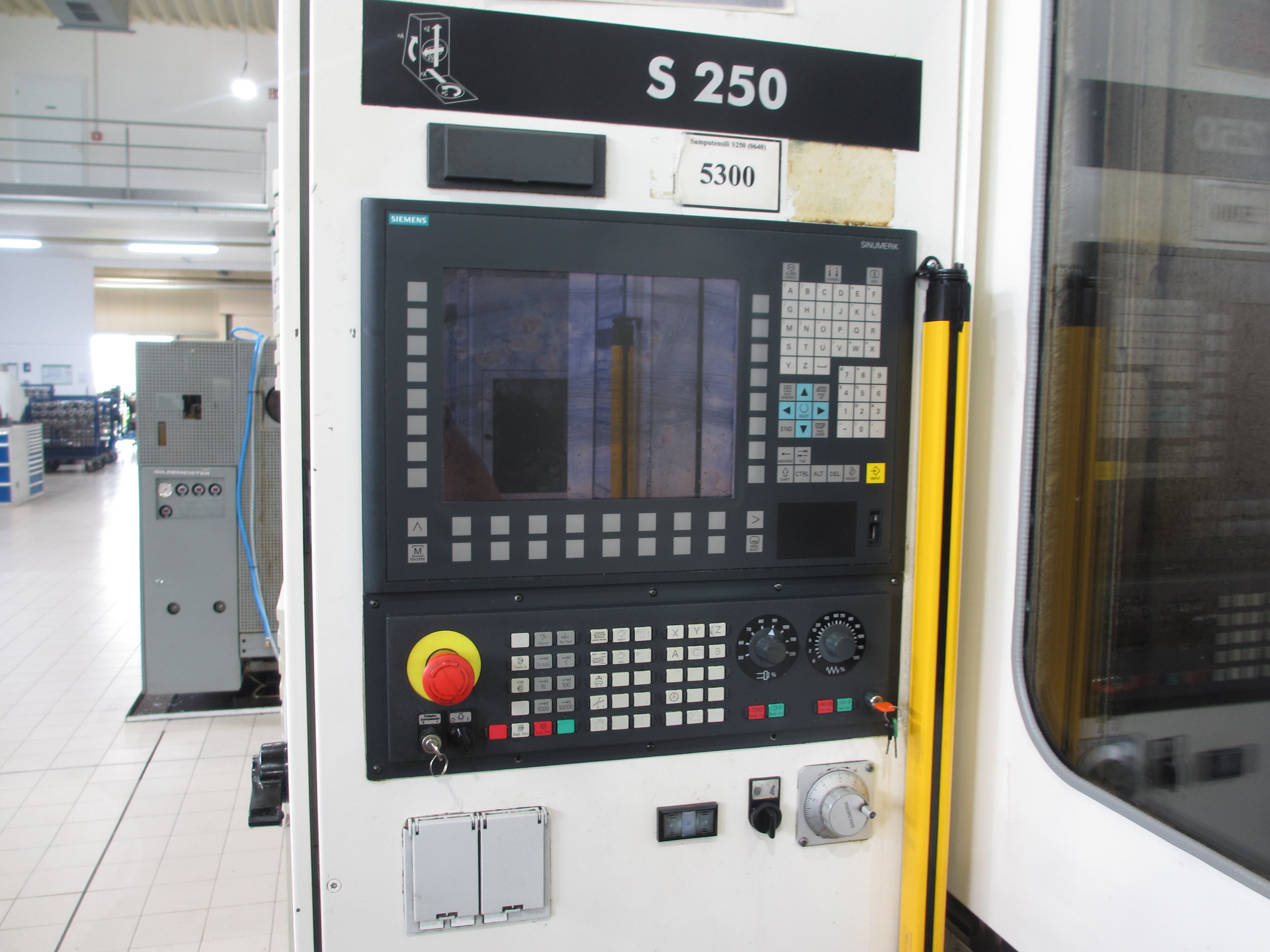

SAMPUTENSILI (Hurth Modul GmbH)S 2502002Siemens SINUMERIK 840D250 mm8 mm (hob)130 mm300 mm225 - 1800 rpm5 - 420 rpm22 kWHSK-A80+/- 45 degrees195 mm600 mm240 mm0.1 - 5000 mm/min0.1 - 2500 mm/min55 kVA80 A24 V DCdiameter 170 mm, bore 100 H7400 V, 50 Hz, 3N~3150 x 2520 x 2750 mmapprox. 11,000 kg (approx. 13,000 kg with ring loader)

Control: Siemens 840 D weight of the machine ca.: 13,5 t dimensions of the machine ca.: 7m x 4m x 2,75m m Accessories: Coolant tank Grinding wheels Various spare parts Operating and maintenance instructions CE conformity Dimensions: 7x4x2.75 m ( LxWxH) TECHNICAL DATA: Workpiece data: max. outer diameter: 250 mm with max. grinding wheels Ø 450 mm max. diameter to be machined over table: 375 mm Profile depth for dressable grinding wheels: 40 mm max. workpiece length: 3,600 mm max. distance between centers (1): 2,800 mm max. bevel angle: +/- 90° Number of teeth of the workpiece: 1 - 999 max. weight of the workpiece: 250 kg Working area: Center distance between workpiece and tool spindle: 355-170 mm Radial travel: 185 mm Axial travel: 3,000 mm Swivel angle: +/- 90° The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
