22 WOTAN machine à vendre

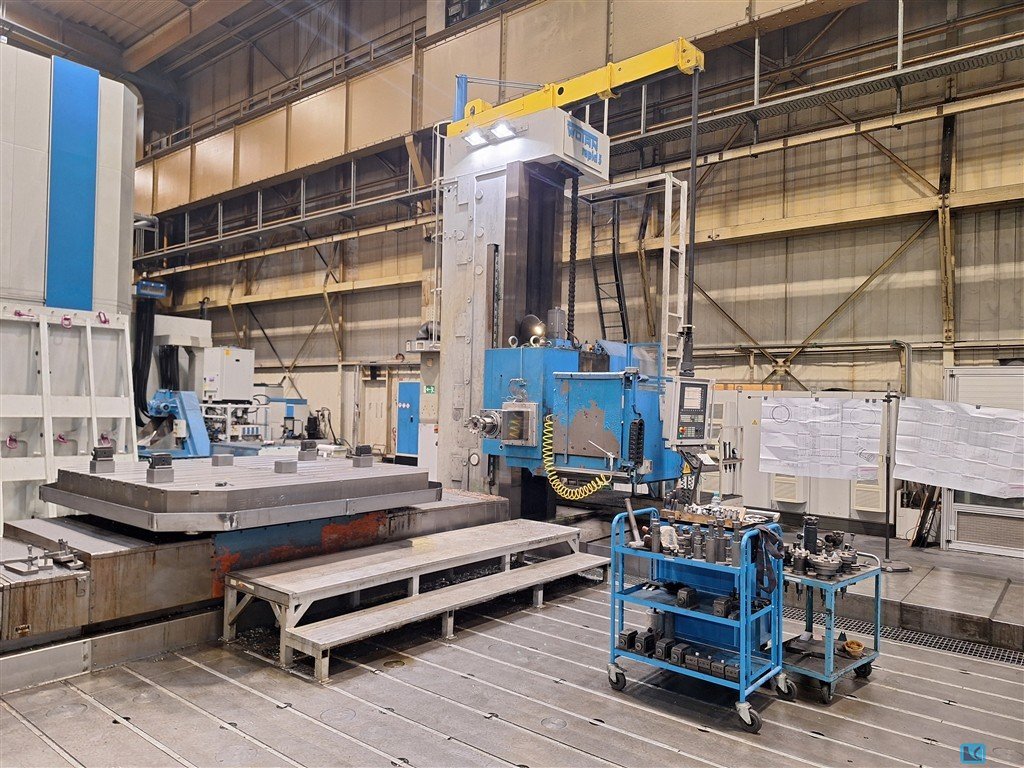

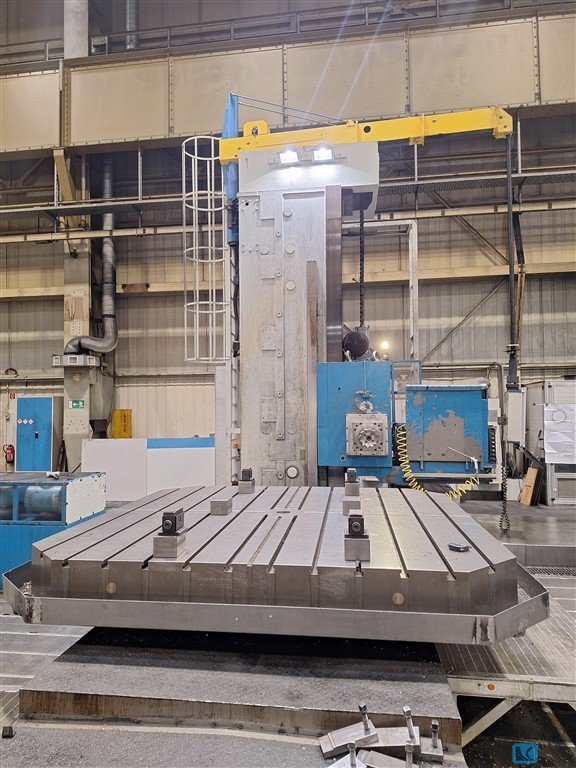

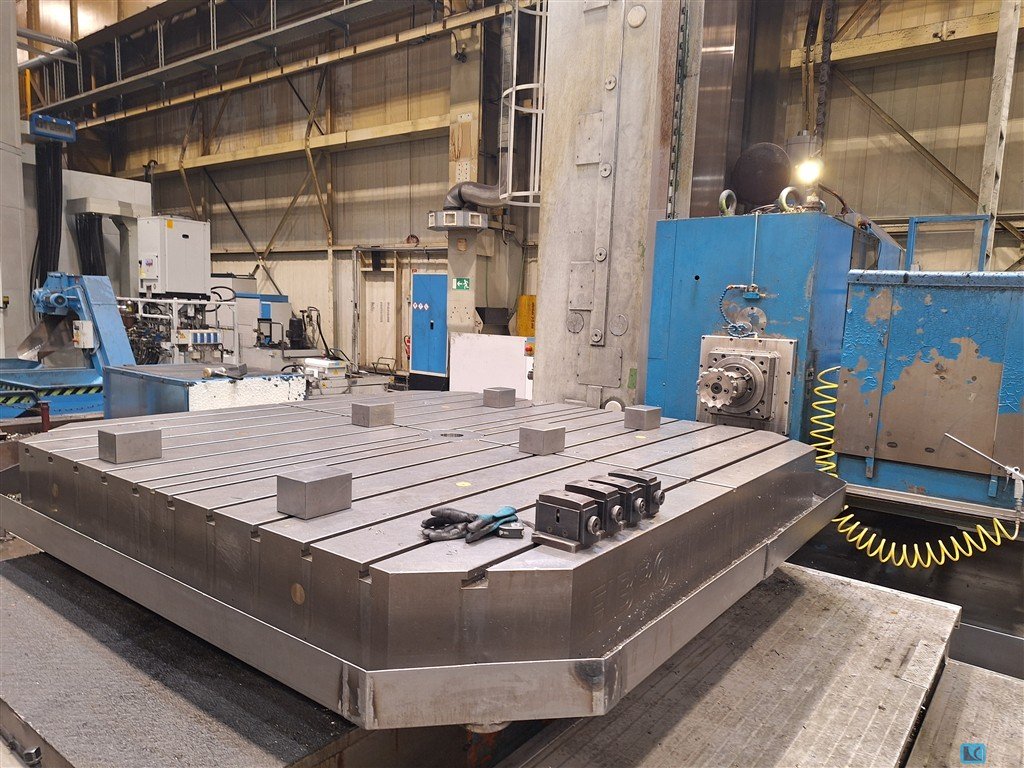

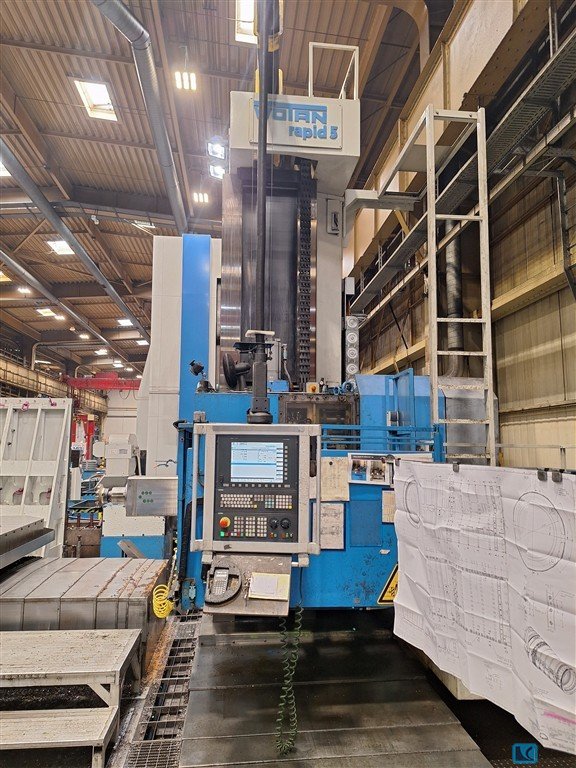

Type de machine : Aléseuse de plaques CNC Fabriquer WOTAN Type Rapide 5C Année de fabrication 2004 Type de commande HEIDENHAIN iTNC 530 Diamètre de la broche 160 mm X-off (mm) 10 000 Glissement annuel (mm) 3 800 Z-off (mm) 700 Sens W 700 mm Porte-outil Iso 50 Vitesses de (tr/min) 1,25 - 1250 Vitesse d’avance (mm/tr) 1 - 5000 mm/min Déplacement rapide 5 mtr/min. Puissance totale (KW) 120 /broche 83 Longueur (mm) 14.500 Largeur (mm) 3 850 Hauteur (mm) 7 360 Poids 62 300 kg Information - 2004 entièrement révisé et converti à la CNC par Dorries Scharmann Commande HEIDENHAIN iTNC 530 - 5 têtes de fraisage d’angle différentes - Roulement de broche hydrostatique - Guidages aérostatiques - Dispositif de refroidissement -Convoyeur -Refroidisseur d’huile

spindle diameter: 160 mm x-travel: 10.000 mm y-travel: 3.000 mm Control: total power requirement: 120/63 spindel kW weight of the machine ca.: 63 t dimensions of the machine ca.: 15x3.85x7.36 m Stocknumber 1210057 Type of machine CNC Floortype boring machine Make WOTAN Type Rapid 5C Build in 2004 Type of control HEIDENHAIN iTNC 530 Spindle diameter 160 mm X-stroke (mm) 10.000 Y-stroke (mm) 3.800 Z-stroke (mm) 700 W-stroke 700 mm Tool Taper Iso 50 Speeds (Rpm) 1,25 - 1250 Feeds (mm/R) 1 - 5000 mm/min Rapid feeds 5 mtr/min. Total Power (KW) 120 /spindel 83 Lenght (mm) 14.500 Width (mm) 3.850 Height (mm) 7.360 Weight 62.300 kg Additional information completely overhould in 2004 and retrofitted by Dorries Scharmann with CNC control HEIDENHAIN iTNC 530 - 4 different angular milling heads - hydrostatic spindle bearing - aerostatic guideways - coolant device - chip conveyo ...

INUTILISÉ: Facehead d’un foreur horizontal Wotan BF 160.

NOUS PROPOSONS UN SUPERBE EXCELLENT ÉTAT WOTAN CNC RAPID 1 AVEC UNE ÉNORME QUANTITÉ DE PLUS DE 400 OUTILS, POUR UN TRAVAIL SPÉCIAL. HEURES D’OUVERTURE : MISE SOUS TENSION : 13692 EXÉCUTION DU PROGRAMME : 4650 COURSE DE BROCHE : 4690 TEMPS DE L’AXE : 4568 TEMPS HYDRAULIQUE : 12702 LA MACHINE A DES COMMANDES HEIDENHAIN 530 DÉTAILS TECHNIQUES : VITESSE DE LA BROCHE : 6,3-1600 U/Min MOUVEMENT DE LA BROCHE : AXE Y : 1250 mm MOUVEMENT DE LA BROCHE DE PERÇAGE : AXE Z : 600 mm L : 1000 mm X : 2000 mm B : 360.000 DEGRÉS DIAMÈTRE DE LA BROCHE : 105 mm PORTE-OUTIL : ISO 50 SANS CHANGEUR D’OUTILS SERRAGE : HIDRAULIQUE CHARGE MAXIMALE DE LA TABLE : 6000 KG TABLE : 1120 X 1400 ÉCROU -BILD 7 ; 22H7 INDEXATION 4 X 90 DEGRÉS POIDS TOTAL : 16000 KG DIMENSION DE LA MACHINE : LONGUEUR 4800 X BREIT 4665 X HAUTEUR ...

HBM Wotan WMO B105, système de commande CNC Siemens 820M

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

spindle diameter: 120 mm x-travel: 1800 mm y-travel: 1300 mm z-travel: 1500 mm taper ISO: 50 Table dimensions: 1120x1400 mm number of spindle speeds: 0-1.000 total power requirement: 13,2 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm spindle taper ISO: SK50 number of spindle speeds: Max. 2000 min-1 bore spindle stroke: . mm main drive motor: . kW turning speeds: . U/min Feed: . mm/min Control: Heidenhain type: iTNC 430 T-slot - width: . mm T-slot - distance: . mm table surface area: 1000x1000 mm Table load: 4000 kg total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Machine number: 62099 The machine table can be rotated continuously via fixed control. Tool magazine has 40 positions. Conversion from Bosch NC System 5 to Heidenhain iTNC 430 approx. 2000 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage ...

Données techniques : 2011 entièrement remanié avec de nouveaux lecteurs SIEMENS, nouvelles échelles HEIDENHAIN Charge de table maximale : 25 à. Distance de fente : 180 mm Changement de table : 1000 mm Table Rotation B-axe: 360o Zone de clampage: 1600 x 2500 mm Nombre de rainures: 9

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

Sliding support, linear drive, clamping plate, unit carrier, milled surface, welding table, welding table -Spare part of: a Wotan table boring machine -compatible with: clamping plate ID 21339 -Width at the top: 80 mm -Width at the bottom: 270 mm -Length: 2200 mm -Height: 215 mm -Number: 2x available -Price: complete for both -Transport dimensions: 2200/600 / H300 mm -Weight: 556 kg

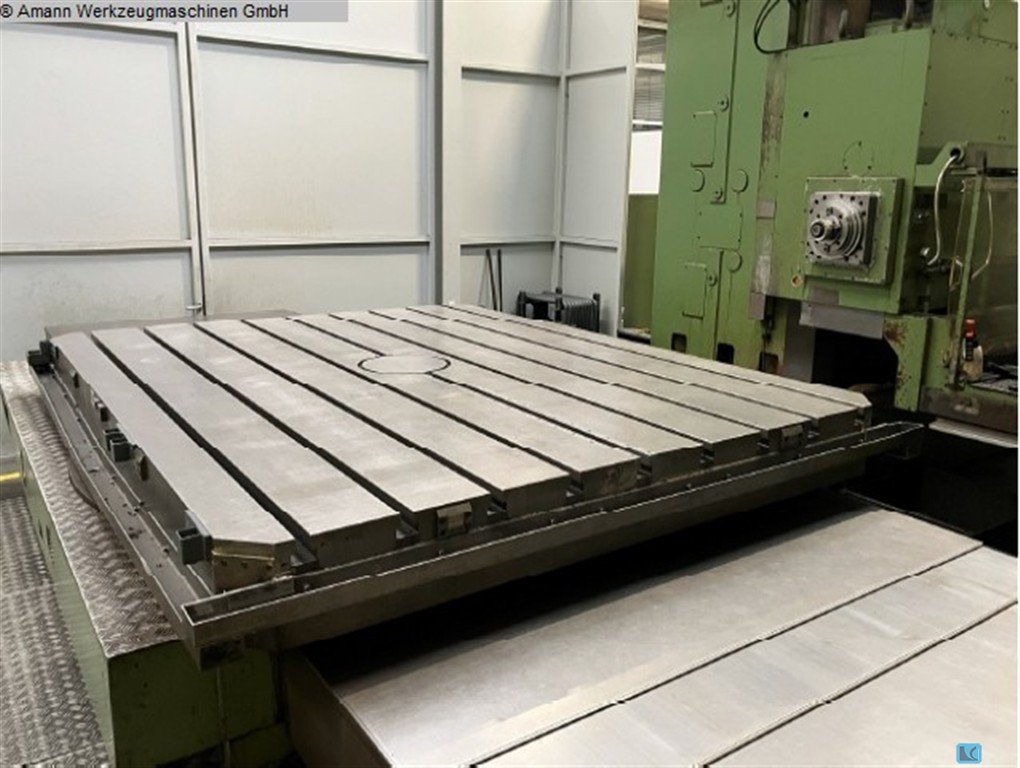

Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate -T-slot plate comes from: a WOTAN drilling machine -compatible with: Linear actuator ID 22786 -Travel: 1110 mm -Clamping plate: 1000 x 1260 mm (rotatable) -Plate is: Solid -Groove width: 21 mm -Dimensions: 2470/1070/H885 mm -Weight: 2200 kg

Diamètre de la pièce avec/sans repose-meulage : 400 mm/250 mm, longueur maximale de la pièce : 750 mm, charge de la tête de broche : 400 kg, diamètre de meulage interne : 350 mm, profondeur de meulage maximale : 500 mm, course X/Z : 300 mm/1000 mm, vitesse maximale de rotation : 15 m/min, système de commande : Siemens Sinumerik. Documentation disponible. Une inspection sur site est possible.

Une meuleuse interne Wotan est disponible. Diamètre de la pièce : 1200 mm, diamètre extérieur maximal : 1000 mm, diamètre maximal de l’alésage : 900 mm, débattement X/Z : 370 mm/800 mm, rotation : 15, course de la table : 500 mm, profondeur de meulage : 250 mm, vitesse : 220 tr/min. Dimensions de la machine X/Y/Z : environ 5000 mm/3000 mm/2200 mm, poids : environ 8 500 kg. Documentation vorhanden. Une inspection sur site est possible.

spindle diameter: 130 mm x-travel: 6000 mm y-travel: 2500 mm z-travel: 800 mm w- away: 600 mm rapid traverse: 10 m/min spindle speed:: 1600 UPM chip conveyor: vorne control: Seit 1998 Heidenhain Plate area: 6000x4000 mm power capacity: 45 kW The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Diamètre de la broche : 105 mm Course X : 1250 mm Course Y : 1000 mm Course Z : 600 mm Longueur de la table : 1100 mm Largeur de la table : 900 mm Adaptateur d’outil : 50 ISO / MK Puissance totale requise : kW Poids de la machine env. : t Perceuse de table CNC, Reconditionnée 2002, BOSCH CC 300

spindle diameter: 130 mm x-travel: 7700 mm y-travel: 1500 mm Control: Siemens type: Sinumerik 840 C spindle taper ISO: 130 turning speeds: 1490 U/min power capacity: 45 kW chip conveyor: Angle head: Angle head: Plate area: 9000x6000 mm workpiece weight: 100 t One direction thrust bearing: total power requirement: kW dimensions of the machine ca.: m Panel is optional and we charged extra The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

zone de serrage de l’outil: SK50 mm poids: 1 kg

Horizontal borer Wotan B105Y Fuseau: 120 mm Voyages: -X: 3000 mm -Y: 1450 mm -Z: 1280 mm Table: -1400 x 3000 mm -Pièce tournante: 1130 x 1500 mm (tourné manuellement à tous les degrés) -Charge maximale: 7 tn Poids de la machine: environ 25 tonnes
