tours machines d'occasion à vendre (3,107)

Technical data and specifications subject to change and error. Subject to prior sale.

Technical data and specifications subject to change and error. Subject to prior sale.

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Technical data subject to change, errors and prior sale reserved!

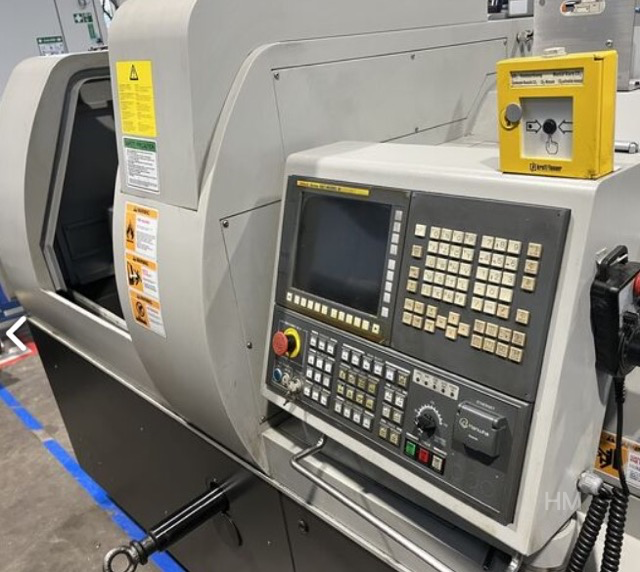

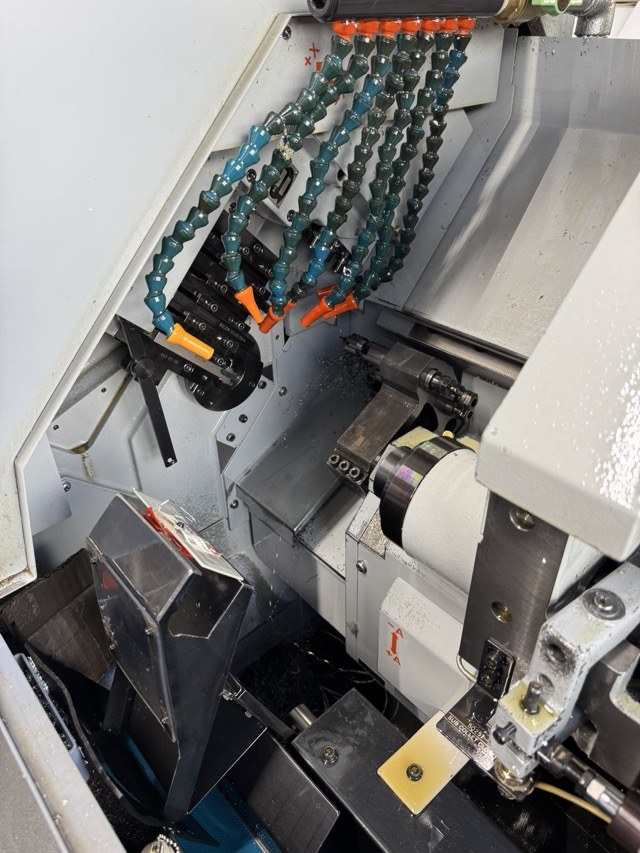

Year of manufacture: 08_2022 Fanuc control of the 0i series Hanwha CNC Swiss Type Lathe XD10 Y2 with Fanuc Control of the 0i Series The Hanwha CNC Swiss type lathe XD10 Y2 is a high-precision Swiss type automatic lathe with integrated Fanuc control of the 0i series, designed for machining small diameters in series production. It features a main spindle, sub-spindle, extensive tooling equipment, and accessories for efficient manufacturing processes. Main Spindle Maximum turning diameter: 10 mm Maximum spindle bore diameter: 15 mm Maximum speed: 15,000 rpm Maximum power: 3.7 kW (Built-in Motor) Z1 travel: 155 mm Synchronous rotating guide bushing unit: Type F853 Collet: Type 120E Sub-Spindle Maximum speed: 10,000 rpm Maximum power: 1.1 kW C-axis: Resolution 0.001° Maximum pick-up diameter: 10 mm Z2 travel: 180 mm Collet: Type 120E Tool Slide X1, Y1: Tool holder plate for 5 external turni ...

Technical data and information subject to change and error. Intermediate sale reserved.

The machine can be inspected by appointment. Subject to changes and errors in the technical data and information as well as prior sale!

The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

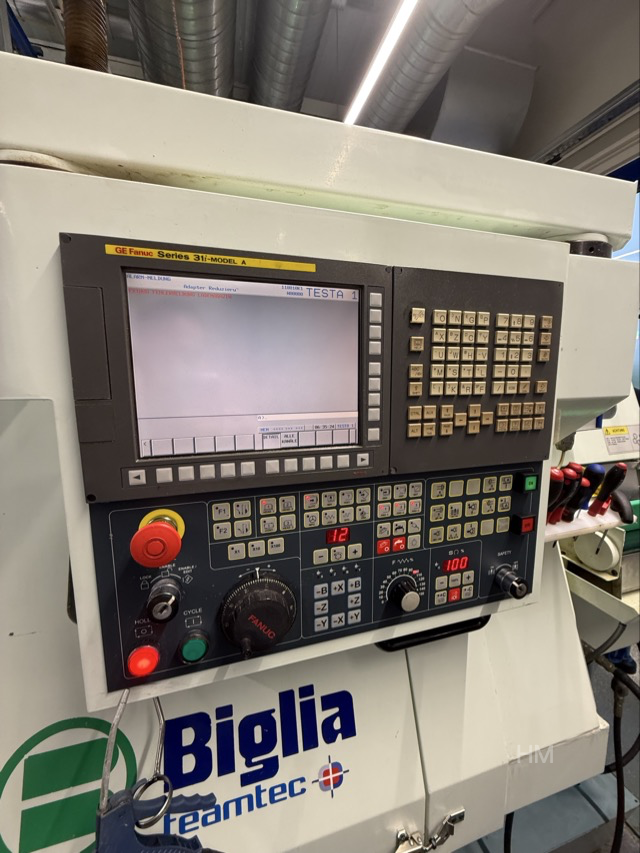

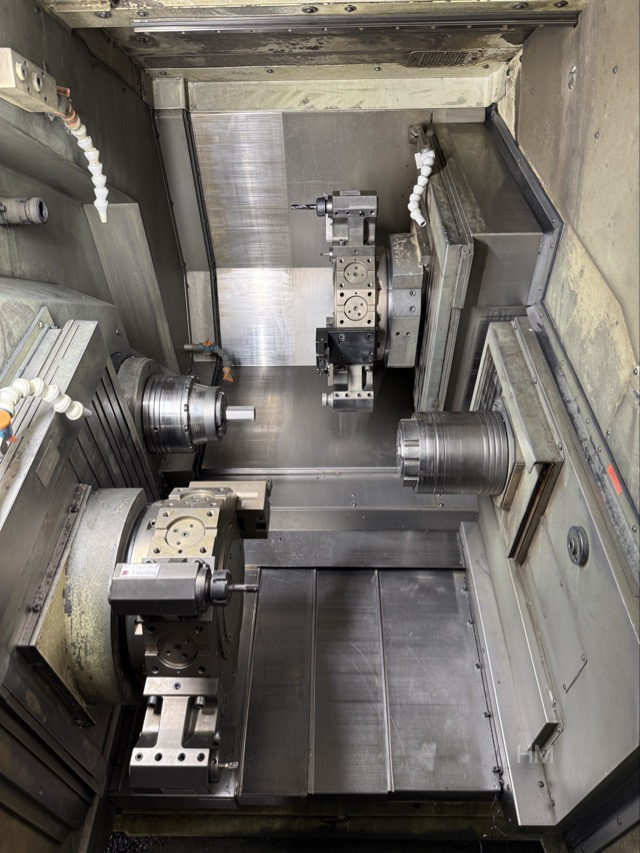

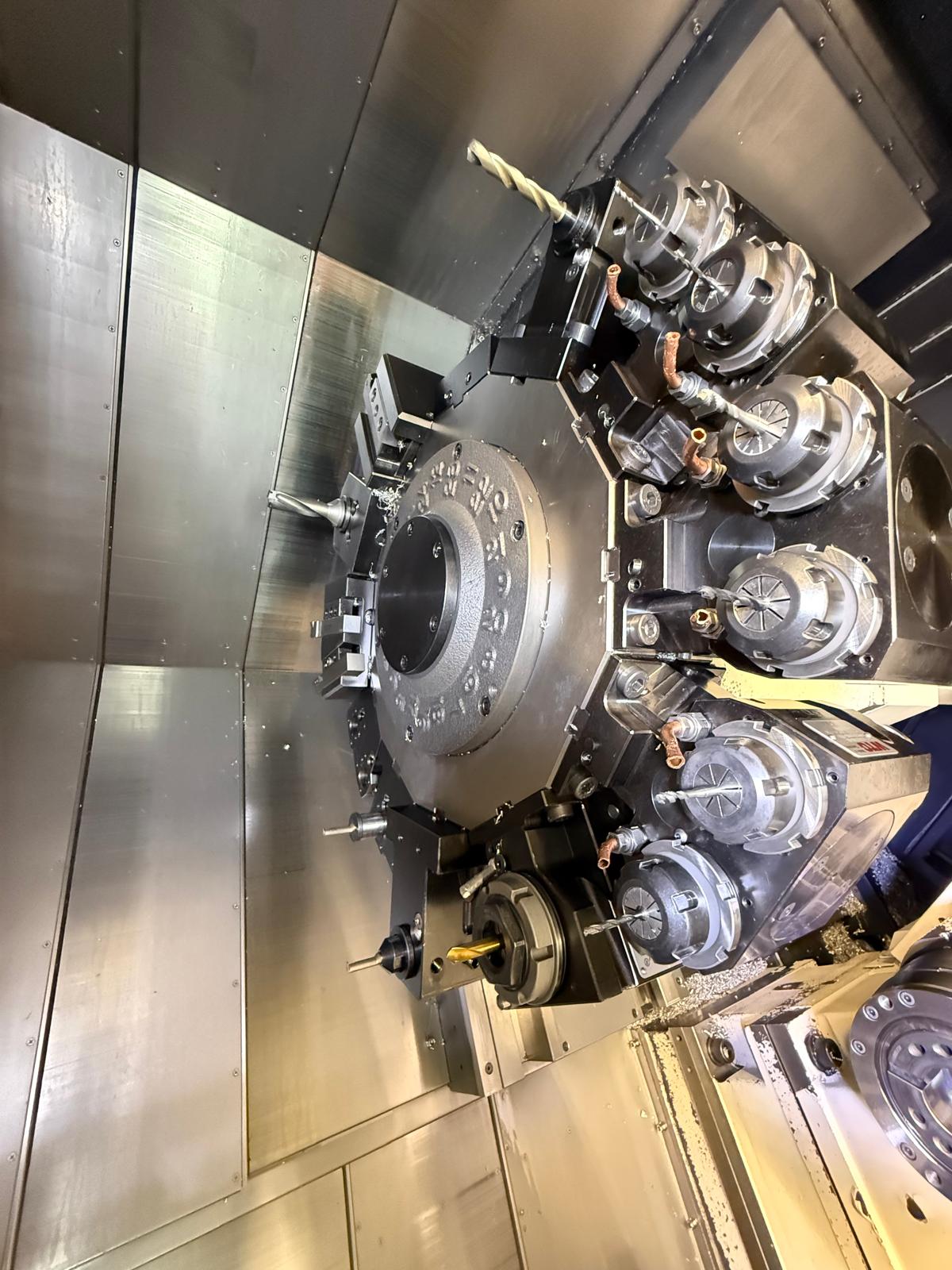

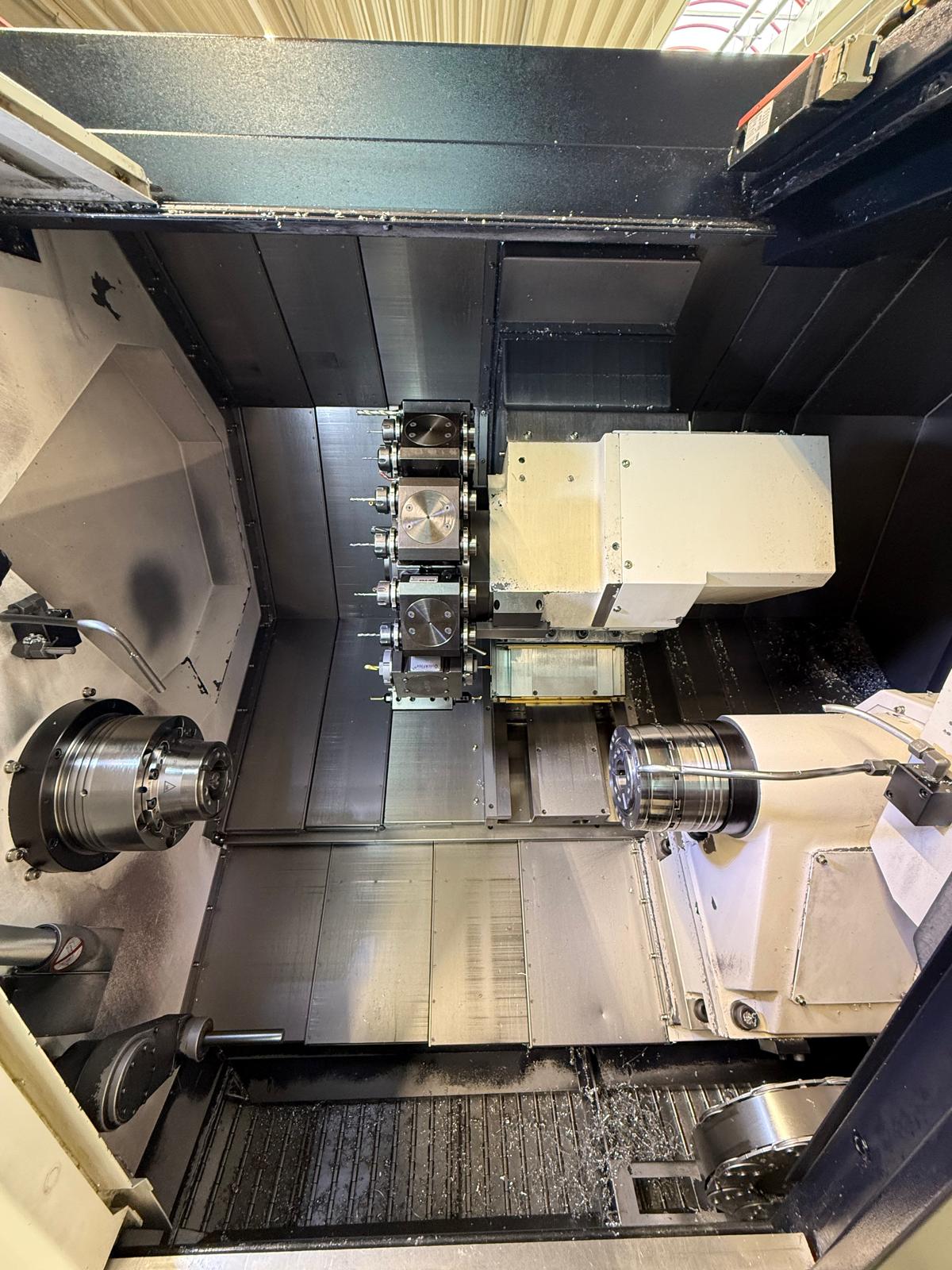

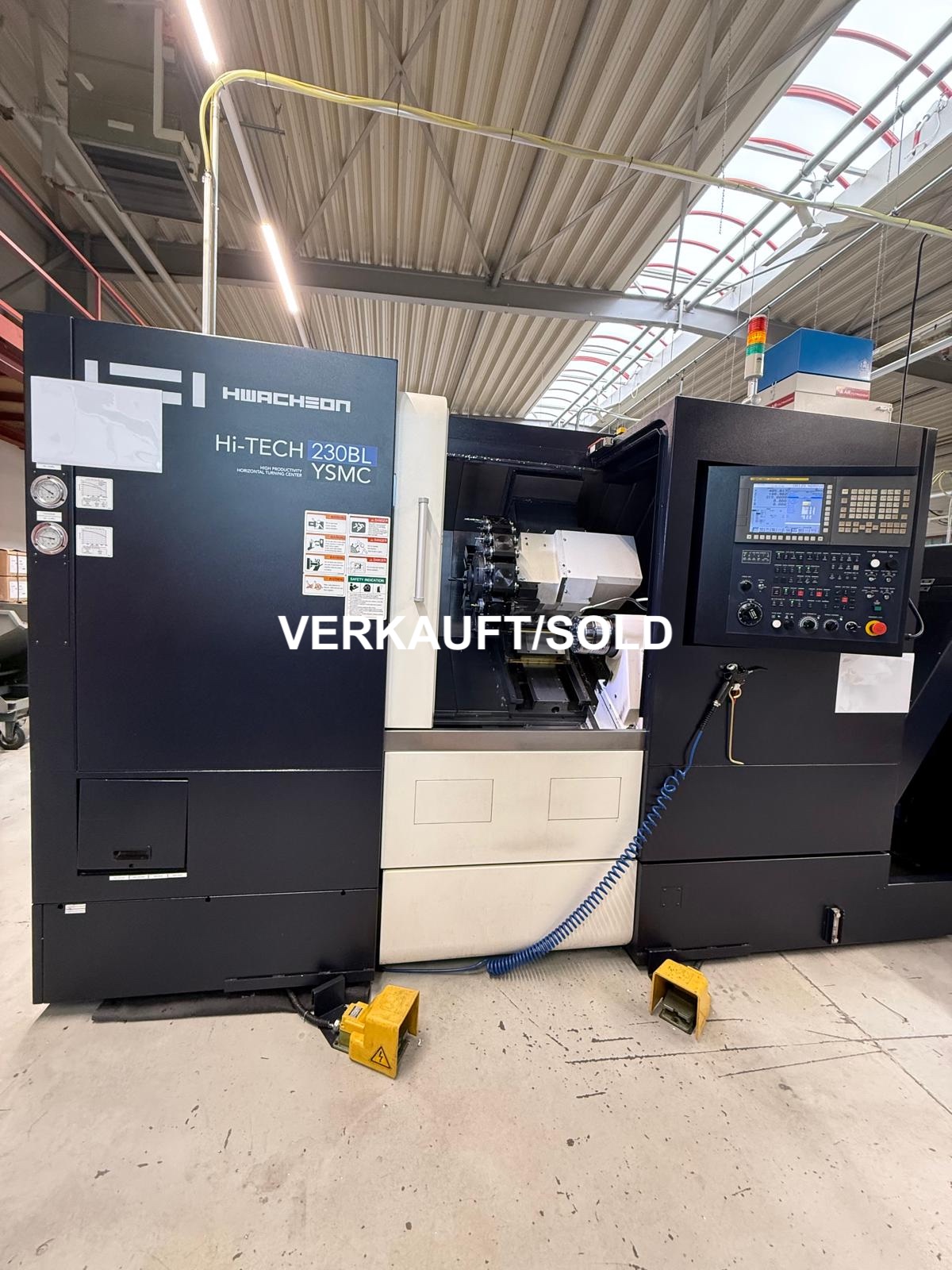

Year of manufacture: 2009 Machining time: 20,627 h Powerful CNC universal lathe with counter spindle and Y-axis. Control: Fanuc 31i-B Max. turning diameter for bar machining: 65 mm Max. turning diameter for chuck machining: 230 mm Turning length: approx. 250 (320) mm Max. swing diameter: approx. 520 mm Main spindle (HSP): Spindle nose: 6 Spindle bore: 80 mm Speed: 4,000–5,000 rpm Counter spindle (GSP): Spindle nose: 5 Spindle bore: 55 mm Speed: 5,000 rpm Tool turret: 2 × 12 stations, driven Y-axis travel: ±50 mm Equipment: 2 turrets, each with 12 tool positions and 24 driven tools 2 C-axes and 2 Y-axes CNCDB70 bar feeder from Giovanni Cucchi Workpiece unloading system with conveyor belt Chip conveyor with 2 pumps, 7 bar each, incl. filter Spray gun (4 bar) High-pressure pump 25 bar incl. filter Extended ejector 200 mm All tool holders shown in the pictures Complete technical do ...

Subject to changes and errors in technical data, and prior sale!

The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

The machine can be viewed by appointment. We reserve the right to make changes to the technical data and specifications, and to sell the item in the meantime.

The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

The machine can be viewed under power by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

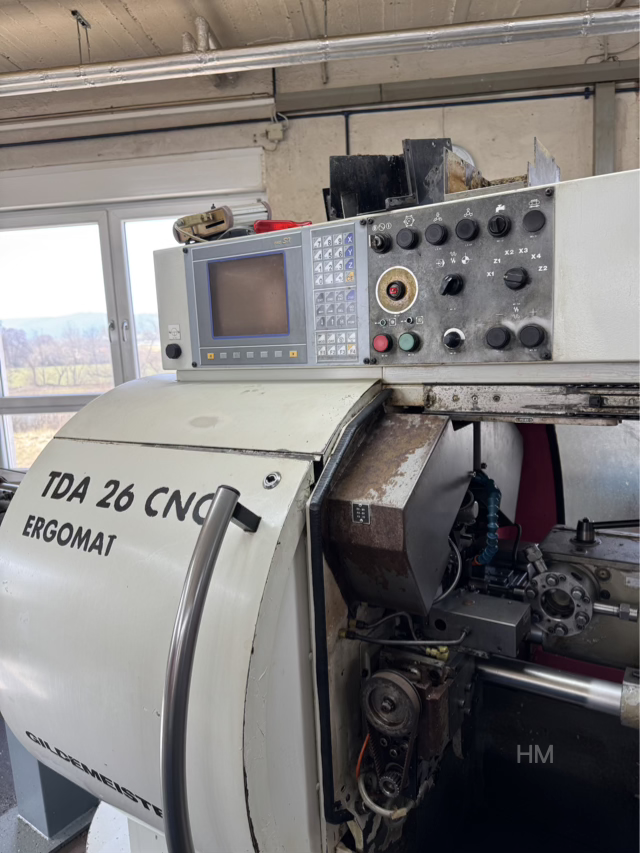

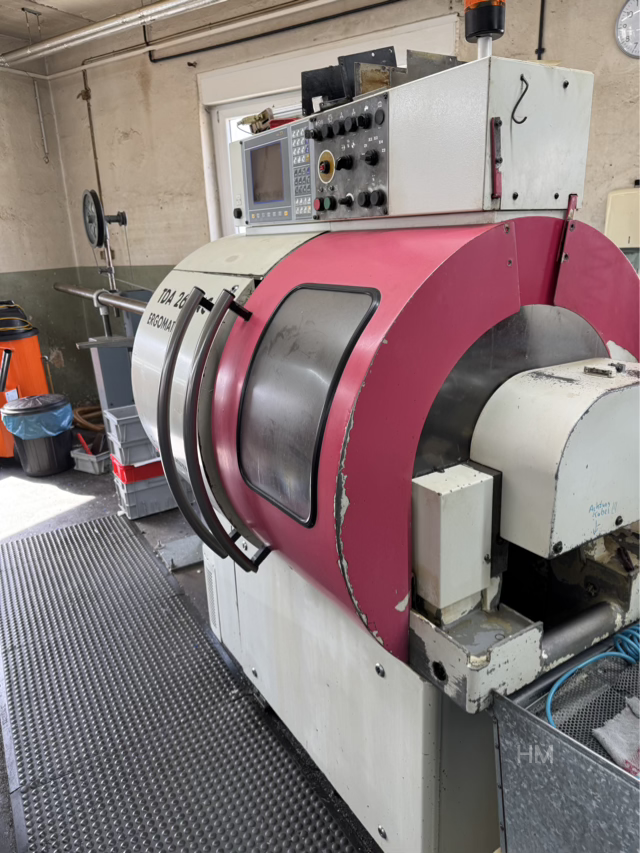

Year of manufacture: 1997 Control system: similar to Fanuc Technical specifications Max. bar diameter: 36 mm Standard bar capacity: 26 mm Max. turning length: 100 mm Swivel diameter over cross slide: 120 mm Main spindle Speed range: 100 – 6,300 rpm (continuously variable) Spindle power: 7.5 kW / 11 kW (continuous/peak) Spindle nose: A2-5 C-axis: resolution 0.001° Number of slides: 4 linear slides (X/Z) for simultaneous machining 8-station star turret (VDI 20) Rapid traverse speeds: 15 m/min (X-axis) / 20 m/min (Z-axis) Feed force: 2,500 N Single bar feed: ERGOMAT, for bar lengths up to 3,000 mm. The machine can be viewed in operation by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

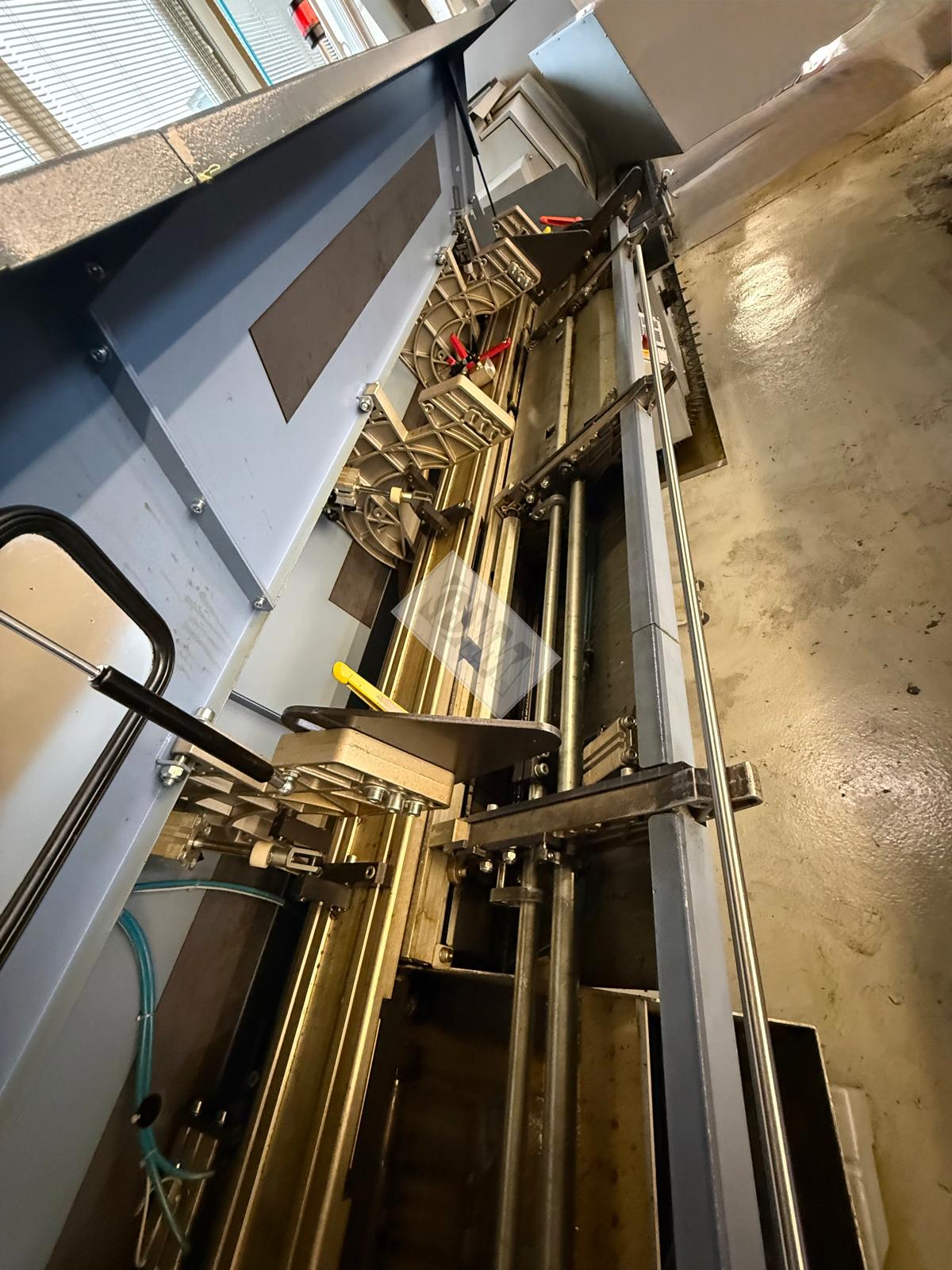

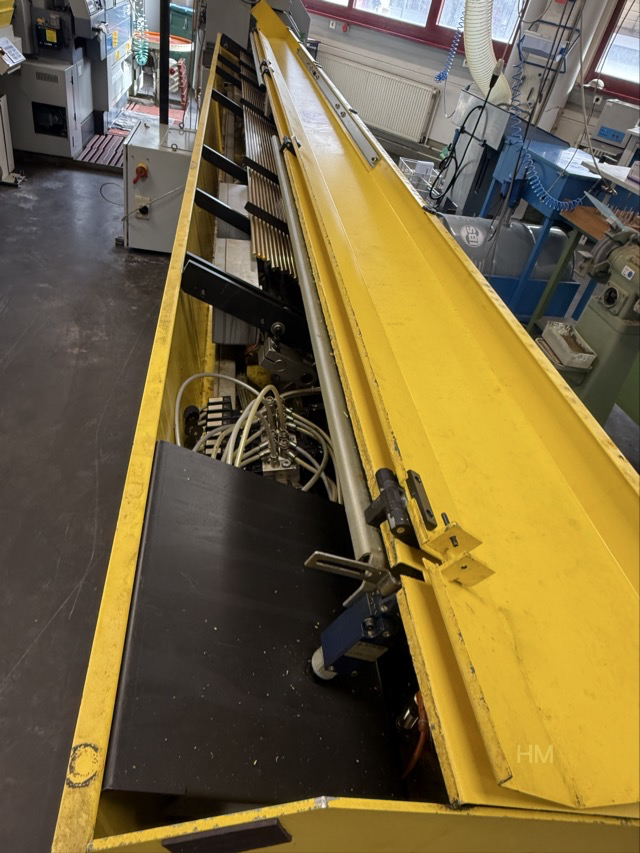

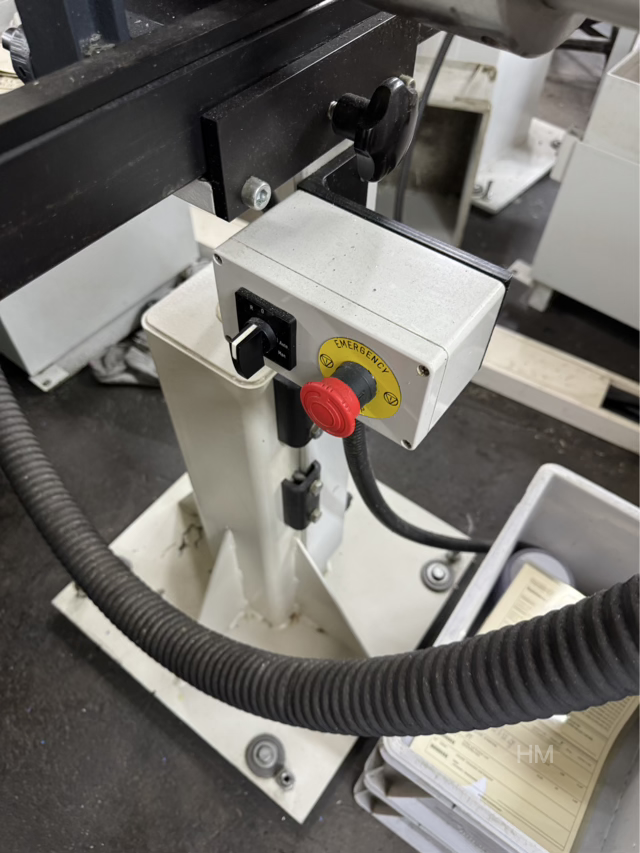

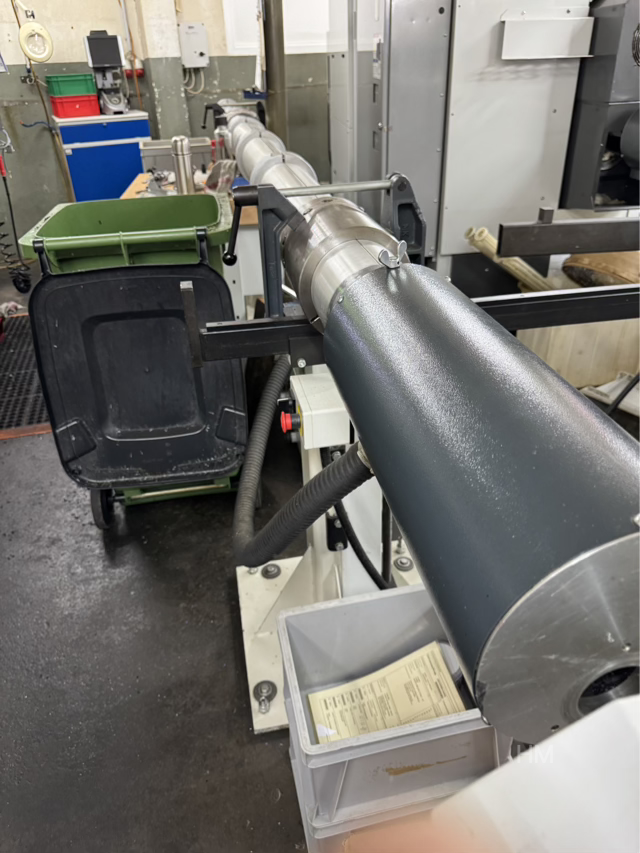

Year of manufacture 2011 Working range (diameter) Ø 6 mm to Ø 42 mm Max. bar length 3,000 mm Guide principle Hydrobaric (full oil bath) Feed drive Hydraulic Oil capacity approx. 150–170 litres (HLP 46 or equivalent) Total length of the magazine approx. 4,850 mm Weight (empty) approx. 650 kg The machine can be viewed in operation by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

The machine can be viewed in operation by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale

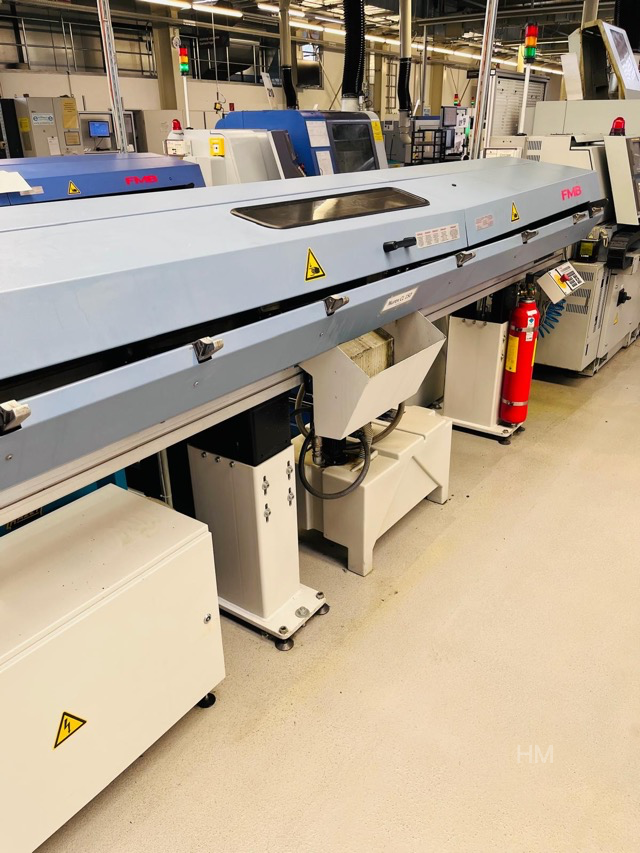

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 16 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Turbo 3-26 bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

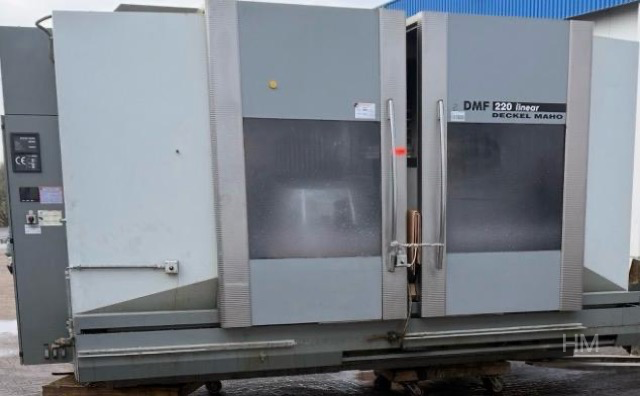

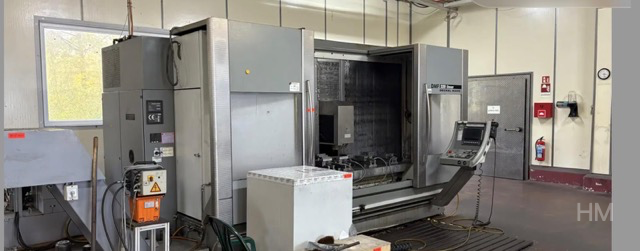

Year of manufacture: 2004. Control: Heidenhain iTNC 530. Technical data: Travel distance X: 2,500 mm. Travel distance Y: 920 mm. Travel distance Z: 820 mm. B-axis: x/- 105° Work table: 3100 x 900 mm Spindle exception: HSK 63 Spindle speeds: 20 - 18,000 rpm Tool changer: 30 pcs. Equipped with: - Chip conveyor - Cooling via spindle 40 bar - Operating instructions Country of origin: Germany Motor power: 35 KW Machine LxWxH: 6000 x 3800 x 2950 mm Machine weight: 25,000 kg The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of manufacture: 2022 Including accessories Subject to prior sale. Errors and changes in technical data reserved.

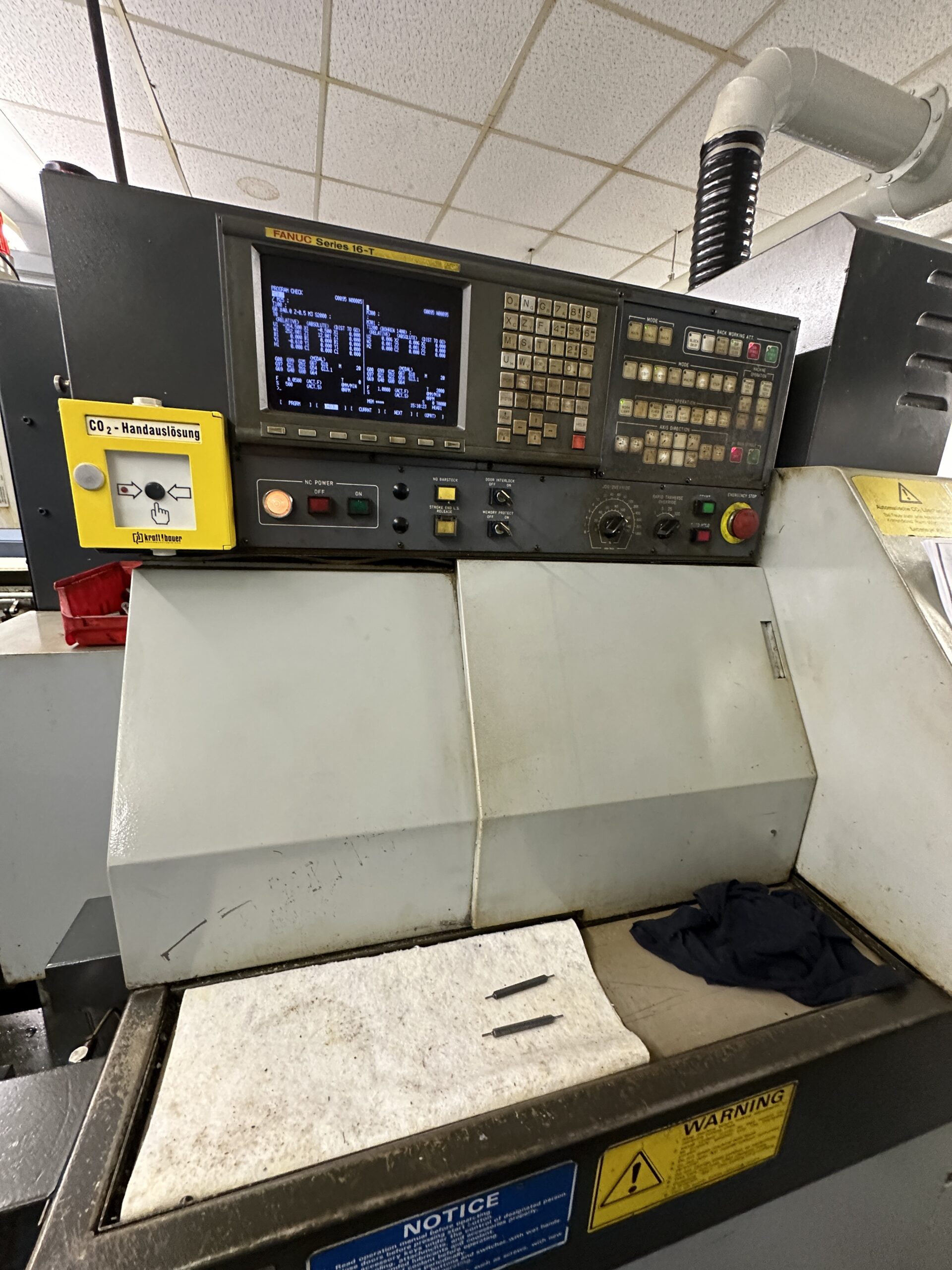

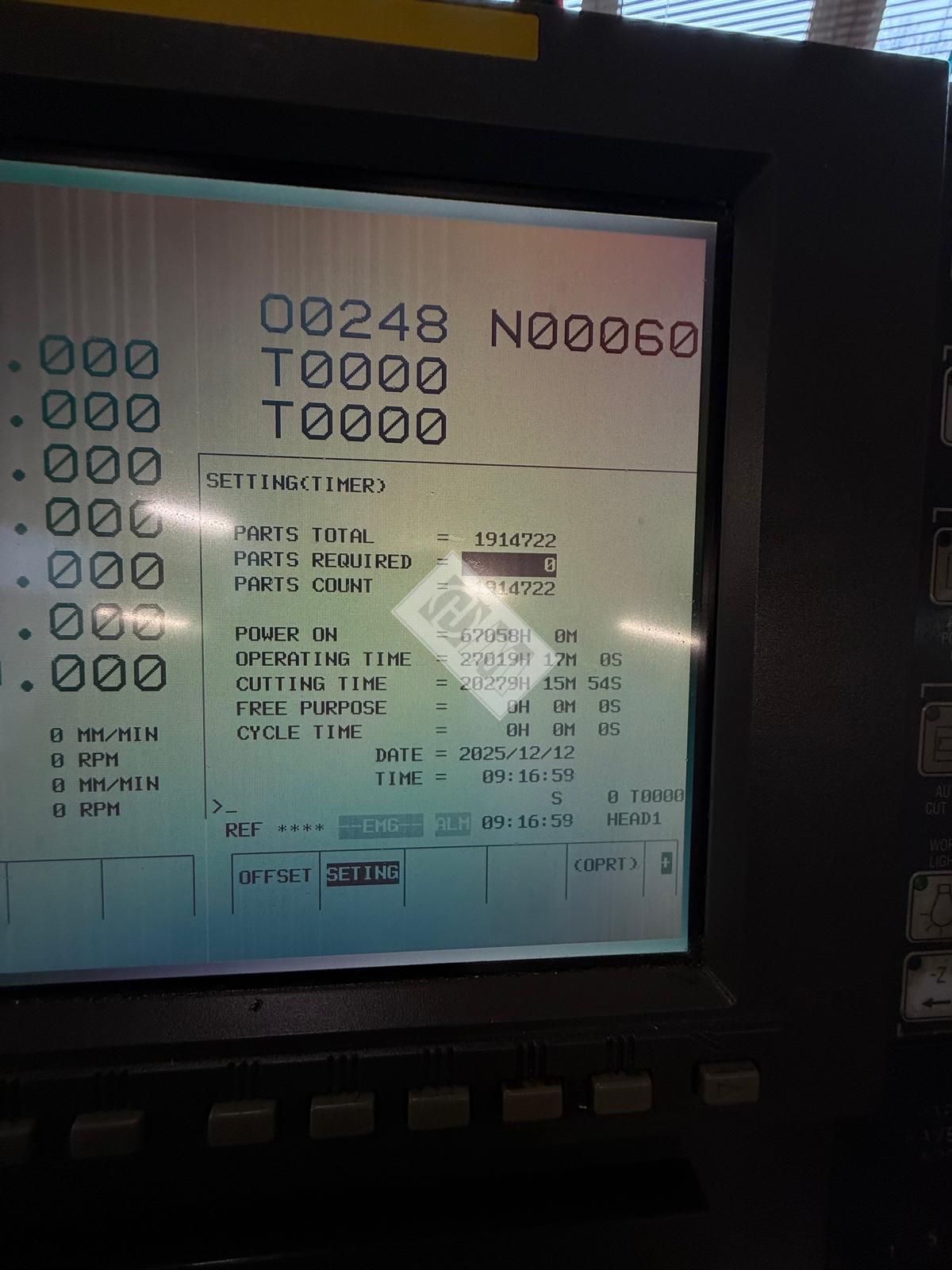

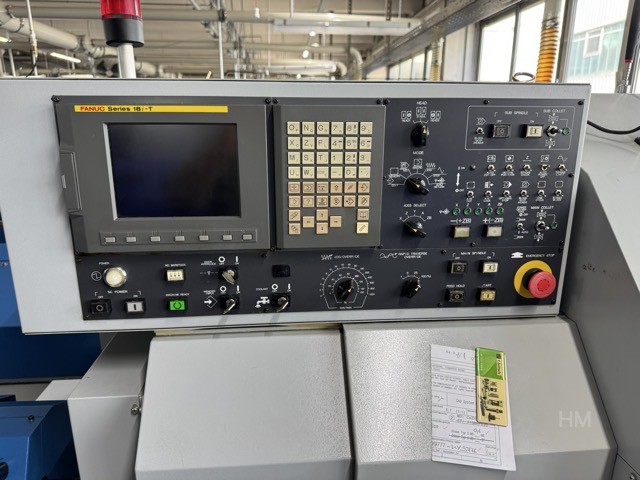

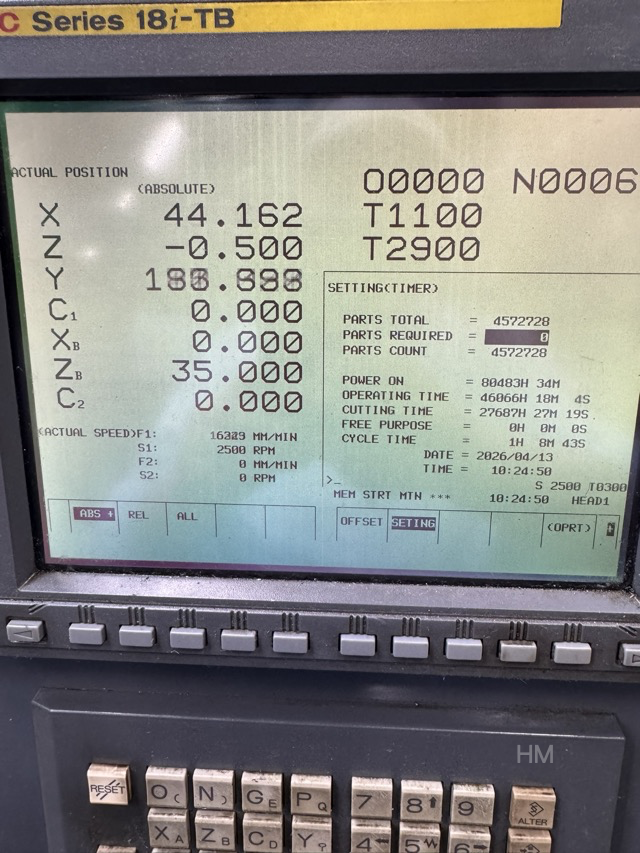

Year of manufacture: 2007 Machine type: CNC Swiss-type sliding headstock lathe Control: Fanuc, Series 18i-TB Power-on hours: 20,279 h Operating hours: 67,058 h Technical Data Machining capacity: Max. turning diameter: Ø 20 mm (optional up to Ø 22 mm) Max. turning length: 205 mm Main spindle: Speed: up to approx. 10,000–12,000 rpm Power: approx. 3.7–5.5 kW C-axis Sub-spindle: Speed: up to approx. 6,000–8,000 rpm C-axis Axes configuration: X1 / Z1 / Y1 (main machining) X2 / Z2 (sub-spindle) Rapid traverse: approx. 24–30 m/min Machine dimensions & weight Dimensions (L × W × H): 2400 × 1205 × 1700 mm Machine weight: approx. 2,200 kg Subject to prior sale, changes and errors in technical data and specifications excepted.

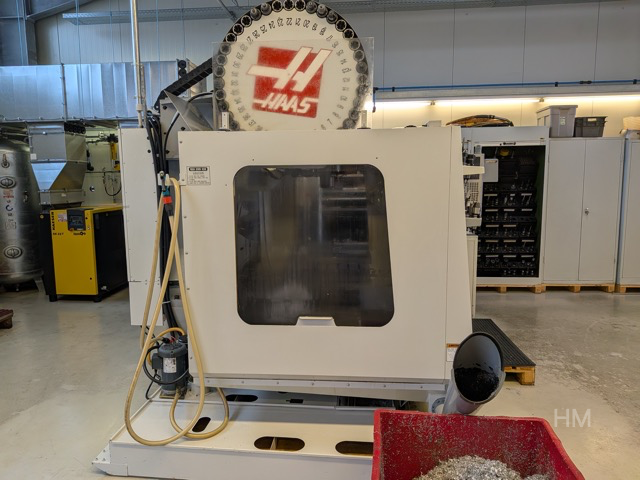

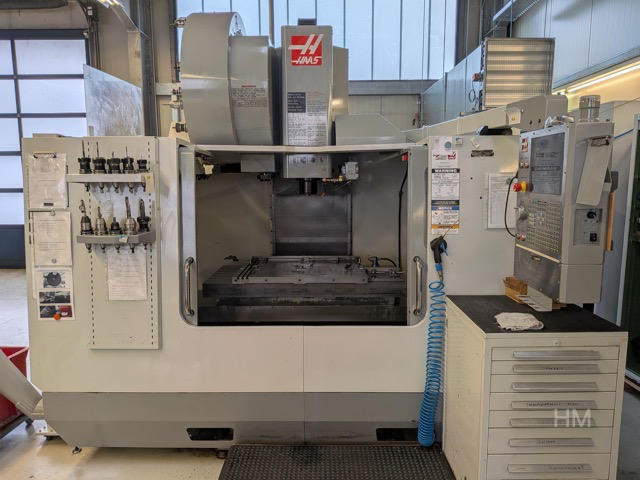

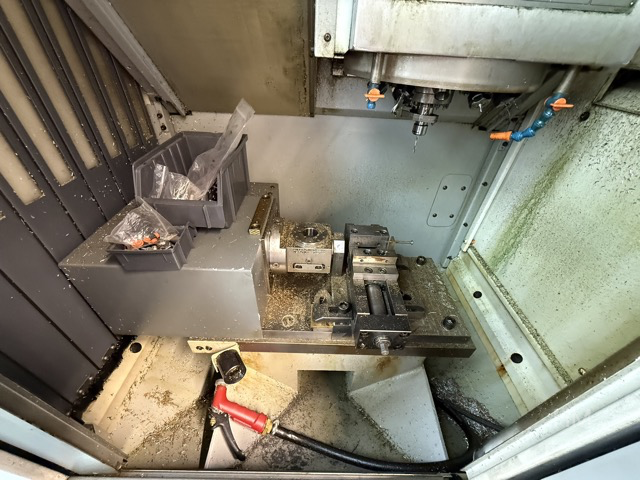

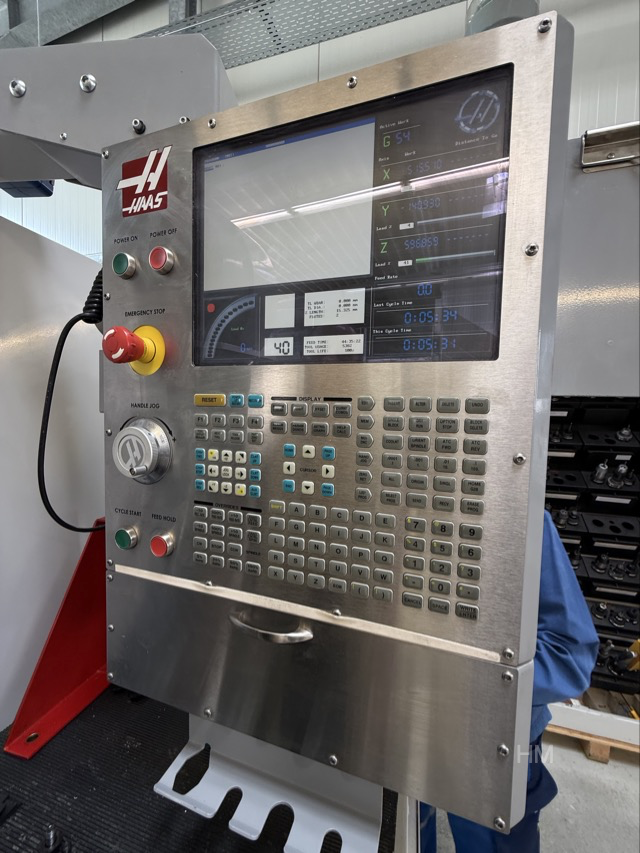

Year of manufacture: 2007 Control: Haas Drive type: High-speed spindle (High Efficiency) Axis configuration: 3-axis machining Technical Data Travels: X-axis: 1,010 mm Y-axis: 660 mm Z-axis: 608 mm Spindle speed: up to 10,000 rpm Axis Drives X/Y/Z axes: Ball screws, precision linear guides 3rd axis: Tilting / rotary table integrated, CNC-controlled Tool Changer Capacity: 40 tool positions Taper: SK40 Spindle gearbox replaced in 2024 Equipment Chip conveyor Installation Dimensions Approx. 3,870 x 2,510 x 2,690 mm (W x D x H) Machine weight: approx. 6,260 kg Condition The machine is fully operational both electrically and mechanically. Technical documentation is included. The machine can be inspected under power by appointment. Subject to prior sale. All specifications are indicative; errors and omissions excepted.

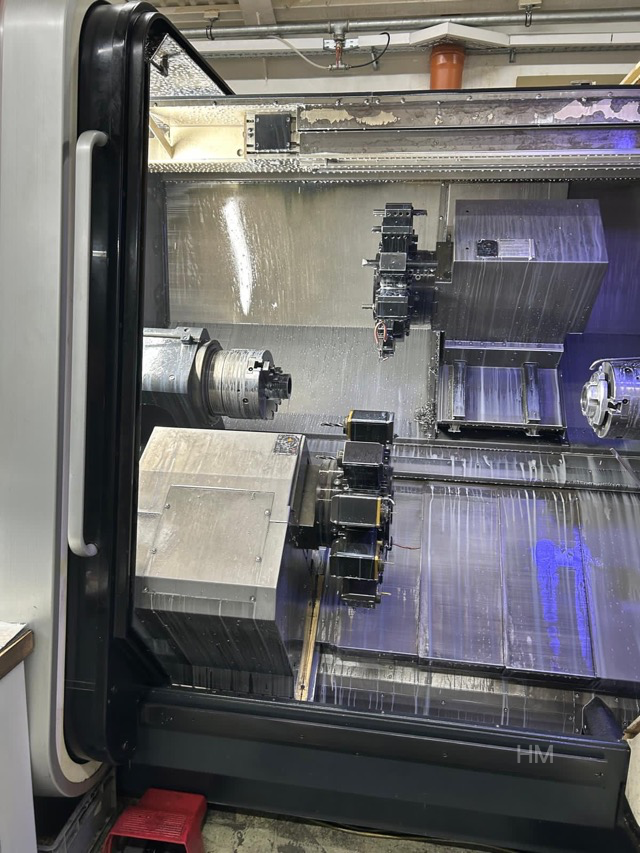

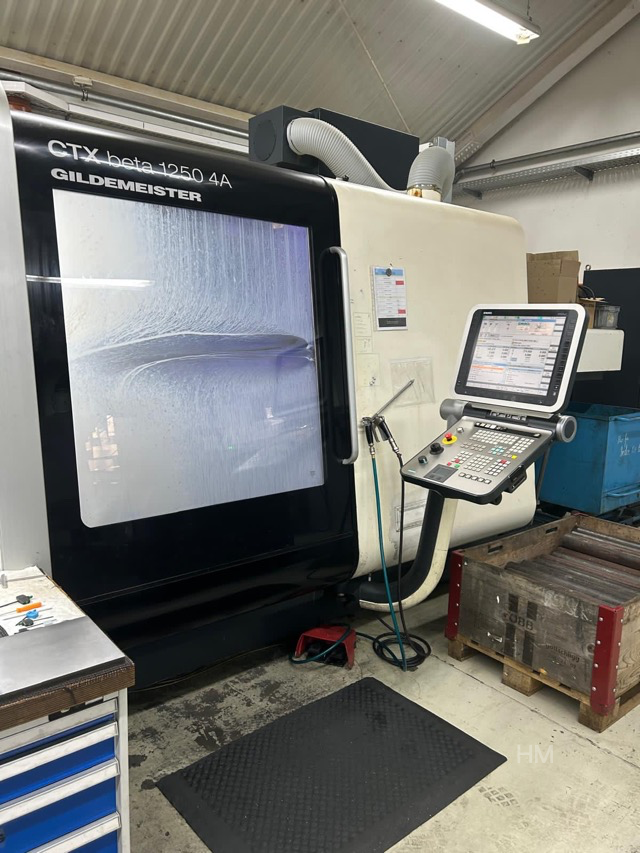

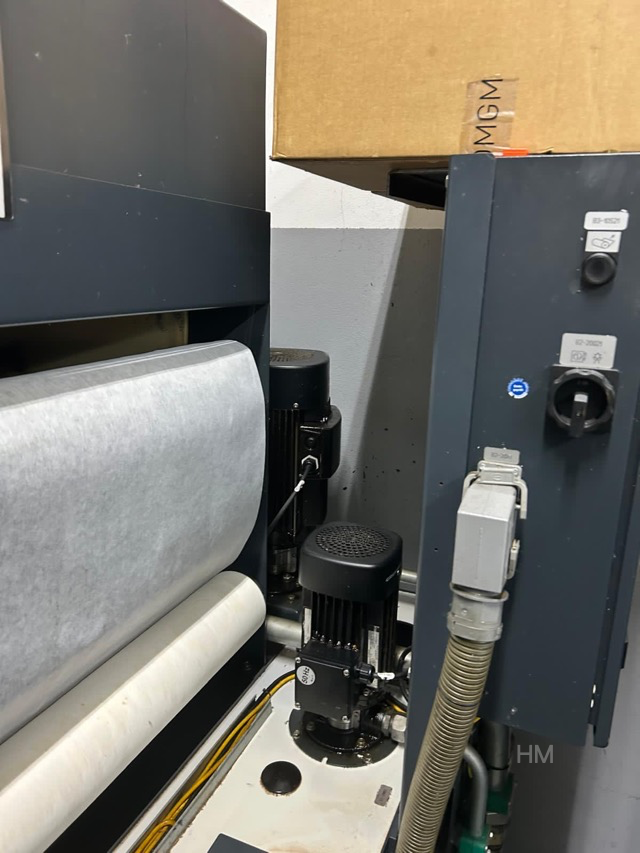

Year of manufacture: 2012 Spindle hours: 20,000 Turning diameter (max.): approx. 390 mm Turning length (max.): 1,250 mm Bar capacity: 76 mm (standard) X-axis: 300 mm Z-axis: 1,250 mm Y-axis: +/- 60 mm (on upper turret) Spindle specifications: Speed: up to 5,000 rpm Drive power: 34 kW (40% duty cycle) Torque: up to 380 Nm 4-axis kinematics 2 x 12 stations (all stations suitable for powered tools) Speed up to 6,000 rpm, power 11.3 kW Gear cutting software, including specialised tool holders for gear hobbing/cutting. IRCO MUK short loader Hinged belt chip conveyor 20 bar high-pressure system with paper belt filter We reserve the right to make changes and correct errors in the technical data, and to sell items prior to order!

The machine can be viewed by appointment. We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

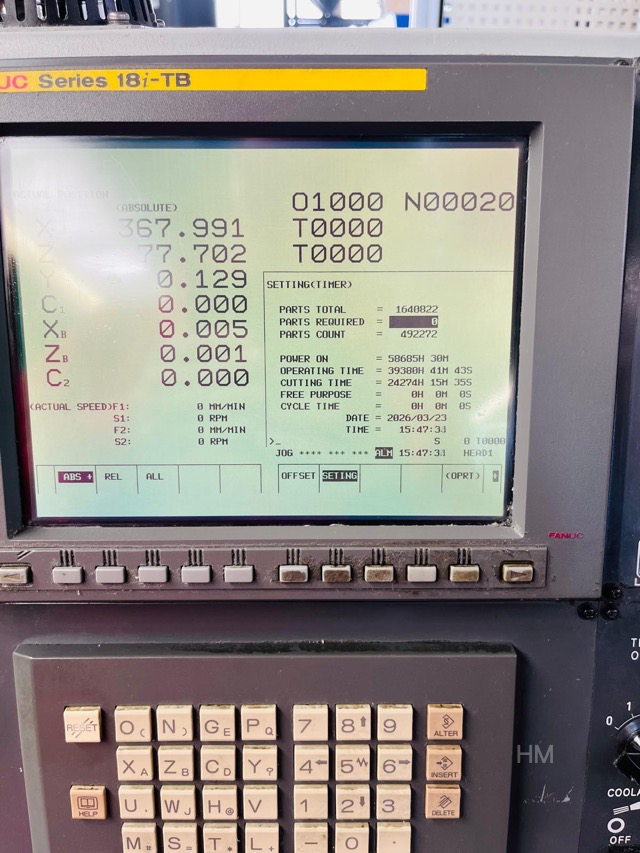

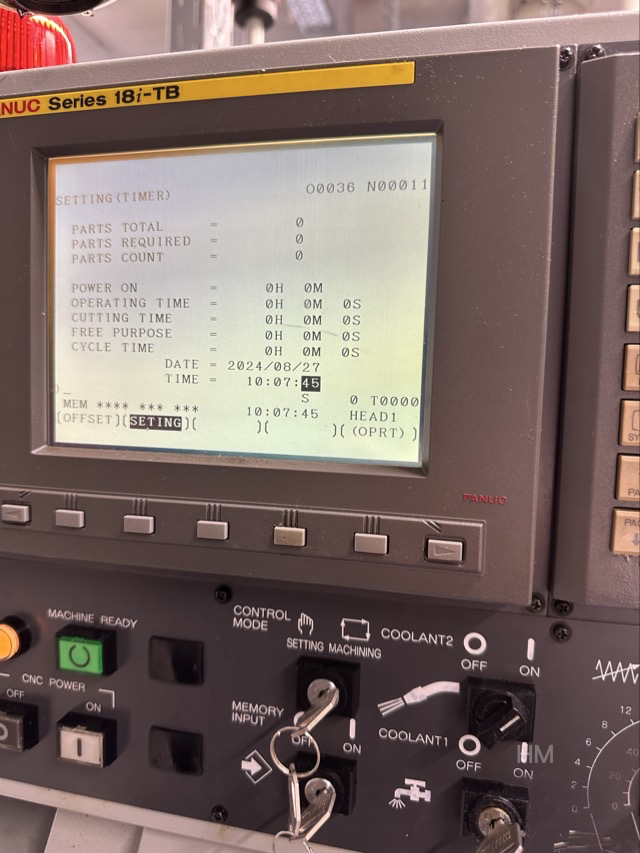

Year of manufacture: 12_2006 Control system: Fanuc 18i-TB Technical specifications Max. turning diameter: Ø 20 mm (optional up to Ø 22 mm) Turning length: 205 mm Main spindle: • Speed: up to approx. 10,000–12,000 rpm • Power: approx. 3.7–5.5 kW • C-axis for contour machining Counter spindle: • Speed: up to approx. 6,000–8,000 rpm • C-axis Axes (travel ranges): • X1 / Z1 / Y1 (main machining): X1 approx. 265 mm / Z1 approx. 205 mm / Y1 ± 20 mm • X2 / Z2 (counter spindle): similar to main axis, exact values depend on machine • Rapid traverse: approx. 24–30 m/min Machine dimensions: 2,400 × 1,205 × 1,700 mm Machine weight: approx. 2,200 kg Bar loading magazine: FMB TURBO 3-26/3200 Chip conveyor Viewing: The machine can be viewed on site by appointment. Note: Subject to changes and errors in the technical data, and prior sale!

Subject to changes and errors in technical data, and prior sale!

Subject to changes and errors in technical data, and prior sale!

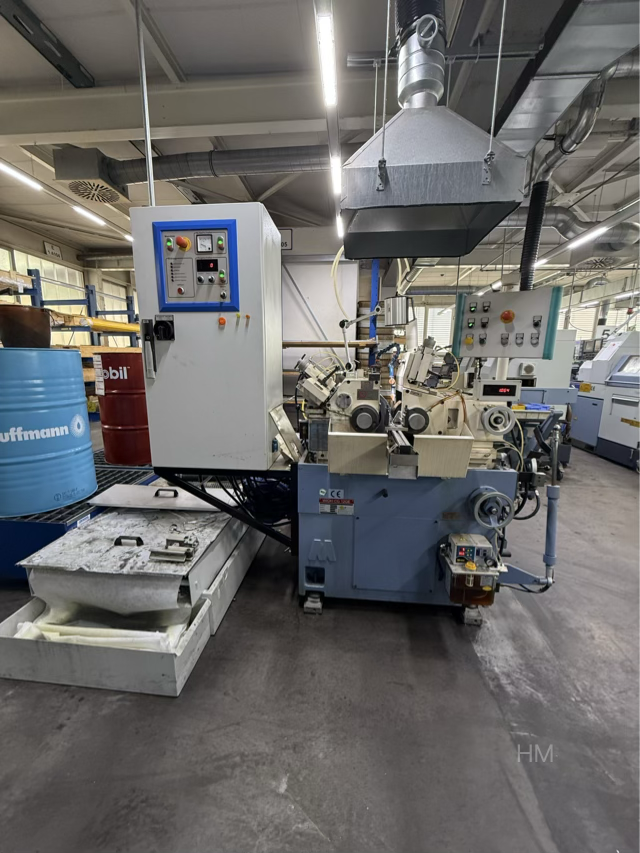

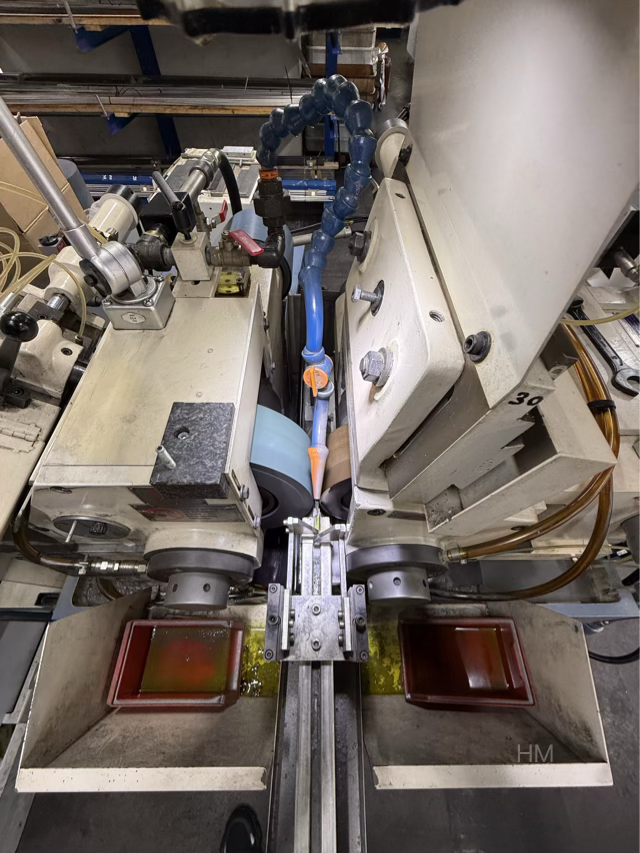

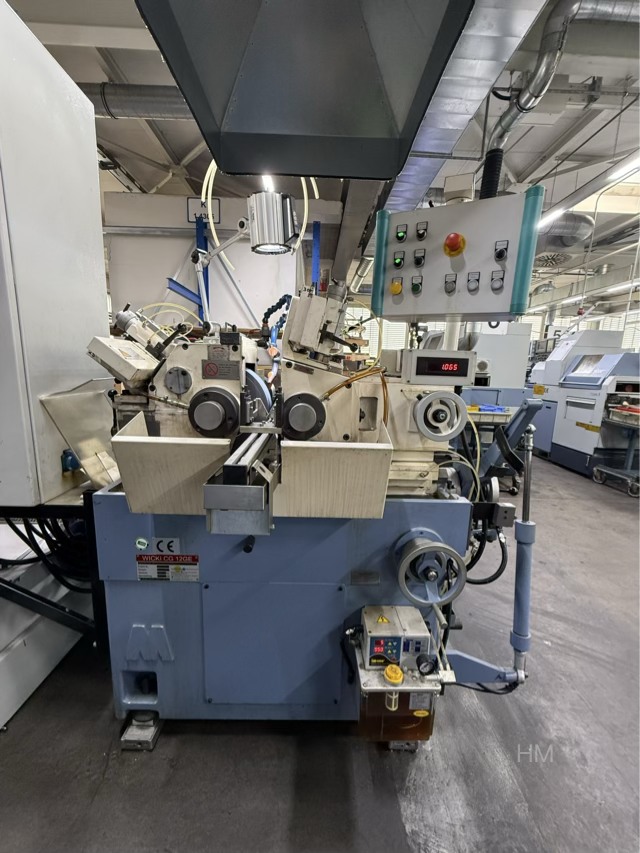

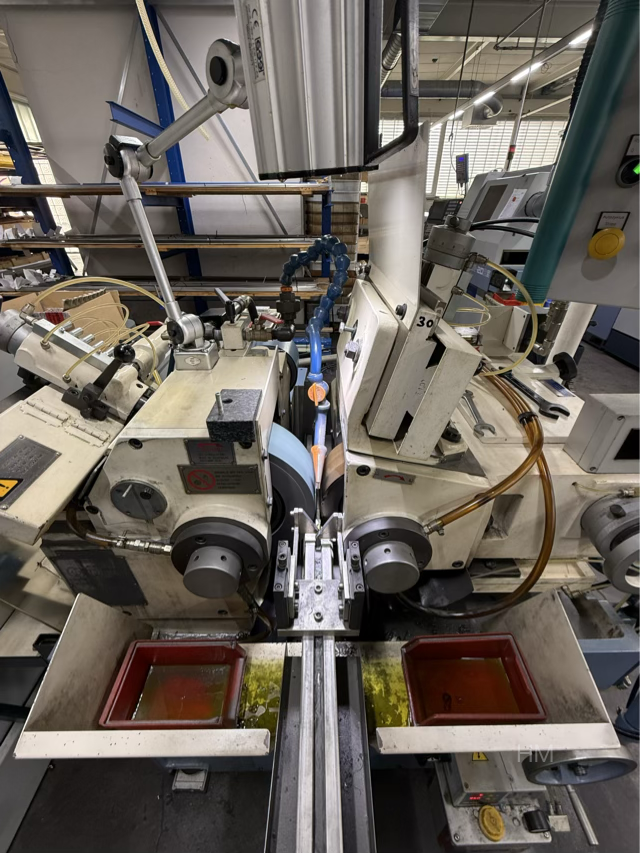

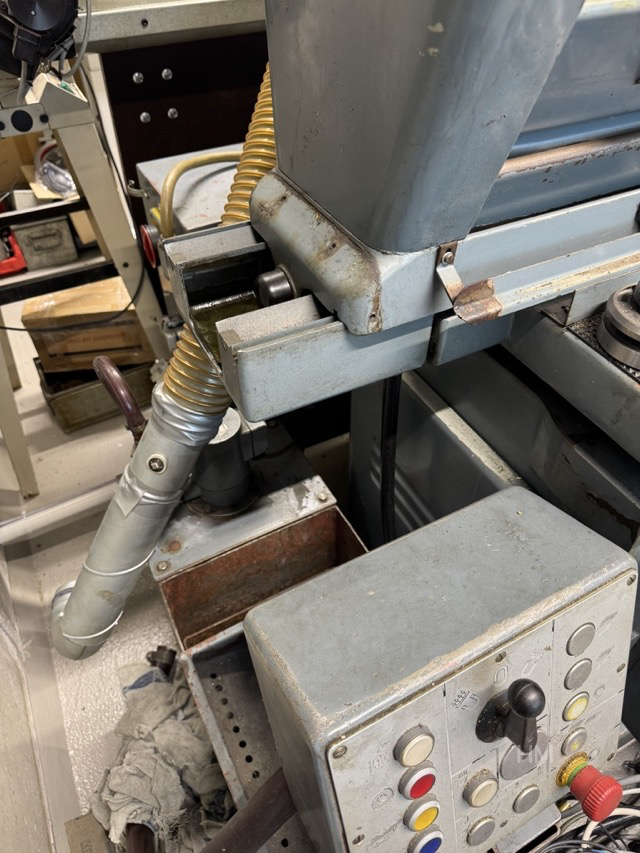

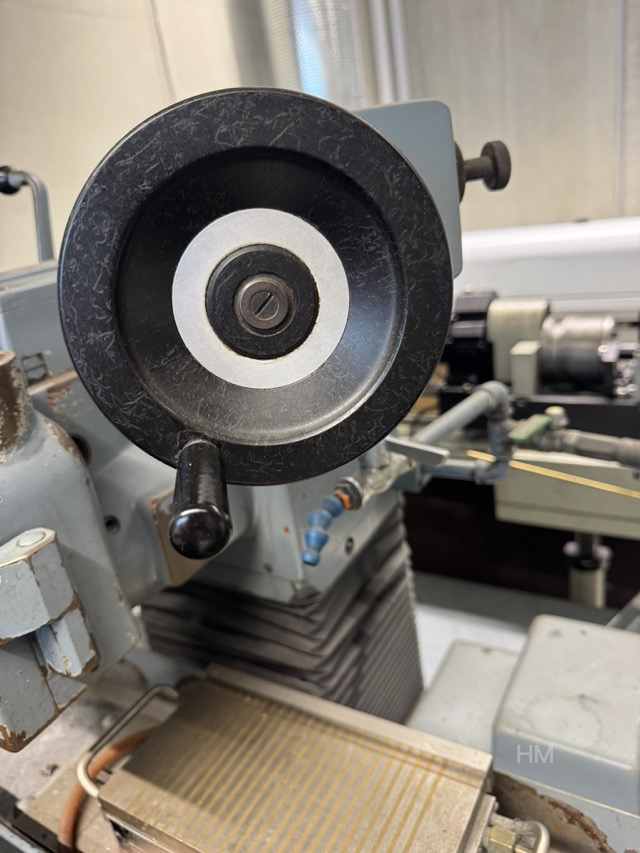

Year of manufacture 05 2015 The WICKI CG12GE is a high precision centerless grinding machine designed for efficient mass production of small to medium diameter cylindrical parts The machine operates without workpiece clamping between centers The workpiece is continuously guided between the grinding wheel regulating wheel and support blade ensuring very high dimensional accuracy surface quality and high productivity Grinding processes Through feed grinding for continuous serial production In feed plunge grinding for short precision parts and shoulders Technical data approx Grinding range Ø 1 30 mm Workpiece length up to approx 140 mm depending on process Grinding wheel Ø 305 150 127 mm Regulating wheel Ø 205 150 90 mm Grinding wheel speed approx 1900 rpm Grinding speed approx 30 m s Grinding wheel motor power approx 5 5 kW Regulating wheel motor power approx 1 3 kW Total connected  ...
