machines de boissons machines d'occasion à vendre (2,008)

Aperçu : Cette étiqueteuse à palettes a été fabriquée en 2023 par LOGOPAK. La machine est conçue pour appliquer des étiquettes autocollantes sur les palettes. Elle a été en service jusqu’en septembre 2025 et est actuellement arrêtée, toujours installée, avec l’alimentation coupée. La machine est disponible immédiatement et peut être visitée sur demande. La maintenance était effectuée deux fois par an ; . Données techniques Capacité : max. 100 palettes/heure Application : Étiquetage de palettes (auto-collant)

This plate heat exchanger from APV offers efficient and reliable heat transfer with a capacity of up to 240 hl/h in two stages. With a generous heat exchange area of 134 m² and a robust design for operating pressures up to 23 bar, this unit is well suited for demanding applications in breweries and the beverage industry. Thanks to its solid construction and compact design, it can be easily integrated into existing systems while ensuring high thermal performance and energy efficiency. An excellent and cost-effective solution for wort cooling, product heating, or other process applications. Our team at VBW Asset Trade will be happy to answer your questions., Capacity: 240 hl/h 2 stages, Heat exchange area: 134 m² plate tracery min. 880 mm, max. 910 mm, actual 885 mm, Operating pressure: 23 bar, Length: 2000 mm, Width: 700 mm, Height: 2000 mm

Rotary machine for capping swing-top bottles, Capacity: 18000 bottles/h closing heads: 24 pieces, Power: approx. 5 kW, Water: approx. 200 l/h, Compressed air: approx. 2 cbm/h, Length: 3,3 m, Width: 2,2 m, Height: 2,4 m, Weight: 3000 kg, Formats: 0,33 l; 0,5 l; max. bottle diameter 90 mm, Running direction: right - left, Material: Stainless steel, wear-resistant plastic, Base construction: miniaturized, hygienic machine table in outward beveled design, Features: mechanical / pneumatic control device (testing of bow clamping), central lubrication, height adjustment for processing of different bottle heights, rinsing and swelling device, high-pressure injection device, HDE injection nozzle at the discharge table, Discharge table, pusher station, without control cabinet

Carbonation system with integrated buffer tank, for the production of CO2-containing mineral water., Additional title: impregnation plant, Capacity: 20000 l/h, CO2 content: 12 g/l, CO2 carbonisation pressure: 7 bar, Max. tank pressure: 8 bar, Current: 69 A, Voltage: 230/400 V, Frequency: 50 Hz, Heating / Cooling: Connection pressure steam: min. 0.5, max. 1 bar, Water: Connection pressure: min. 4, max. 5 bar, Compressed air: min. 7, max. 10 bar, Length: 2 m, Width: 2,4 m, Height: 2,5 m, Weight: 4000 kg, Operation / Control: Siemens Simatic S5, Features: Saturation Tank (content = 750 l) with fill level detectors as a carbonisation tank, measuring writer (ABB), circulating pump (Hilge), various ventils

This pressure vessel from Werk Steinecke is a robust and reliable solution for use as a buffer tank in breweries and beverage processing plants. With a capacity of 178 hl and an operating pressure of 4 bar, it is ideal for intermediate storage and process buffering. The tank is designed for horizontal installation and features a solid industrial construction. It is equipped with a DN80 connection and can be fitted with the desired additional fittings from the available stock after consultation. A reliable and cost-effective solution for expanding or upgrading your production system. Our team at VBW Asset Trade will be happy to answer your questions., Additional title: puffer tank, Capacity: 17800 l, Working pressure: 4 bar, Length: 4,8 m, Width: 2,4 m, Height: 3 m, Weight: 2000 kg, Material: stainless steel, Position: horizontal, Features: DN80 , Periphery: After consultation, we can equ ...

Overview  The gravity filling machine is a rotating machine that works automatically and is suitable for filling bottles, cans made of zinc sheet or jars. It is used to add liquids (such as brine, oil, vinegar, sauce, sugar water, etc.) into containers filled with solids. It is also used to fill empty bottles. The filler block can be viewed at any time.  Technical details  Number of filling places: 48  Pitch circle diameter: 1560 mm  Capacity (last):  250- 300 bottles/ min at 500ml fruit syrup. For used twist-off cap an additional capper would have to be organized  160 - 200 bottles/ min at 250ml maple syrup  Used plastic cap can be applied by installed AROL capper  Dimensions  Length: 3.000 mm Width: 2.500 mm Height: 2.500 mm Weight: 6.500 kg   Electr. characteristics Voltage: 400 V - 50 Hz  Auxiliary voltage: 24 V DC  Installed power: 20 kW  Scope of delivery  Filler |  ...

This coding machine from Videojet Technologies GmbH is a powerful thermal transfer printer designed for reliable and precise product marking in packaging lines. With a capacity of up to 150 packages per minute, it is ideal for high-speed production environments. The machine is operated via the intuitive CLARiTY control system with a single monitor, ensuring simple and user-friendly handling. The device is mounted on a height-adjustable mobile carrier with feet and wheels, allowing it to be flexibly integrated into existing lines. Thanks to its modern design and robust construction, this machine offers a reliable and efficient solution for printing data, batch numbers, and product information. Our team at VBW Asset Trade will be happy to answer your questions., Additional title: Thermal transfer printer, Capacity: 150 packs/min , Current: 1,86 - 3,85 A, Voltage: 100 - 240 V, Frequency: 50 ...

Overview These 4 isobaric pressure tanks (200 hl each) manufactured by TMCI Padovan in 1992 originate from the wine industry and were previously used for sparkling wine production. With their full cooling jacket design and pressure rating of up to 6 bar, the tanks are suitable for fermentation, maturation, and storage of carbonated beverages, including beer, sparkling wine, and related products. The tanks are constructed from carbon steel with an internal food-grade epoxy coating, a technology widely used before stainless steel became the industry standard. They represent a cost-effective alternative to stainless steel tanks, particularly for producers seeking lower capital investment. Each tank is fully insulated and equipped with a complete cooling jacket, enabling controlled temperature processes. Due to the coating system, regular inspection and renewal of the epoxy lining is require ...

Jacuzzi isolé pour installation extérieure. Titre supplémentaire : Démontage de trub, Capacité : 18200 l, Volume net : 15000 l, Hauteur du moût : 1700 mm, Cylindre de hauteur : 2000 mm, Matériau : Acier inoxydable 1.4301 (AISI 304), Position : extérieur, Construction de base : récipient cylindrique, Caractéristiques : isolation (laine minérale de 100 mm)

Overview  This complete brewhouse was manufactured between 2011 and 2013 by various European manufacturers, including spanish manufacturer SlowBeer. It is for sale as the current owner is unable to dedicate sufficient time to its operation due to other business commitments. The brewhouse is currently dismantled and stored in Spain. Optional services such as dismantling, transport, and installation are available upon request. Technical data  Brewhouse capacity: 250 liters per batch Production cycle: approx. 2 weeks per batch Bottling cycle: 1 day per batch Production months/year: 10 months Shelf life of beer: 18 months Heating method: Electric (1 Hot Liquor Tank used), Butane option available (unused) Fermentation tank capacity: 500 liters each (3 tanks) Brewing system power: 15 kW Cooling system power: 2.3 kW Labeling power: 2 kW Scope of Delivery  1 x Brewing Unit | SlowBeer | MB 250 ...

Titre additionnel : y. o. c. : principalement 2003, Moût fini : 15000 l, Grains : 2500 kg, Courant : courant alternatif triphasé, Tension : 400 V, Fréquence : 50 Hz, Caractéristiques : lauter tun, système de cuisson basse pression pour mousset cuivre-tourbillon avec système externe d’ébullition du moût, tourbillon supplémentaire, unité de collecte de trub, dosage de houblon, Périphérie : chauffe-moût de lauter, condenseur à vapeur

Overview  This wrap-around carton packer was manufactured in 2008 by the German company MEYPACK. The machine is in very good condition and was used only occasionally, as the primary packaging method at the facility was plastic crates. It is already dismantled and stored in a warehouse and is available immediately. Technical data  Capacity: 60 packs/minute with 2x5 (10 bottles) 40 packs/minute with 4x5 (20 bottles) Packing type: Wrap-around carton box Carton dimensions: Length: 120 – 300 mm Width: 210 – 400 mm Height: 100 – 350 mm Formation of packs: 2x5 and 4x5 Scope of Delivery  Meypack VP 531WA wrap-around packer

Lame en acier inoxydable avec divers raccords., Titre additionnel : récipient à brasserie en acier inoxydable, Volume total : 30000 l, Surface approximative : 15 m², Charge spécifique à fond artificiel : 165 kg/m², Hauteur du châssis : 2 m, Matériau : Acier inoxydable, Caractéristiques : Support de sortie d’aération, dôme d’entrée (DN600), vitres d’inspection (DN600), voyant CIP, interrupteur de sécurité de porte, éclairage intérieur (IP54)

System for the pressureless production of aqueous chlorine dioxide solution This system enables the pressureless production of an aqueous chlorine dioxide solution. The two starting materials are fed into a reaction vessel one after the other via peristaltic pumps. The liquid level in the vessel is monitored by a level probe, ensuring a correct mixing ratio of 1:1. The operating time of the peristaltic pumps is also monitored and controlled by the software to ensure precise dosing. After the reaction time, the resulting chlorine dioxide solution is rinsed with water in the storage tank and then dosed to the point of use using a diaphragm dosing pump and a dosing valve. Our team at VBW Asset Trade will be happy to answer your questions. Send us an inquiry or simply give us a call!, Additional title: Water treatment - chlorination, Capacity: 18 g/h ClO2, Dosage volume: 9 l/h against 7 bar, ...

This vertical tank from König und Günther is a robust and reliable solution for storing liquids in breweries or beverage production facilities. With a capacity of 50 hl, it is designed for optimal use of space in a vertical position. The tank has a stable construction on three feet, a width of 1.5 m, a height of 3.7 m, and a weight of 300 kg. Its solid construction ensures safe and long-lasting operation and makes it suitable for a wide range of process applications. Our team at VBW Asset Trade will be happy to answer your questions. Send us an inquiry or simply give us a call!, Additional title: vertical stainless steel tank, Capacity: 5000 l, Width: 1.5 m, Height: 3.7 m, Weight: 300 kg, Position: vertical, Base construction: on 3 feet

Overview This Krones Linatronic M empty bottle inspector, manufactured in 2015, is designed for the reliable inspection of returnable glass bottles in beverage production lines. The system combines multiple inspection technologies including camera-based vision systems, infrared sensors, and high-frequency detection, ensuring the identification of contamination, residual liquids, closure issues, and bottle defects. With a capacity of up to 15,000 bottles and more per hour, the machine is well suited for medium-capacity bottling lines. The unit is equipped with a 3-fold Ecopush rejection system and supports a wide range of bottle types and glass colors, making it a flexible solution for breweries and beverage producers. Technical data Manufacturer: Krones Model: Linatronic M Machine type: Empty bottle inspector Year of manufacture: 2015 Capacity: up to approx. 15,000 bottles per hour and  ...

This vertical stainless steel tank from Christian Gresser Behälter- und Anlagenbau GmbH is designed for the efficient storage and processing of liquids, has a volume of 11 hl and an operating temperature of up to 50 °C. The tank has an insulated base construction and is equipped with a cartridge heater, a level indicator (hose), a sampling tap, a manhole opening with cover, an overflow, and two outlets with manual valve flaps, making it extremely versatile for various process applications. It has a width of 1 m, a height of 2.6 m, and a weight of 350 kg. Our team at VBW Asset Trade will be happy to answer your questions. Send us an inquiry or simply give us a call!, Additional title: heatable, vertical stainless steel tank, Volume: 1172 l, Operating temperature: 50 °C, Power: 25 kW, Voltage: 400 V 3~, Width: 1 m, Height: 2,6 m, Weight: 350 kg, Material: stainless steel, Position: vert ...

Aperçu La machine de nettoyage de bouteilles a été construite par l’entreprise allemande Krones en 2011. Il a été exploité dans un grand producteur de boissons jusqu’à la fin et est toujours assemblé.  Détails techniques Capacité : 20 000 bph Formats : 0,25l et 0,75l Nombre de bouteilles par rangée : 22 Siemens S7 Décharge d’étiquette d’équipement Pulvérisation rotative Machine continue Corps en acier inoxydable Documentation logicielle de secours Pompes en acier inoxydable Mesure de conductivité Tâches de doigt Pièces détachées Embouts de cellules de bouteille Supports de cellules de bouteille

Gamme de remplissage de bouteilles en verre retournables, Titre additionnel : Années de fabrication : 1991–1995, Capacité : 50 000 b/h, Formats : 0,33 l LongNeck, 0,5 l bouteilles NRW, étiquettes cou/poitrine/corps/arrière-étiquettes, Palettes européennes, Fonctionnement / Contrôle : Siemens S5, Caractéristiques : décrowneur, décrater, machine à laver à bouteilles, inspecteur de bouteilles vides, remplissage et fermoir, inspection de hauteur de remplissage, étiquette, datation, inspection des étiquettes, inspection du bouchon couronne, cratère, inspection de caisse remplie, convoyeurs de bouteilles et de caisses

The Pall CFS system is designed as a single unit and can be installed directly in front of the filling line without the need for a buffer system. It is a completely independent process unit consisting of the following components: filter vessel Piping and connections Membrane cleaning system (CIP) integrity check Switchboard The hygienic design, the simple integrity test and the full automation ensure the microbiological safety of the system and usually allow the operation of the filling staff. Cluster filtering groups filter elements into clusters. Each cluster has its own outlet valve. During filtration, all clusters are open. Cleaning, sterilization and integrity testing are performed per cluster. Advantages of the CFS principle; Longer life Integrity testing on site Integrity diagnostics per cluster Special rinsing High specific flow rate Short flush times Constant flow in all candles ...

Brewing plant with a mash-out wort volume of 20 hl, comprising the following components: 1. Malting plant (Joh. Albrecht, 2000, 500 kg/h) with mill, malt hopper, floor scale, malt conveyor and control cabinet 2. 3-vessel compact brewhouse with insulated stainless steel vessels with copper lids, spindle station and control cabinet 3. Fermentation and storage cellar with 4 x fermentation vats (Joh. Albrecht, 1999, 25 hl), 1 x fermentation tank (Nerb, 2002, 50 hl, 0.99 bar), 5 x storage tanks (Joh. Albrecht, 1999, 44 hl, 0.99 bar) and 6 x storage tanks (Joh. Albrecht, 1999, 22 hl, 0.99 bar). All tanks with jacket cooling. 4. Pressure tank cellar with 2 x pressure tanks (Speidel, 2021, 86 hl, 3 bar) and 1 x pressure tank (INOX, 2018, 67 hl, 3 bar). All tanks with jacket cooling. 5. Keg cleaning and filling system (BTB. Multimat MT/2, 1997, 17–20 kegs/h) 6. Refrigeration system acting as an ...

Flash pasteurizer for pasteurizing liquid food products. With pumps, preheater and control unit mounted on a common frame. Designed for a capacity of 1000 liters/hour., Additional title: Pasteurisation, Capacity: 1000 l/h, Compressed air: 6 bar for control air, Length: 1,7 m, Width: 1,2 m, Height: 2,5 m, Operation / Control: HMI on switch cabinet, Base construction: mounted on frame, Features: 2 x Alfa Laval plate heat exchangers, 2 x centrifugal pumps, pressure compensation tank, sight glass, temperature and pressure sensors, various other fittings and valves, HMI

Bottle washing machine (with chemical dosing) Manufacturer: Krones Model: Lavatec Kes Year of manufacture: 2000 Performance: 39,000 bottles/h, Additional title: Bottle washing machine, Capacity: 39000 Bottles/h, Length: 12700 mm, Width: 4700 mm, Height: 3500 mm, Formats: 0,33 l Vichy, 0,33 l Euro, 0,35 l Lemonade, and 0,5 l NRW, Operation / Control: Simatic S7-300, Position: free standing, Base construction: Single-end machine, self-supporting housing on dome feet, Features: H2 extraction, label press, bottle tables, ladders, walk-on platforms, various spare parts, another 400 baskets of 22 bottles each Concentrate dosing station, Layer patterns: 22 bottles per basket row

Packer for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Bottle holders: 5x20, 7x9 or 10x6 bottles., Additional title: Packing machine for bottle crates, Output according to design: 4000 crates/h, Current output approx.: 3000 crates/h , Air consumption: 0 Nm³/1000 bottles, Current: 17,59 A, Voltage: 220/400 V, Frequency: 50 Hz, Compressed air: 4 - 5 bar, Length: 3680 mm, Width: 2940 mm, Height: 2610 mm, Weight: 4200 kg, Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: converted to manual / PLC defective, Material: stainless steel / painted black steel, Position: free standing, Base construction: rectangular cycle packer machine on four columns with spherical feet, Features: Plexiglas safety screen opening upwards, safety grid, infeed and outfeed conveyors, packing head equipment for 0.5 l, 1.0 l and 1.5 l bottles, control panel conver ...

Crate washer for PETCYCLE plastic crates, Additional title: Crate cleaning system, Capacity: 2950 crates/h, Power: 18 kW, Current: 38 A, Voltage: 230/400 V, Frequency: 50 Hz, Length: 7300 mm, Width: 1570 mm, Height: 1710 mm, Weight: 1900 kg, Formats: plastic crate: 20 x 0,5 l, 9 x 1,0 l, 6 x 1,0 l, 6 x 1,5 l , Running direction: transverse, Material: stainless steel, Position: free standing, Base construction: Self-supporting machine housing in block construction on spherical feet, Features: Caustic, hot water and fresh water spraying, inspection window, platform with staircase and railing, crate turner,

Premix plant for the production of highly and low carbonated beverages. The technical process steps are: degassing of water, carbonation of water, dosing of fruit juice in a partial stream into the carbonated water. Mixing takes place in the mixing section to the equalising tank. The water used is sterile-filtered in the inlet via two particle filters., Additional title: Intermix system with carbonisation unit, Water output: 22575 l/h, Fruit juice output: 4907 l/h, Operation / Control: Control panel, manual, Material: Lacquered mild steel frame, stainless steel product contacts, Position: Free standing, Base construction: Open frame construction with spherical feet, Features: Deaeration tank, impregnation tank, equalisation tank, CO2 dosage control, internal piping, pumps and fittings, control cabinet 2 trap filters for fine filtration of water in the inlet

Détecteur de niveau de remplissage MIHO pour détecter les bouteilles sous-remplies ou trop remplies, ainsi que pour la détection des bouchons. L’appareil fonctionne avec une tension alternée haute fréquence., Titre additionnel : Système d’inspection du niveau de remplissage, Capacité : 24000 b/h, Fonctionnement / Contrôle : au box de contrôle, Matériau : Acier peint / acier inoxydable, Position : autoportante / montée sur le transport de la bouteille, Construction de la base : Boîtier avec électronique d’évaluation avec cadre tubulaire sur pieds sphériques, Caractéristiques : Dispositif de mesure, électronique de contrôle, éjecteur de bouteille

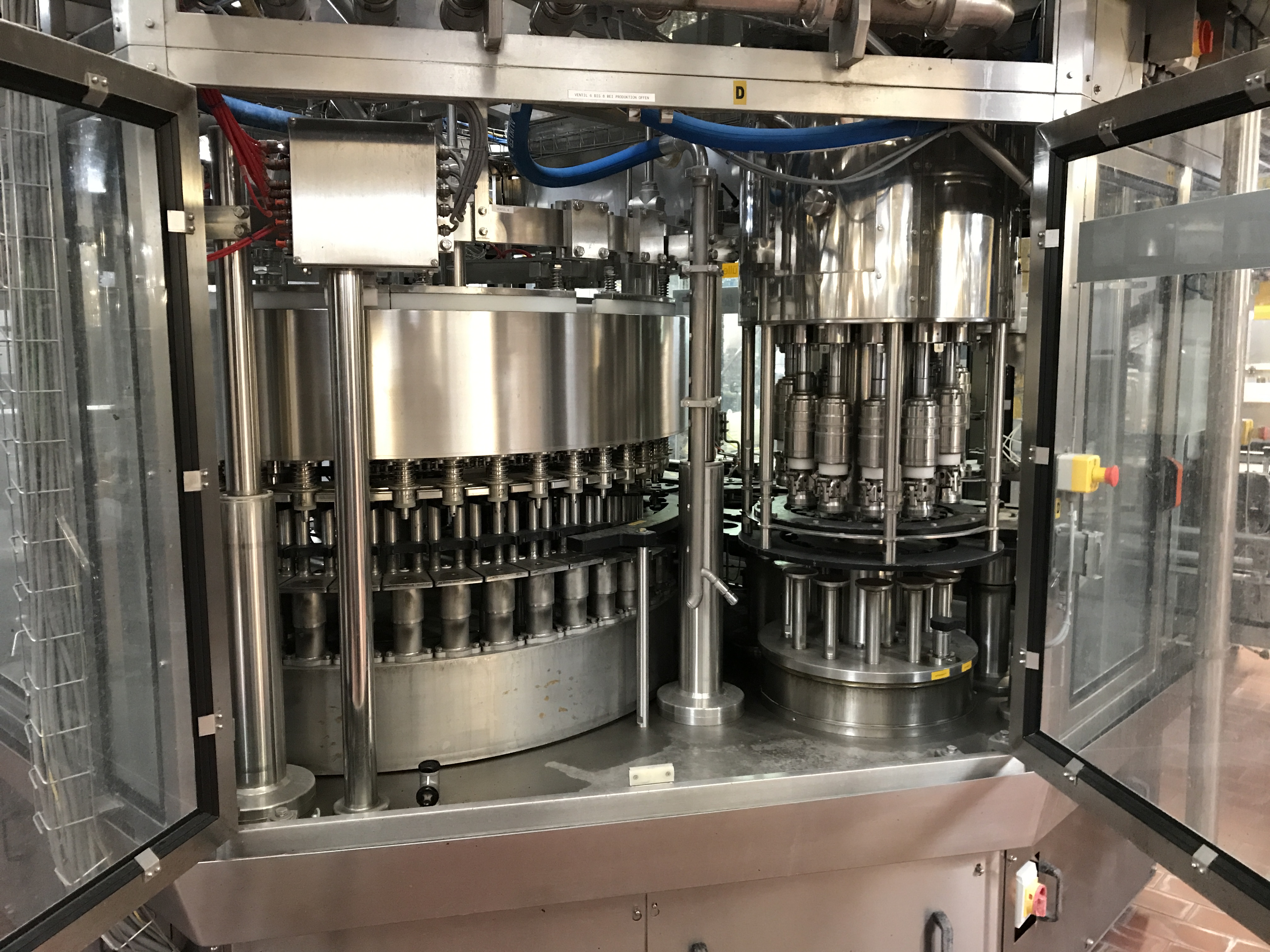

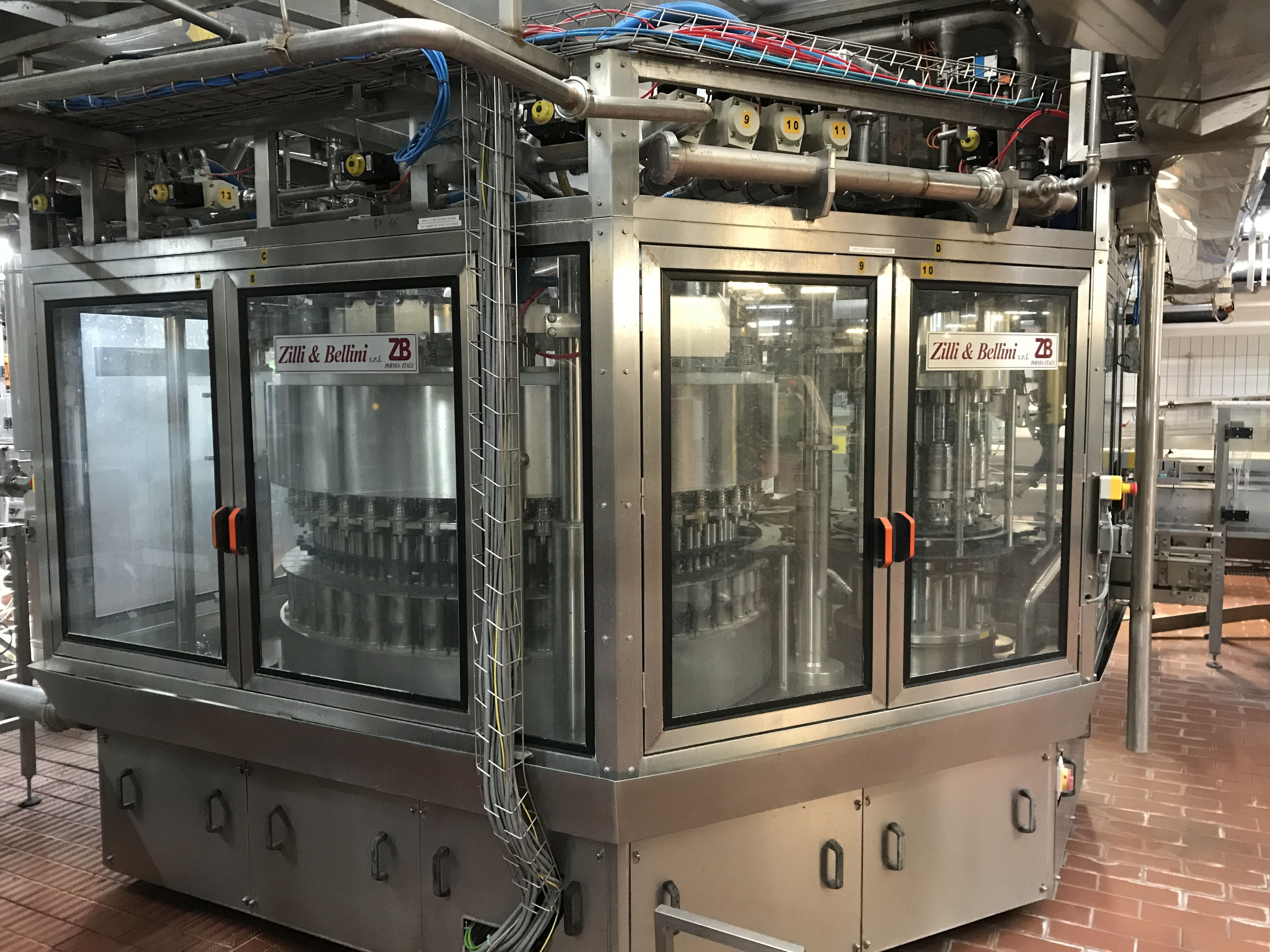

Combined rinser and filler for 0.5 litre, 1.0 litre and 1.5 litre PET bottles. Output: 24,000 bottles/h A chlorine dioxide dosing unit and a sterile water supply are connected to the rinser. The filler is equipped with a screw capper. The filling quantity is controlled via flow measurement. Liquid nitrogen dosing is possible via a mobile system., Additional title: PET bottle sanitising and filling system, Capacity: 24000 b/h , Formats: 0,5 l, 1,0 l und 1,5 l PET-bottles, Running direction: left -> right, Operation / Control: Touch-Panel / Simatic S 7, Material: mainly stainless steel, Position: free standing, Features: Stainless steel enclosure, plexiglass protective screen opening upwards; 70 rinsing valves on the rinser; 80 filling valves; filling quantity recording via IDM; Alcoa capper 28 mm Bericap; Prominent chlorine dioxide dosing; filtration system for sterile water, mobile liqu ...

Two vertical stainless steel pressure tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks, Max. content: 8578 l, Max. pressure: 3 bar, Width: approx. 1.9 m, Height: approx. 4.3 m, Material: stainless steel, Position: free-standing, Base construction: cylindrical tank with dished bottoms and square tube feet on domes, Features: Bunging apparatus, pressure gauge, 2 shell cooling zones, standpipe for content display, manhole, sampler and side inlet in the frame, automatic valve with temperature-control, central bottom outlet with shutting flap

6 vertical stainless steel tanks with jacket cooling and various fittings., Additional title: vertical, coolable stainless steel tanks, Content: 2200 l, Max. pressure: 0,99 bar, Length: 1000 mm, Width: 1000 mm, Height: 1965 mm, Operation / Control: manual, Material: stainless steel 1.4301, Position: free-standing, Base construction: cylindrical tank with curved bottoms and square tube feet on domes, Features: sprayball, bunging apparatus, pressure gauge, 1 shell cooling zone, standhose for content display, manhole, thermometer and sampler in the shell, manual valve for cooling control, central bottom outlet
